Home >> Lincoln >> 2011 >> MKX FWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Trunk / Liftgate Control Module >> C4174B Liftgate/Trunk Module (LTM)

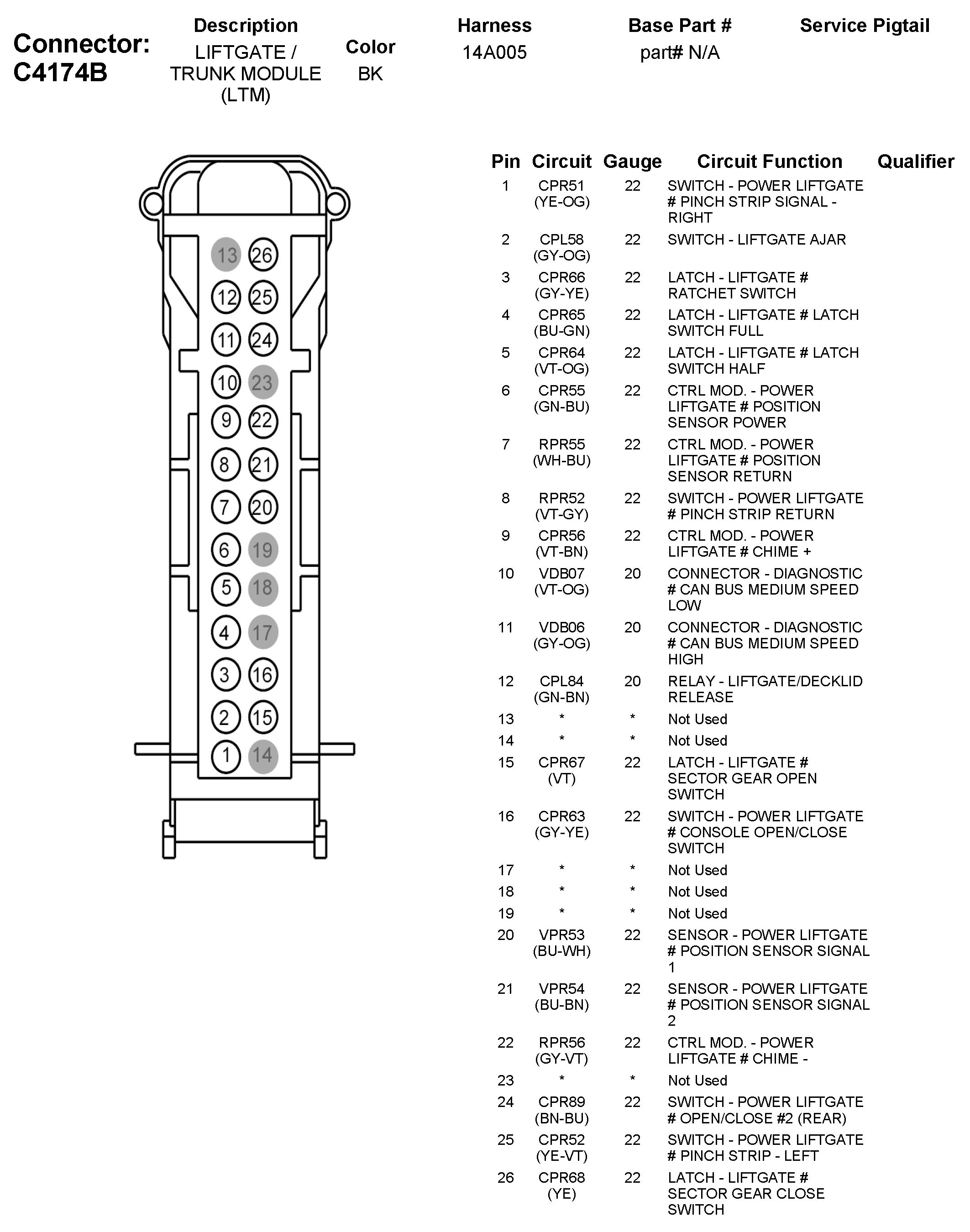

C4174B Liftgate/Trunk Module (LTM)
