Home >> Kia >> 2012 >> Optima L4-2.4L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> System Overview Diagram

System Overview Diagram

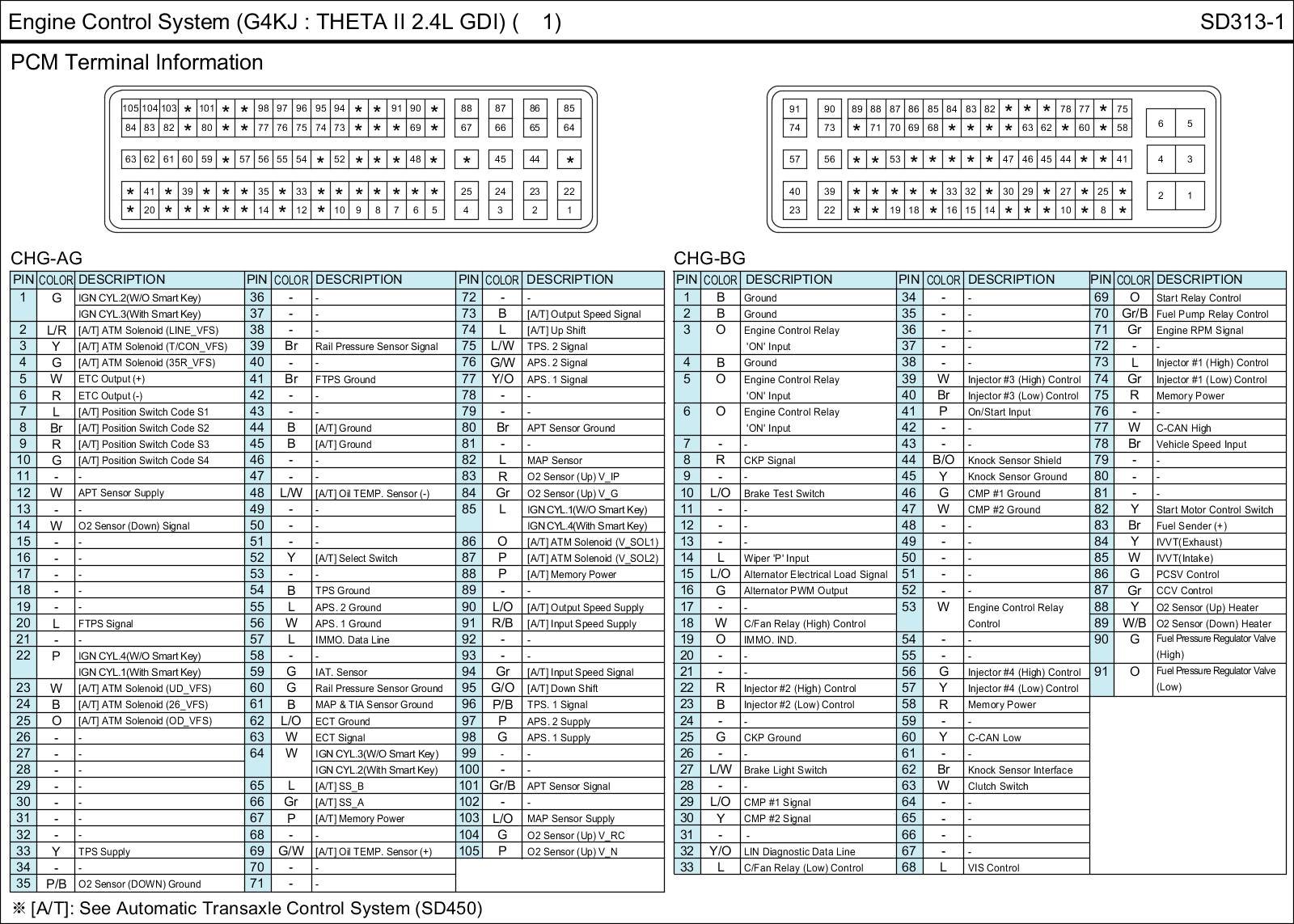

PCM Terminal Information:

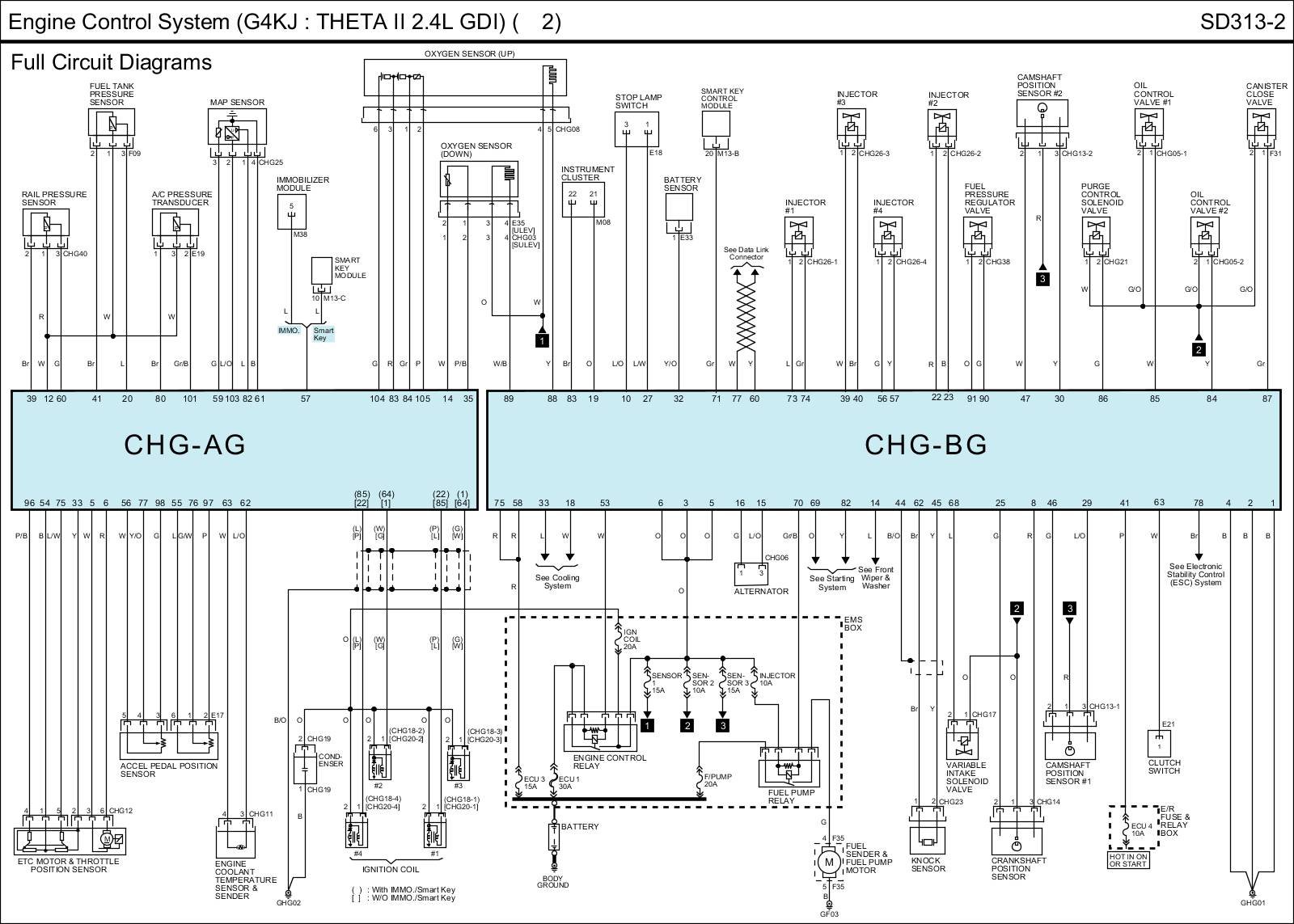

Full Circuit Diagrams:
