Engine Control Module





ECM Terminal And Input/Output signal

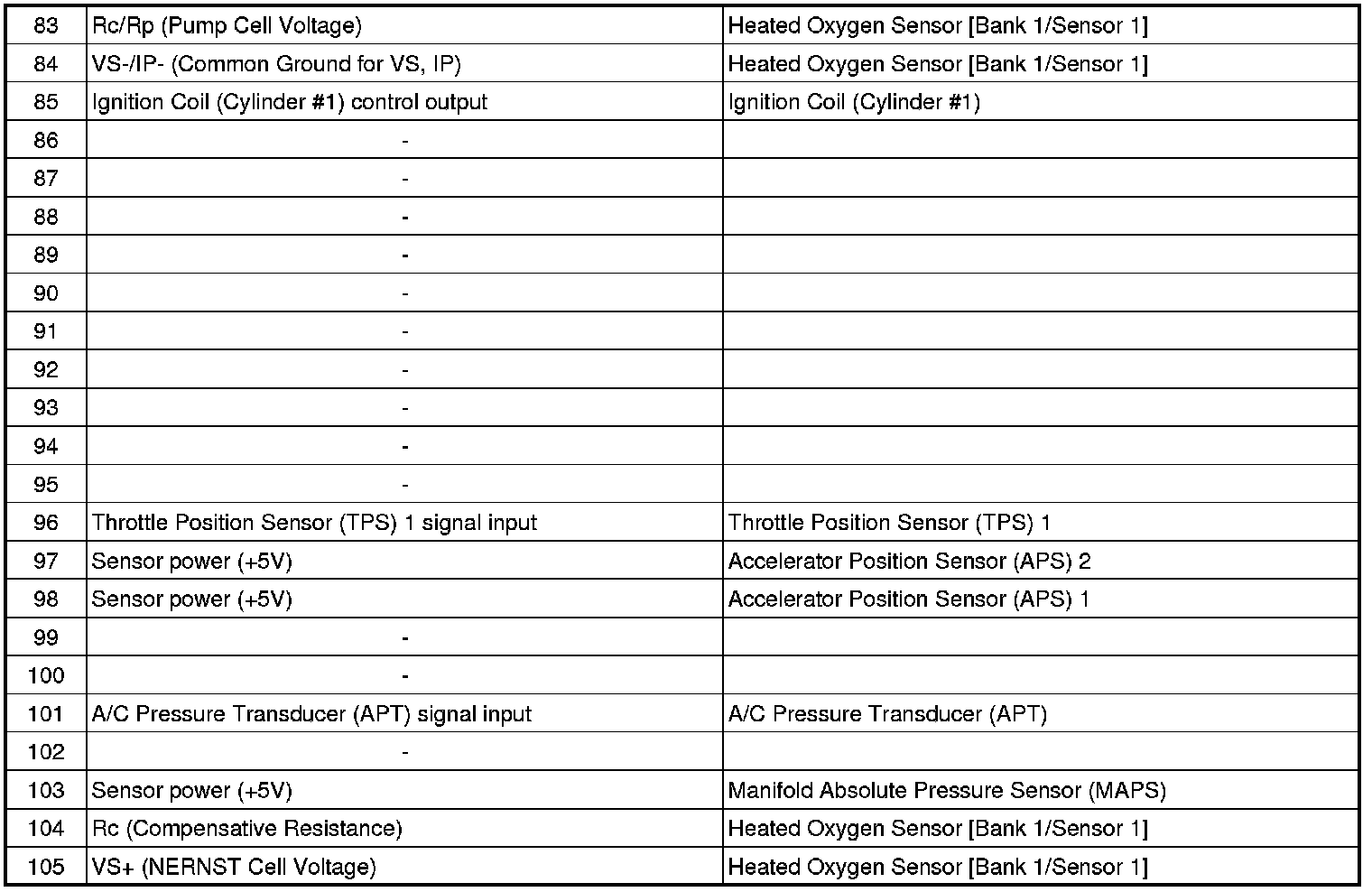

ECM Terminal Function

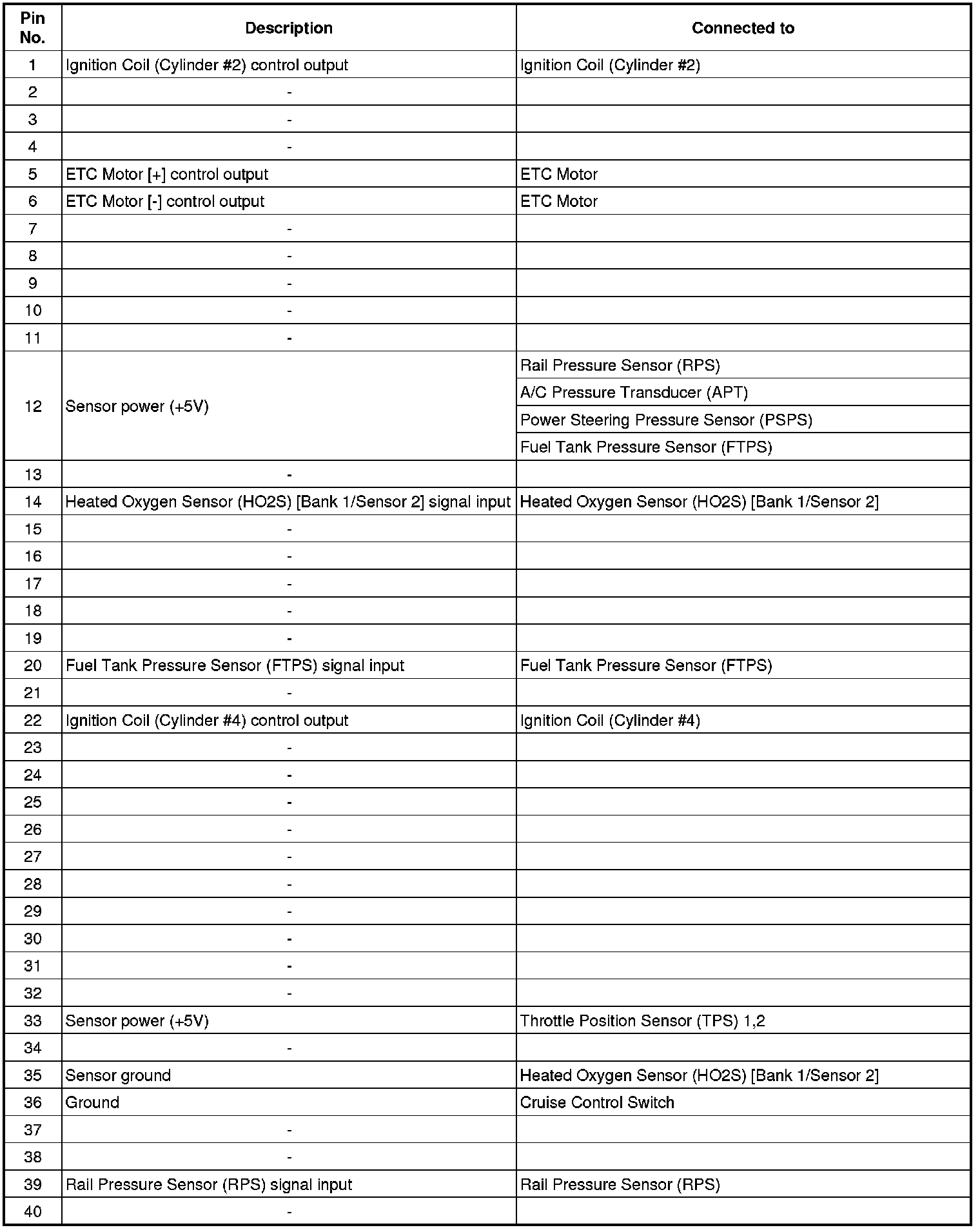

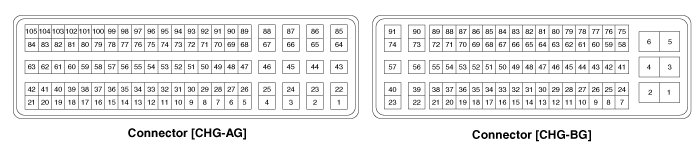

Connector [CHG-AG]

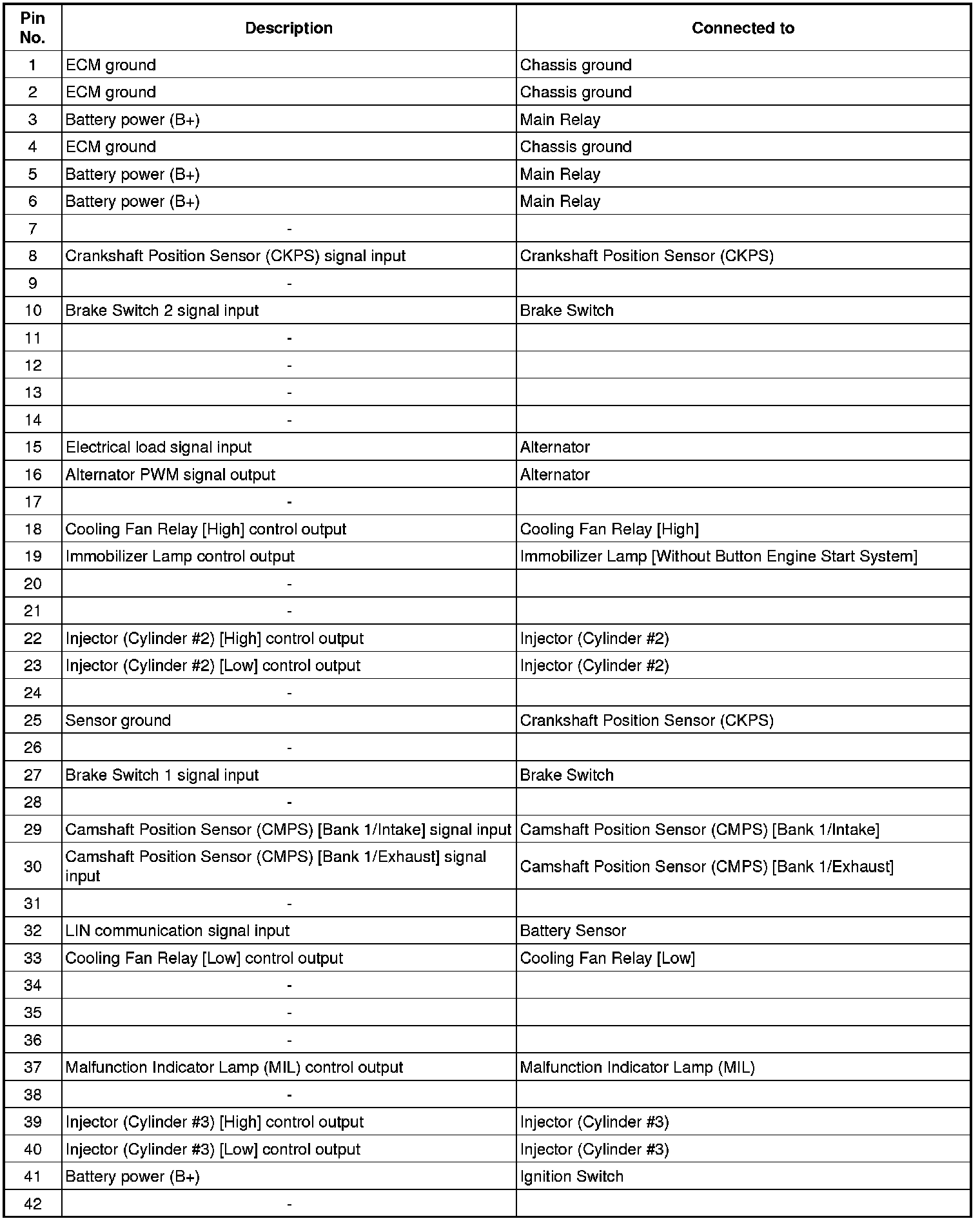

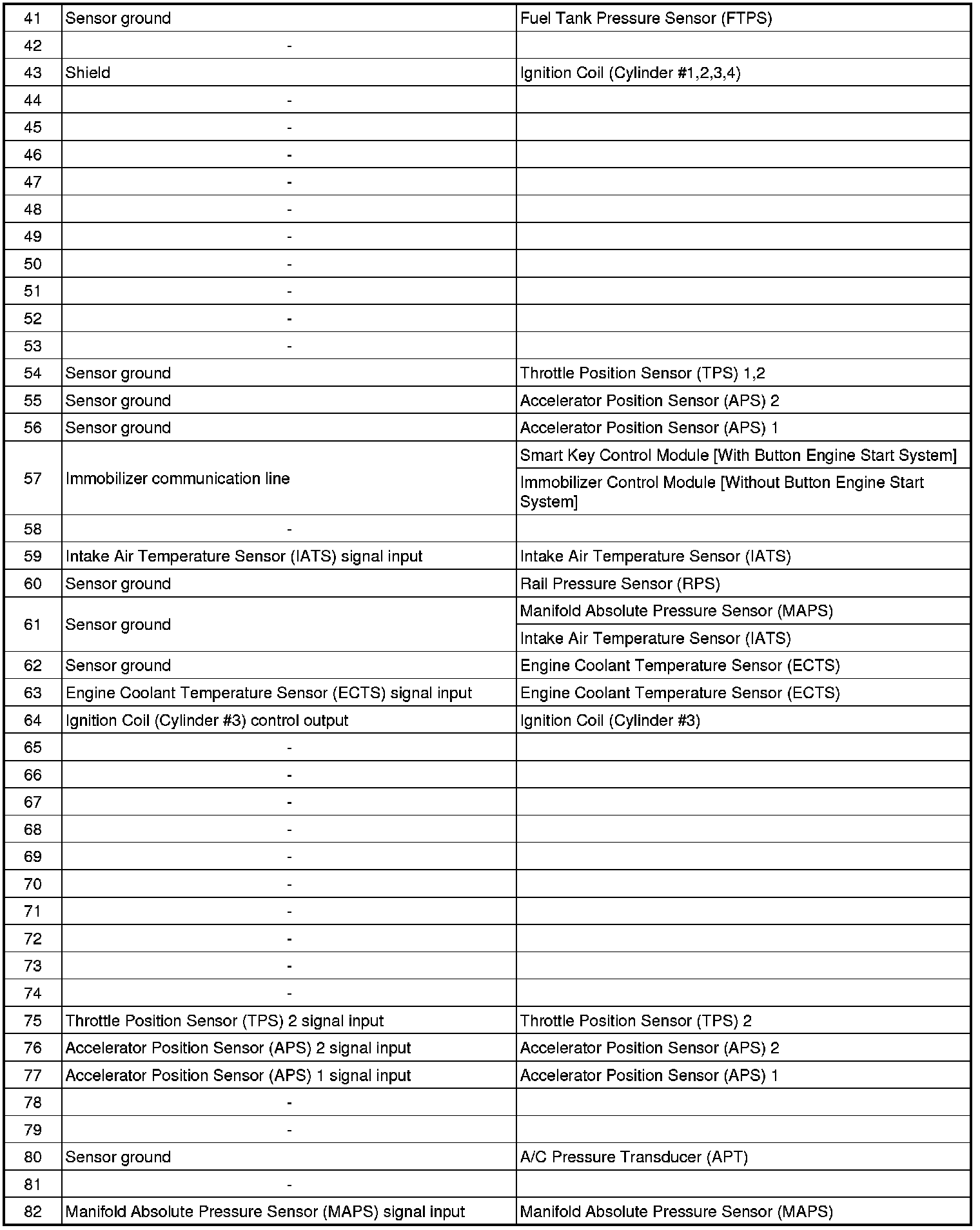

Connector [CHG-BG]

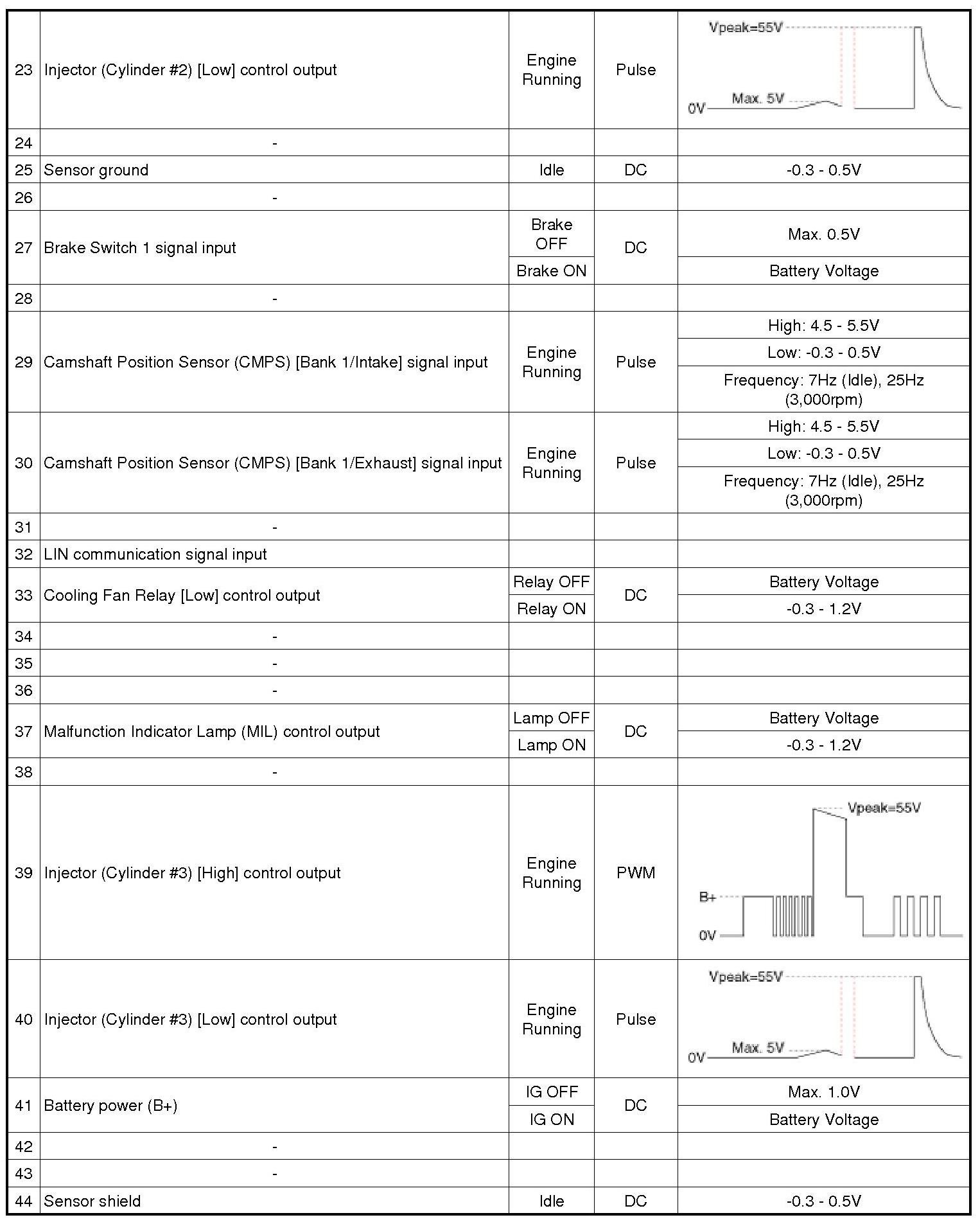

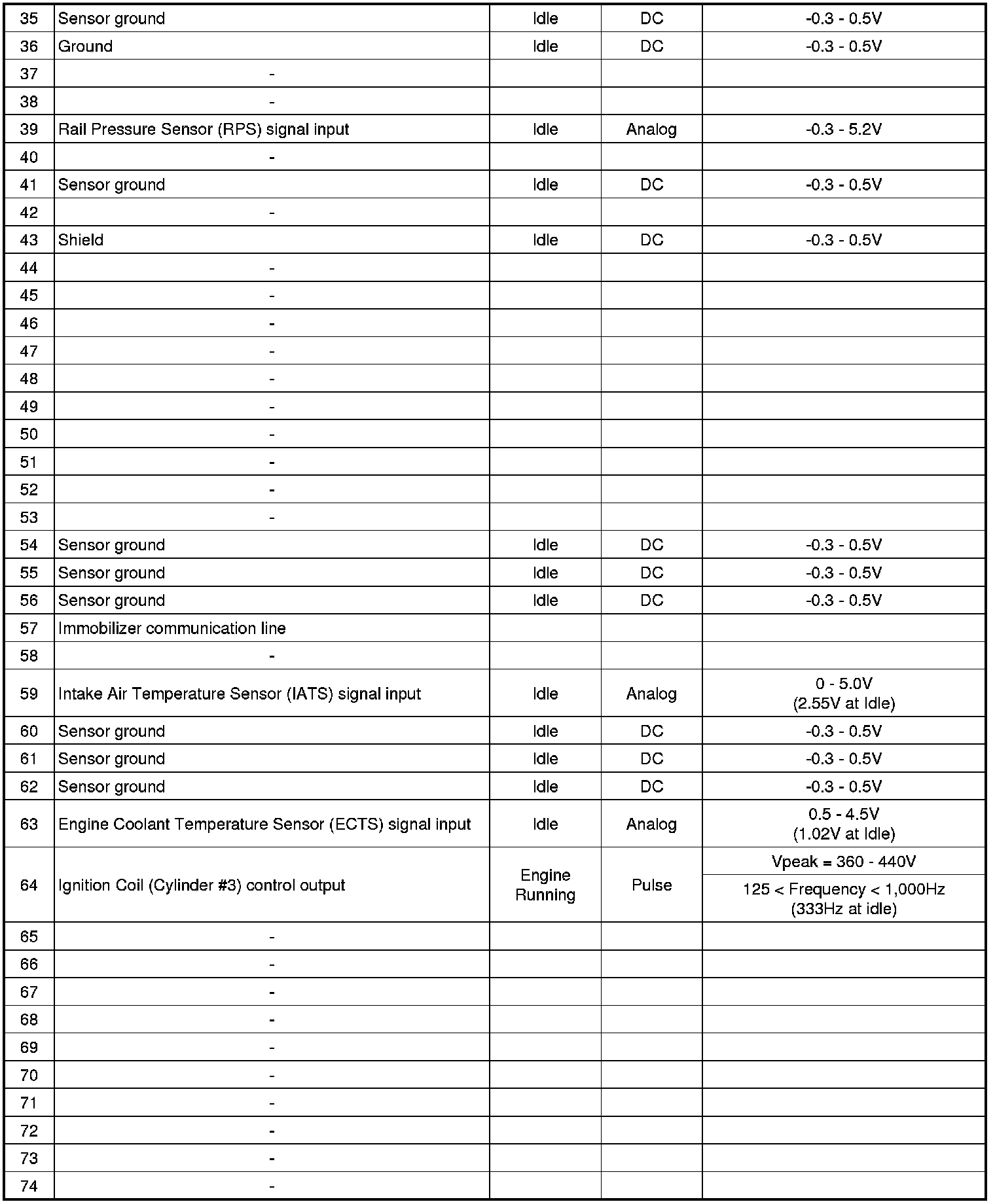

ECM Terminal Input/ Output signal

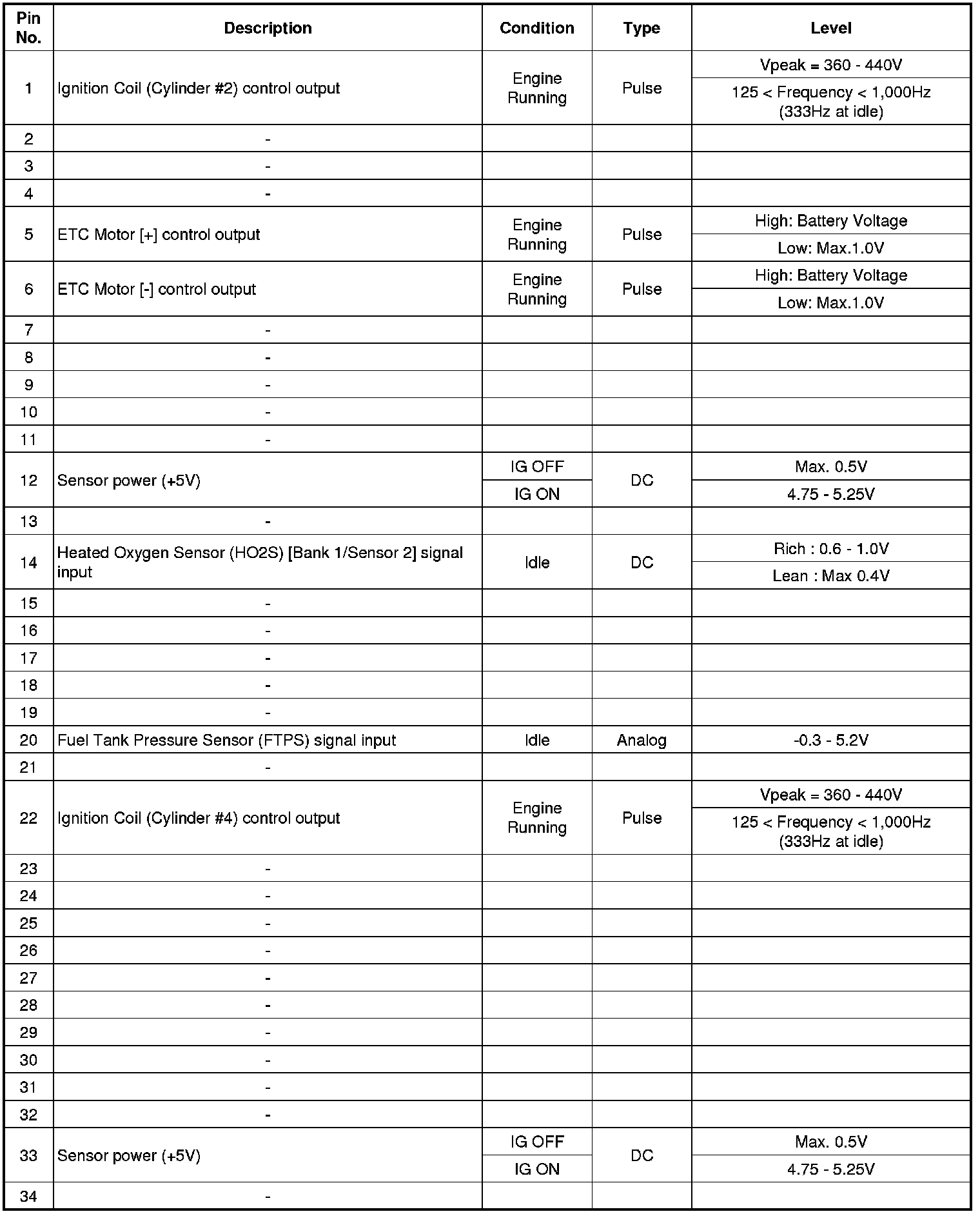

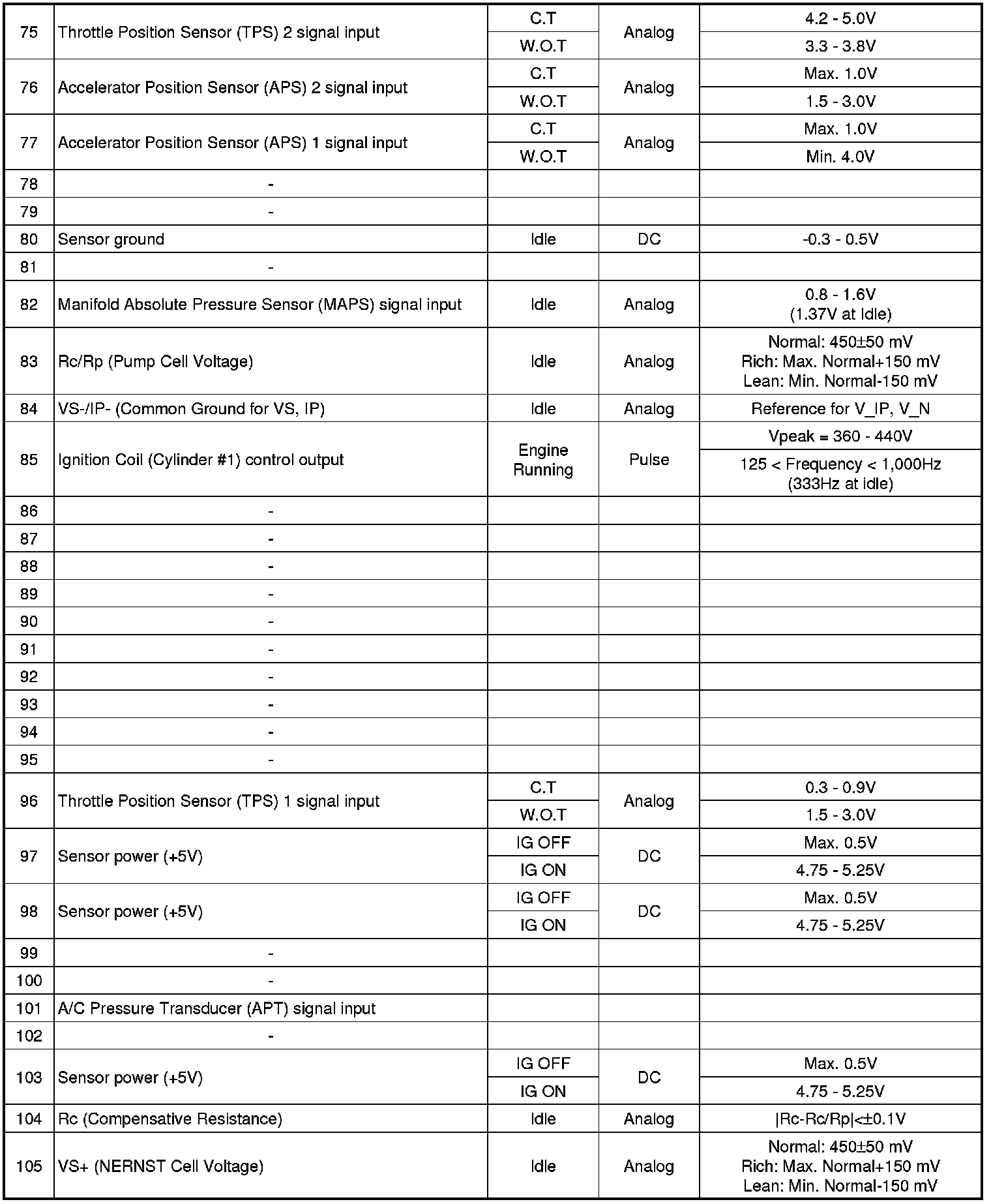

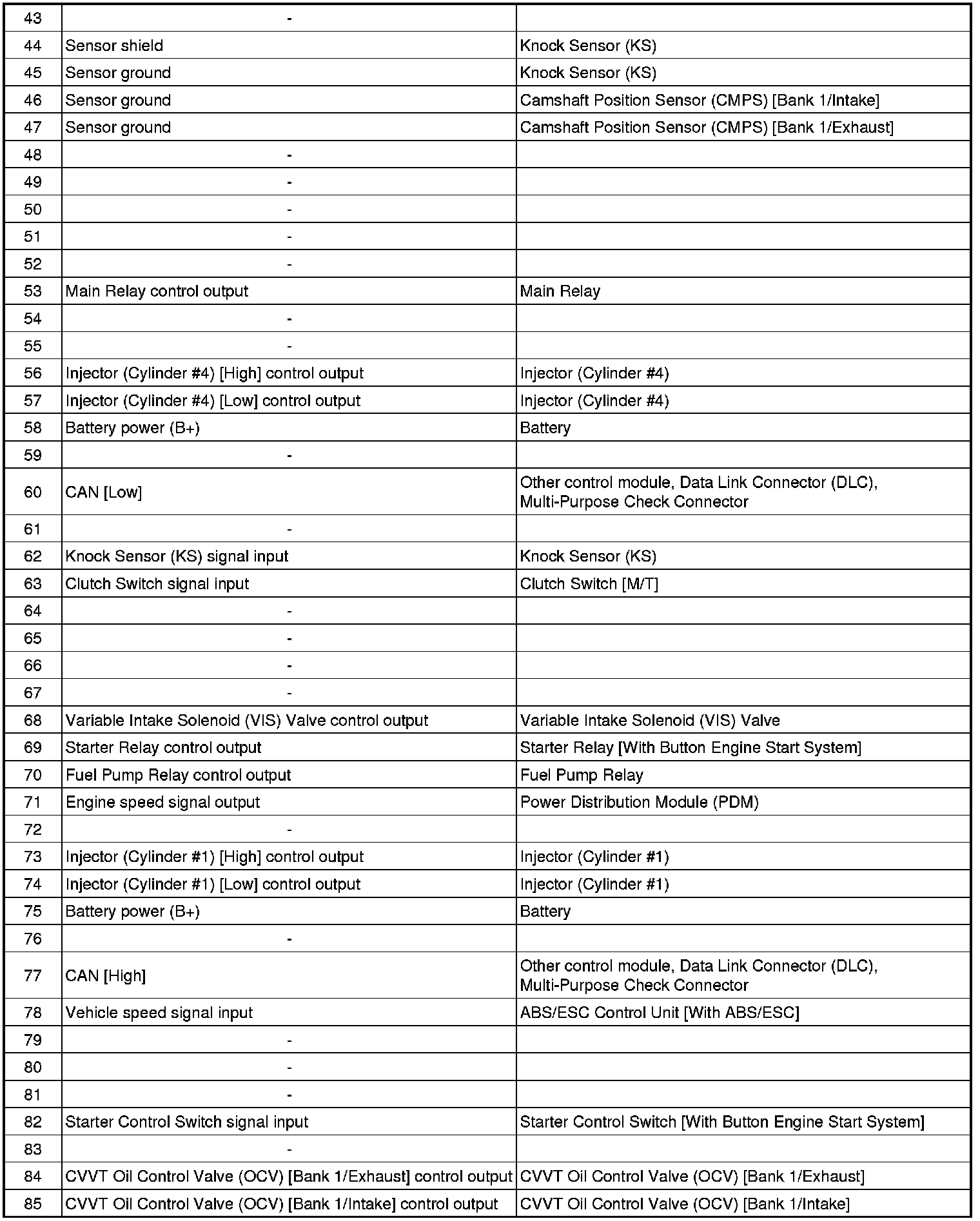

Connector [CHG-AG]

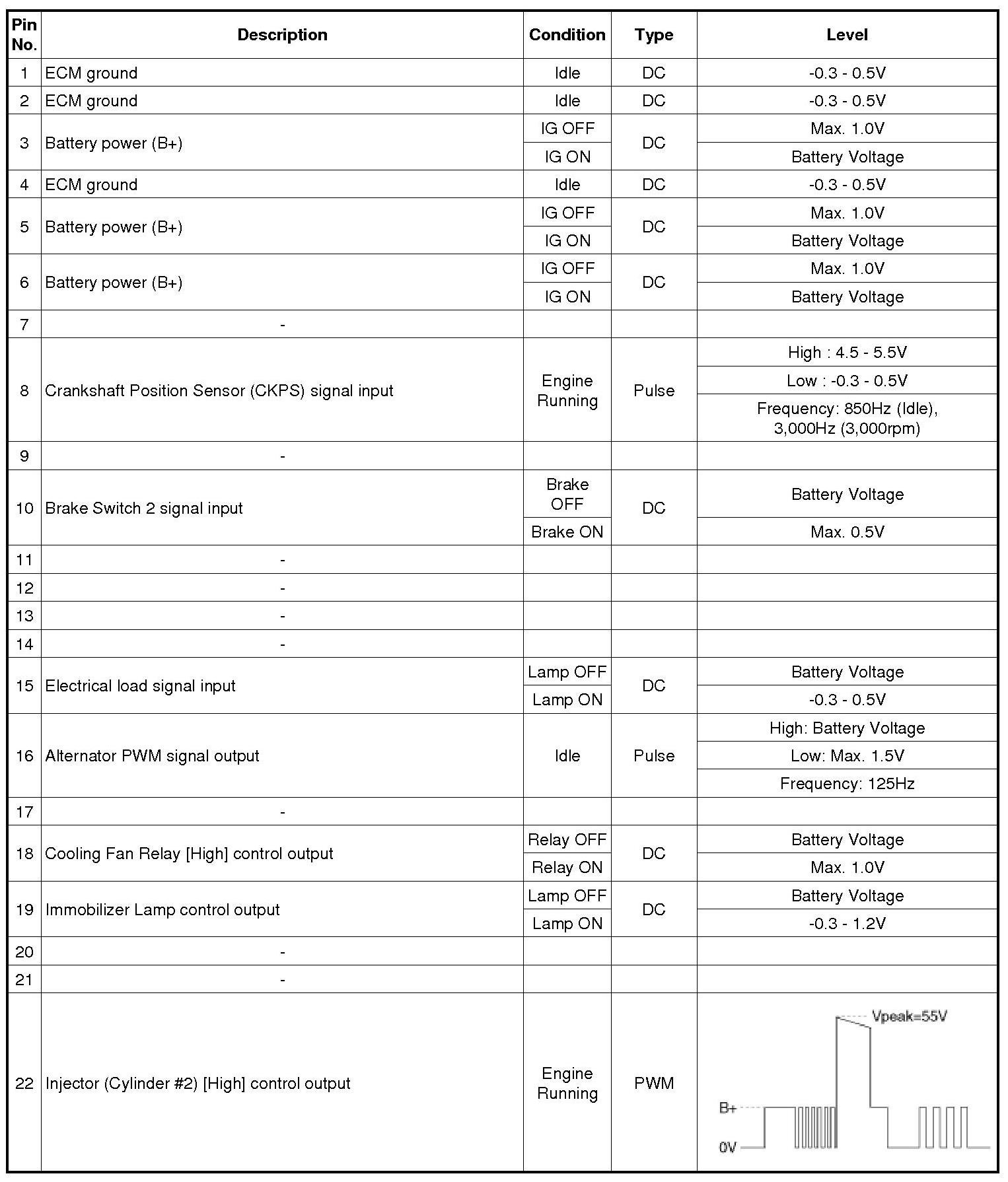

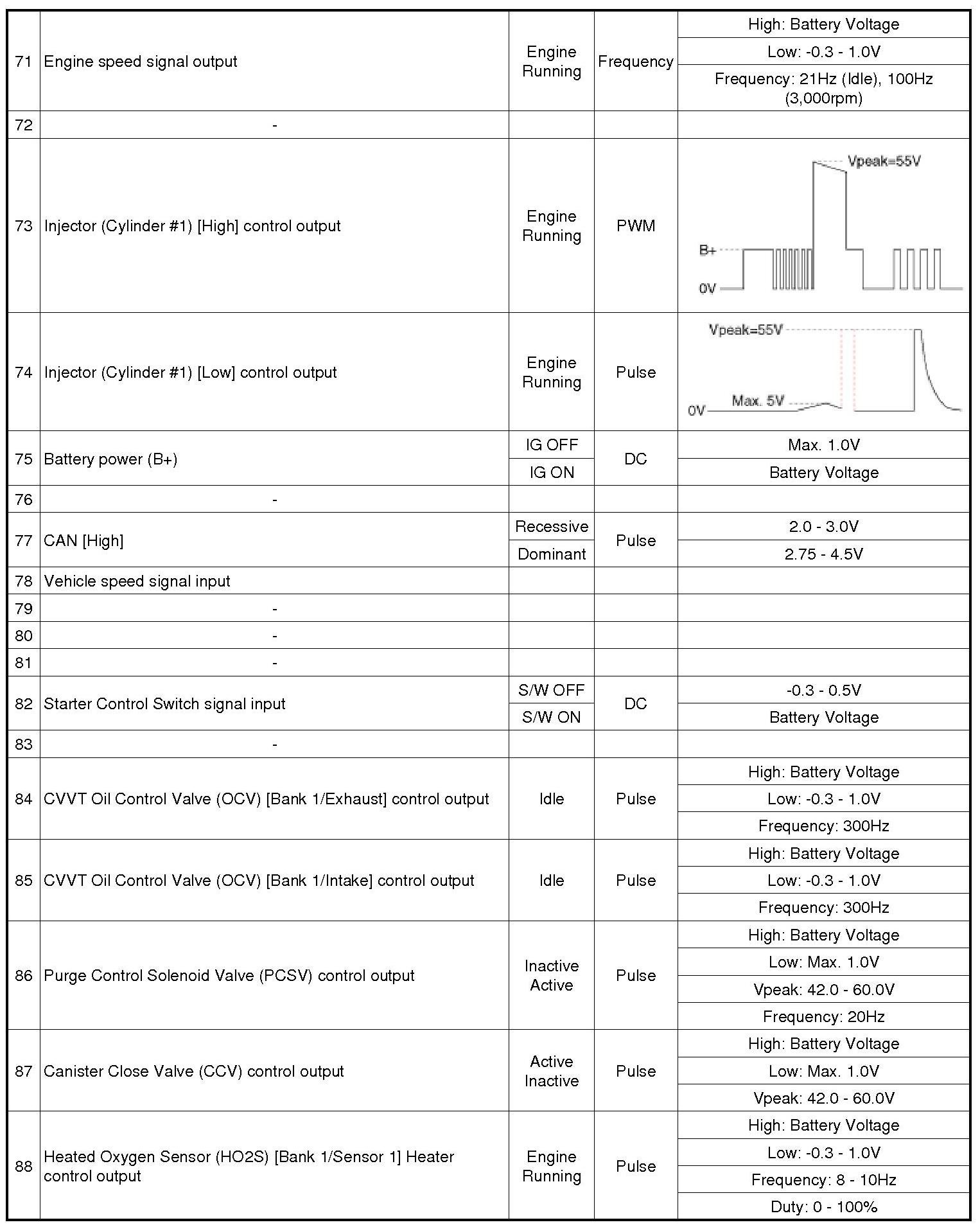

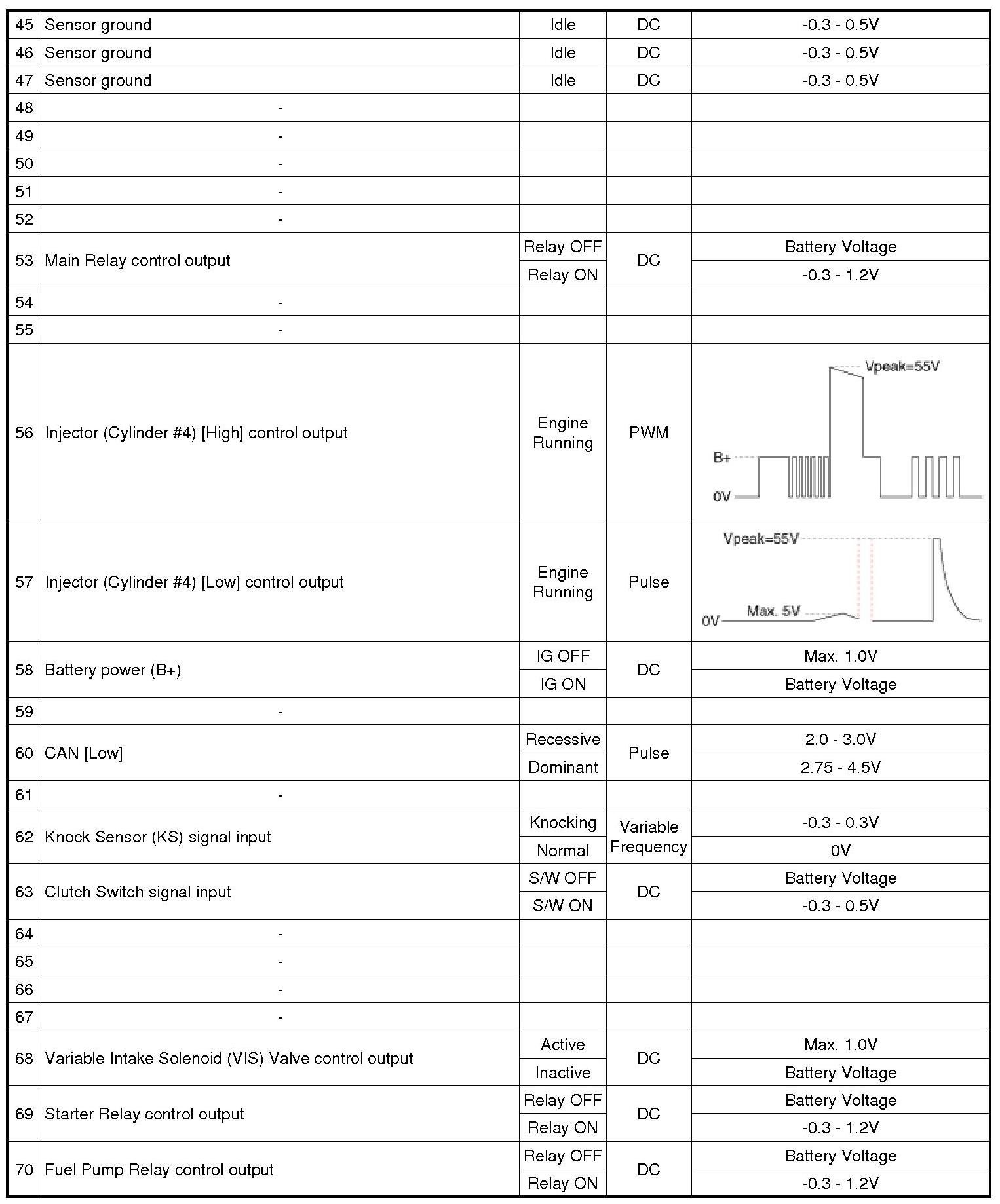

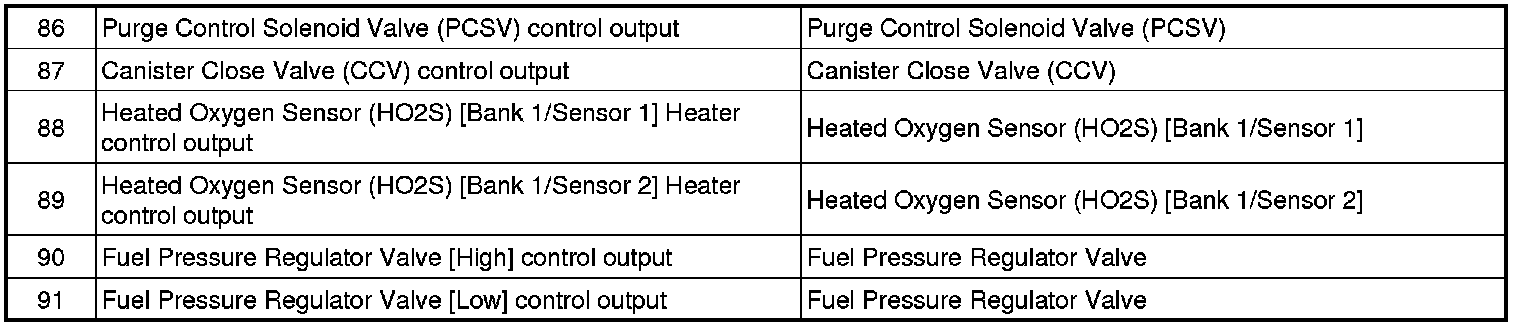

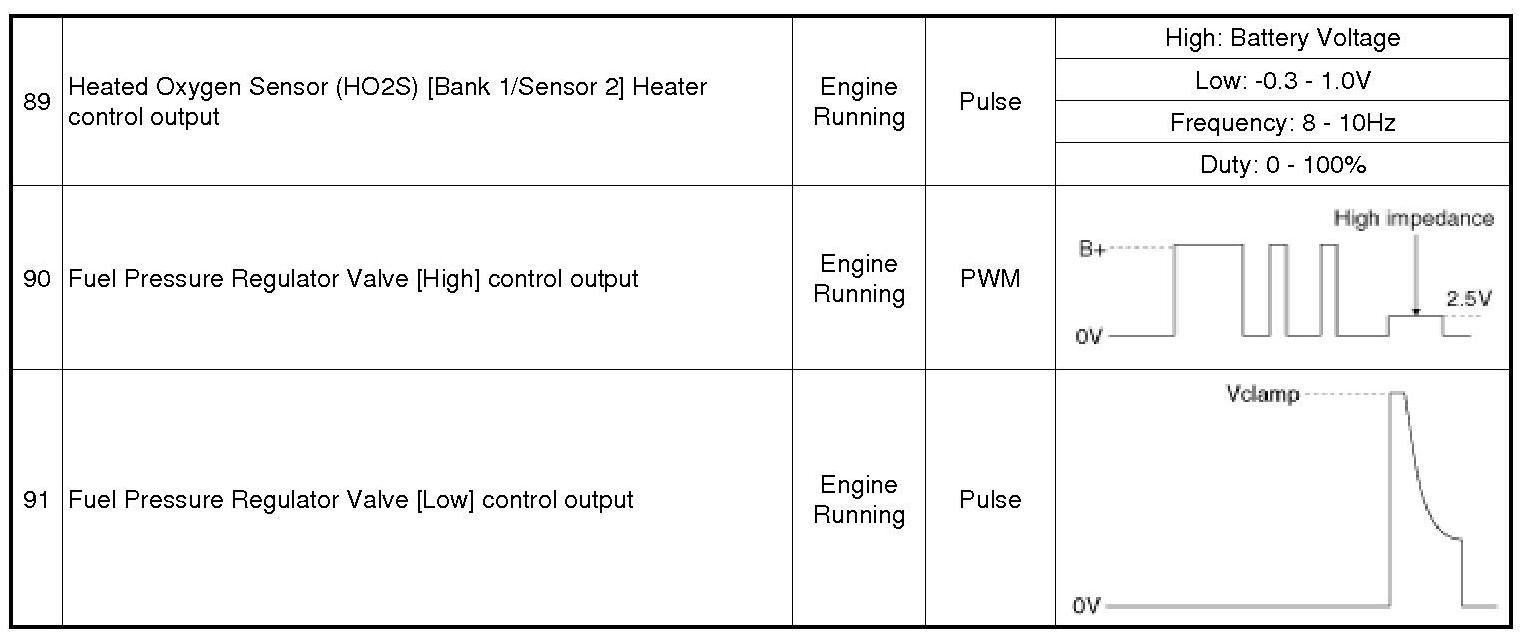

Connector [CHG-BG]

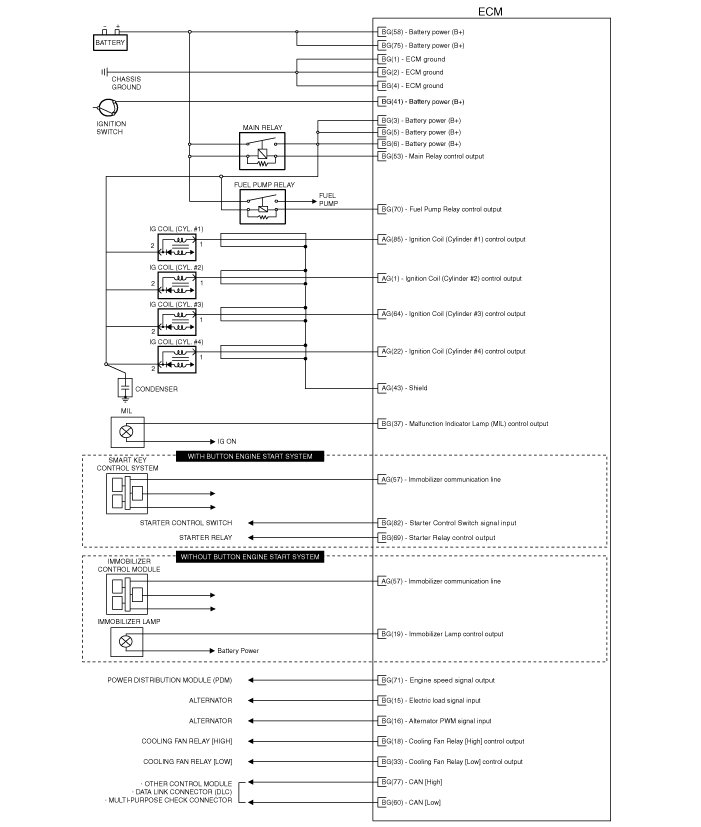

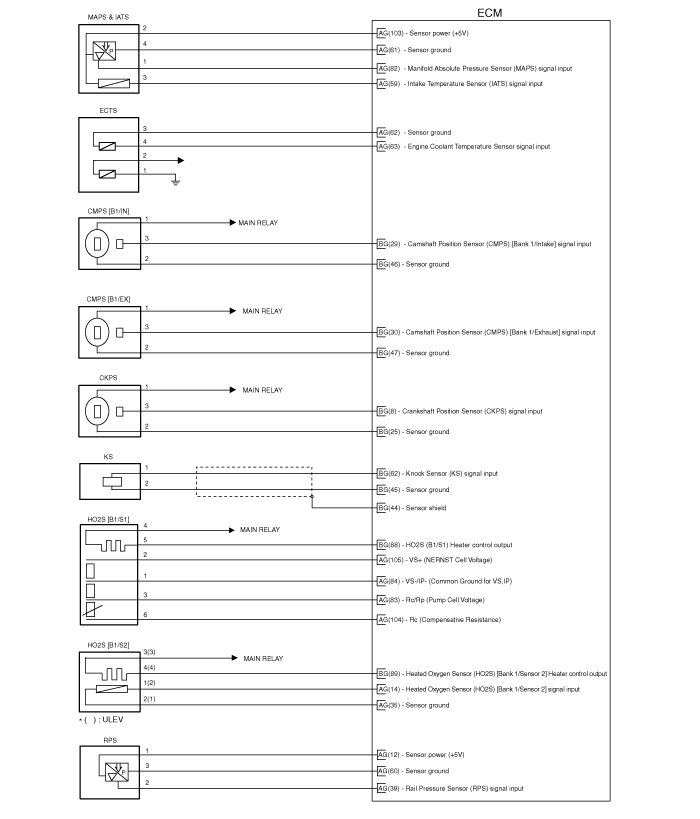

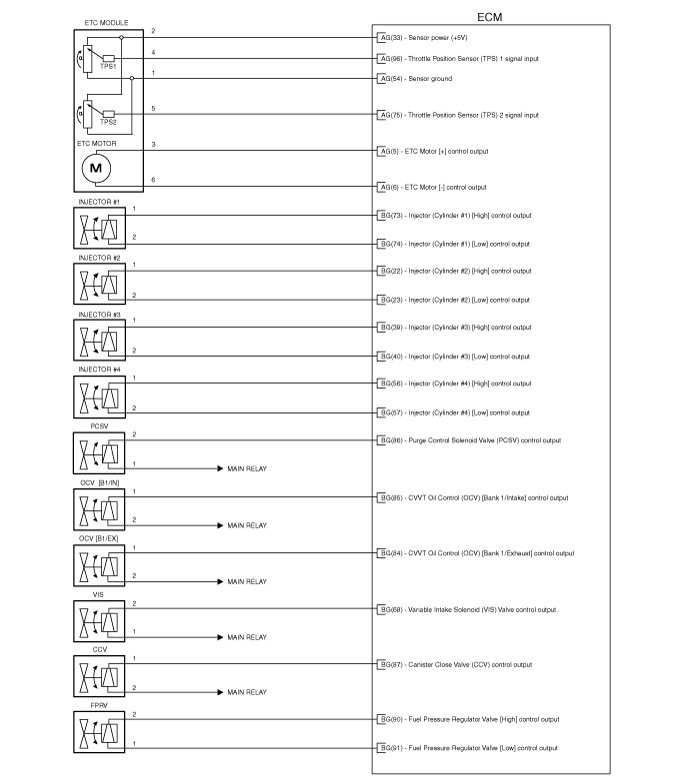

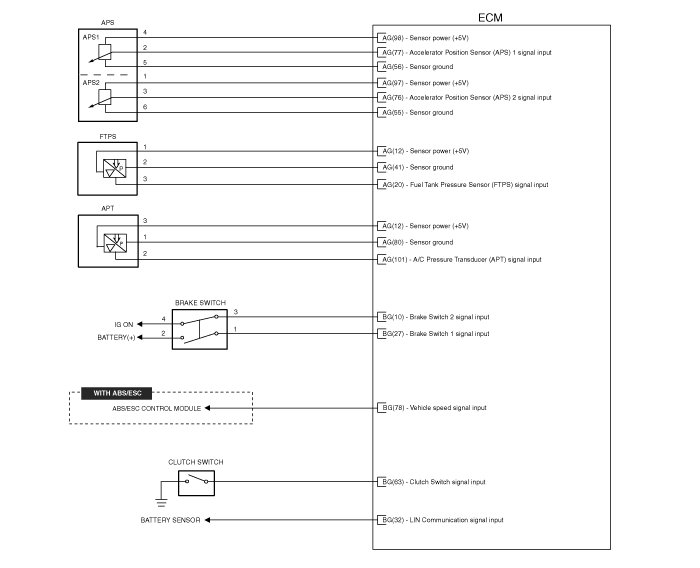

Circuit Diagram
