Control Module, A/T





1. TCM Connector and Terminal Function

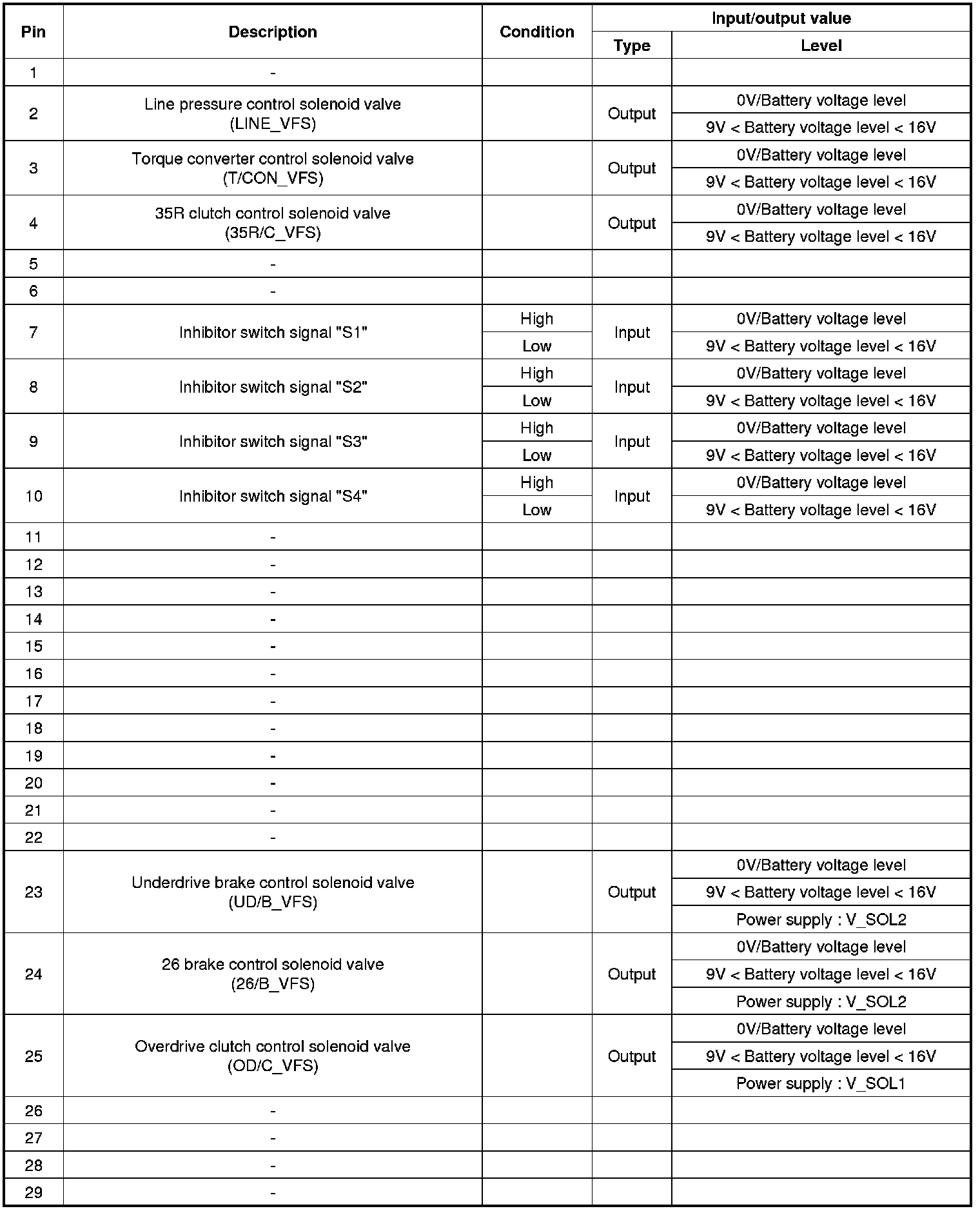

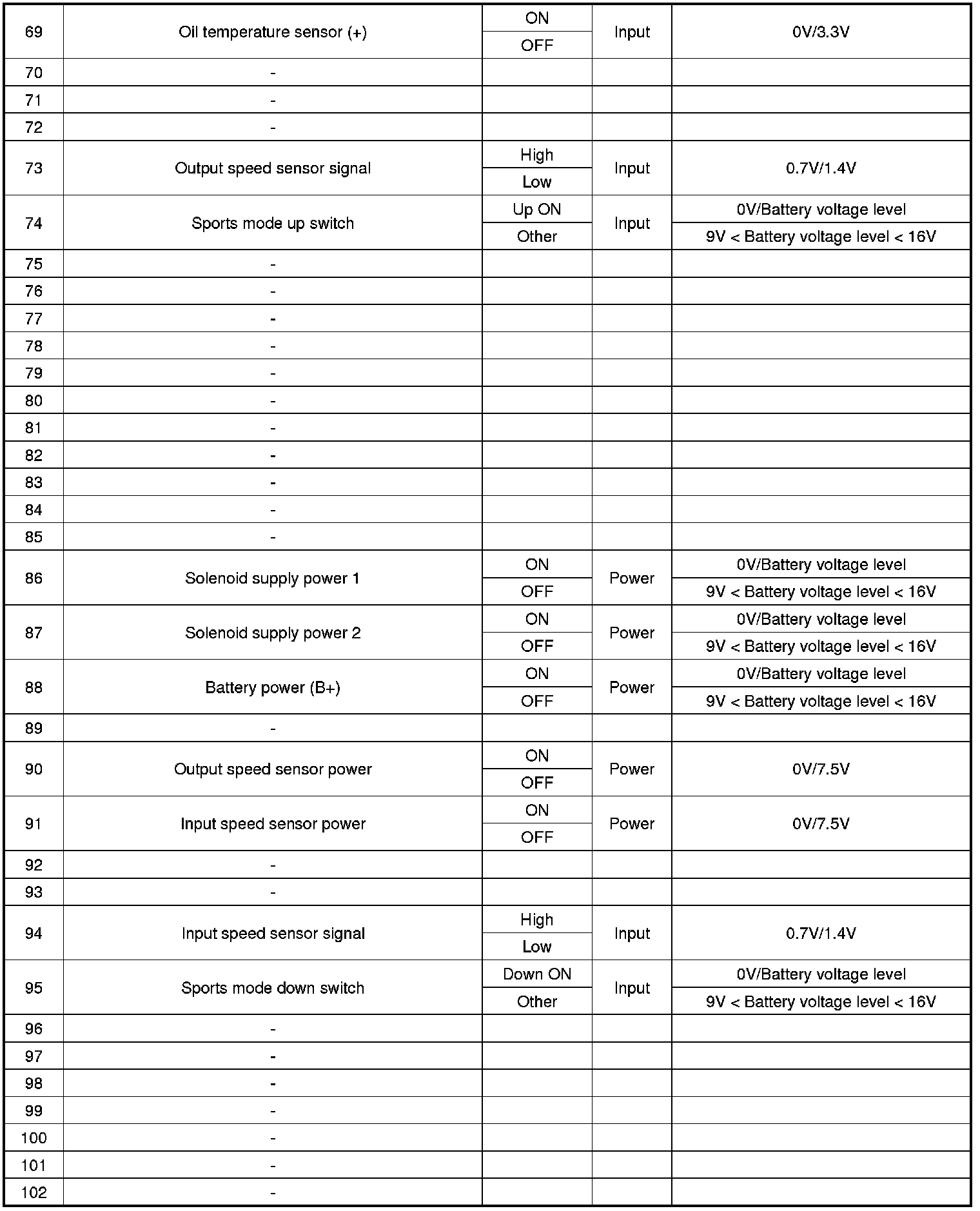

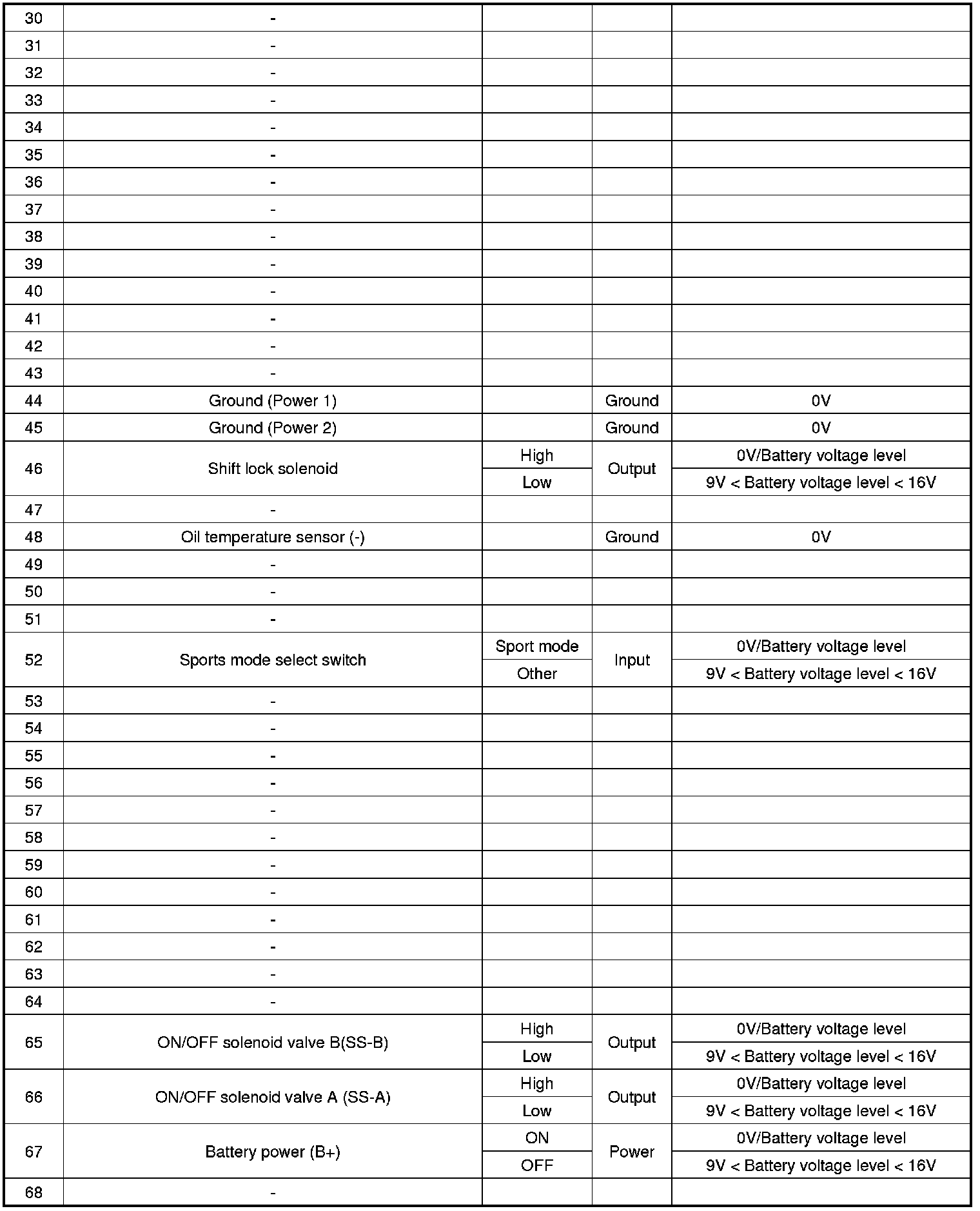

2. TCM Terminal Function

Connector [CHG-AG]

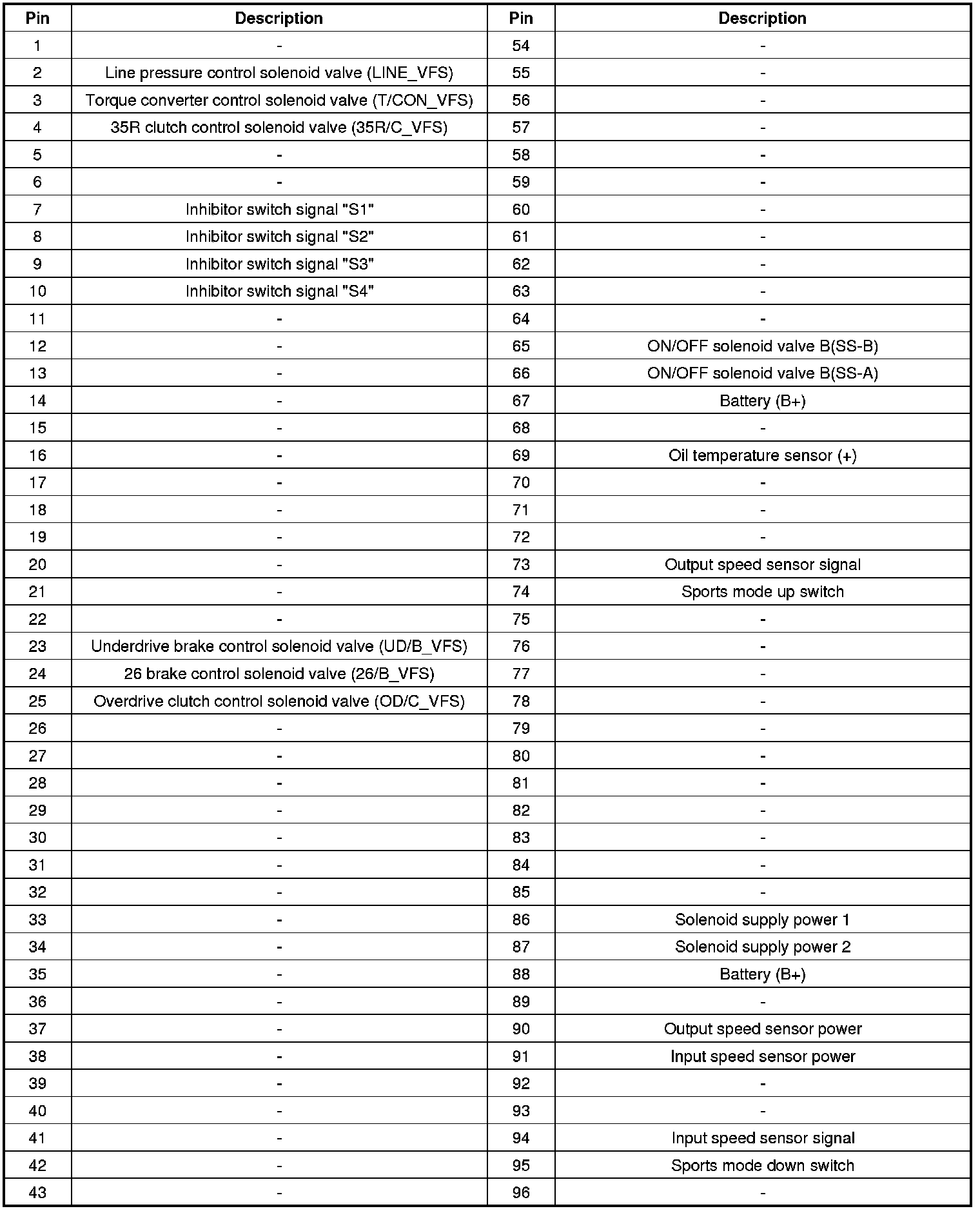

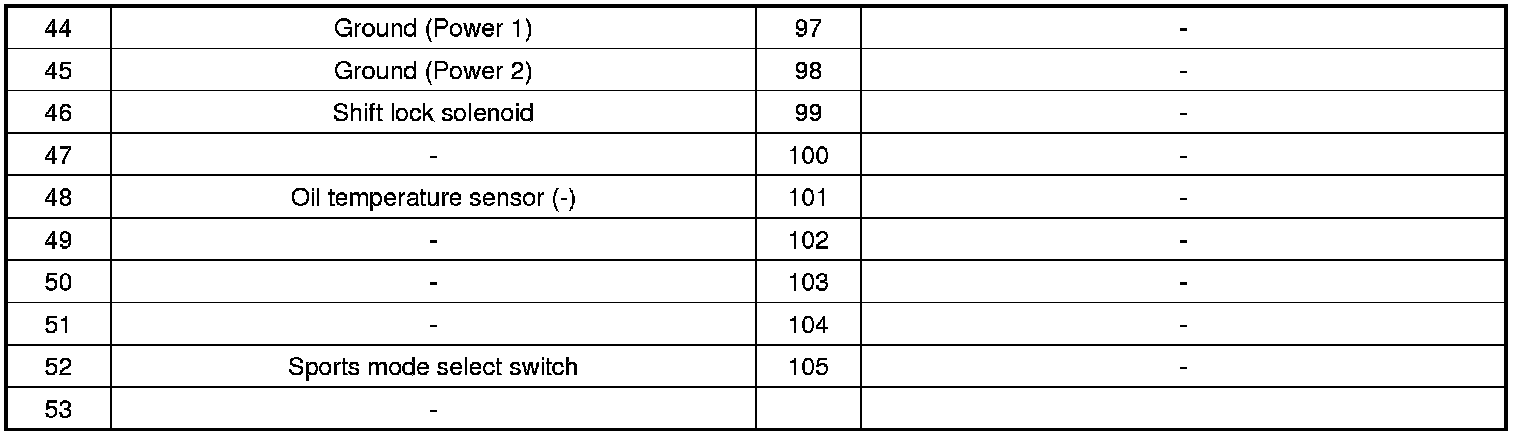

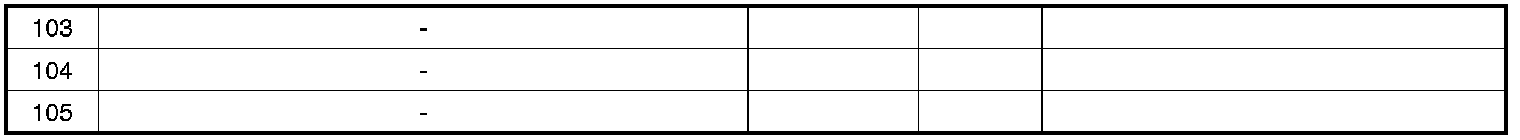

TCM Terminal Input/ Output Signal

Connector [CHG-AG]

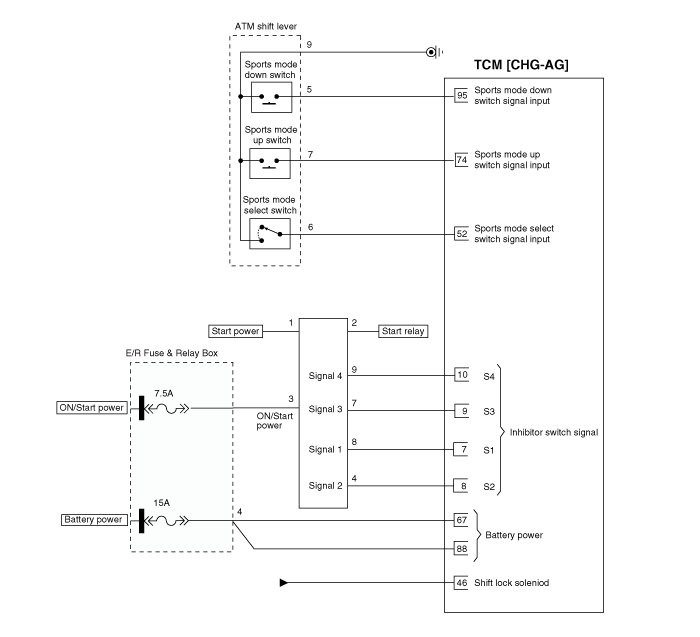

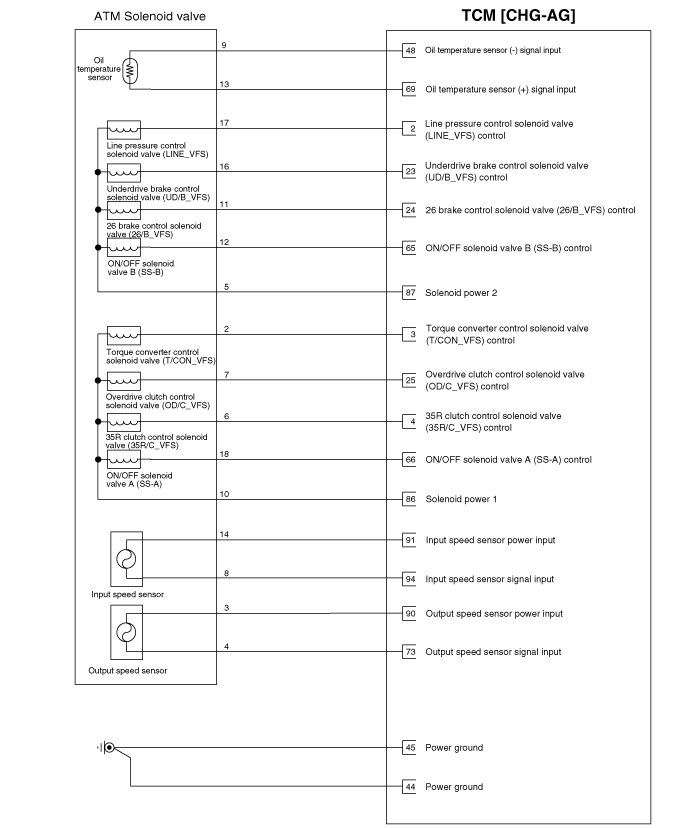

Circuit Diagram
