Home >> Kia >> 2012 >> Optima L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module >> Driver CCS Control Module (With CCS)

Driver CCS Control Module (With CCS)

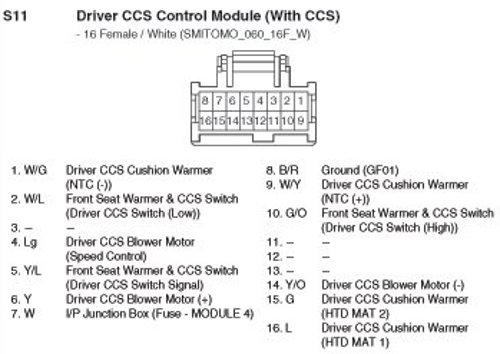

S11 Driver CCS Control Module (With CCS):
