I/P Junction Box

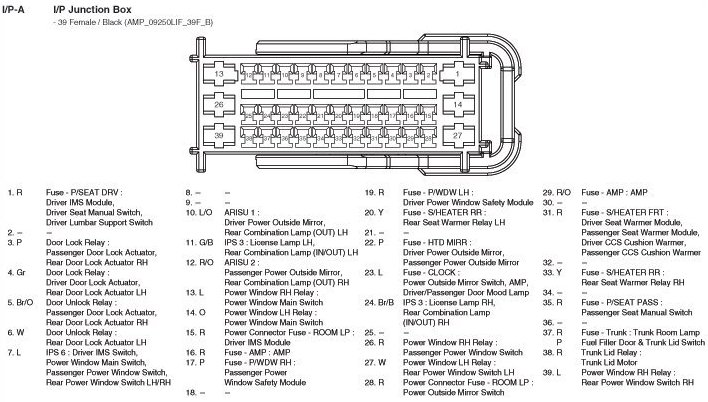

I/P-A I/P Junction Box:

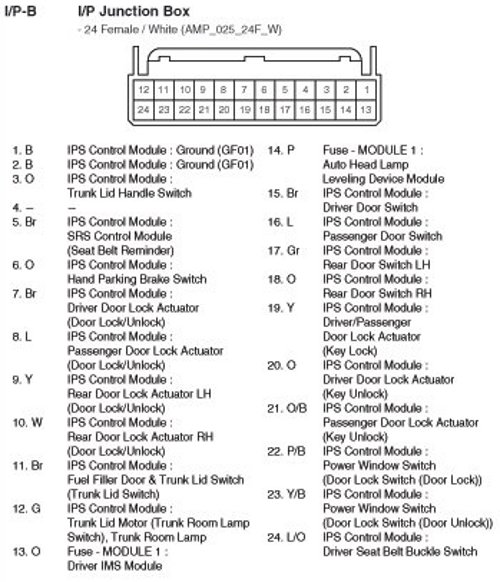

I/P-B I/P Junction Box:

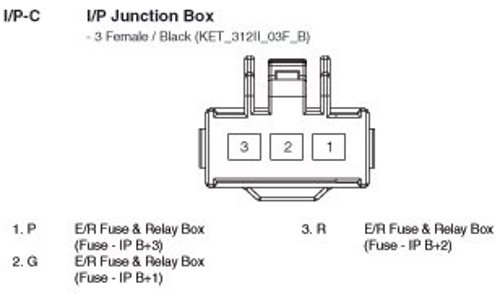

I/P-C I/P Junction Box:

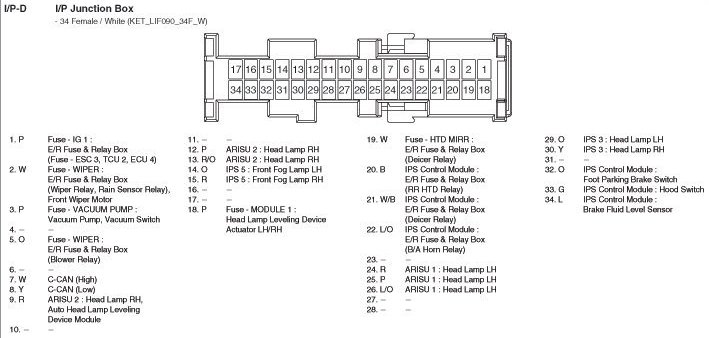

I/P-D I/P Junction Box:

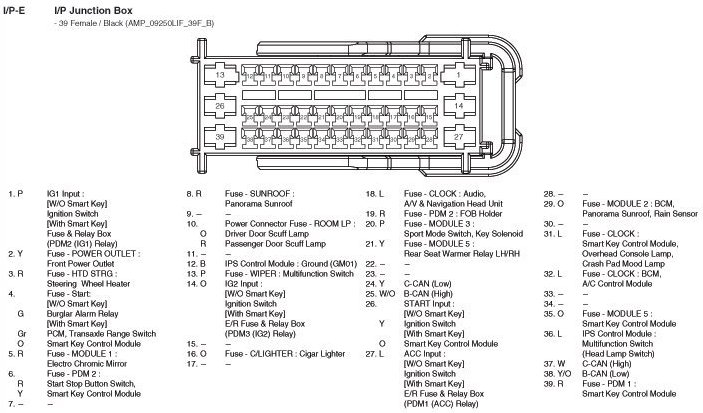

I/P-E I/P Junction Box:

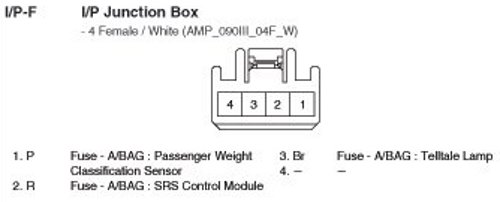

I/P-F I/P Junction Box:

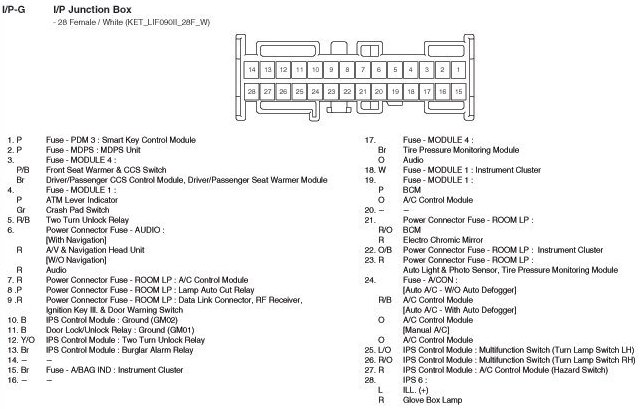

I/P-G I/P Junction Box:
