Home >> Kia >> 2012 >> Optima L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Navigation System >> Navigation Module >> A/V & Navigation Head Unit

A/V & Navigation Head Unit

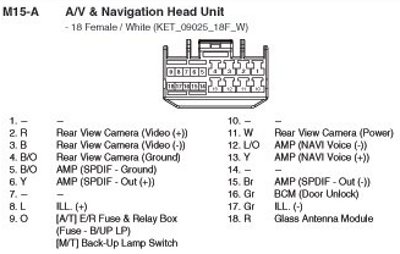

M15-A A/V & Navigation Head Unit:

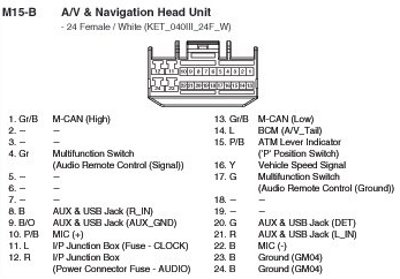

M15-B A/V & Navigation Head Unit:

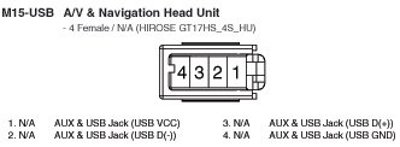

M15-USB A/V & Navigation Head Unit:

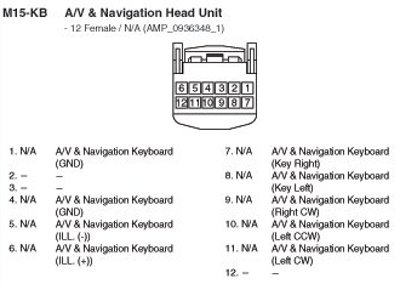

M15-KB A/V & Navigation Head Unit:
