Home >> Kia >> 2012 >> Optima L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC >> A/C Control Module (Manual)

A/C Control Module (Manual)

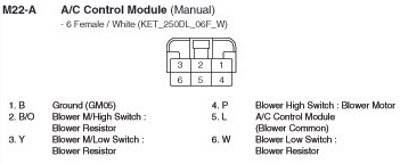

M22-A A/C Control Module (Manual):

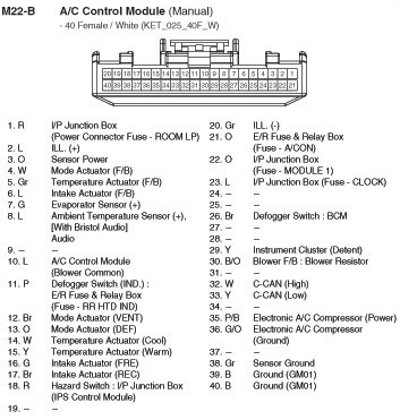

M22-B A/C Control Module (Manual):
