Home >> Kia >> 2012 >> Optima L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC >> A/C Control Module (Auto)

A/C Control Module (Auto)

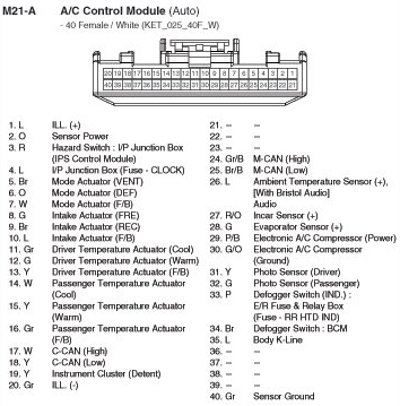

M21-A A/C Control Module (Auto):
