Kia
>>
2012
>>
Optima L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Component Connectors
>>

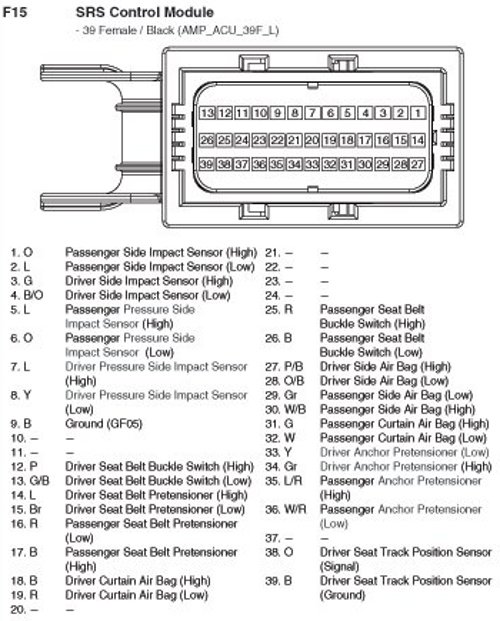

F15 SRS Control Module
F15 SRS Control Module
F15 SRS Control Module:
