Engine Control Module





ECM Terminal And Input/Output signal

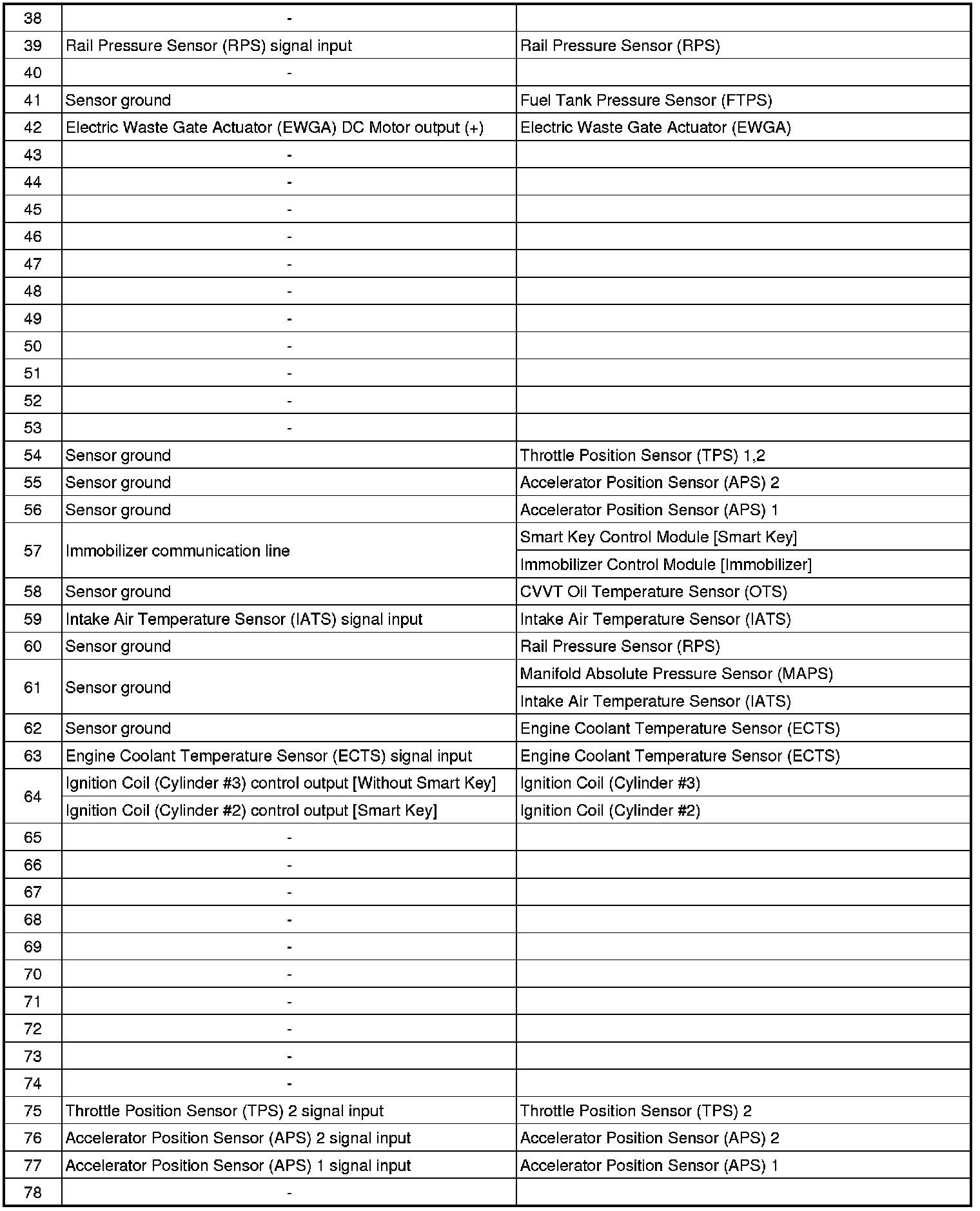

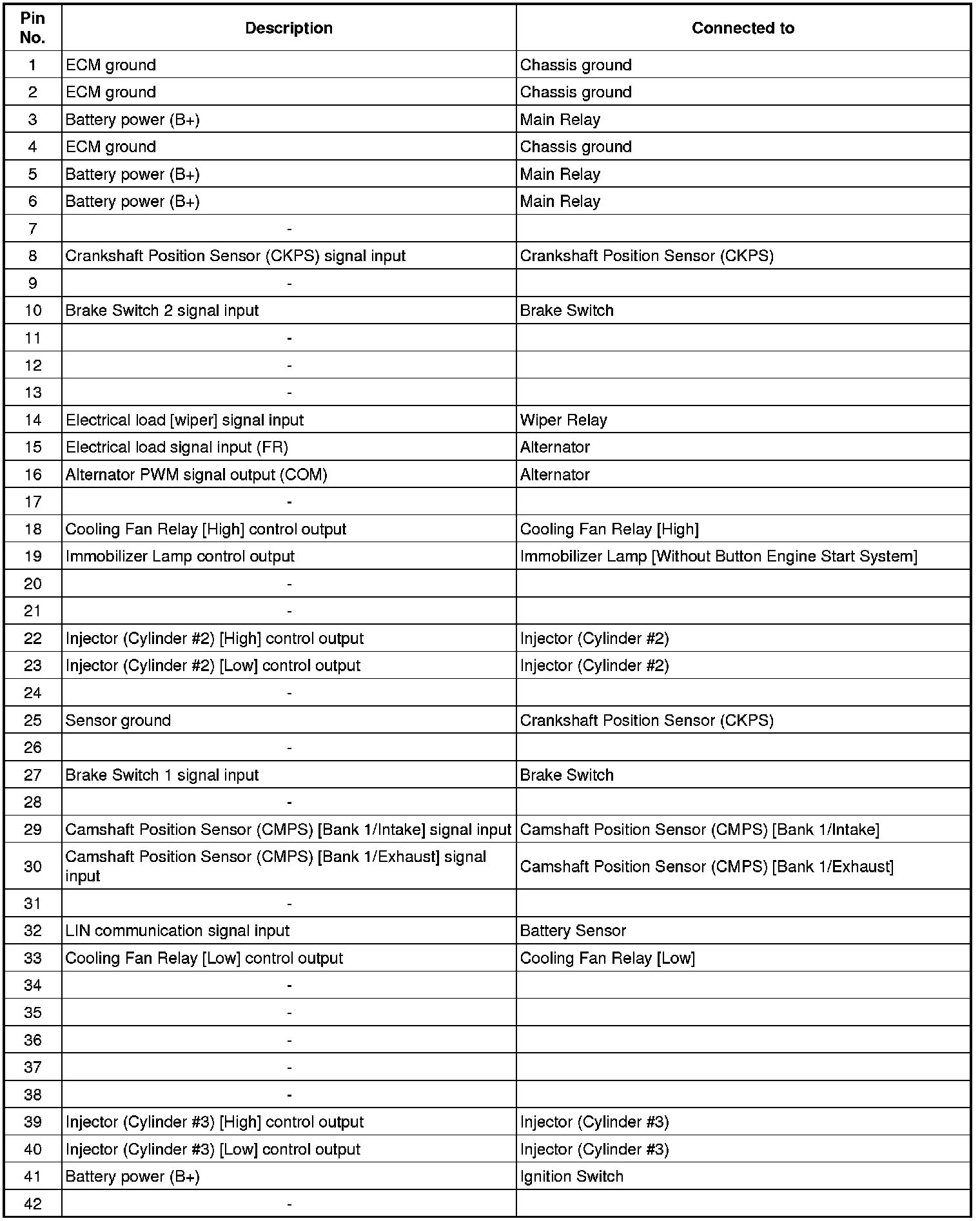

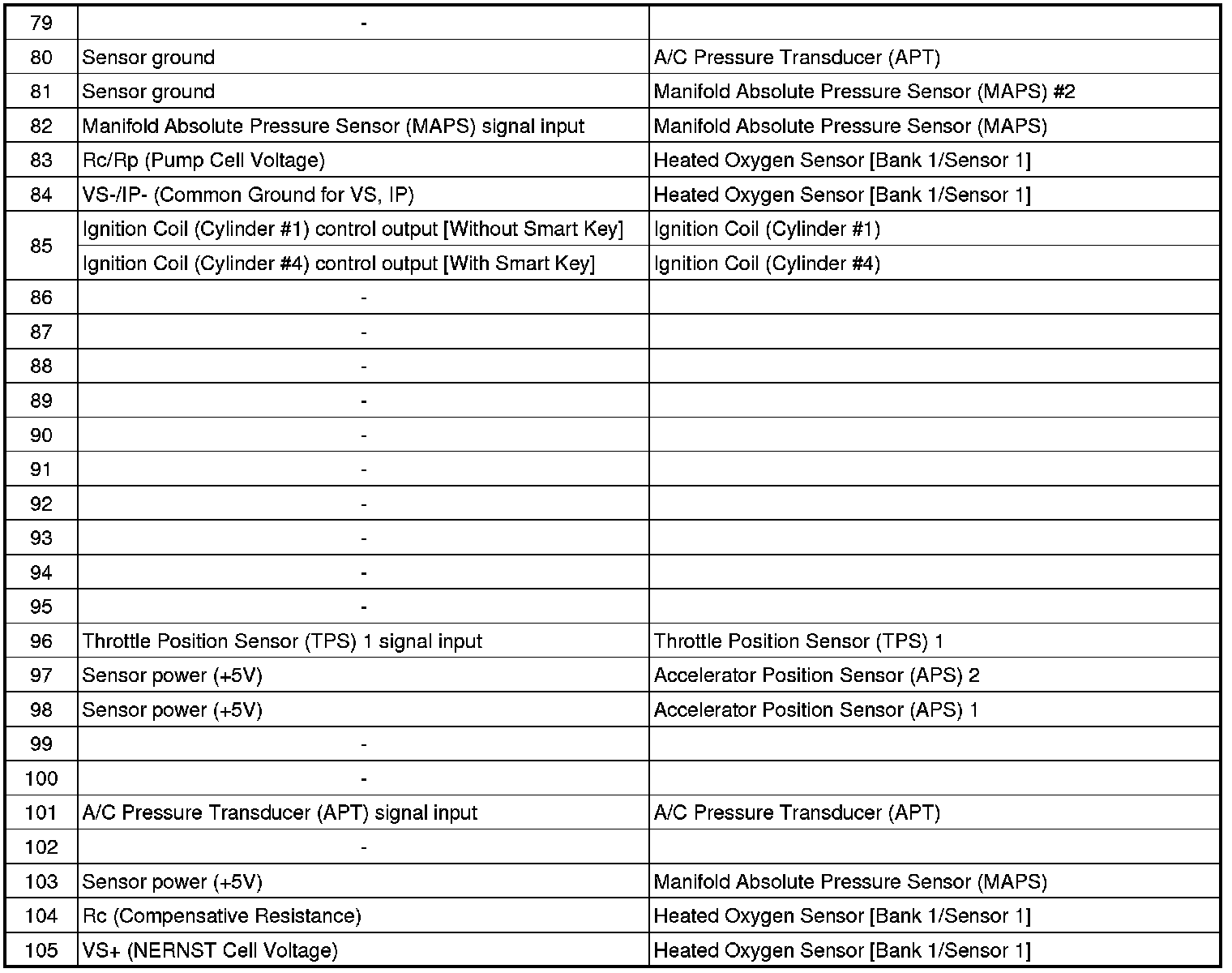

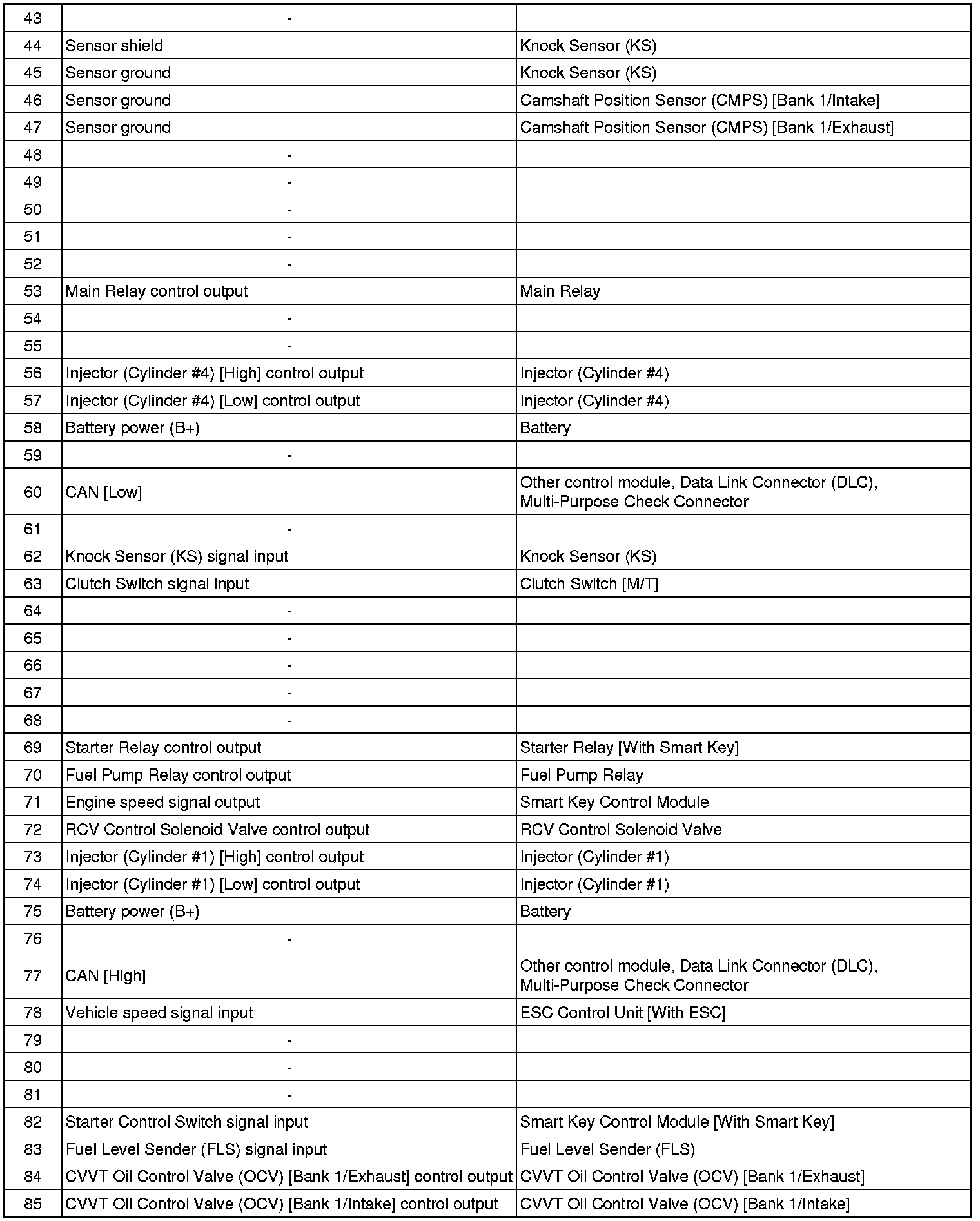

ECM Terminal Function

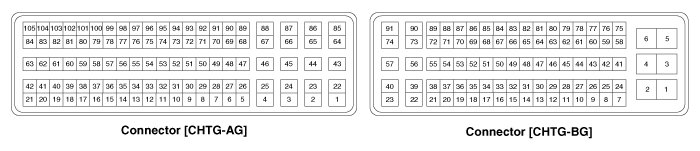

Connector [CHTG-AG]













Connector [CHTG-BG]

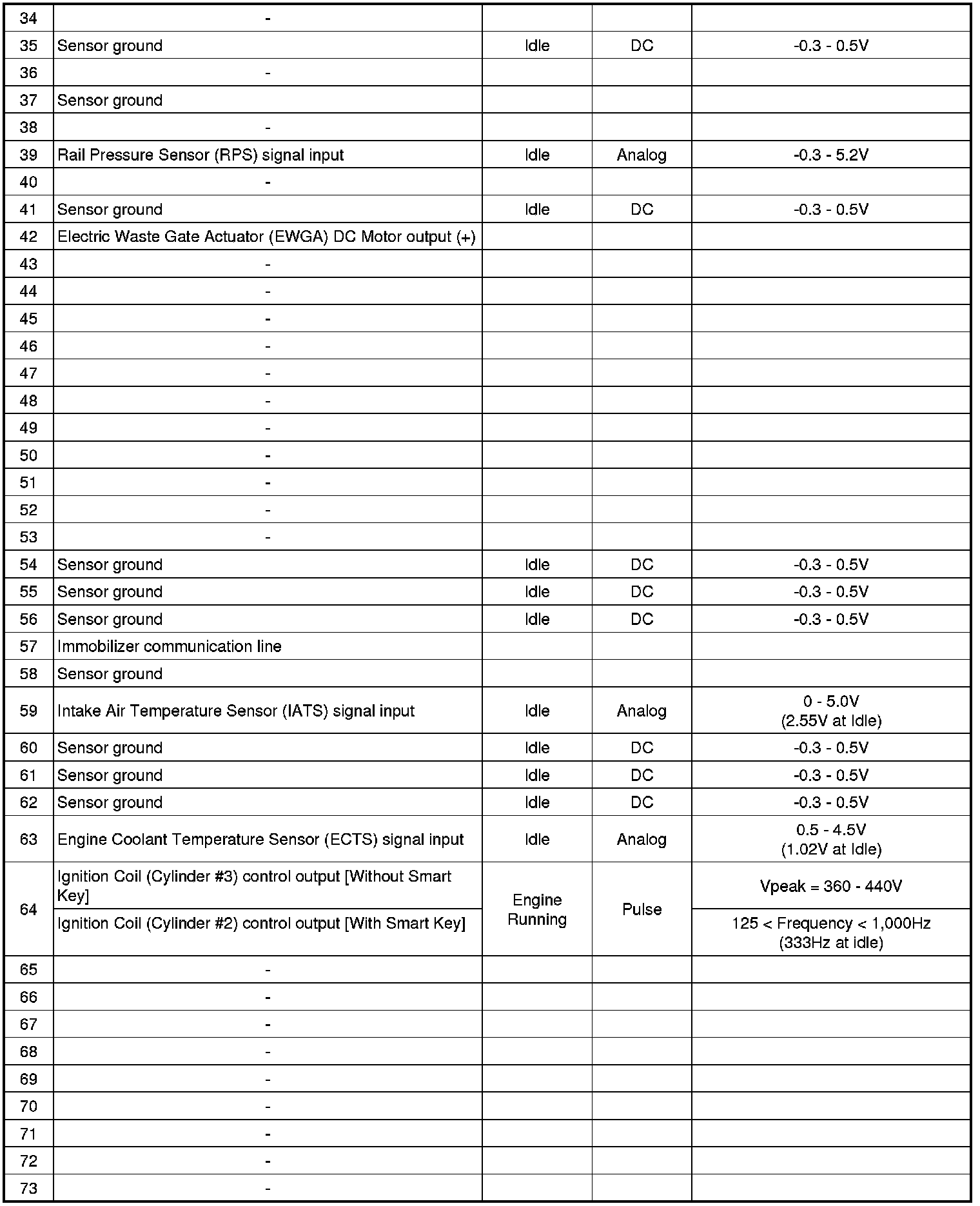

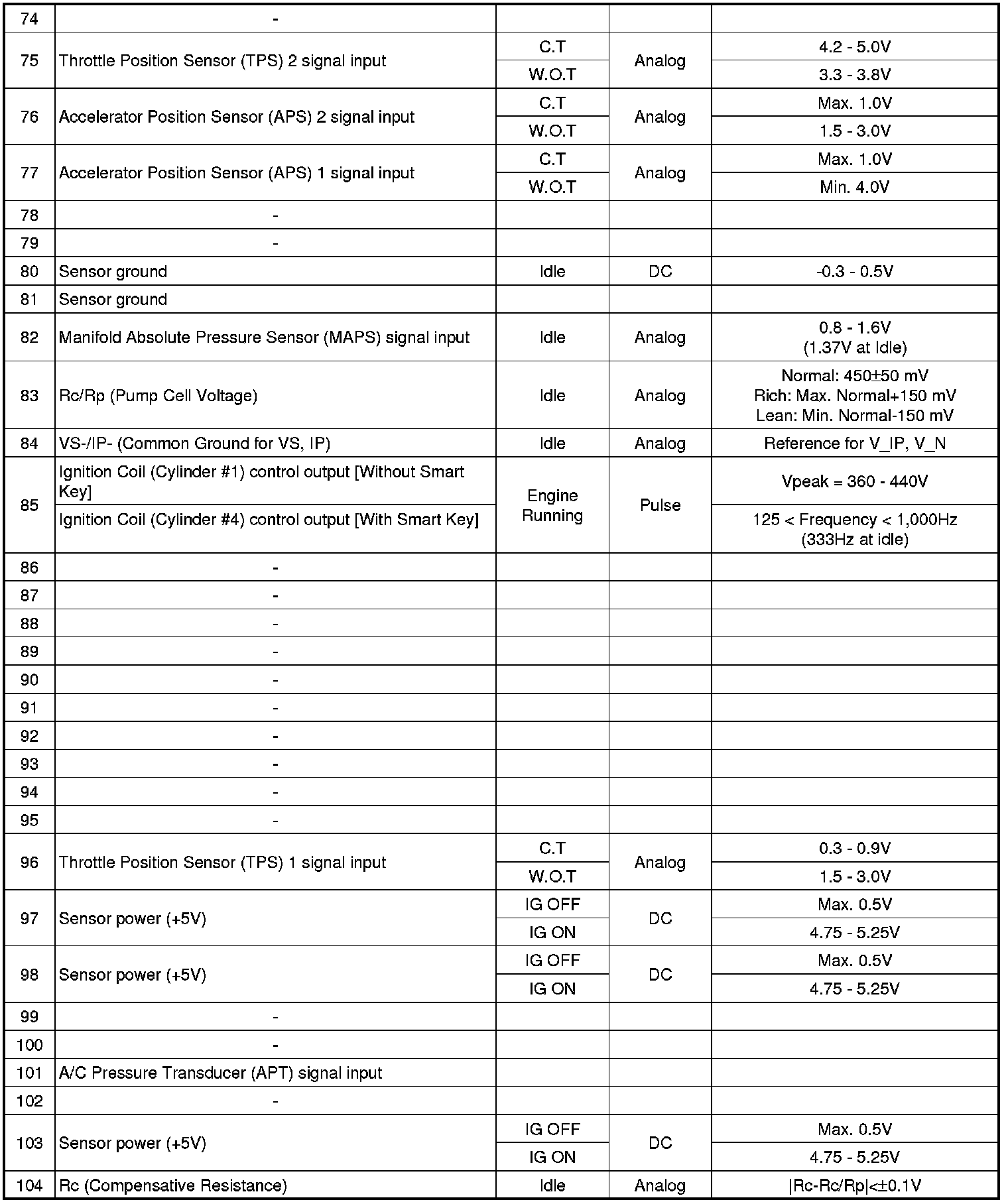

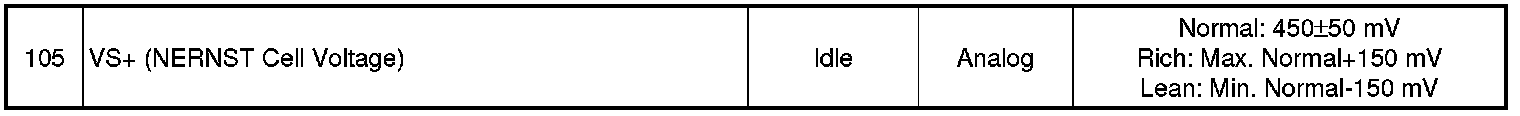

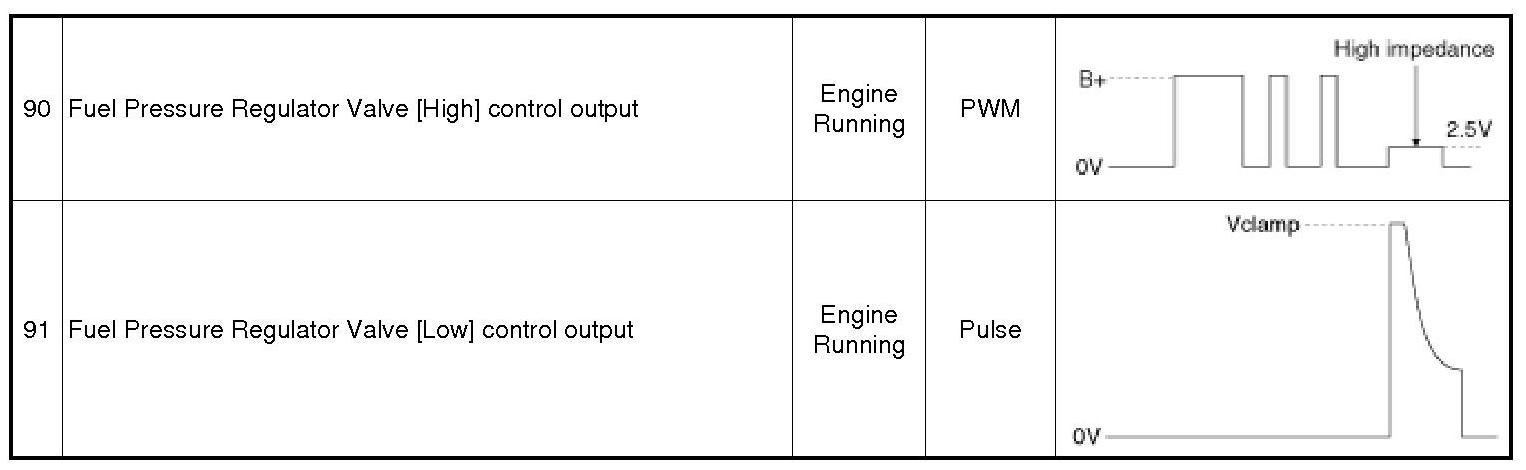

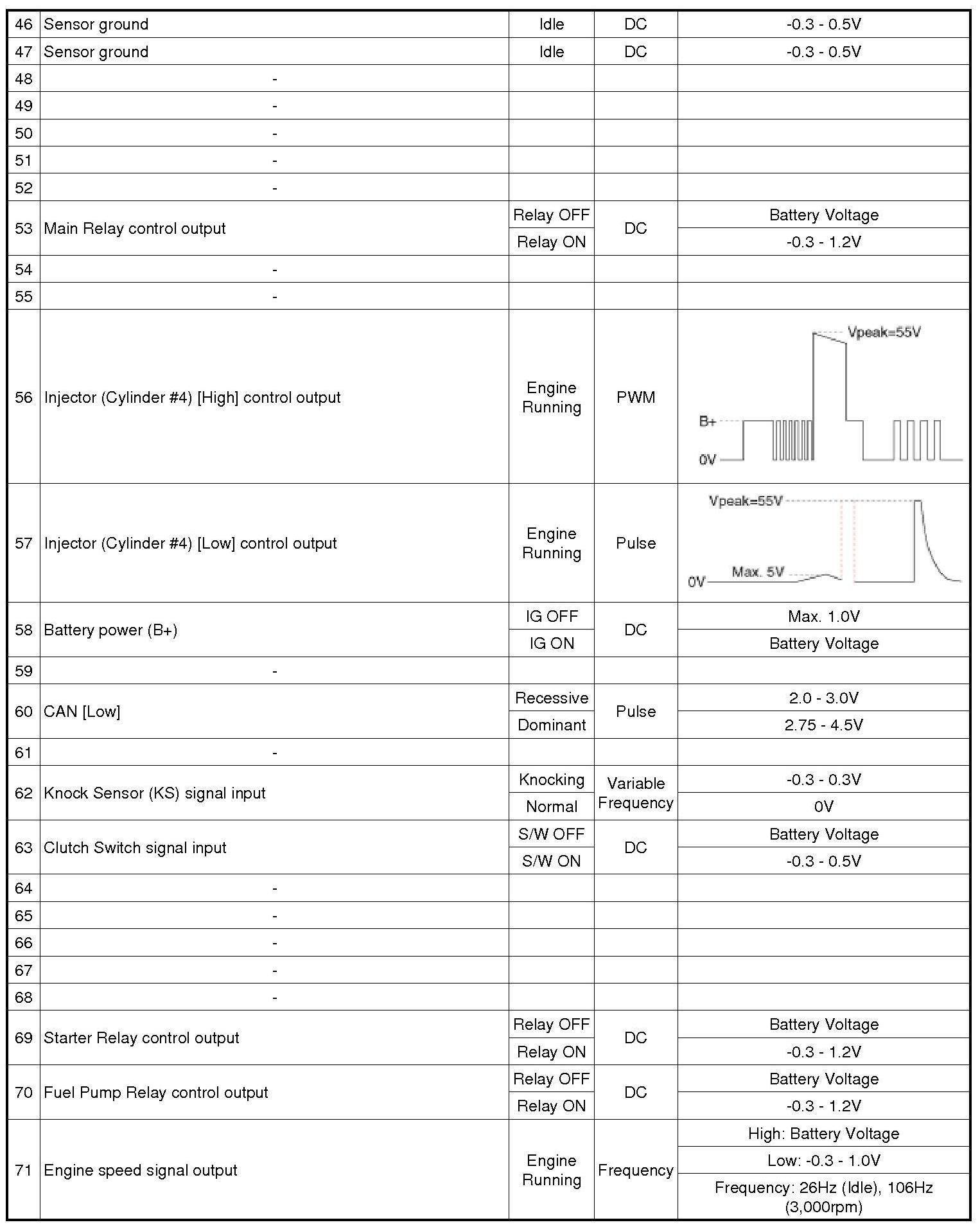

ECM Terminal Input/ Output signal

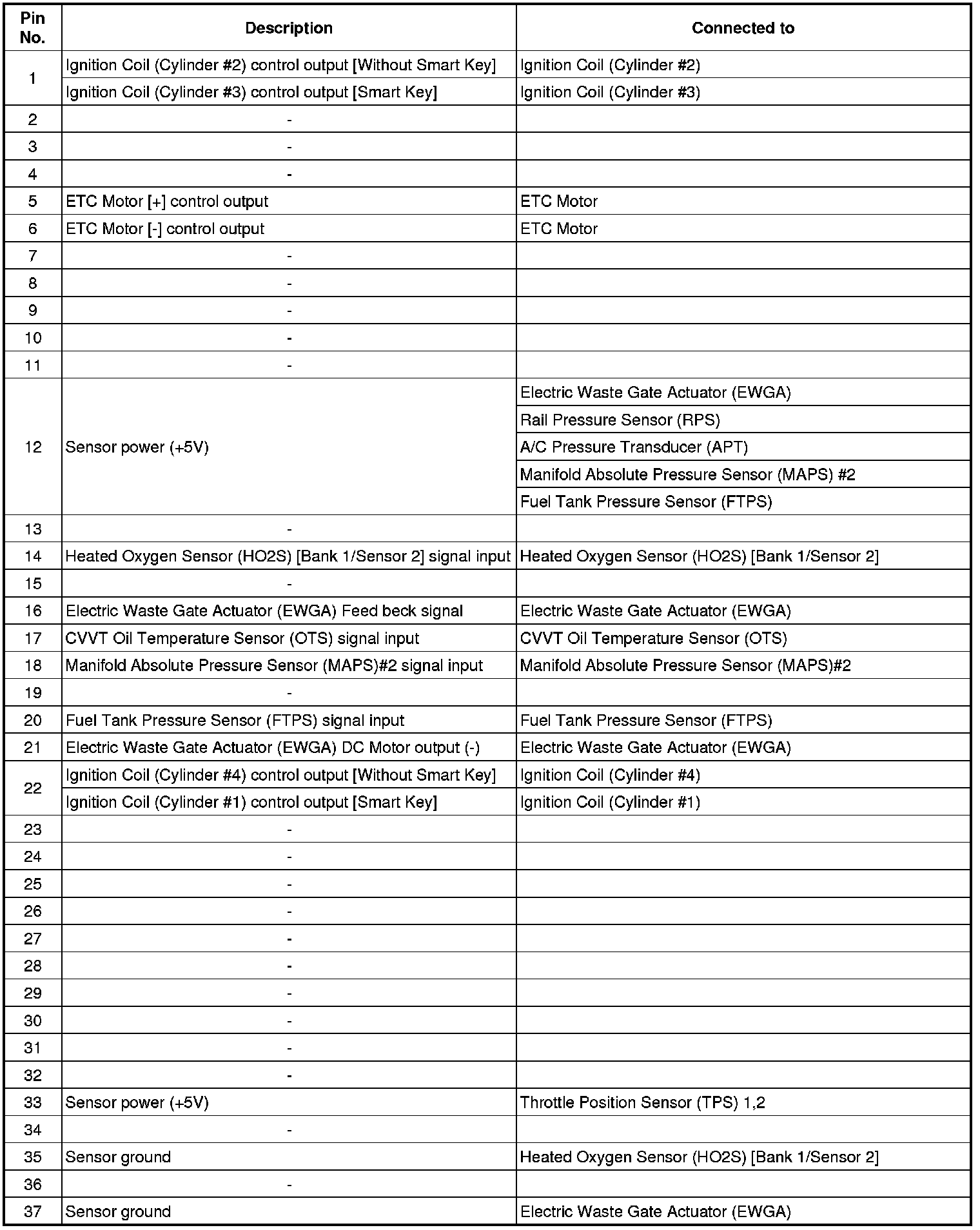

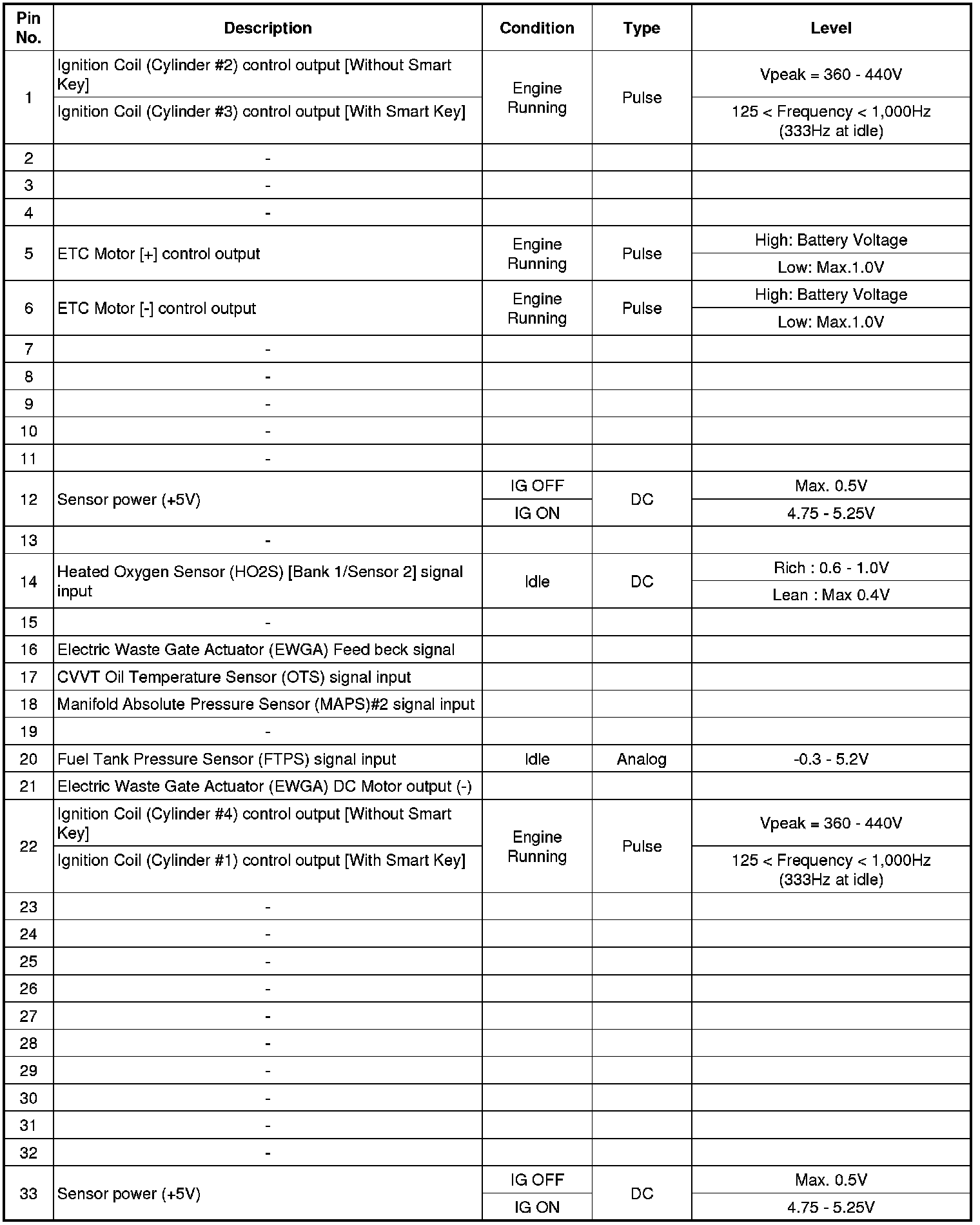

Connector [CHTG-AG]

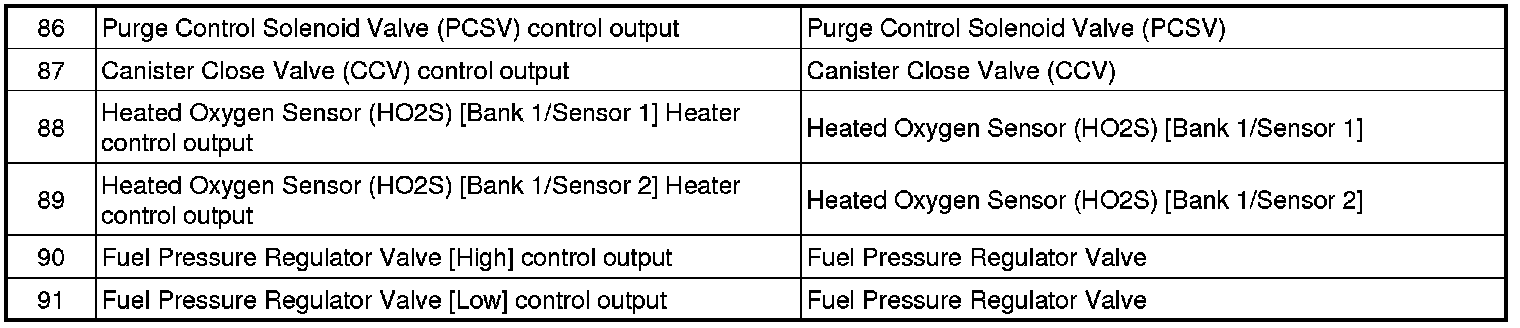

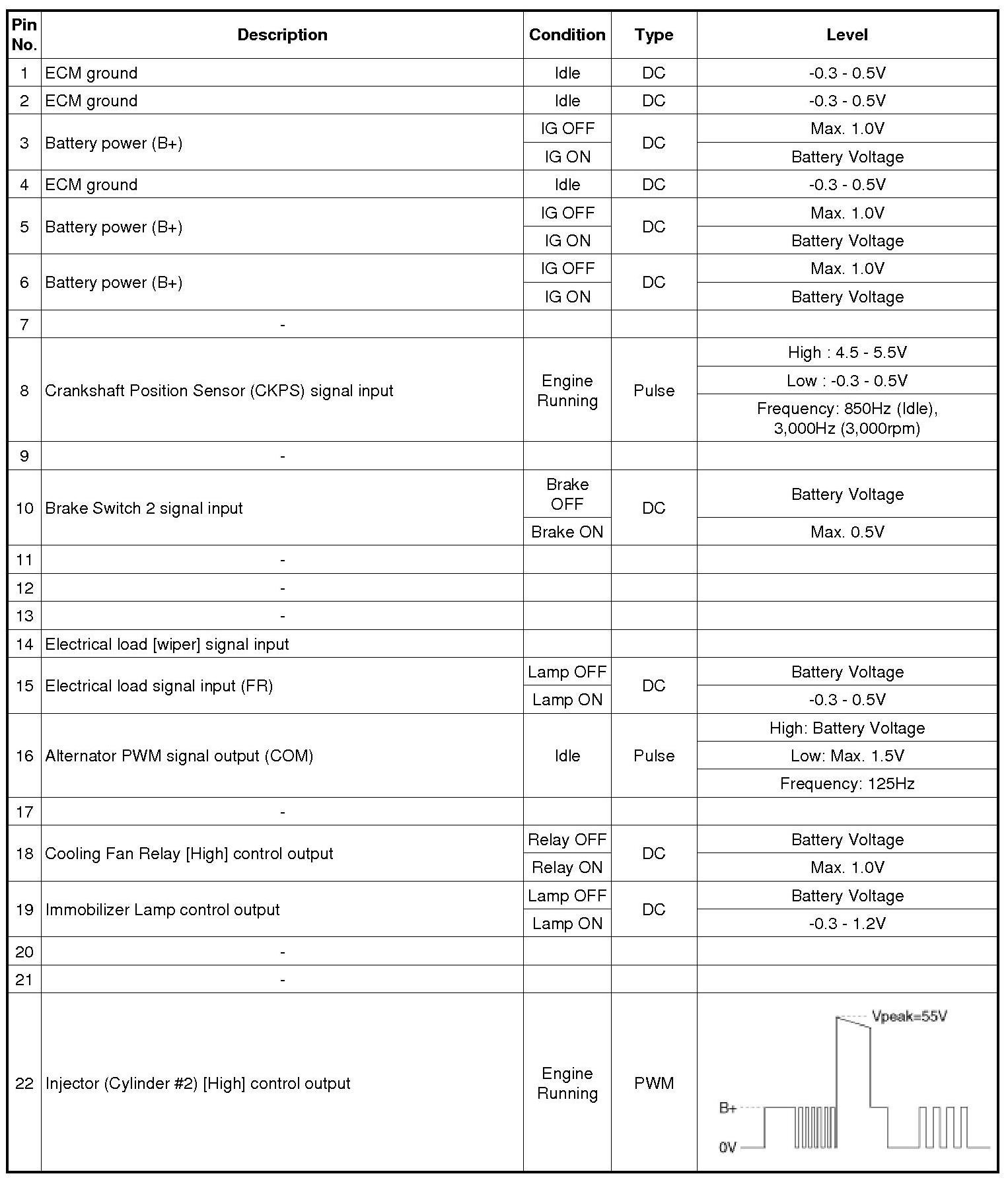

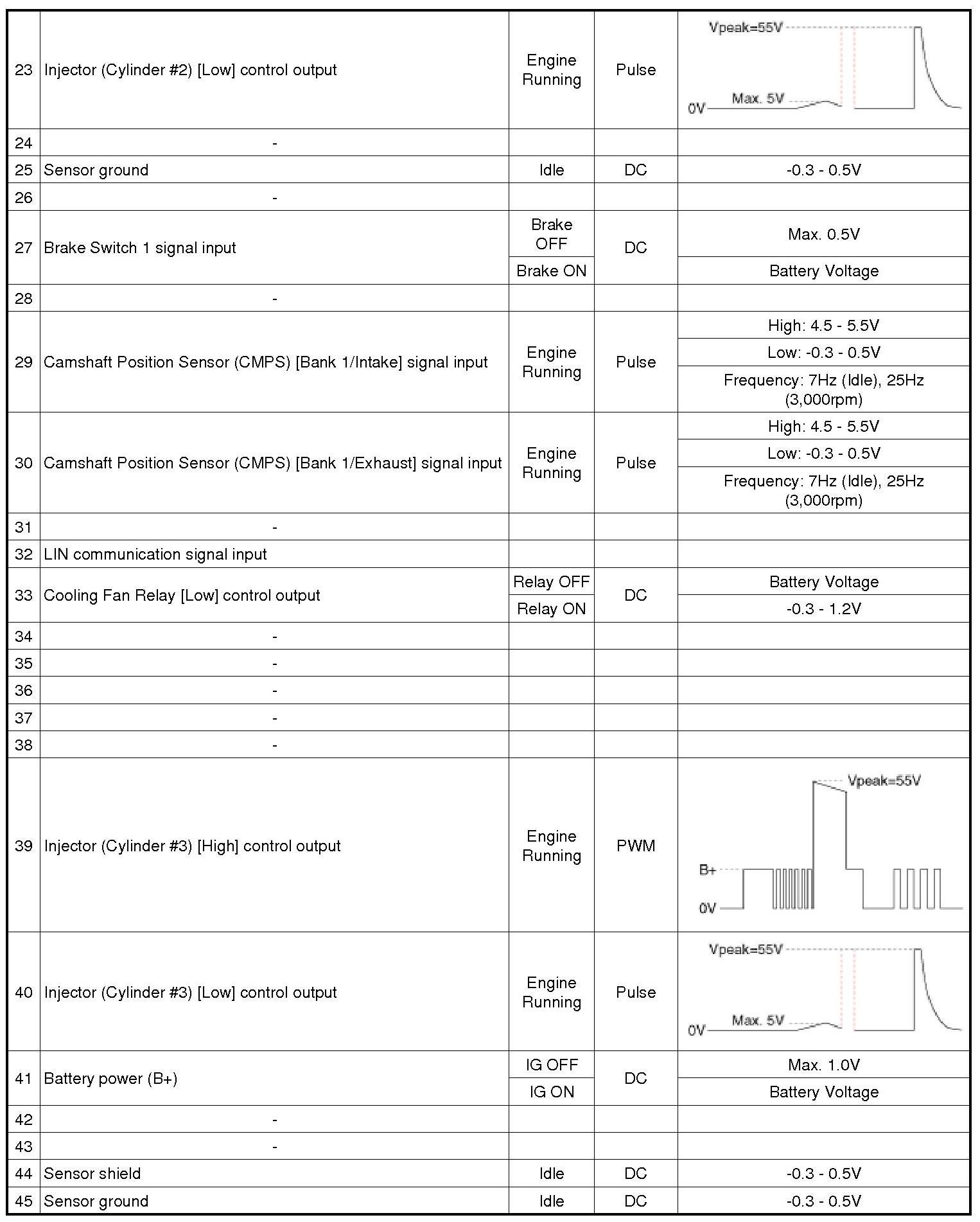

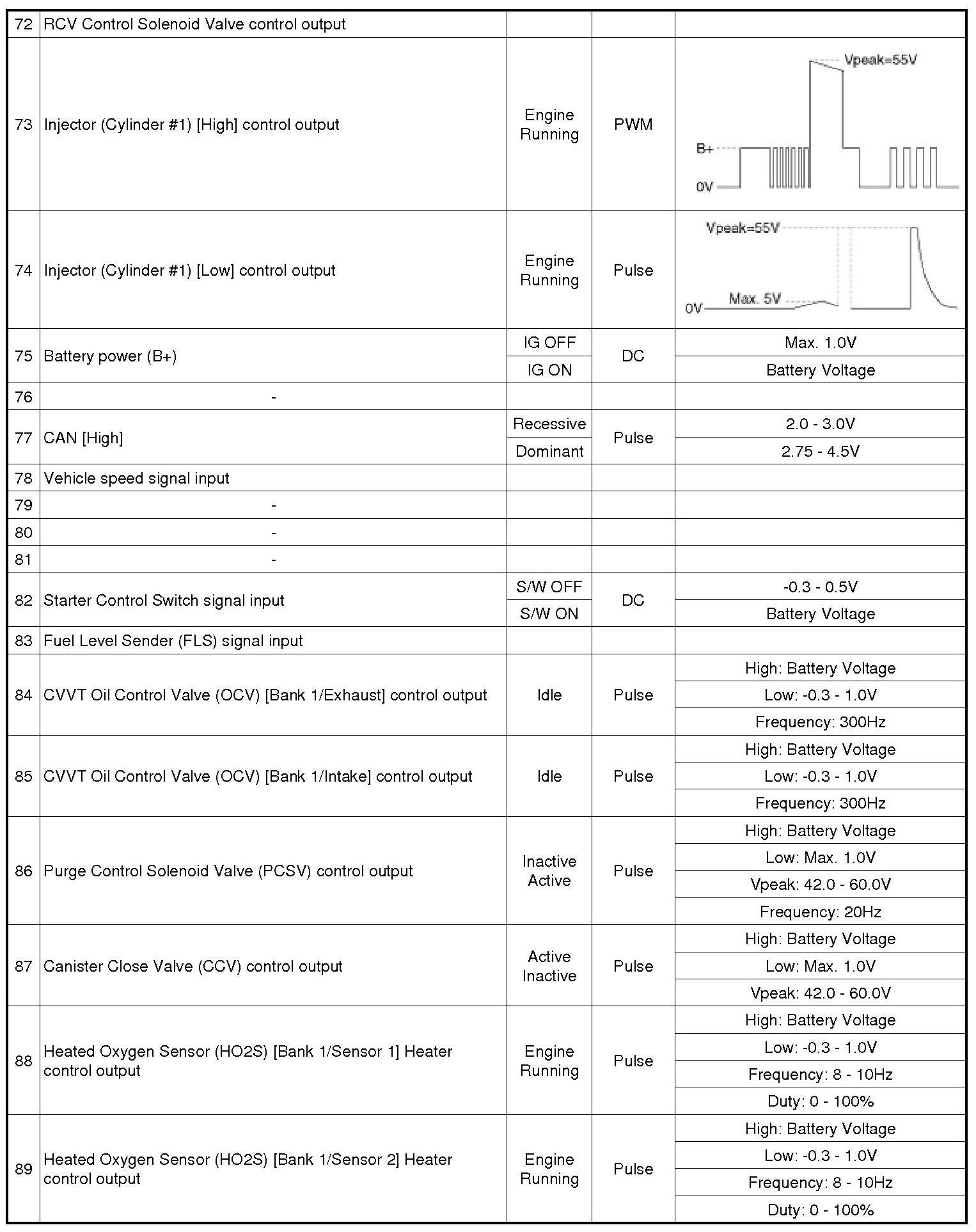

Connector [CHTG-BG]

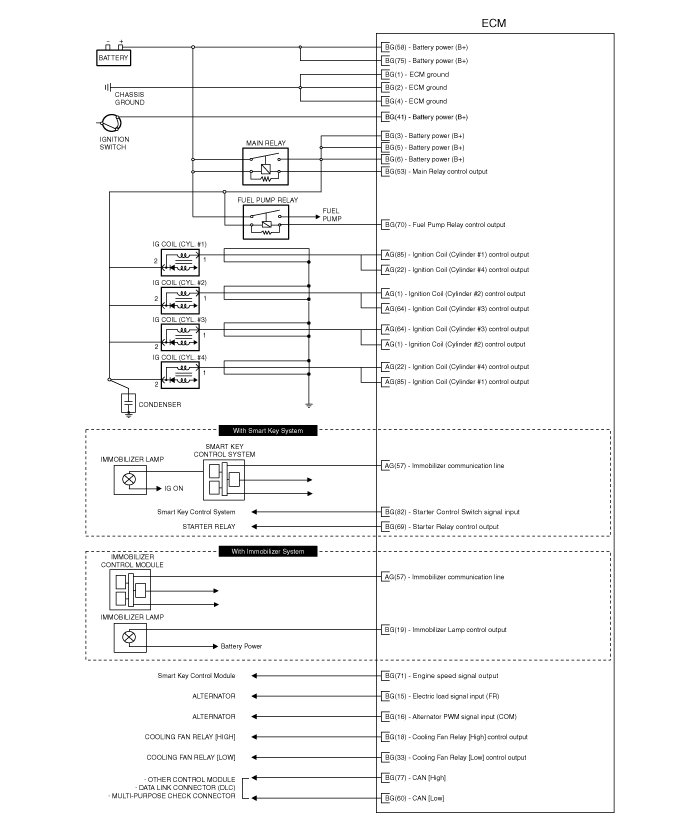

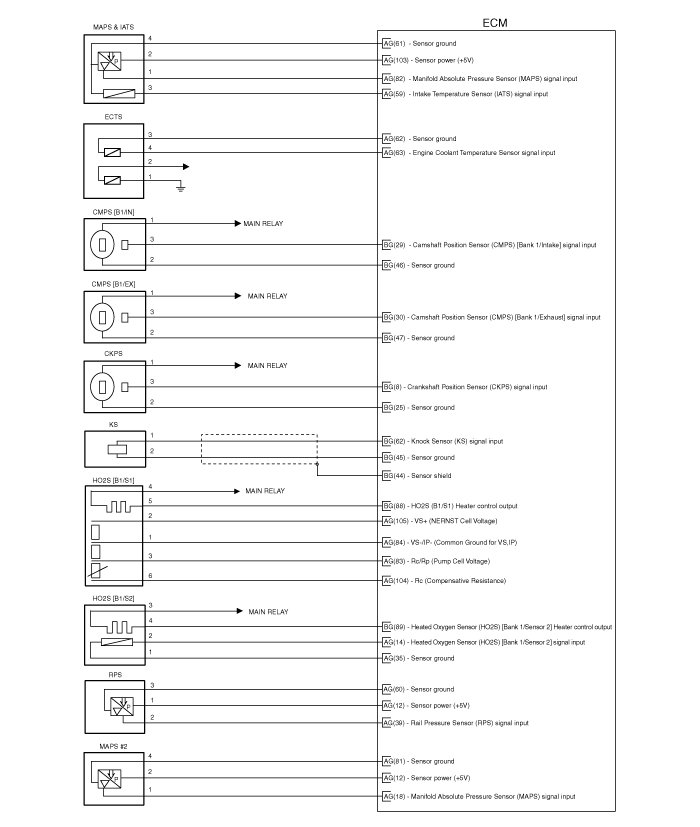

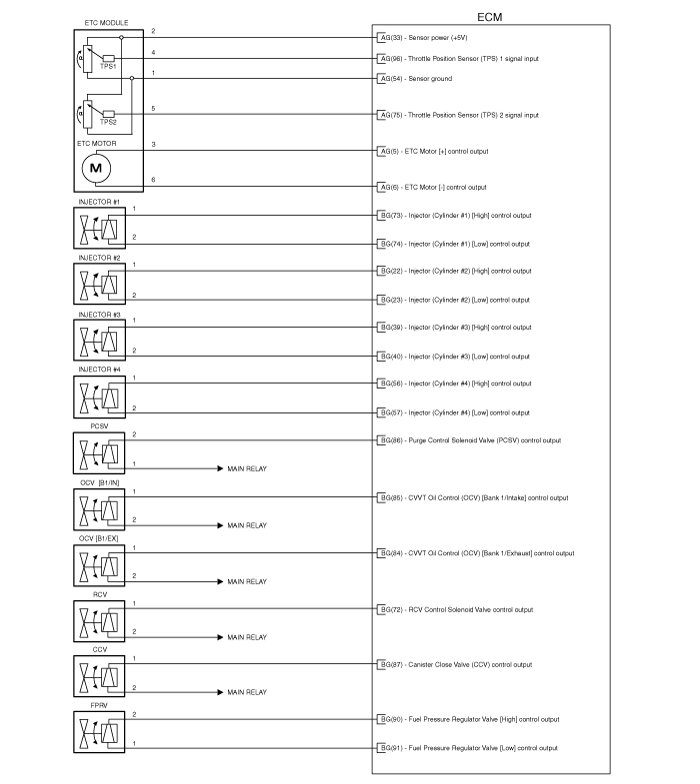

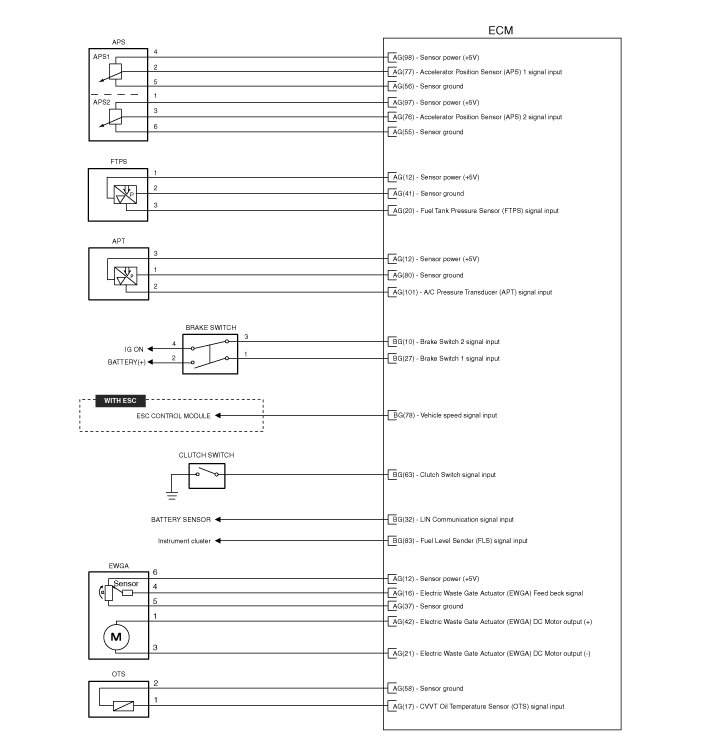

Circuit Diagram
