Body Control Module

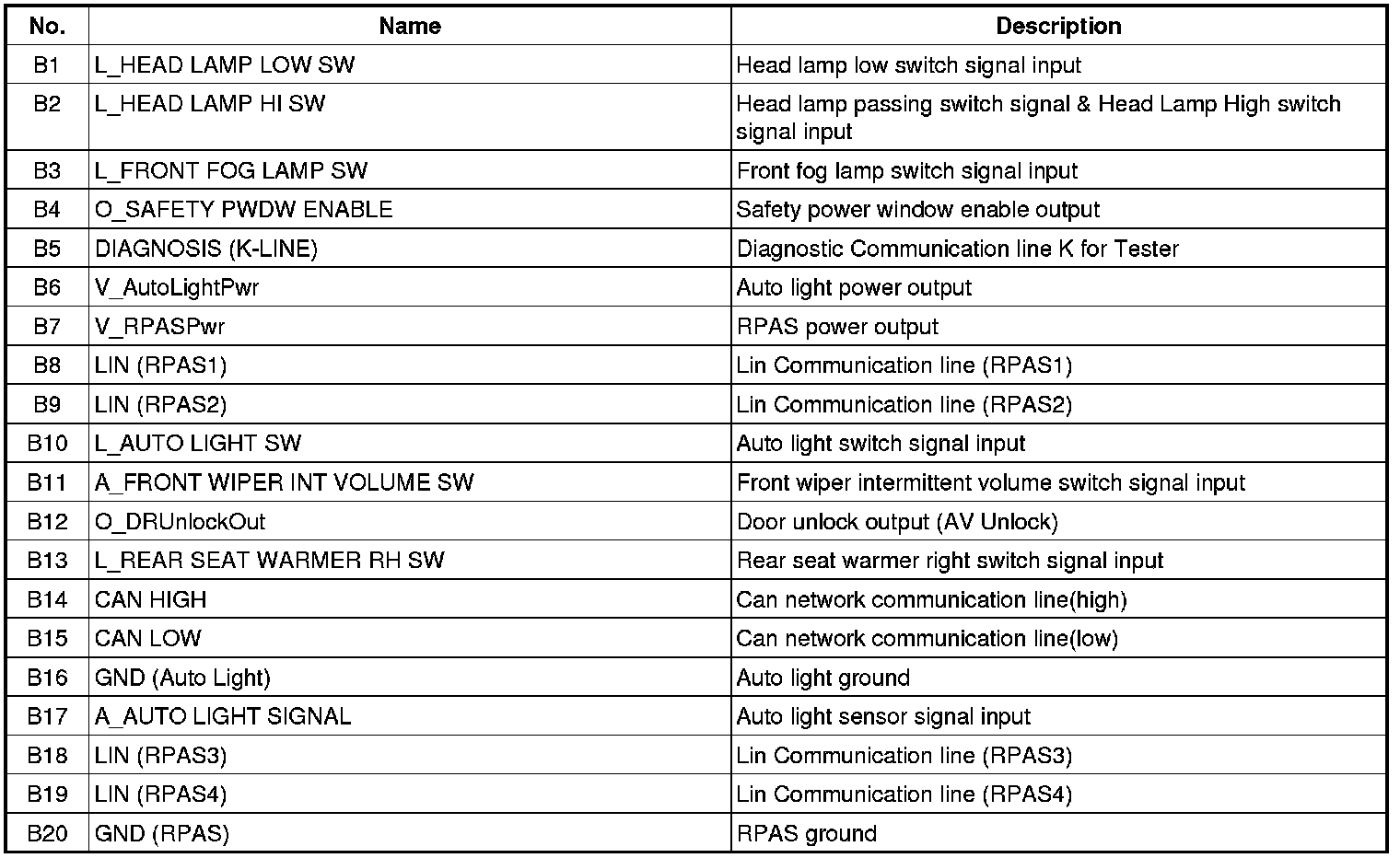

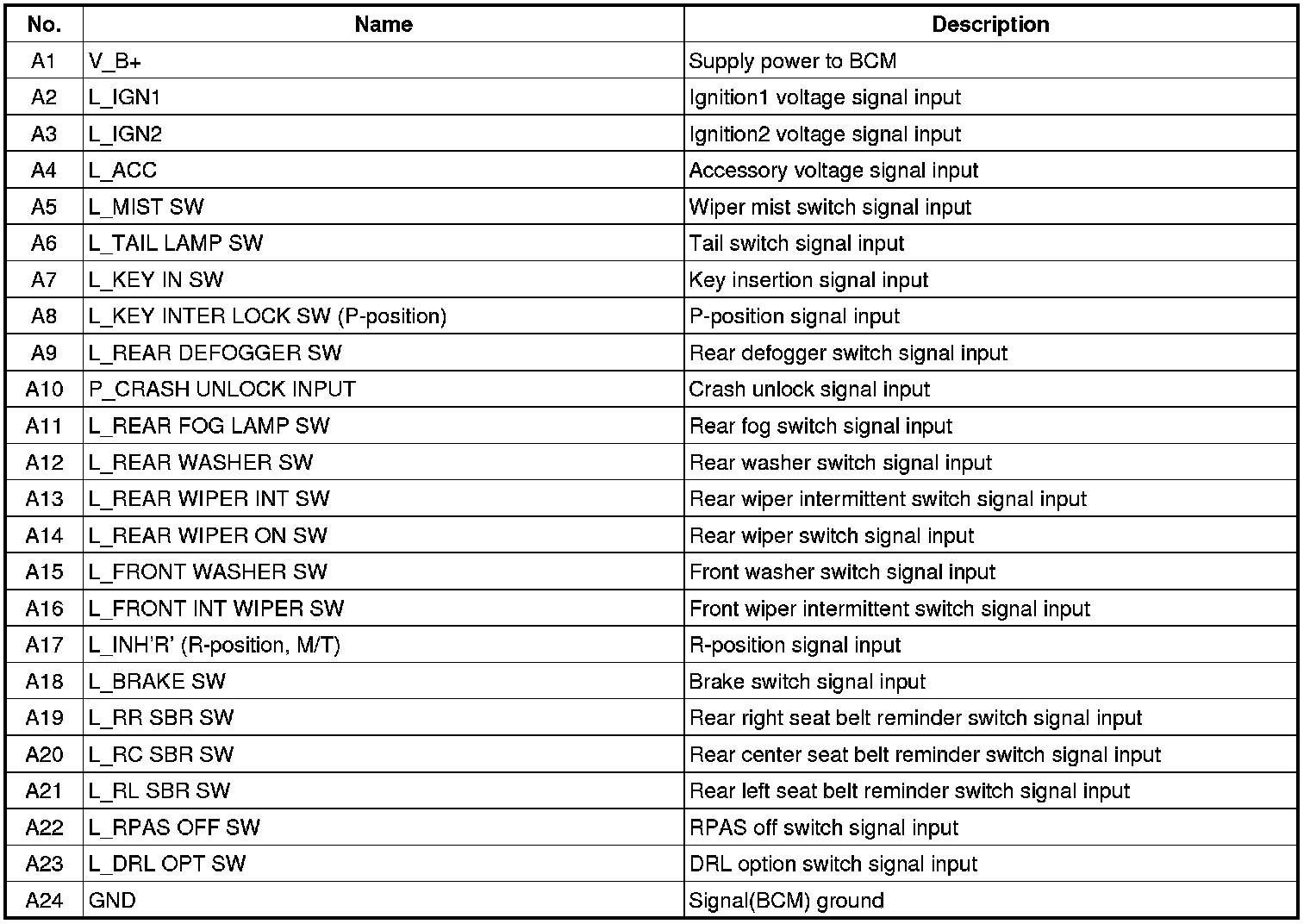

BCM Connector Terminals

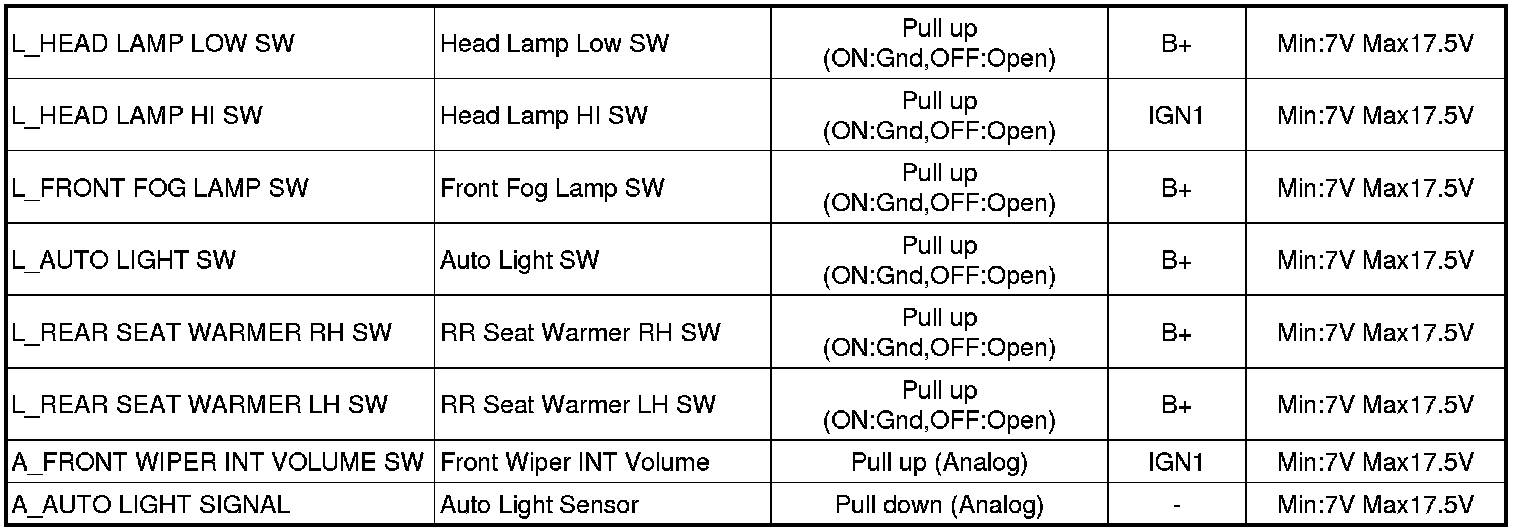

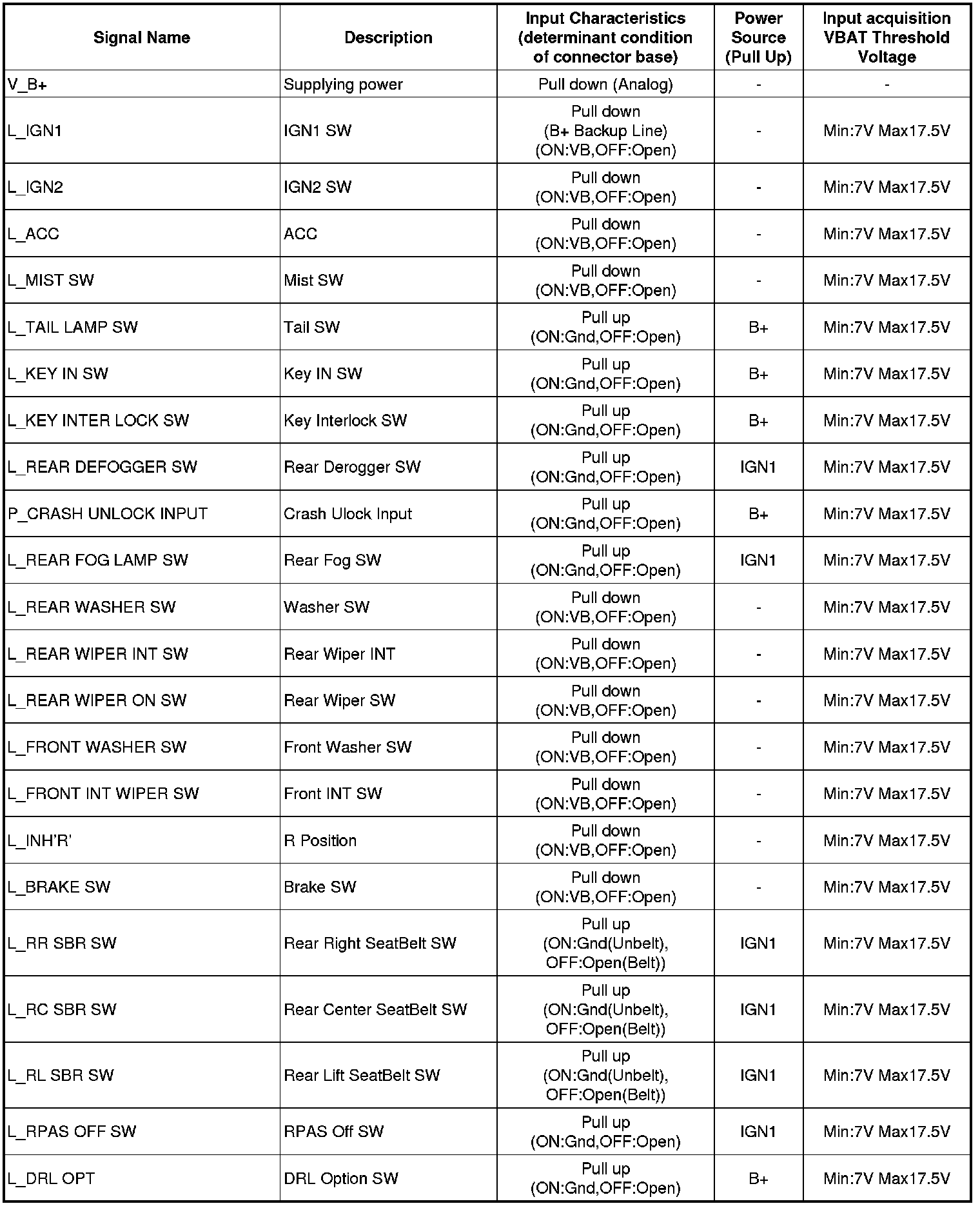

BCM Input Signal SPEC

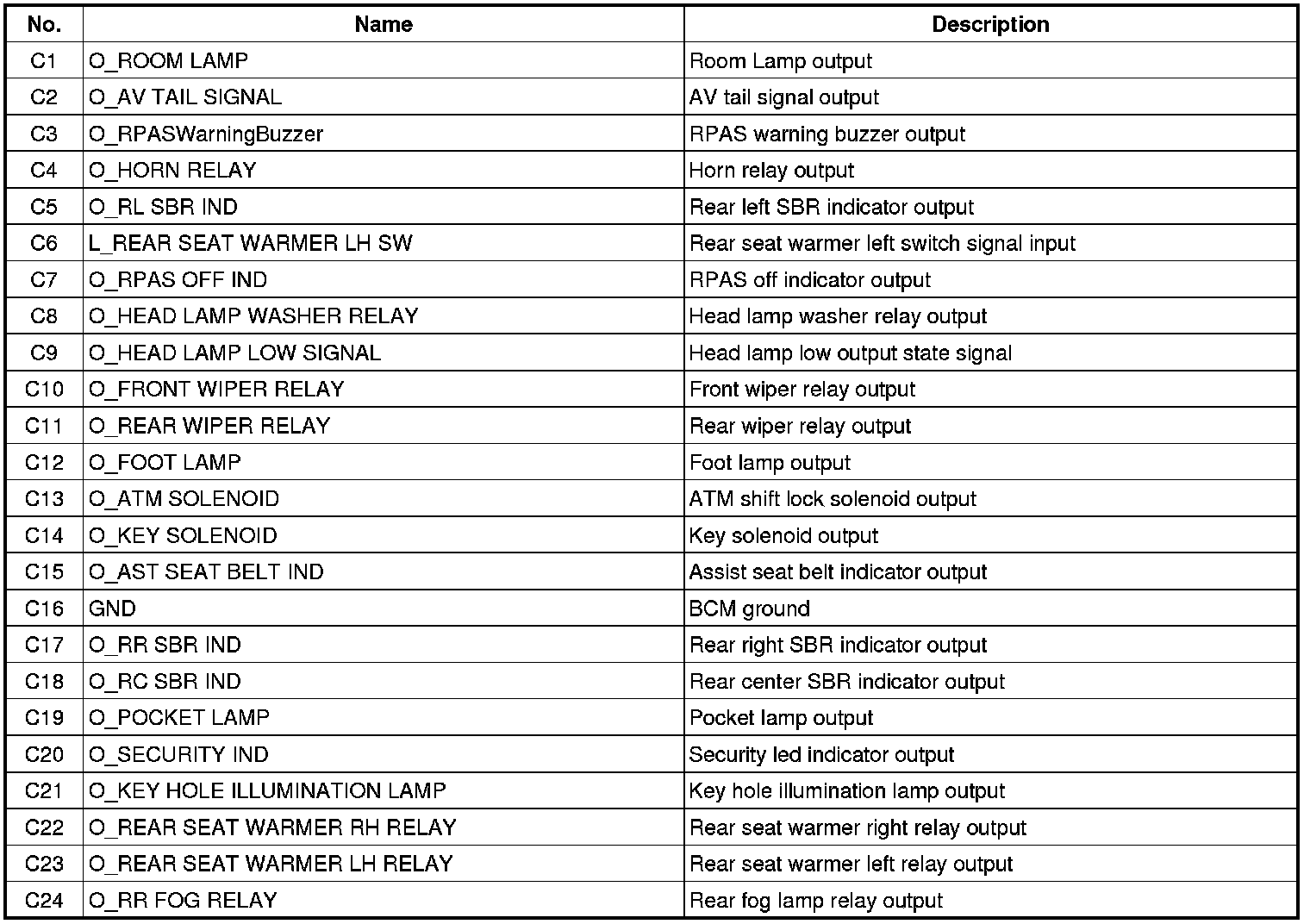

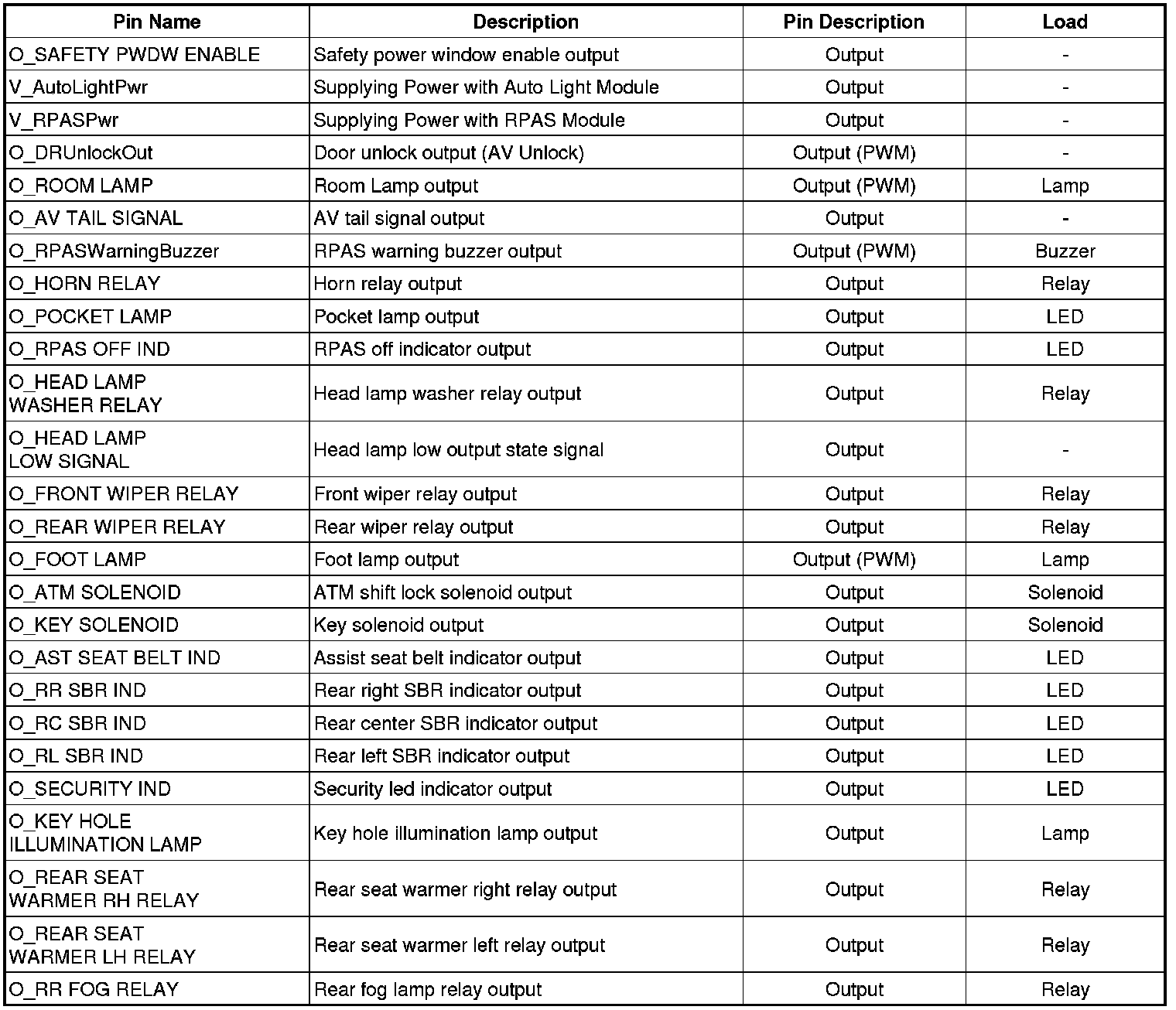

BCM Output Signal SPEC

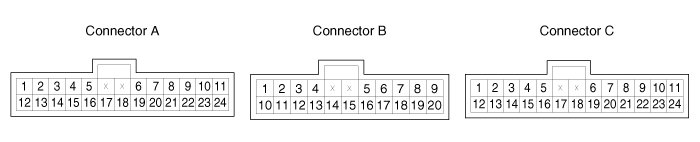

Pin Arrangement




Connector A





Connector B





Connector C

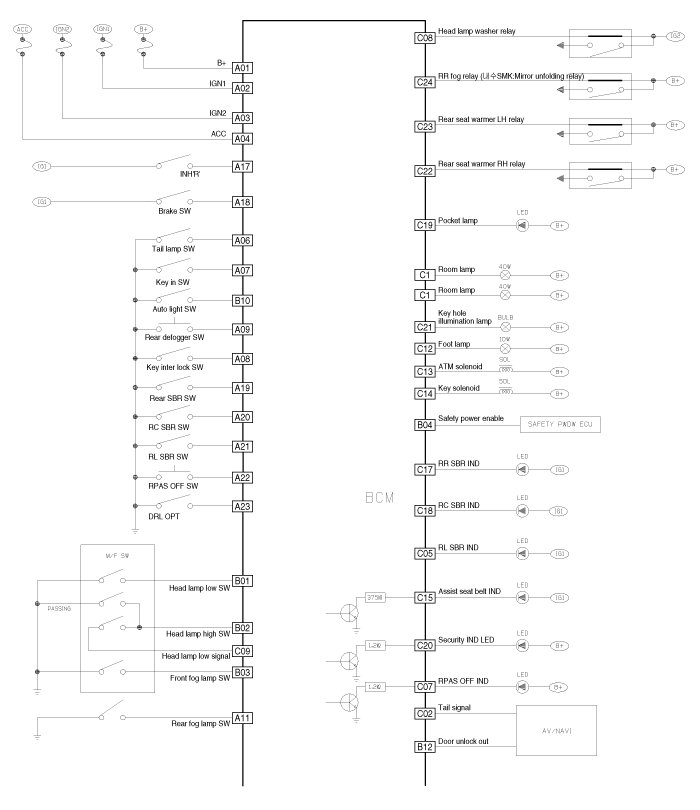

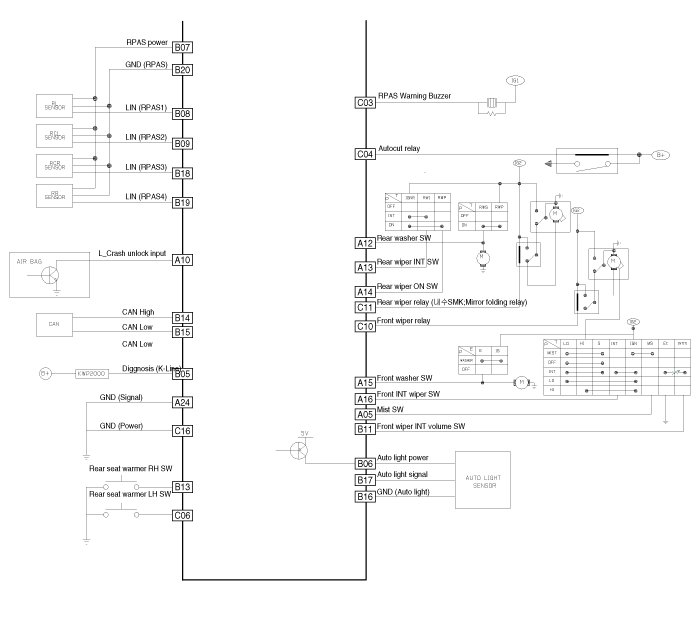

Circuit Diagram
