Home >> Kia >> 2012 >> Optima L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC >> A/C Control Module (Auto - With Auto Defogger)

A/C Control Module (Auto - With Auto Defogger)

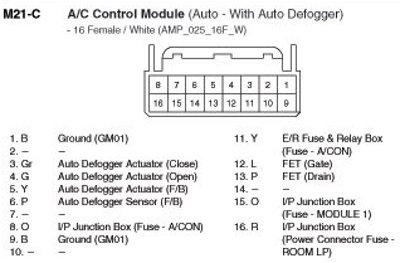

M21-C A/C Control Module (Auto - With Auto Defogger):
