Home >> Kia >> 2012 >> Optima L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Component Connectors >> M01-R Multifunction Switch (Audio Remote Control)

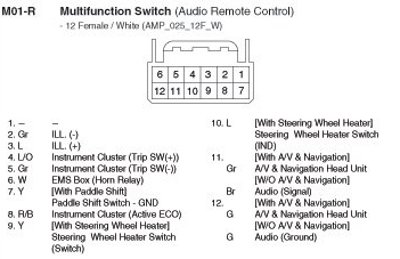

M01-R Multifunction Switch (Audio Remote Control)

M01-R Multifunction Switch (Audio Remote Control):
