Control Module, A/T

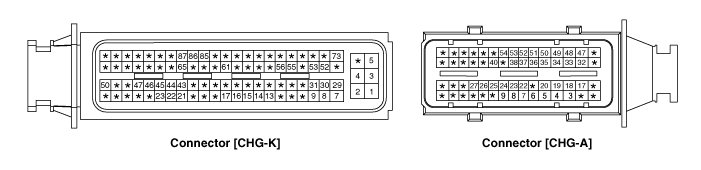

TCM connector and terminal function





TCM Terminal Function

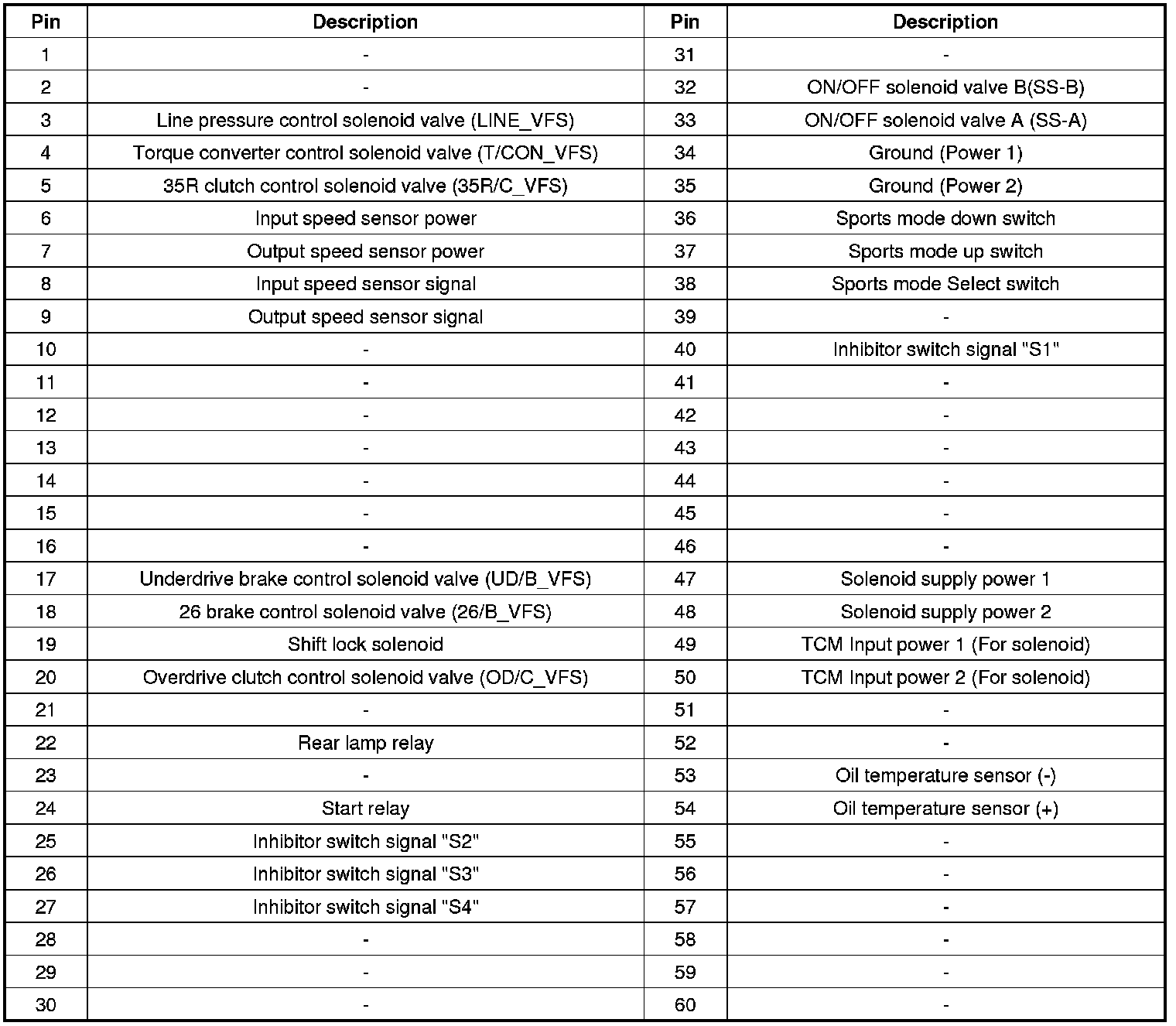

Connector [CHG-A]

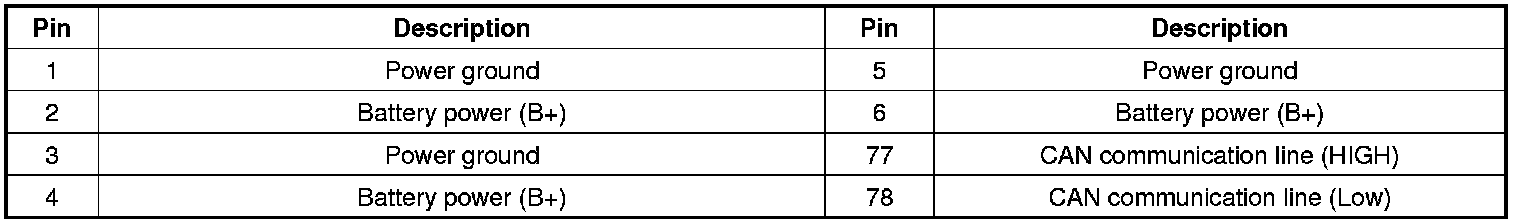

Connector [CHG-K]

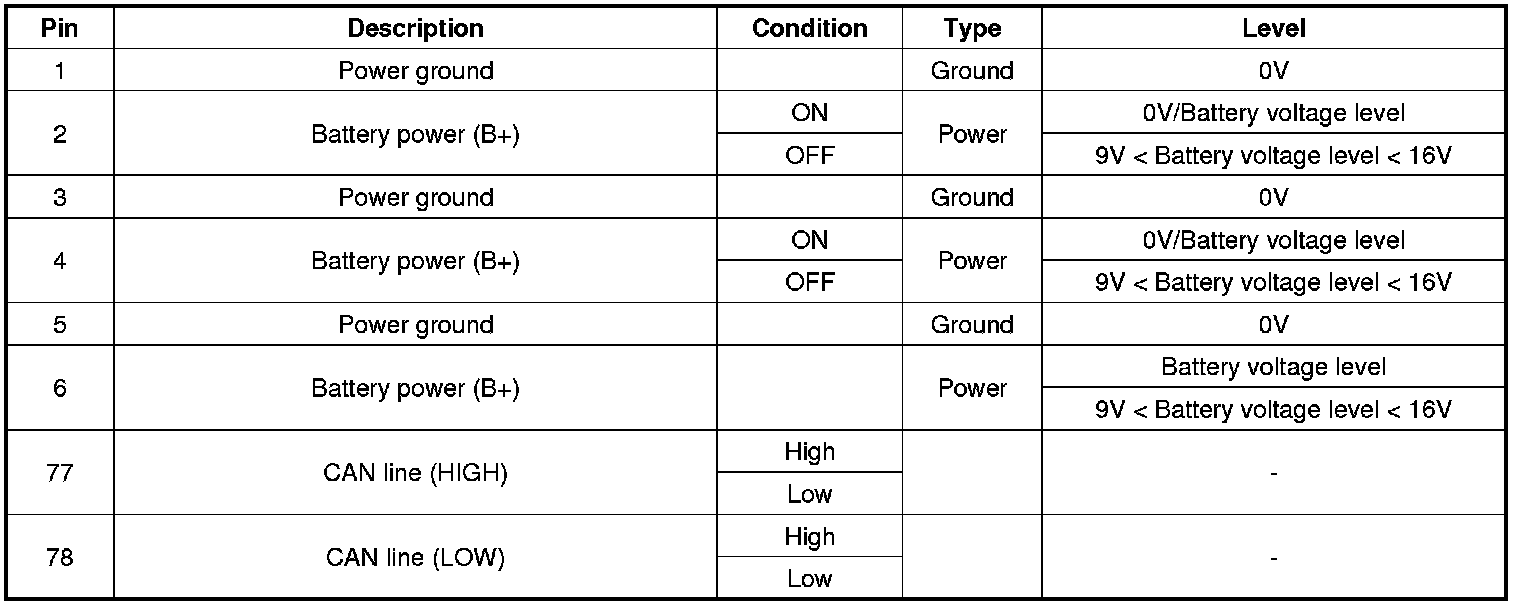

TCM Terminal input/ output signal

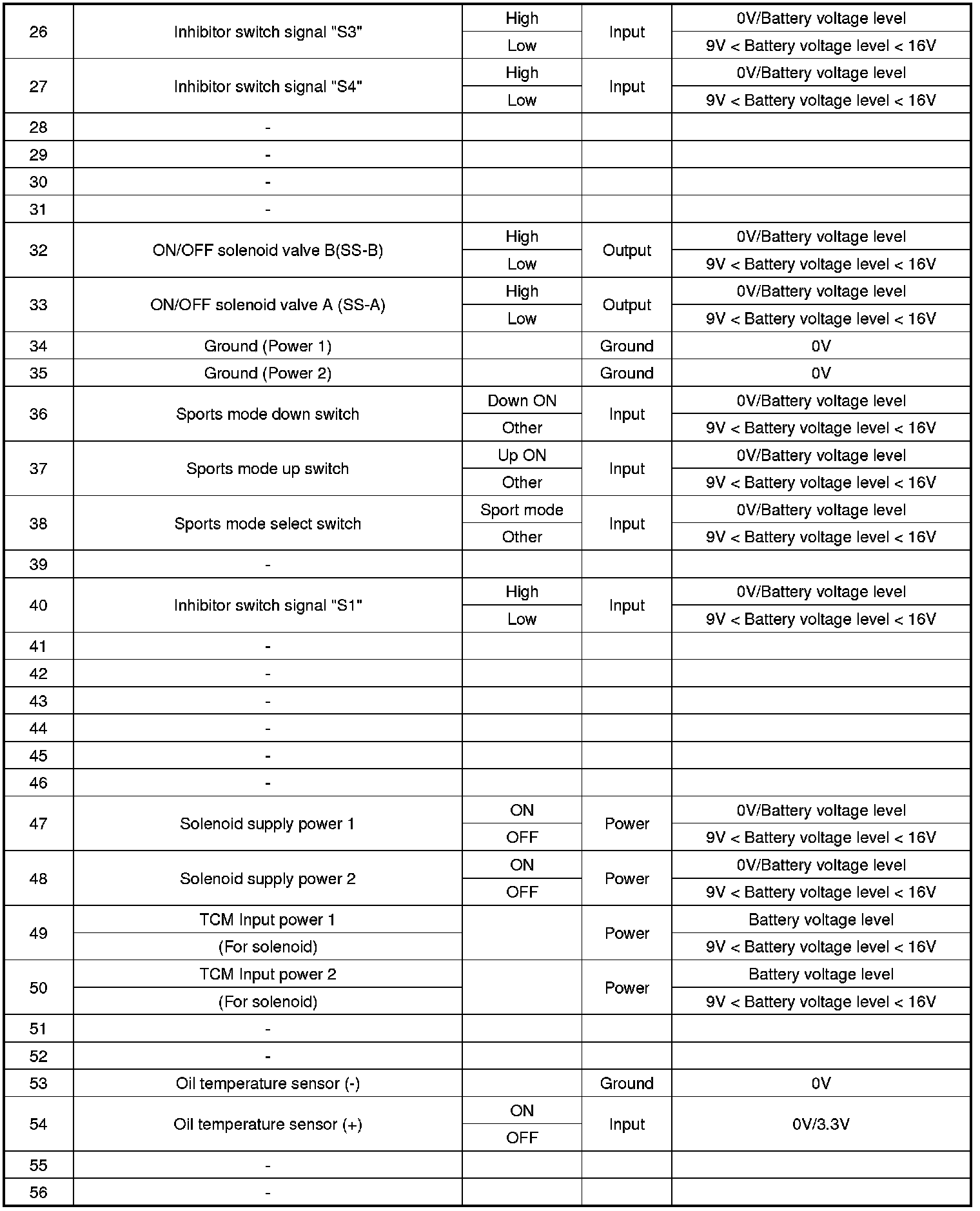

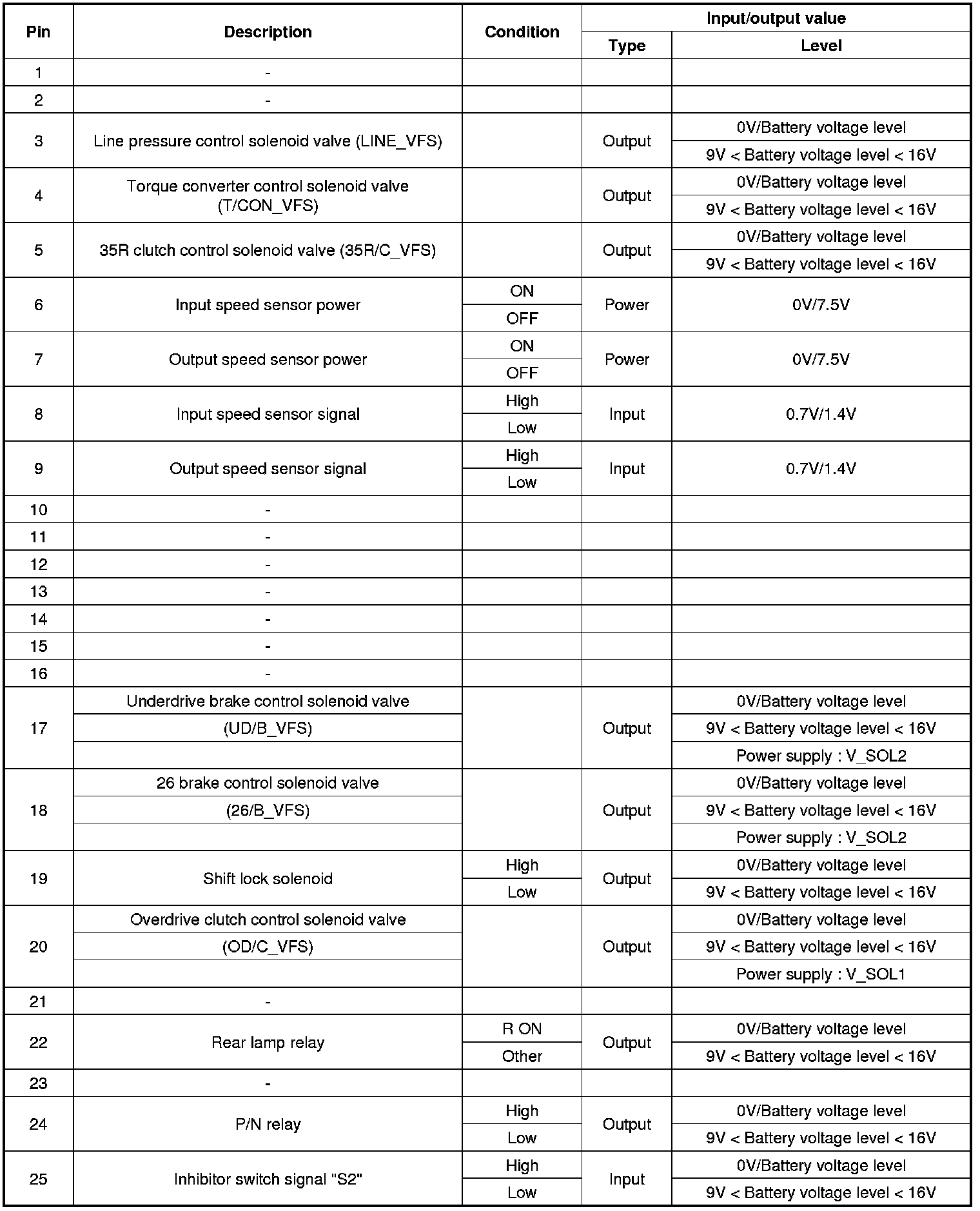

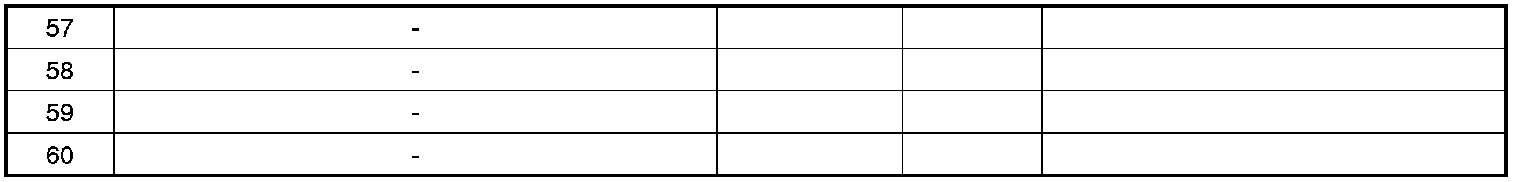

Connector [CHG-A]













Connector [CHG-K]

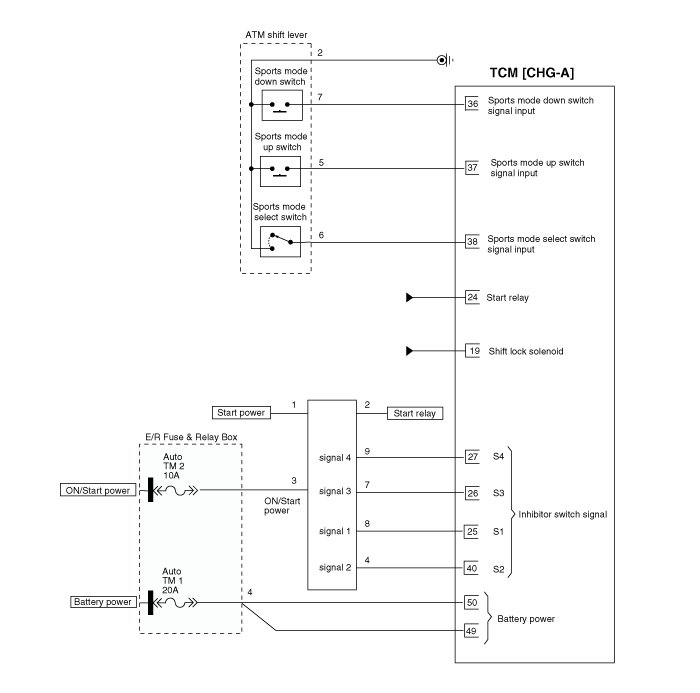

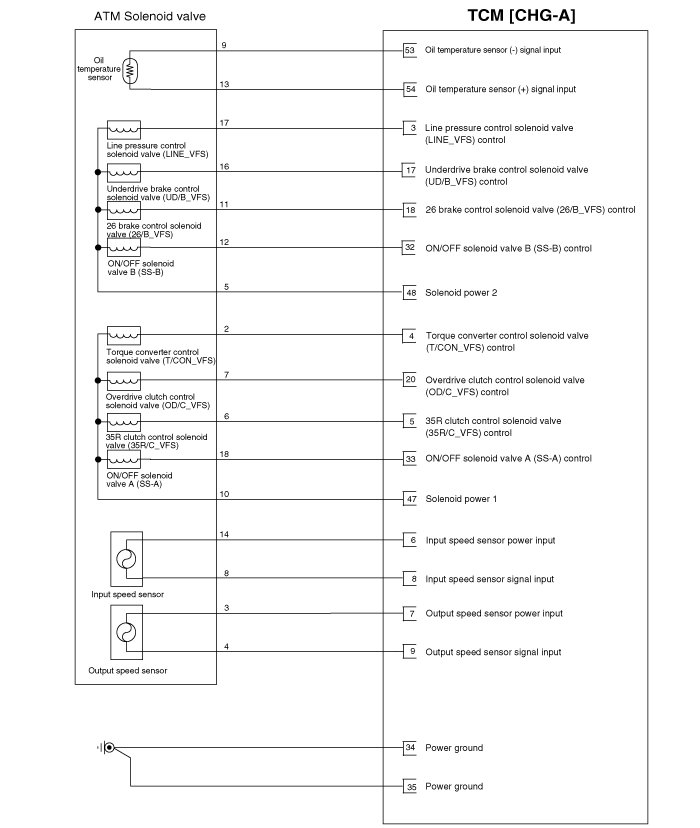

Circuit Diagram
