Home >> Kia >> 2011 >> Optima L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> Joint Connector

Joint Connector

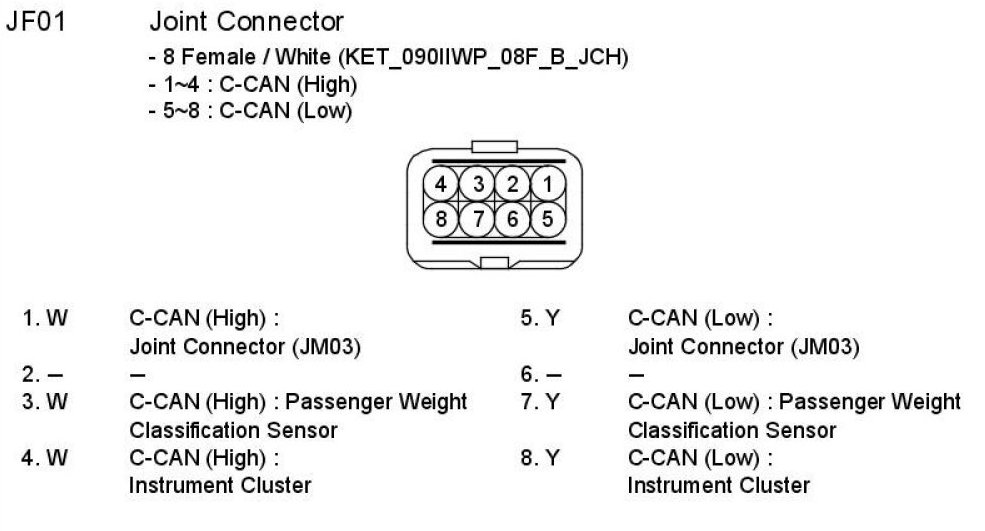

JF01 Joint Connector:

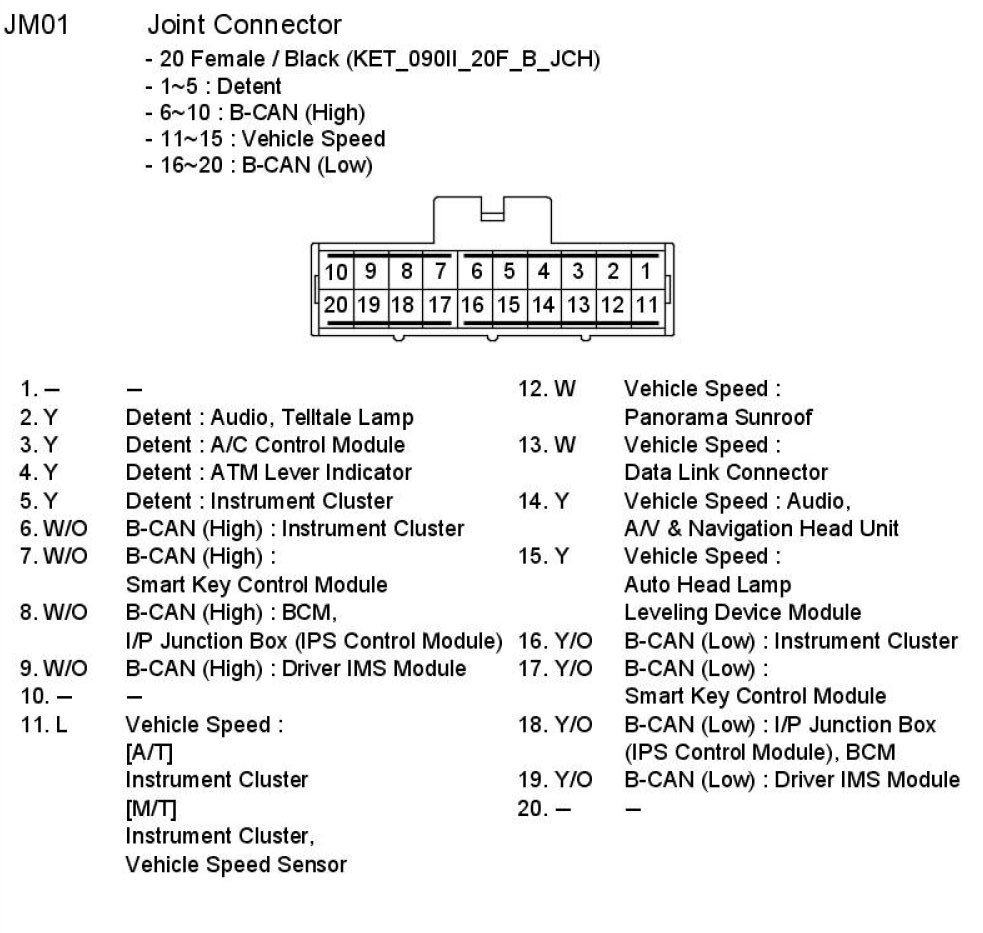

JM01 Joint Connector:

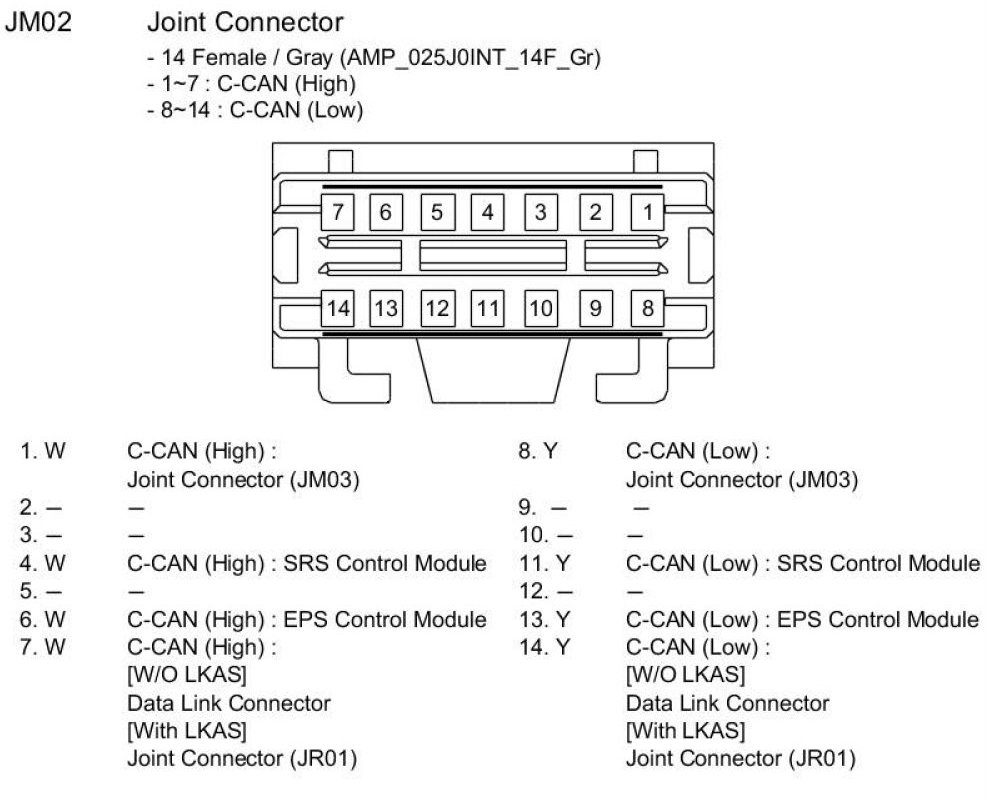

JM02 Joint Connector:

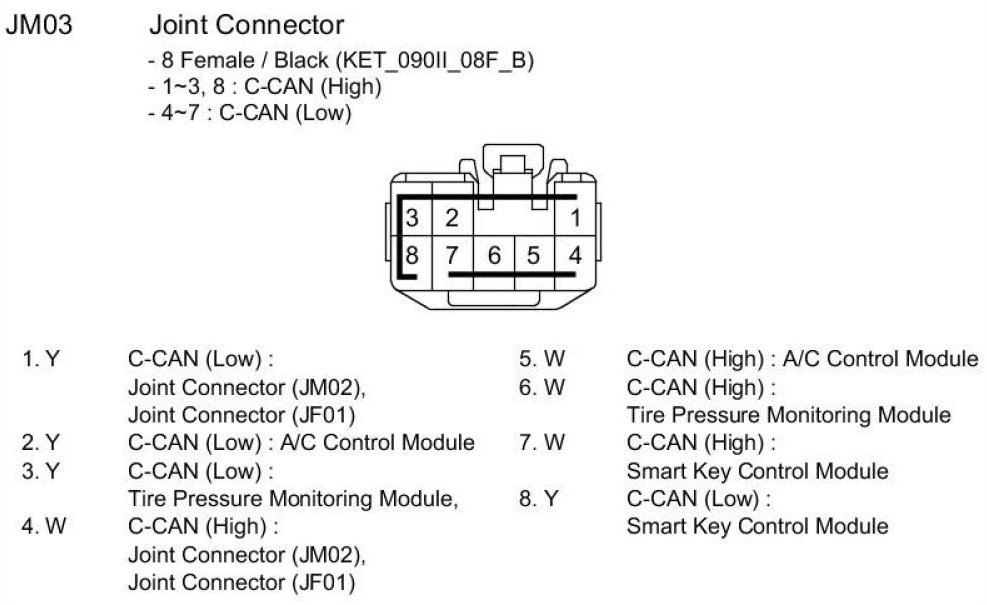

JM03 Joint Connector:

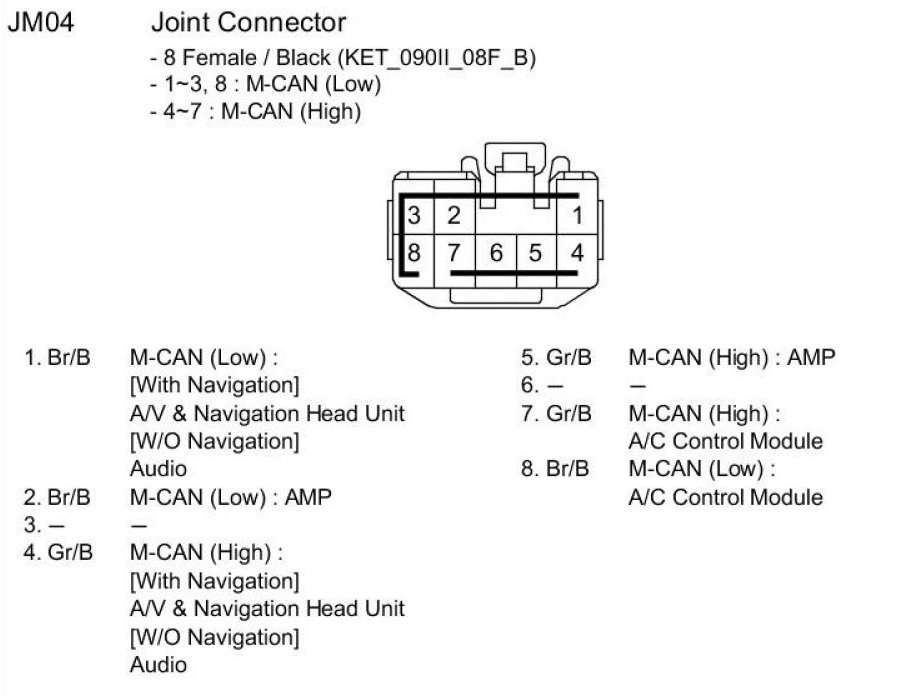

JM04 Joint Connector:

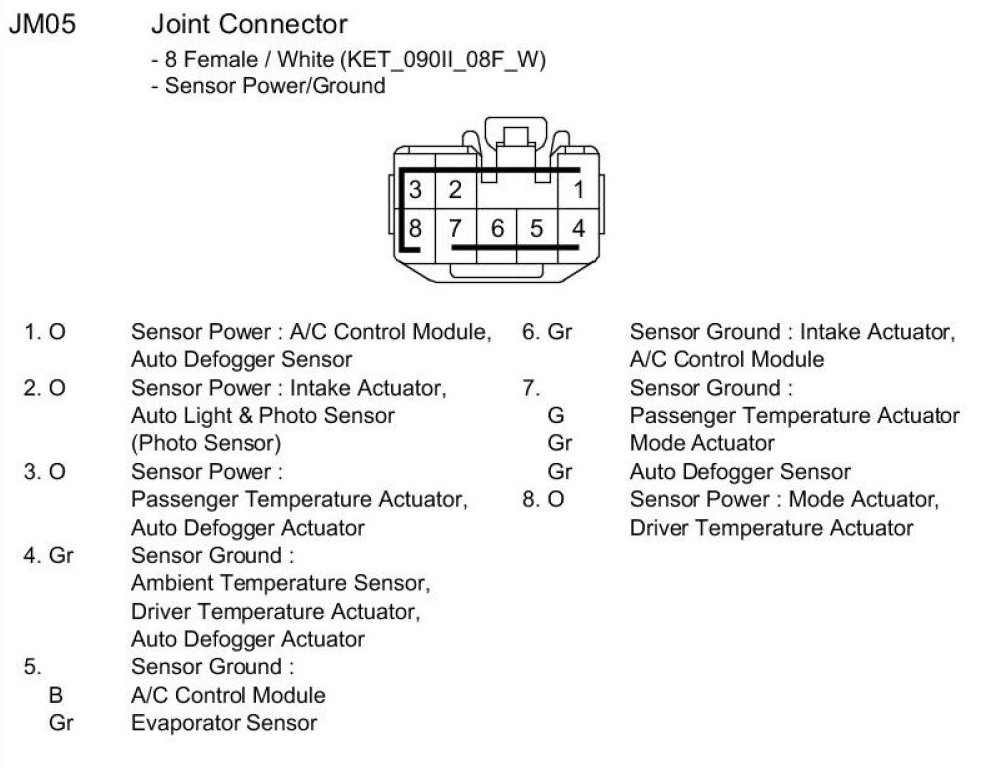

JM05 Joint Connector:

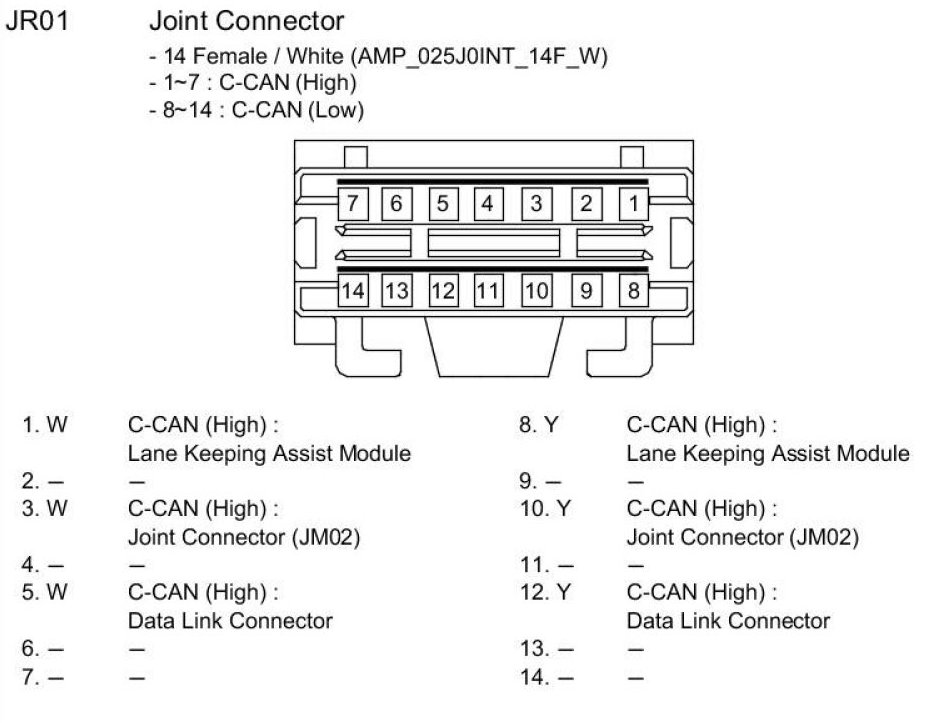

JR01 Joint Connector:

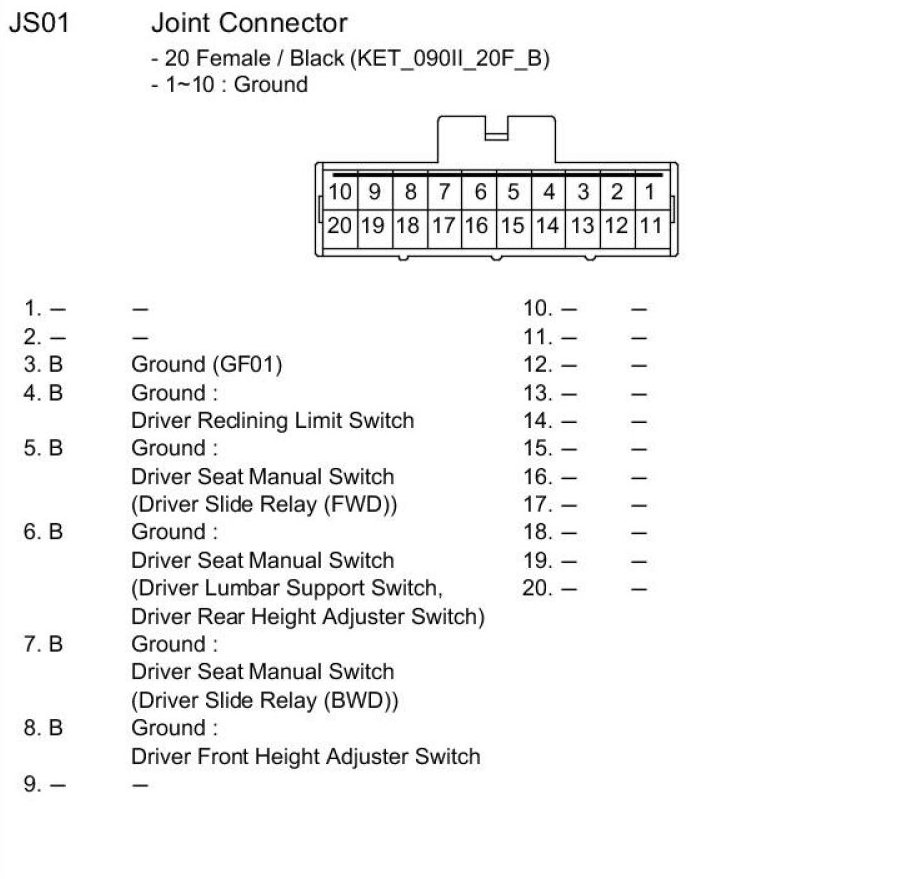

JS01 Joint Connector:




JS02 Joint Connector:
