Home >> Kia >> 2011 >> Optima L4-2.4L >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Keyless Entry Receiver >> Diagrams >> Passenger Smart Key Outside Handle

Passenger Smart Key Outside Handle

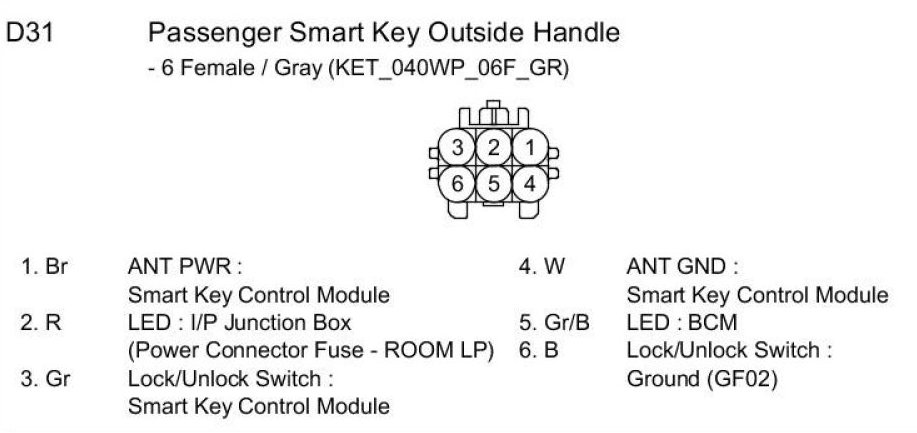

D31 Passenger Smart Key Outside Handle:
