Electrical Diagrams

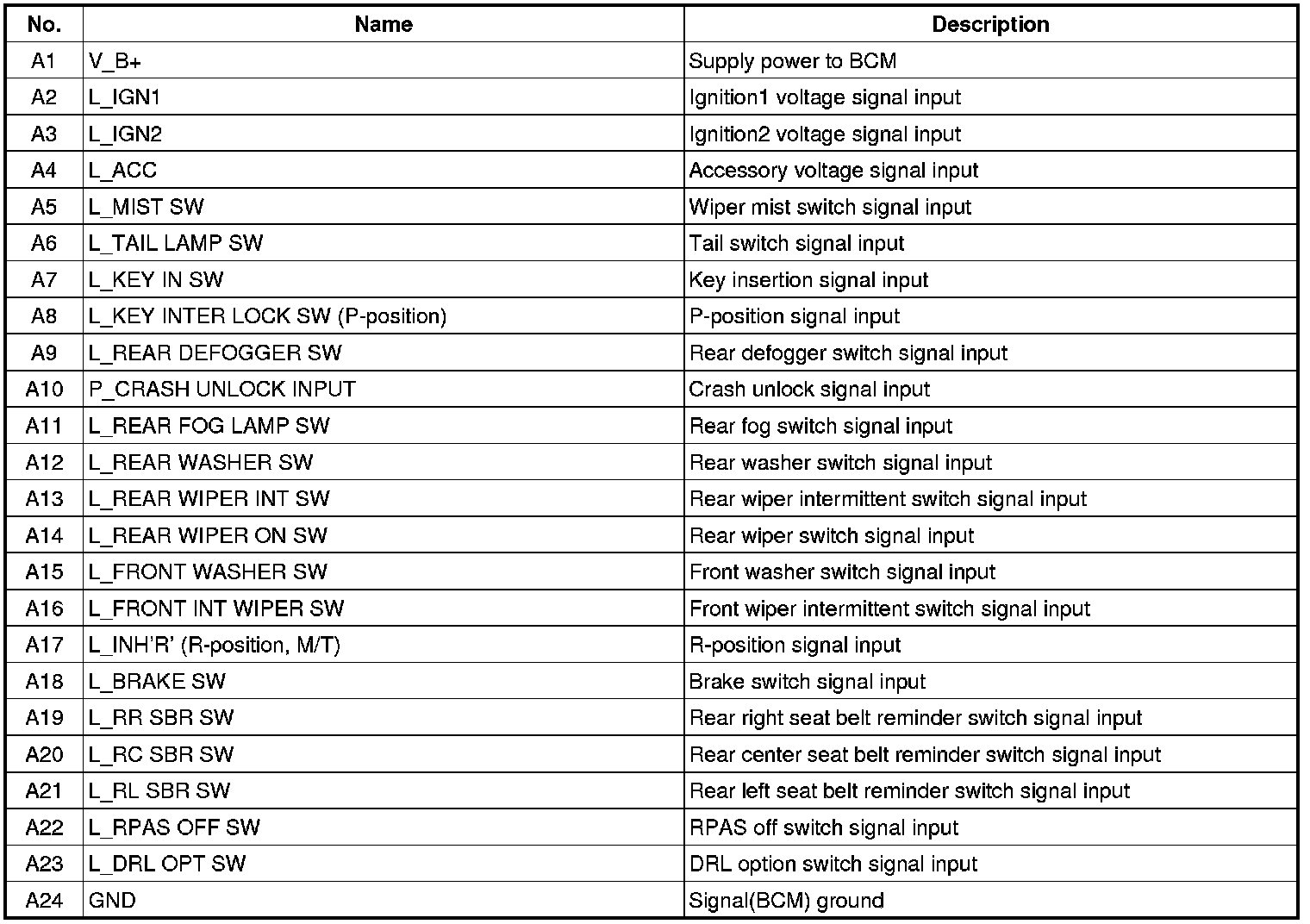

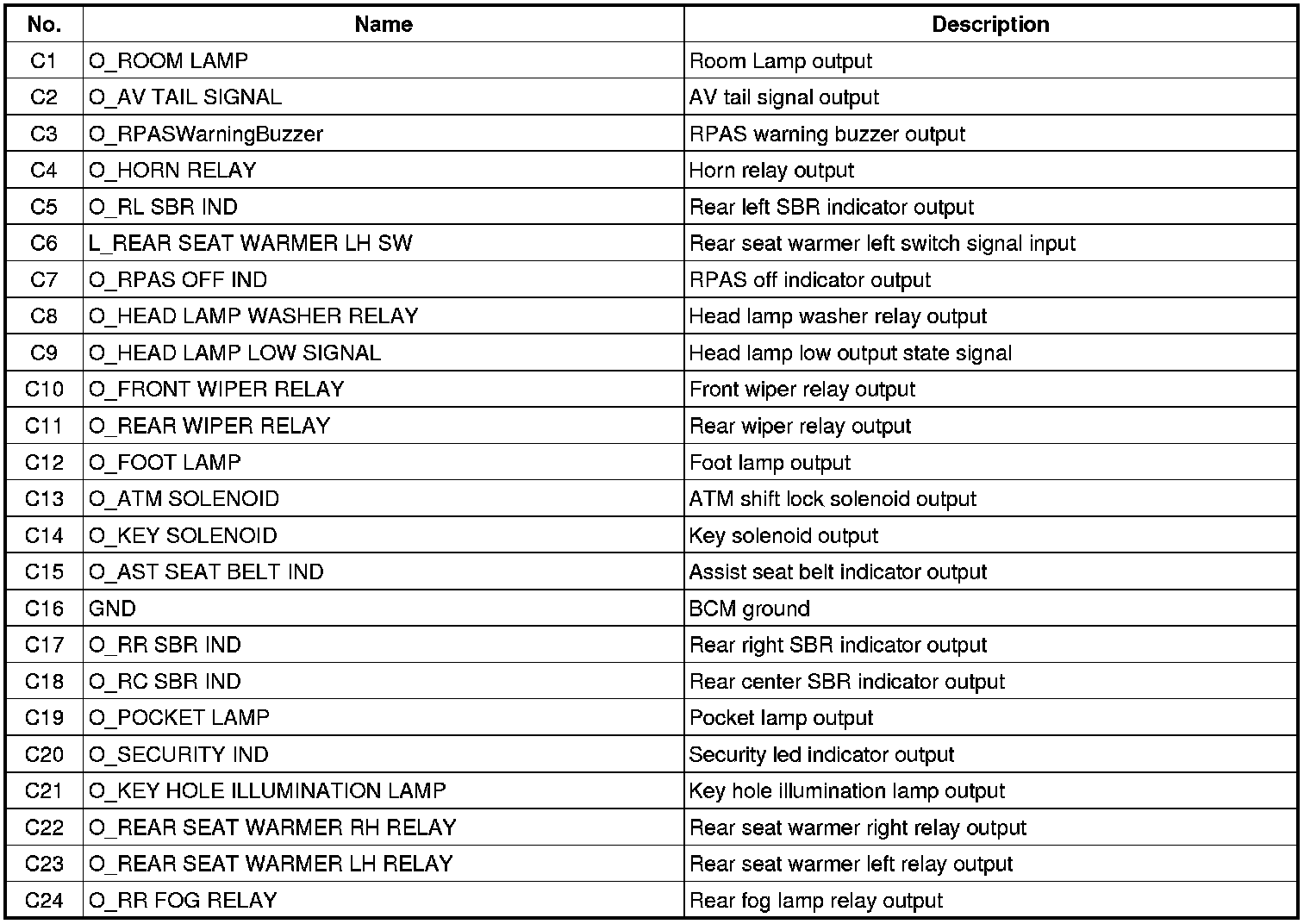

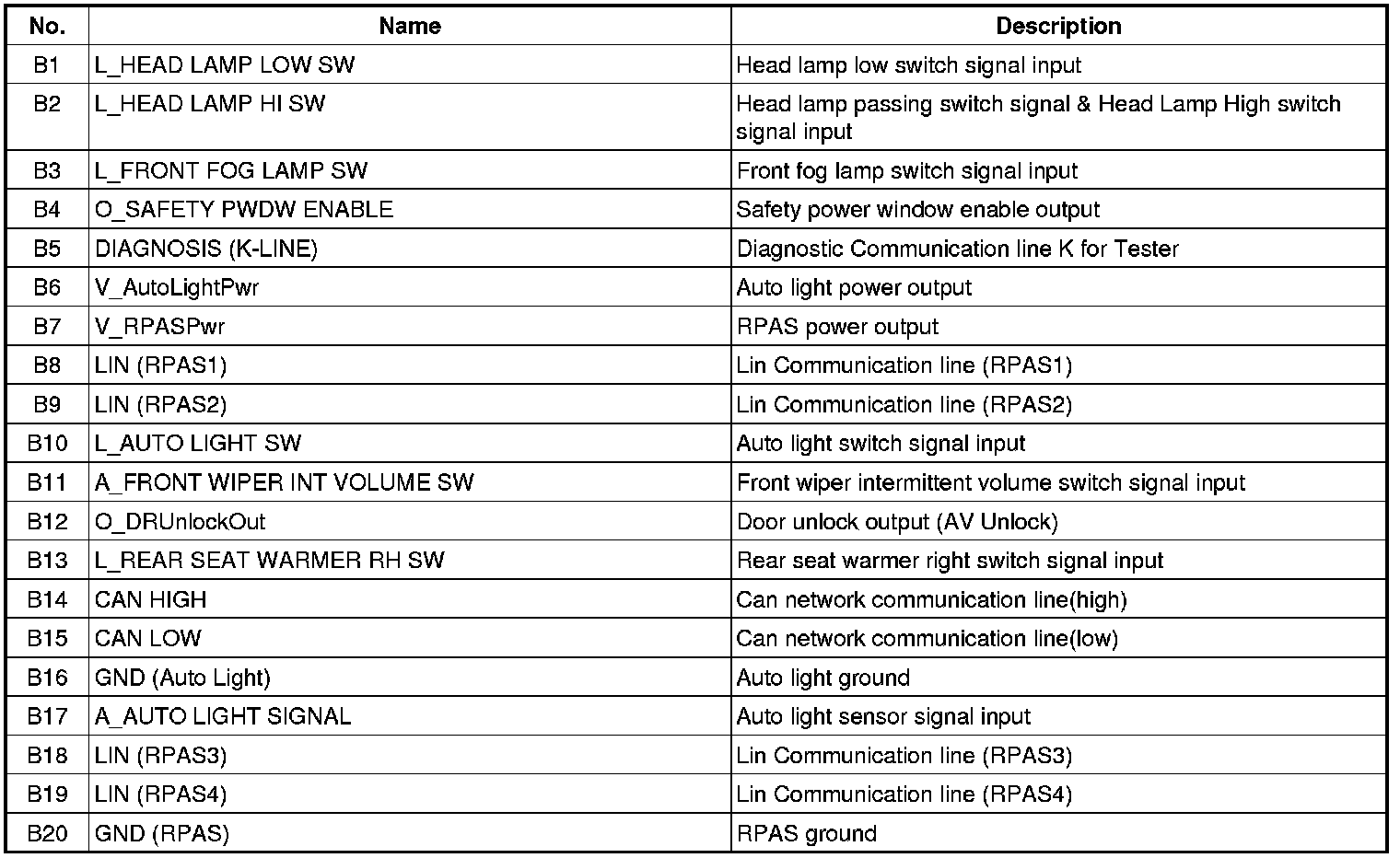

BCM Connector Terminals

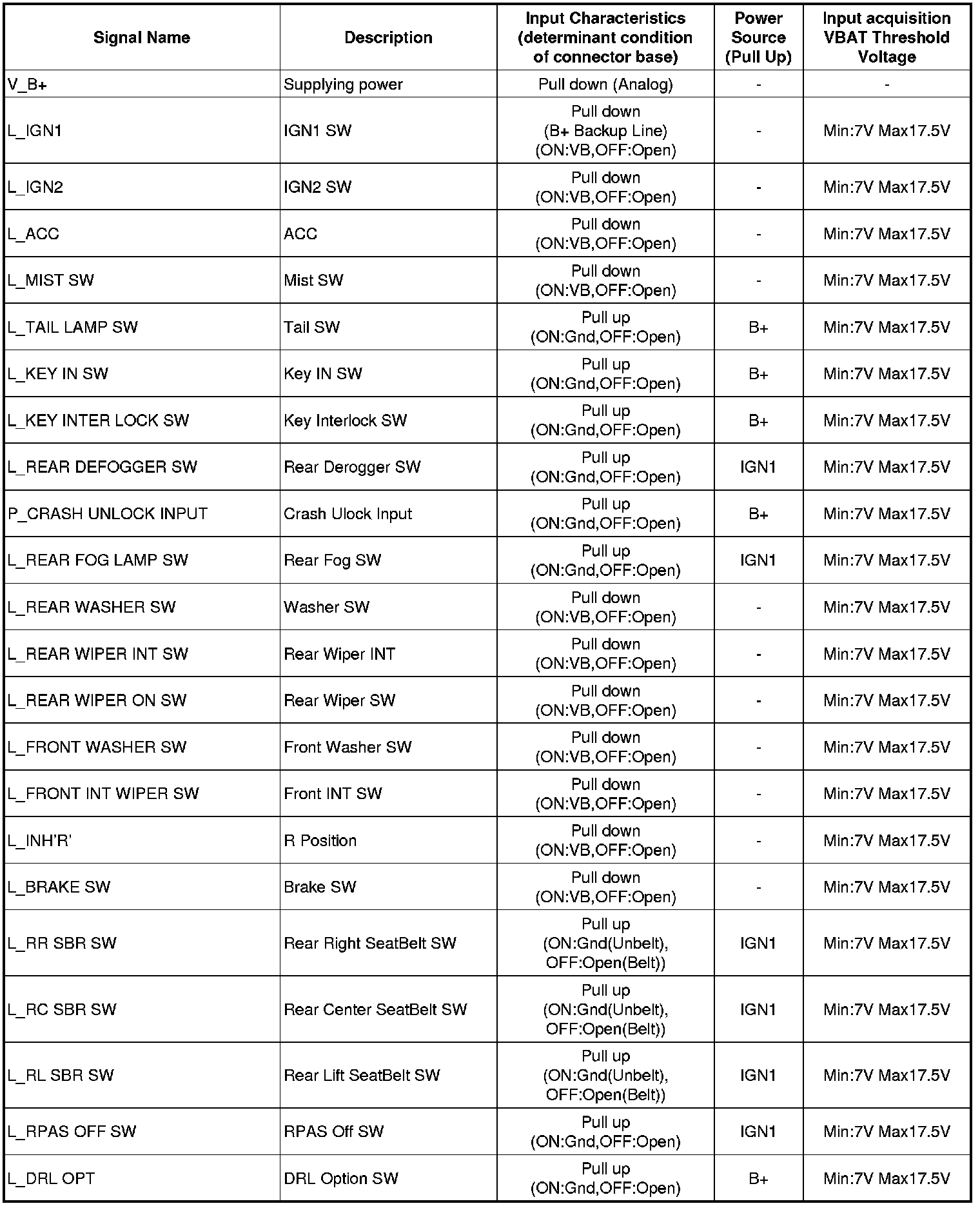

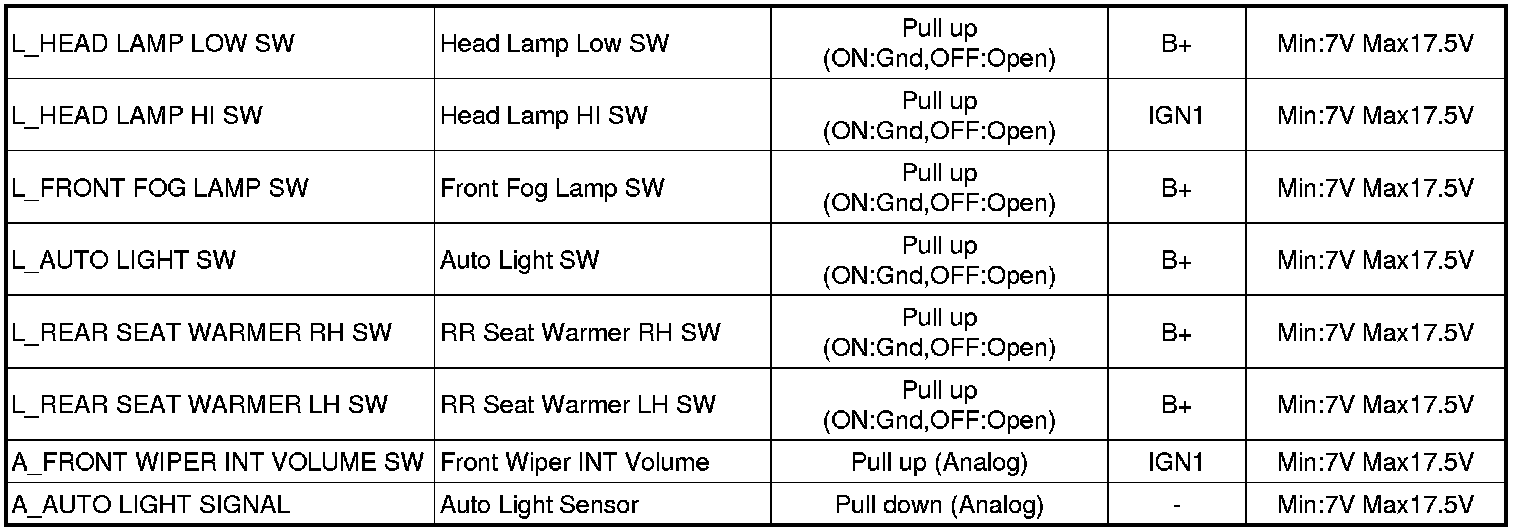

BCM Input Signal SPEC

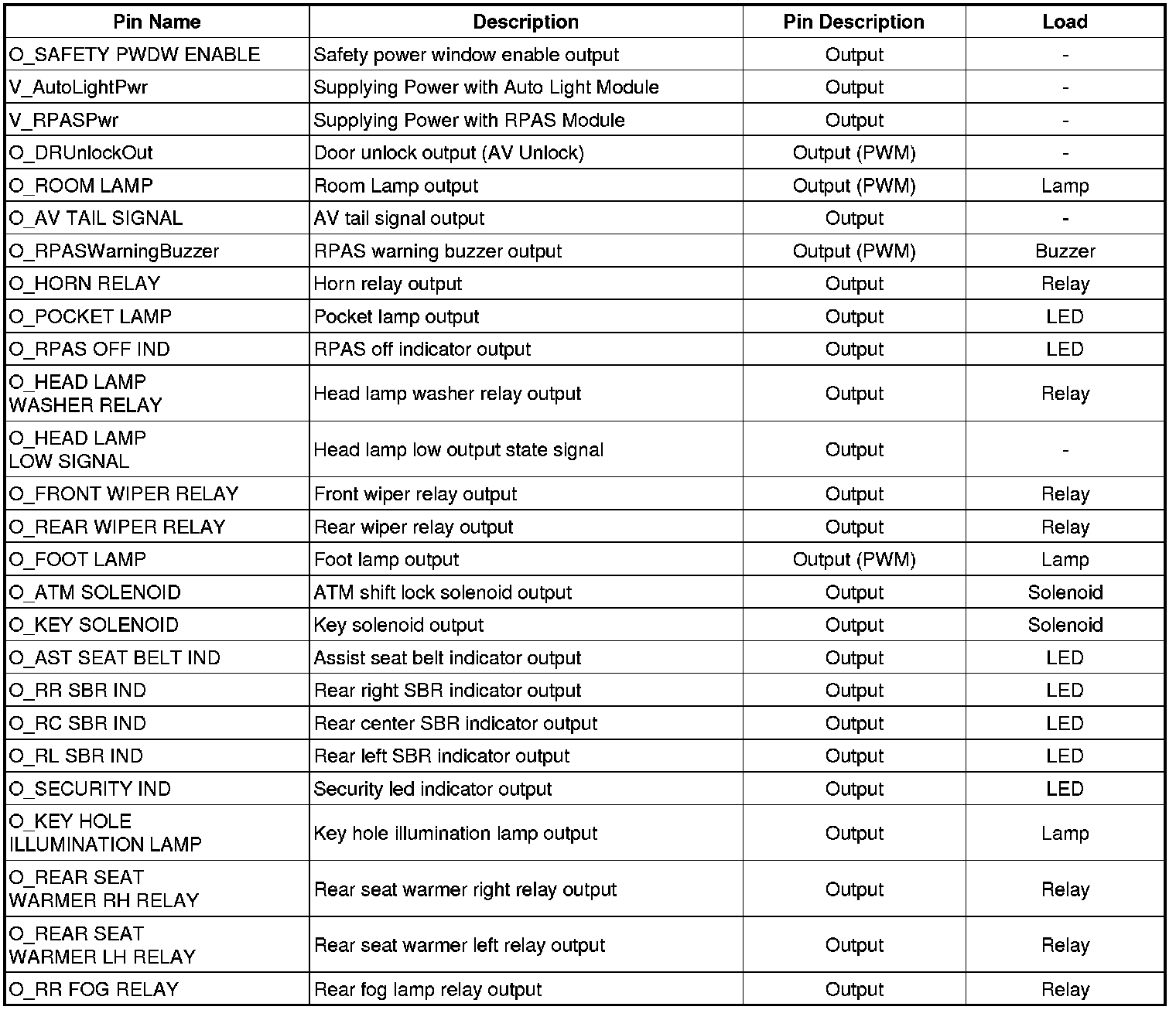

BCM Output Signal SPEC

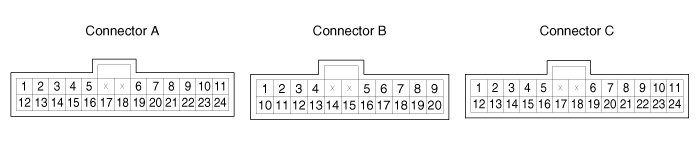

Pin Arrangement




Connector A





Connector B





Connector C

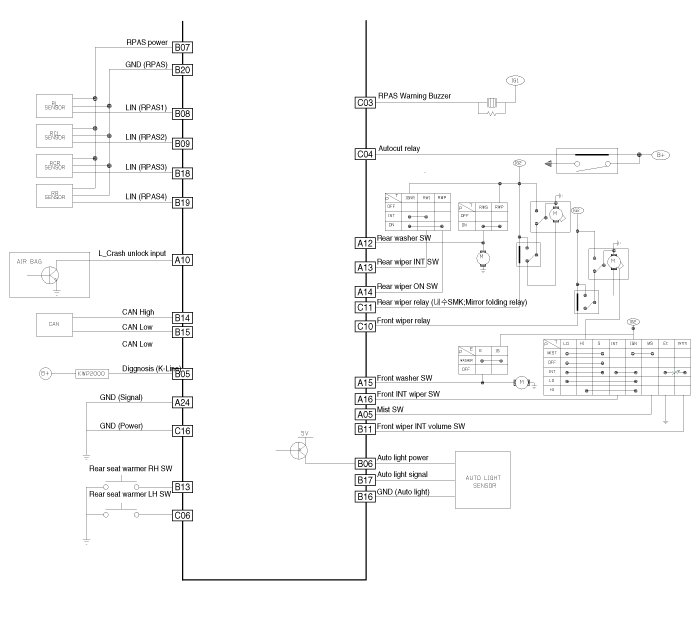

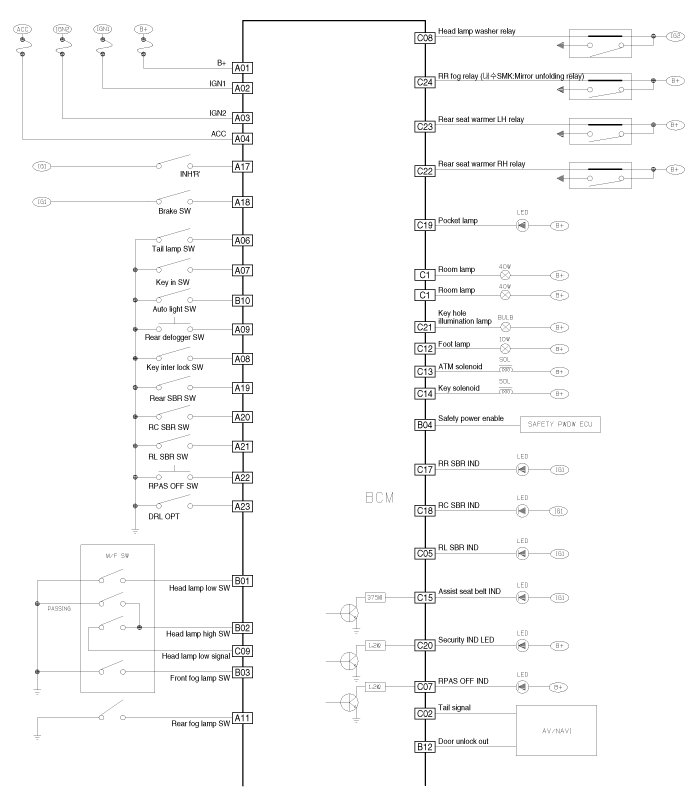

Circuit Diagram
