Home
>>
Kia
>>
2008
>>
Spectra L4-2.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters

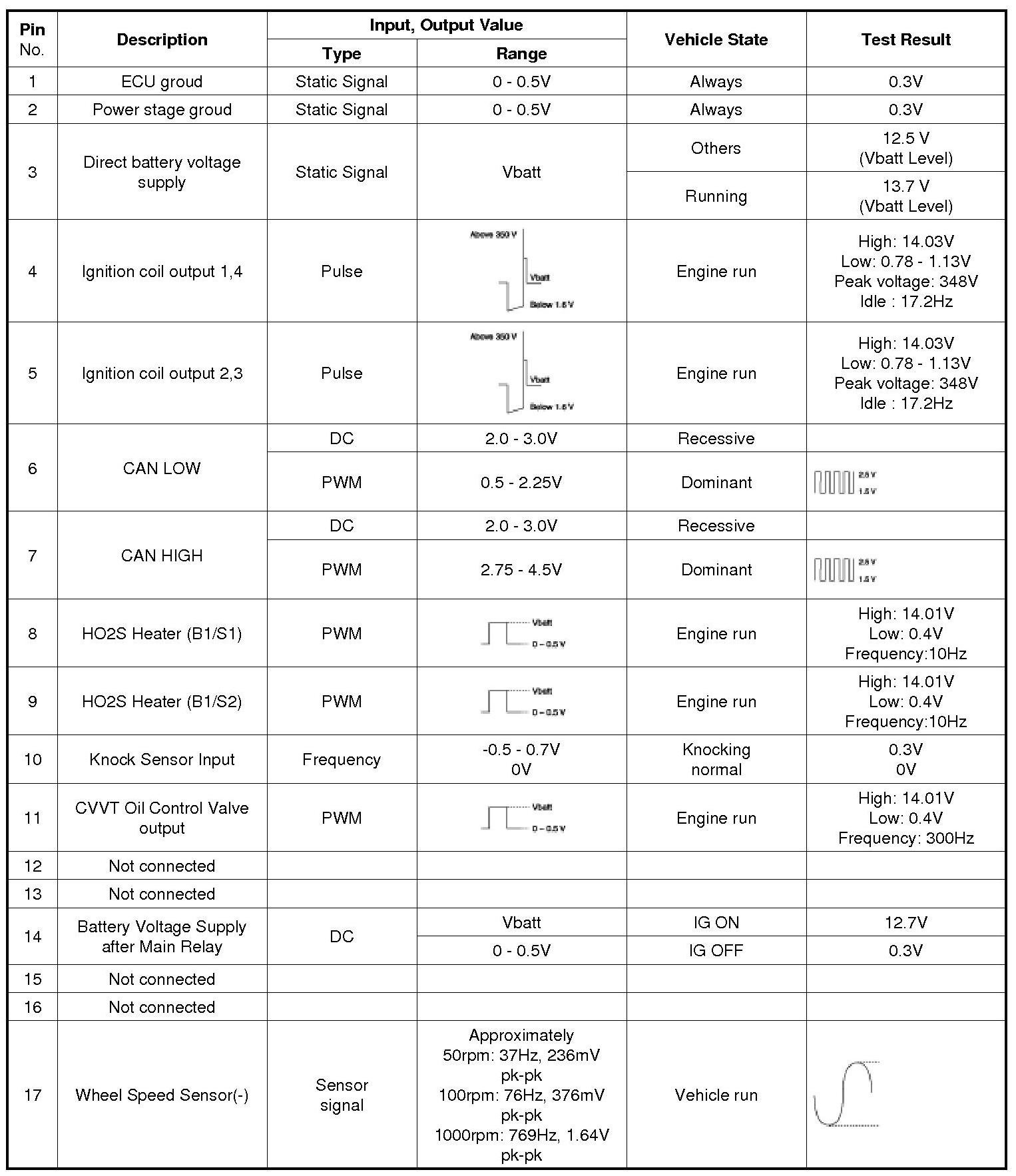

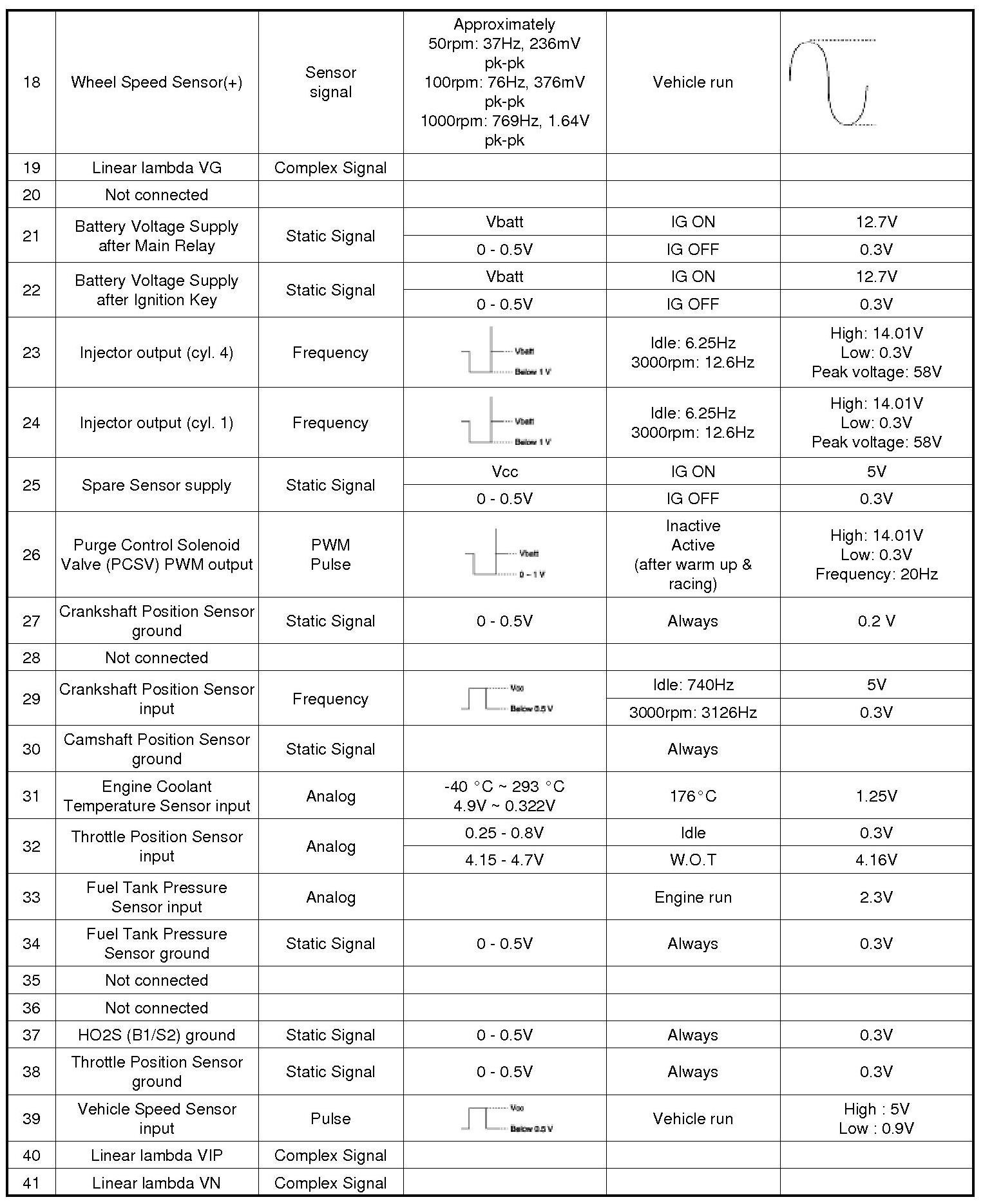

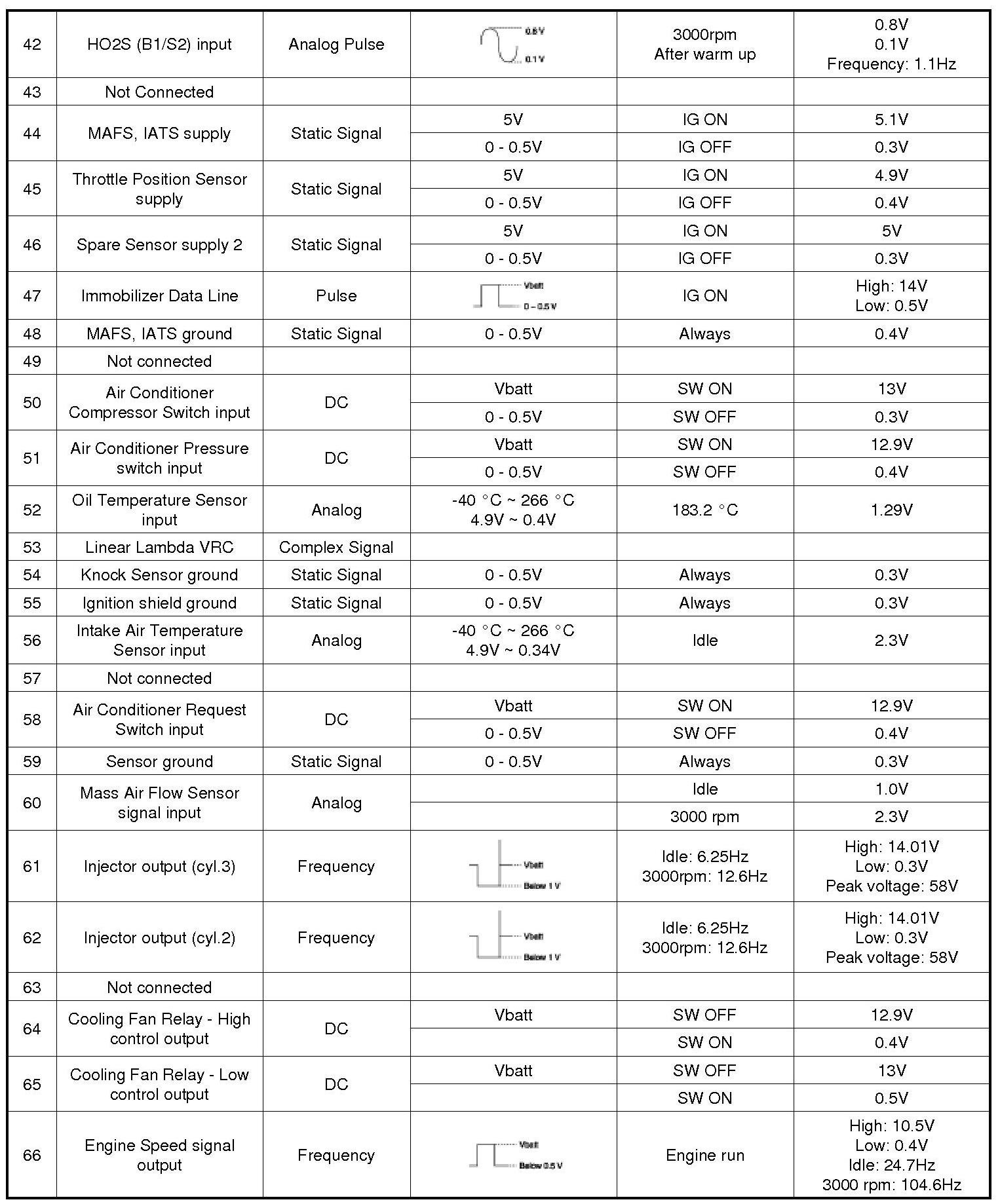

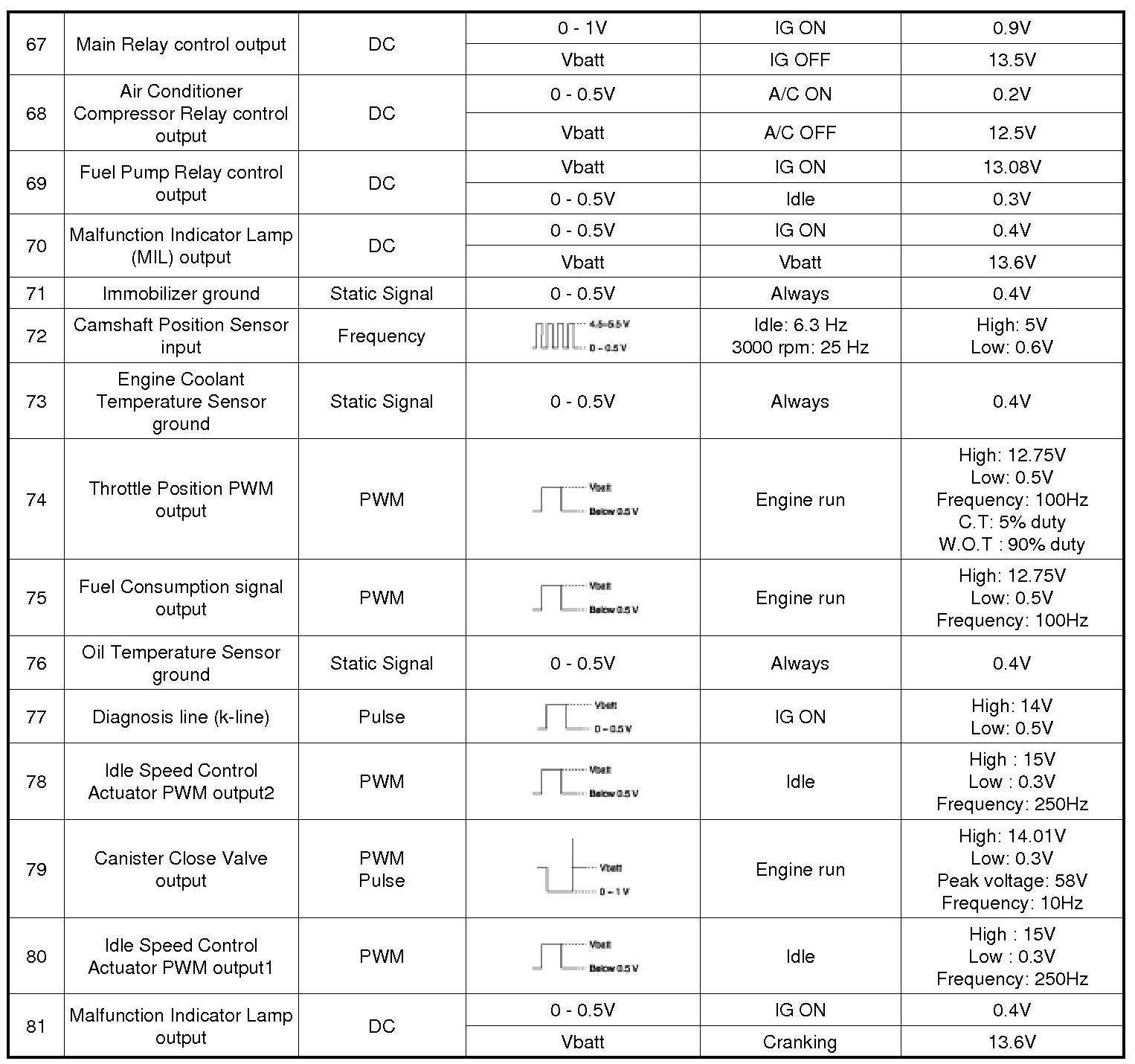

ECM TERMINAL INPUT/OUTPUT SIGNAL
