Manual Transmission/Transaxle
>>
Manual Transaxle
Manual Transaxle

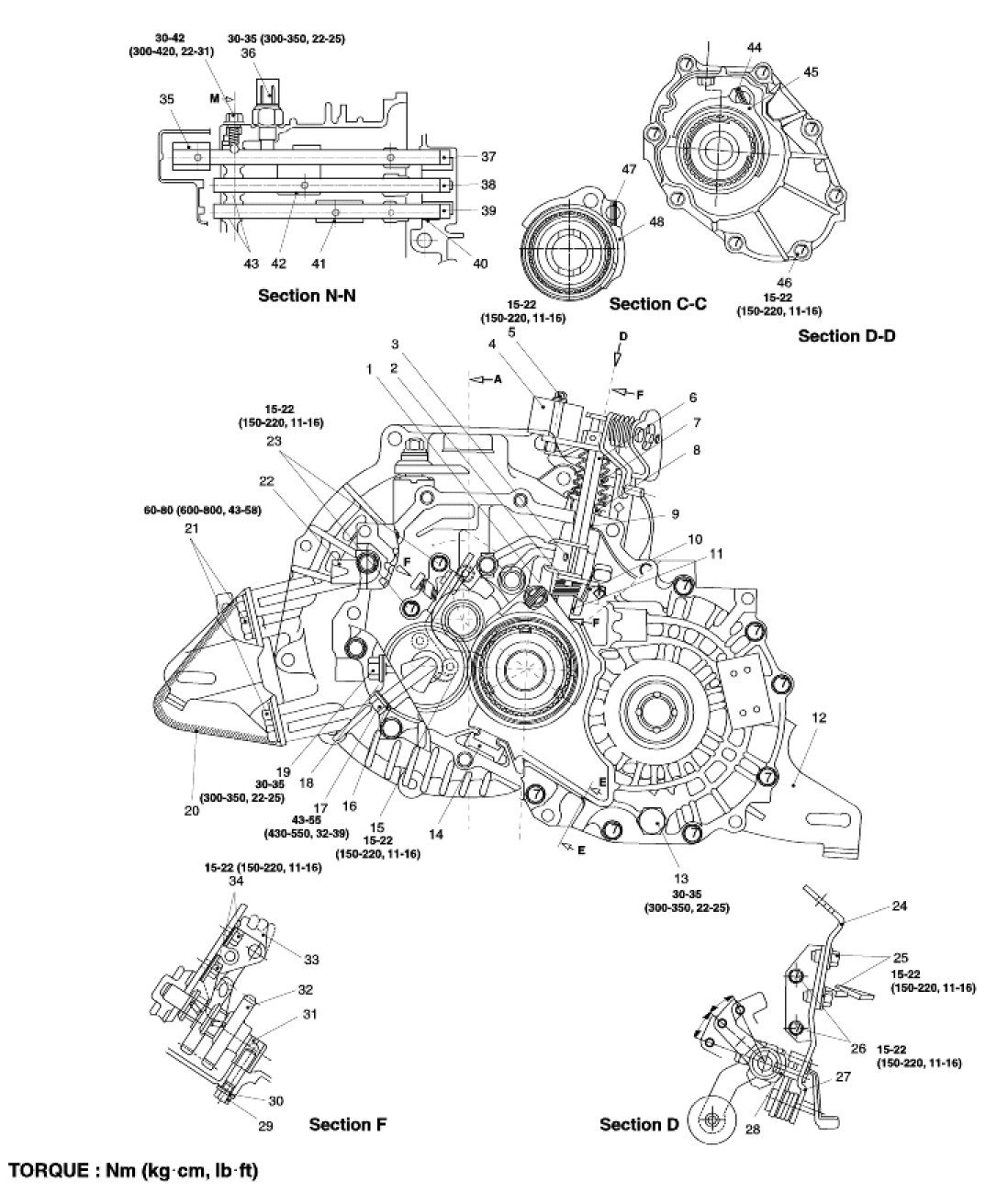

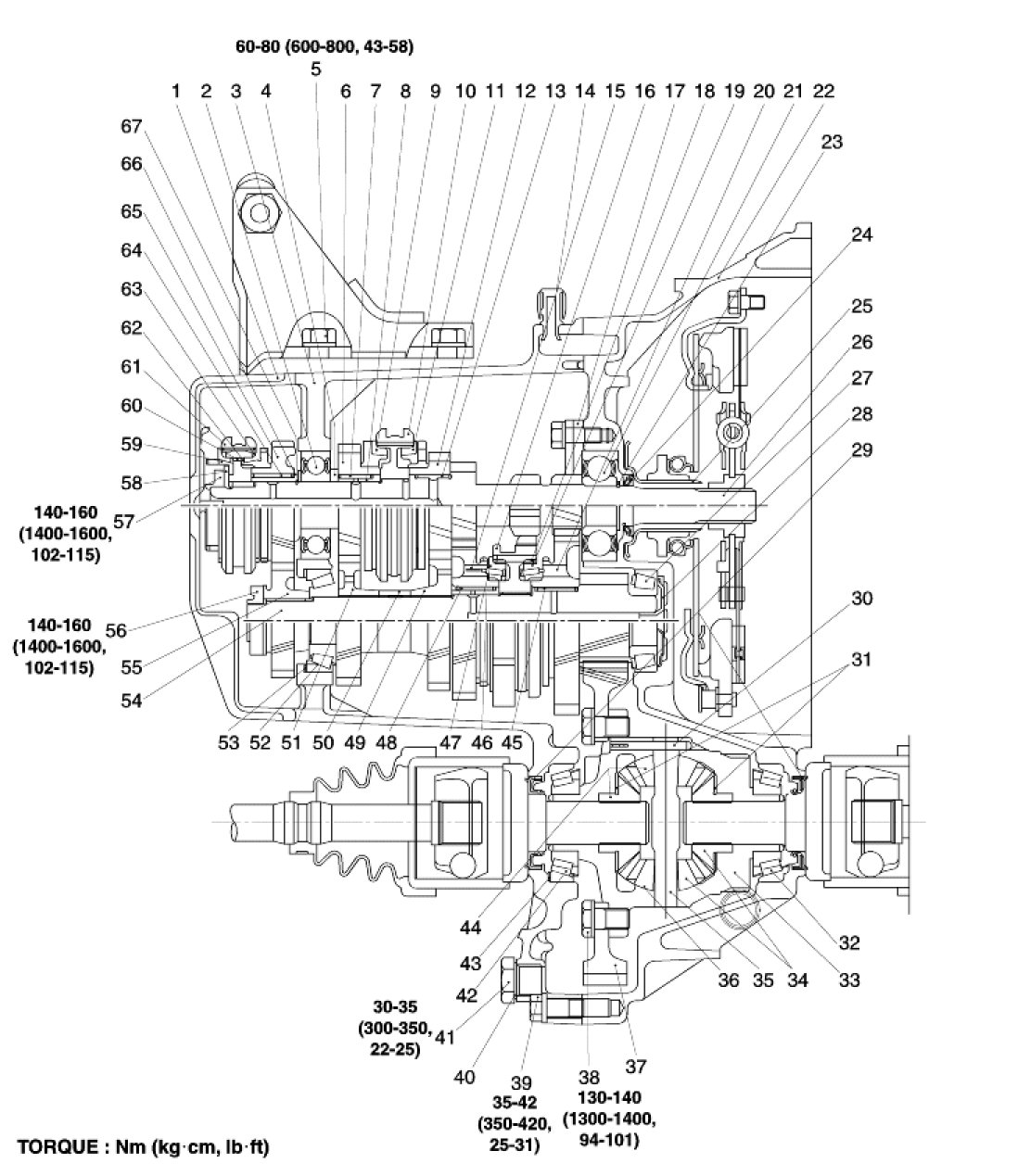

SECTION VIEW

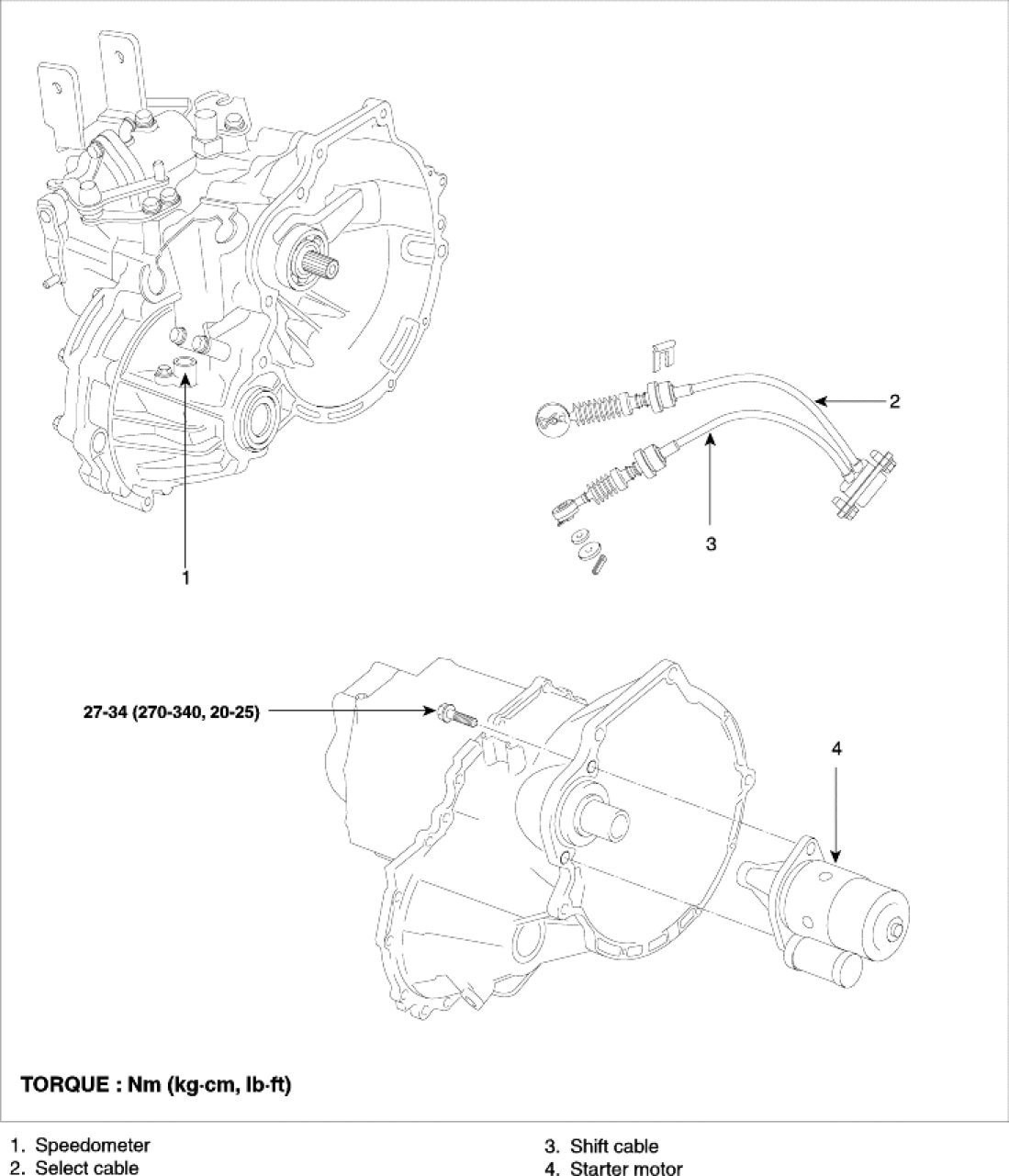

COMPONENTS(1)

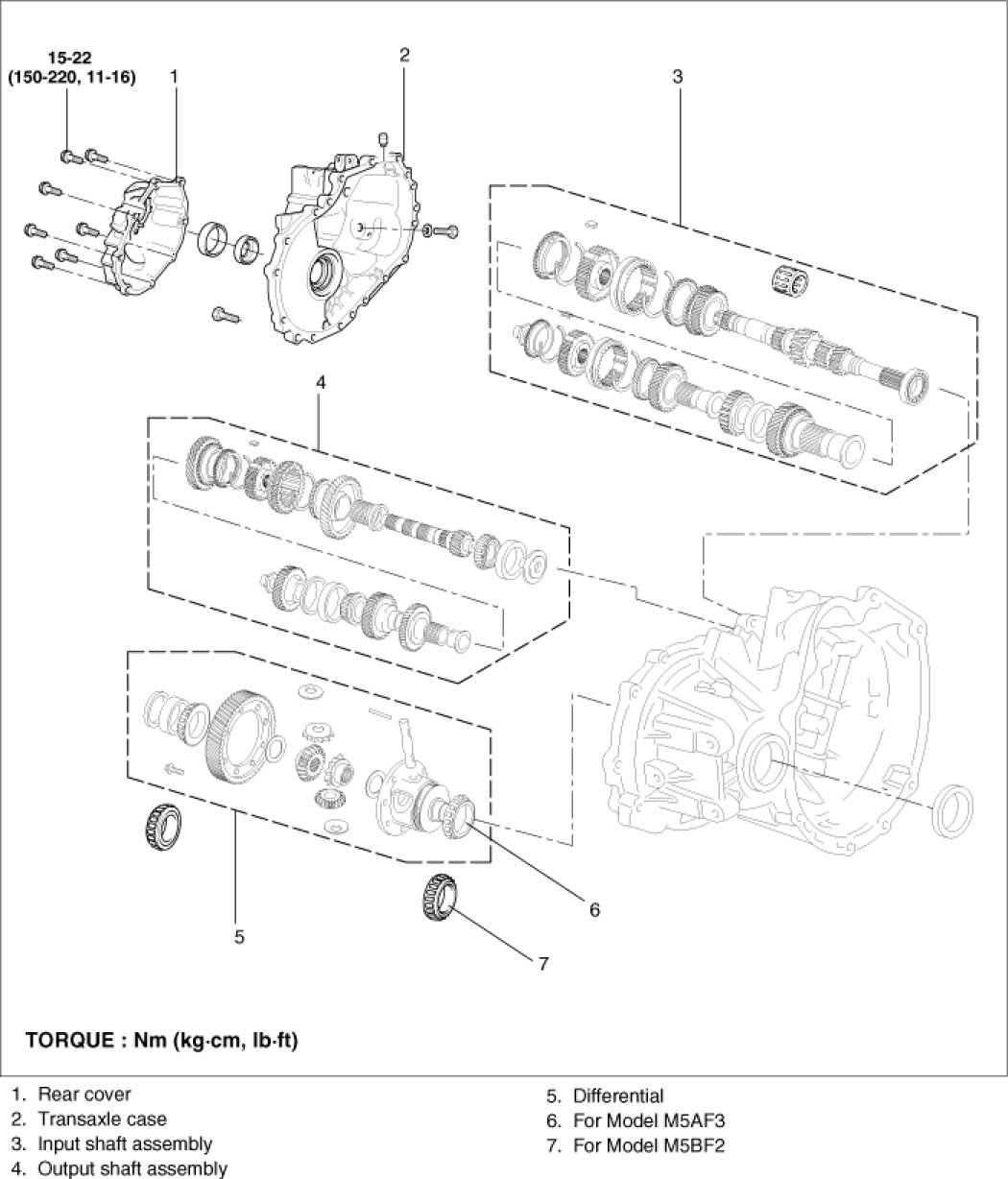

COMPONENTS(2)
COMPONENTS(3)
COMPONENTS(4)
