Timing Cover

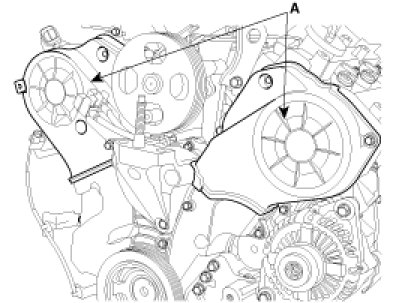

Install the timing belt upper cover(A).

Tightening torque: 9.8 - 11.8Nm (1.0 - 1.2kgf.m, 7.2 - 8.7lb-ft)

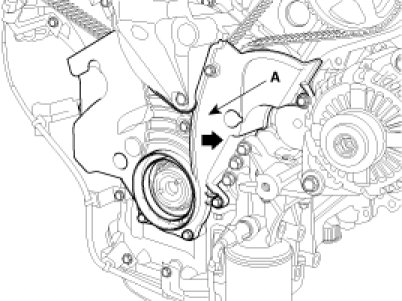

Install the timing belt lower cover.

Tightening torque: 9.8 - 11.8Nm (1.0 - 1.2kgf.m, 7.8 - 8.7lb-ft)
