Pinout Values and Diagnostic Parameters





POWERTRAIN CONTROL MODULE (PCM)

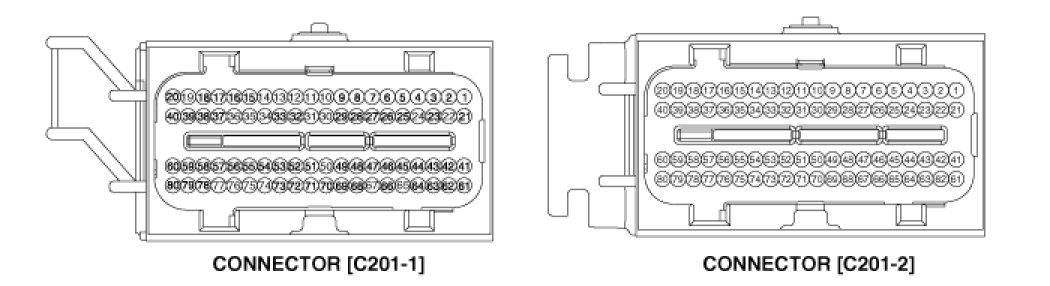

1. HARNESS CONNECTOR

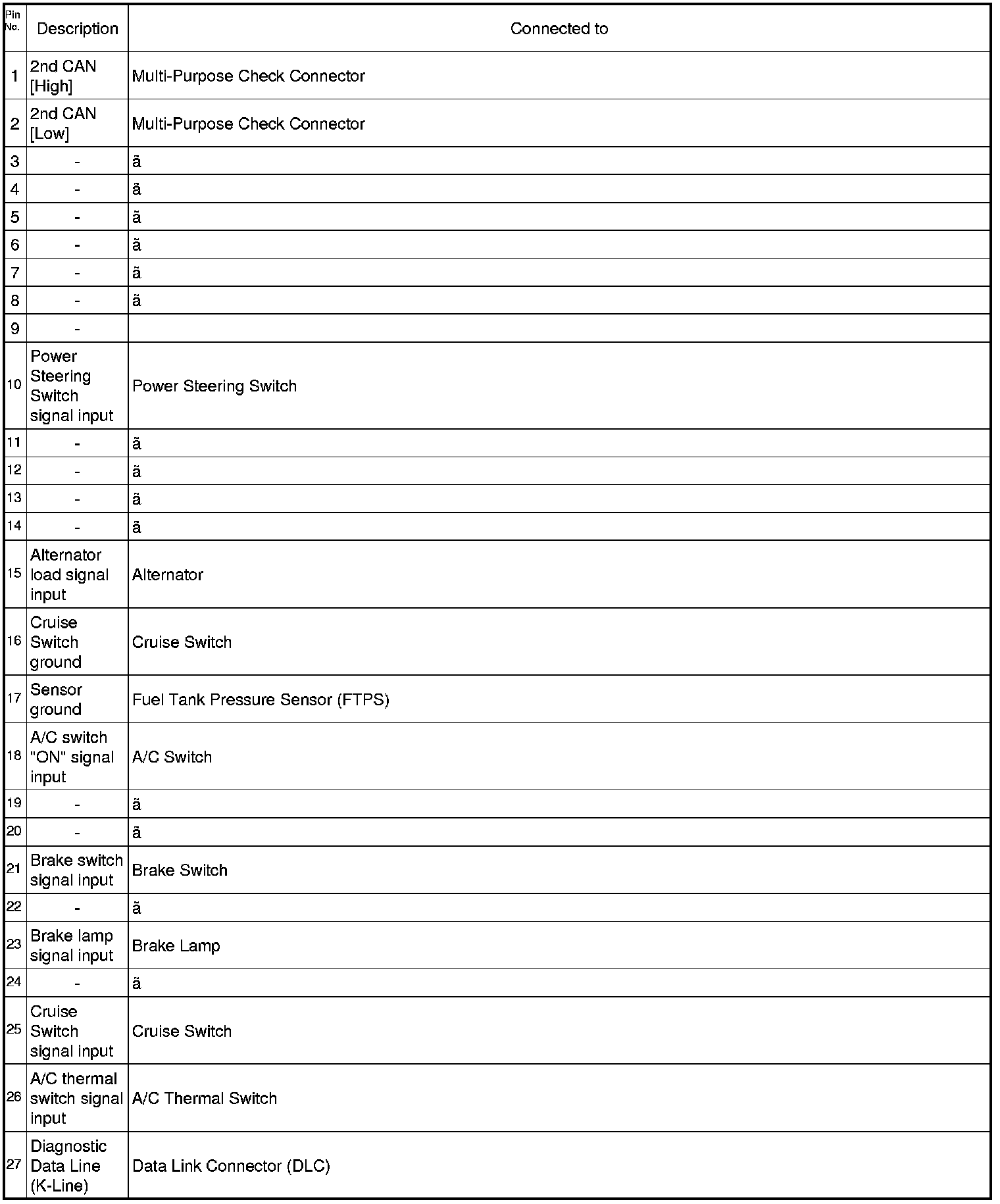

2. TERMINAL FUNCTION

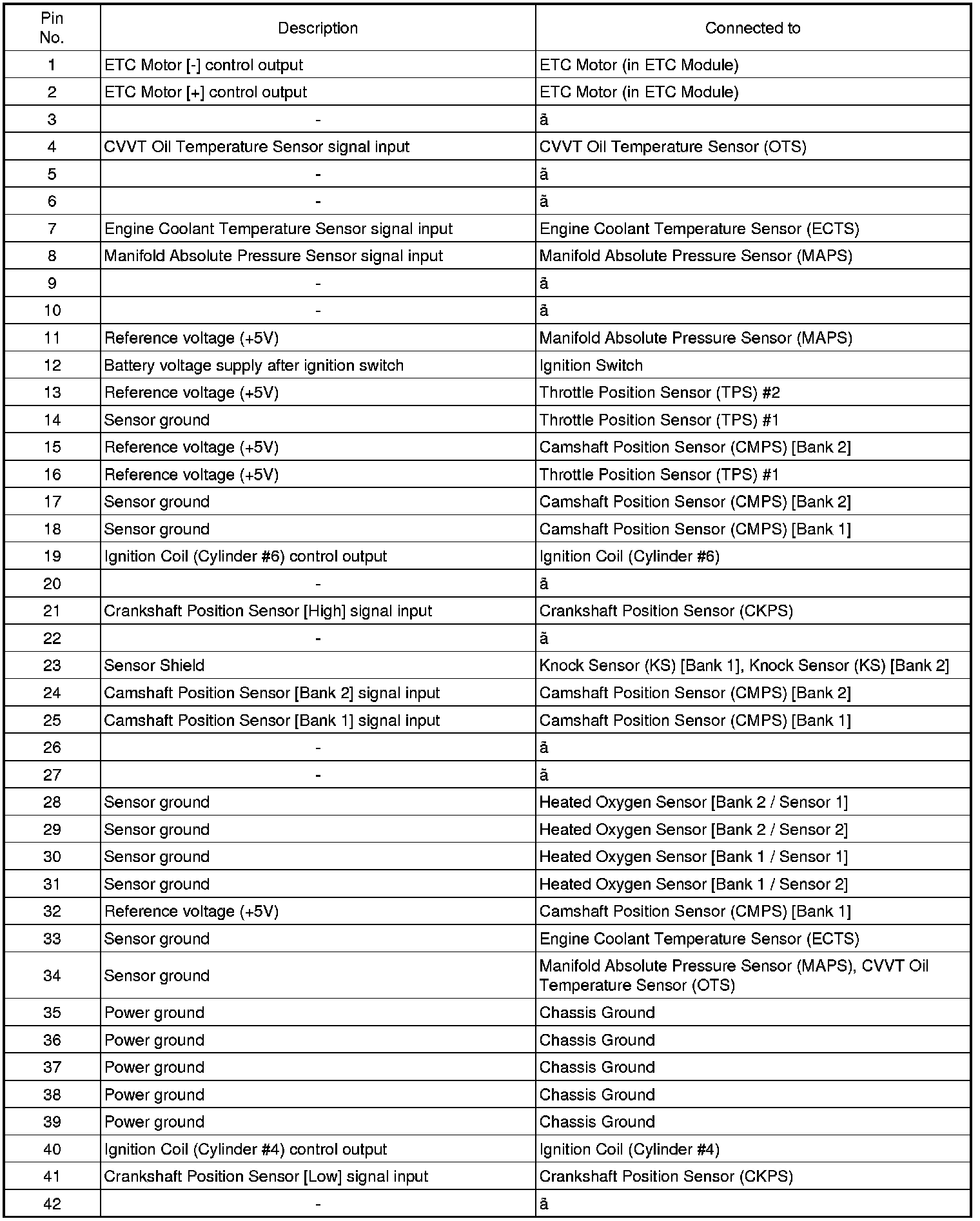

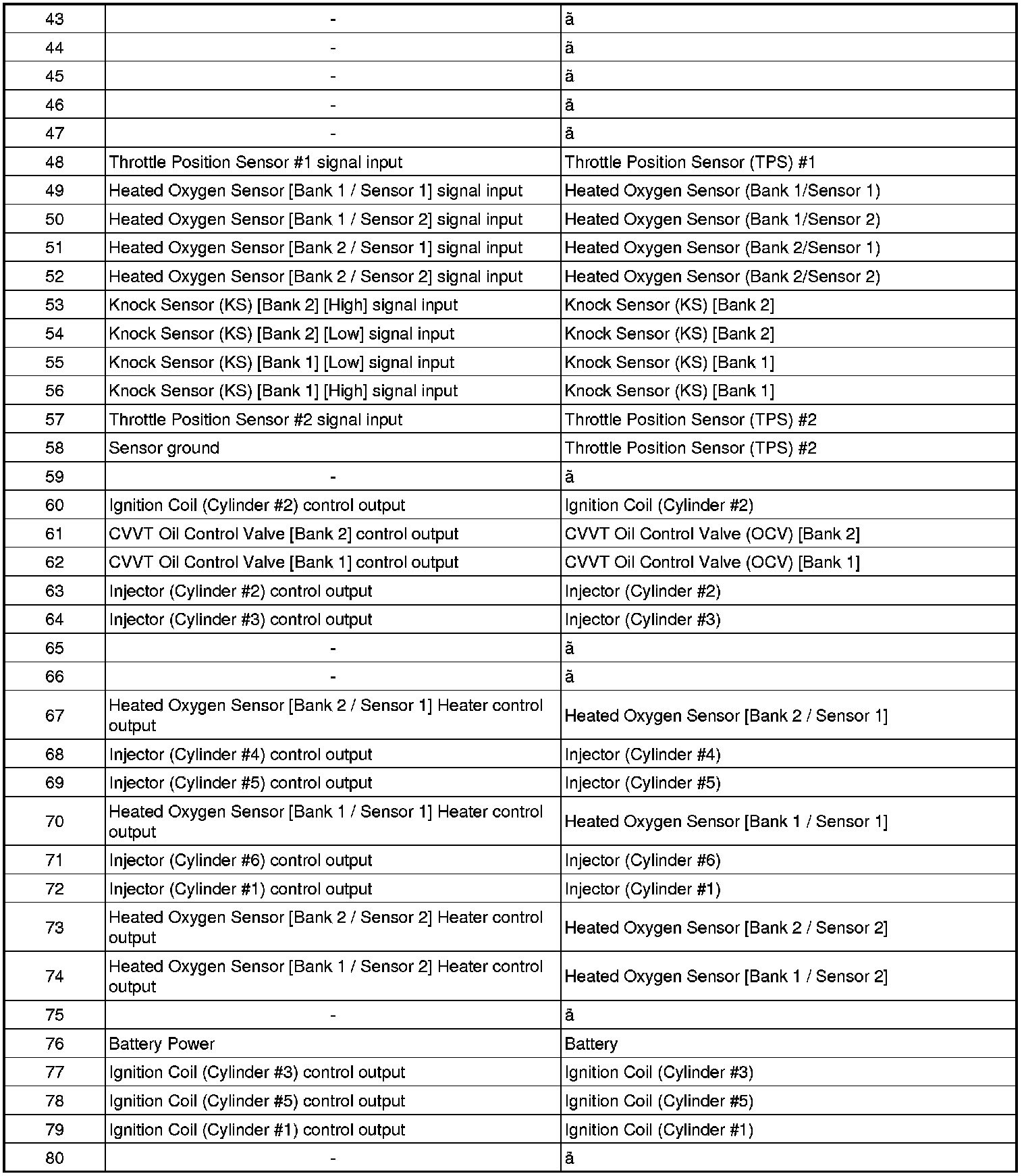

CONNECTOR [C201-1]

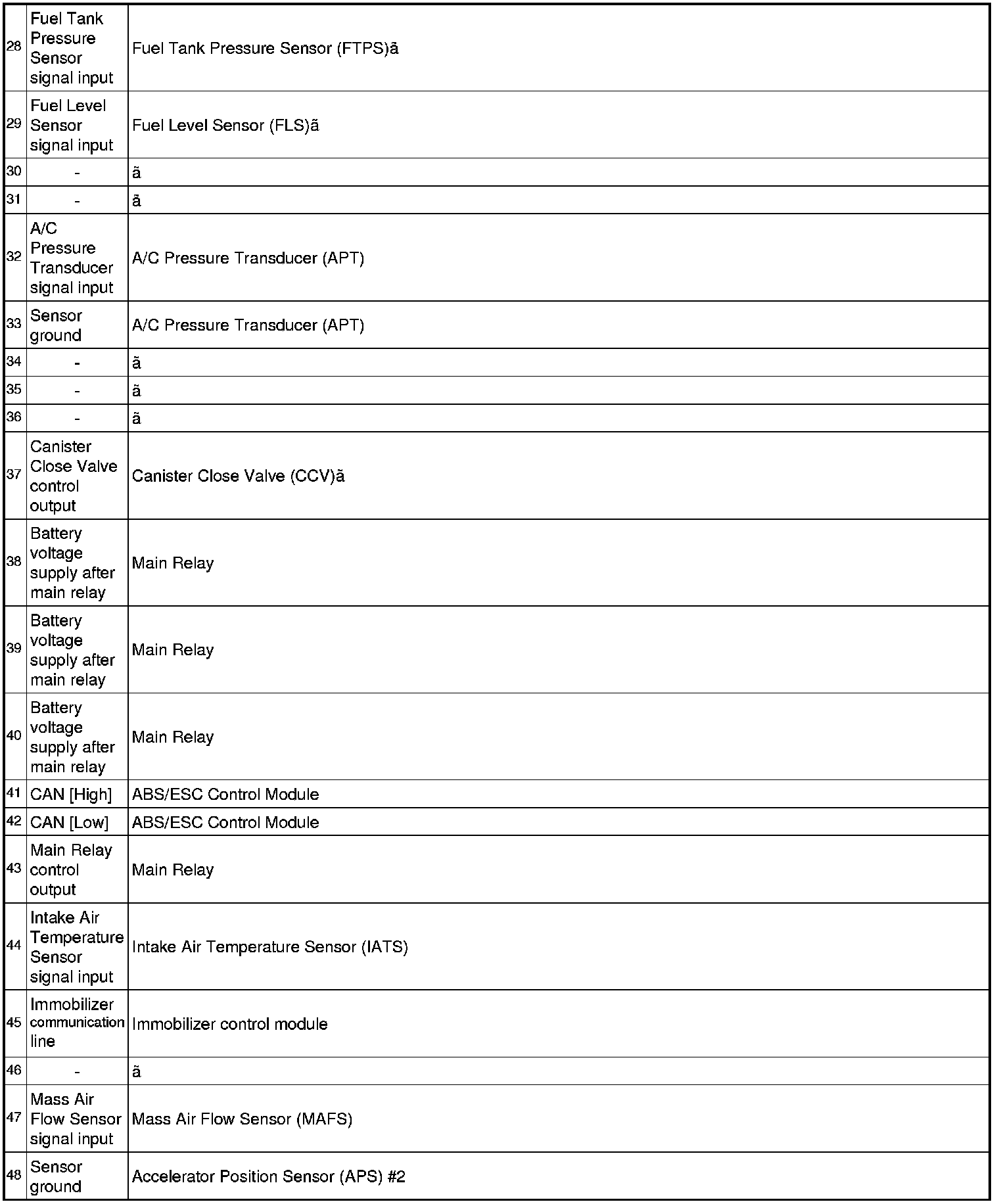

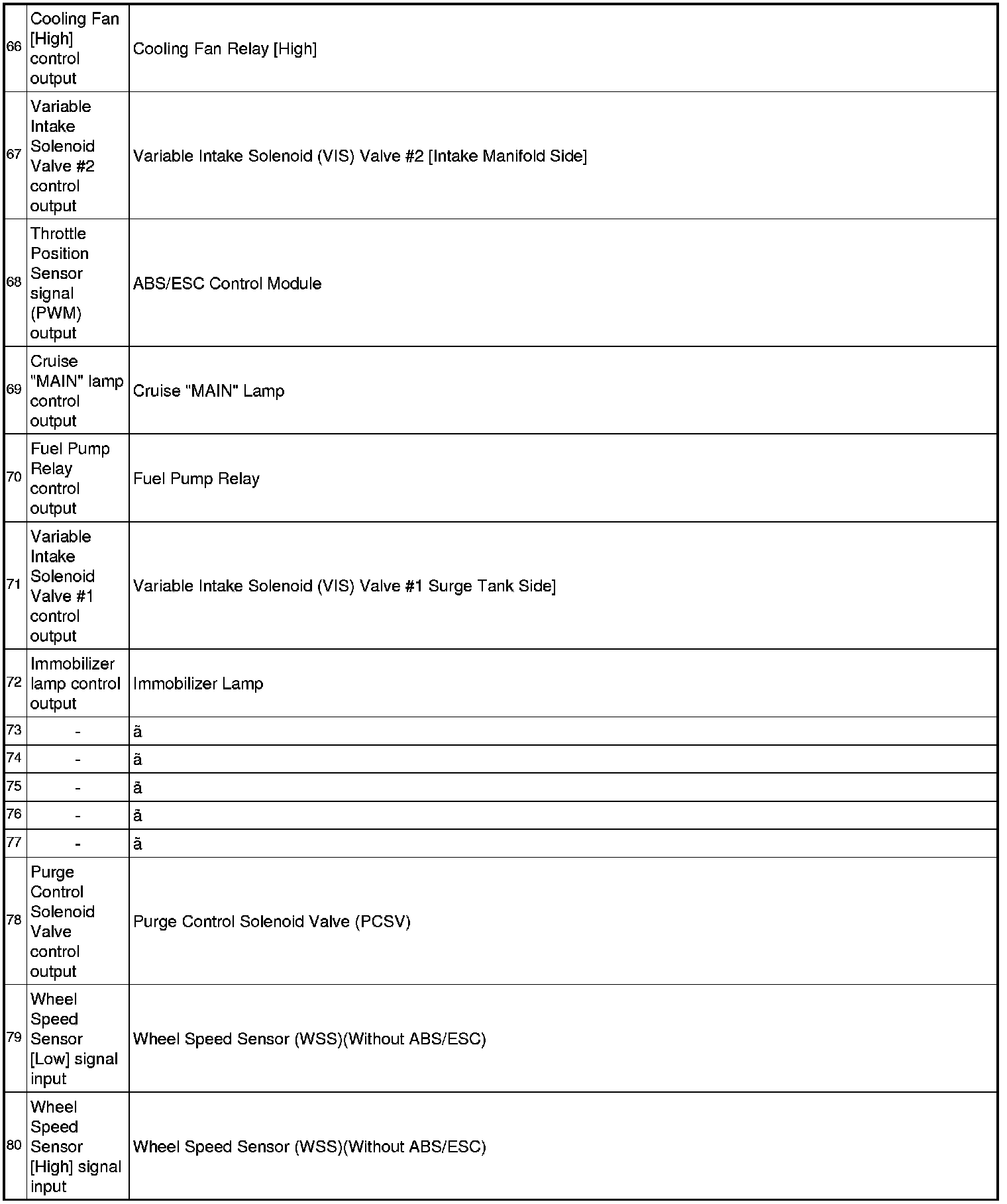

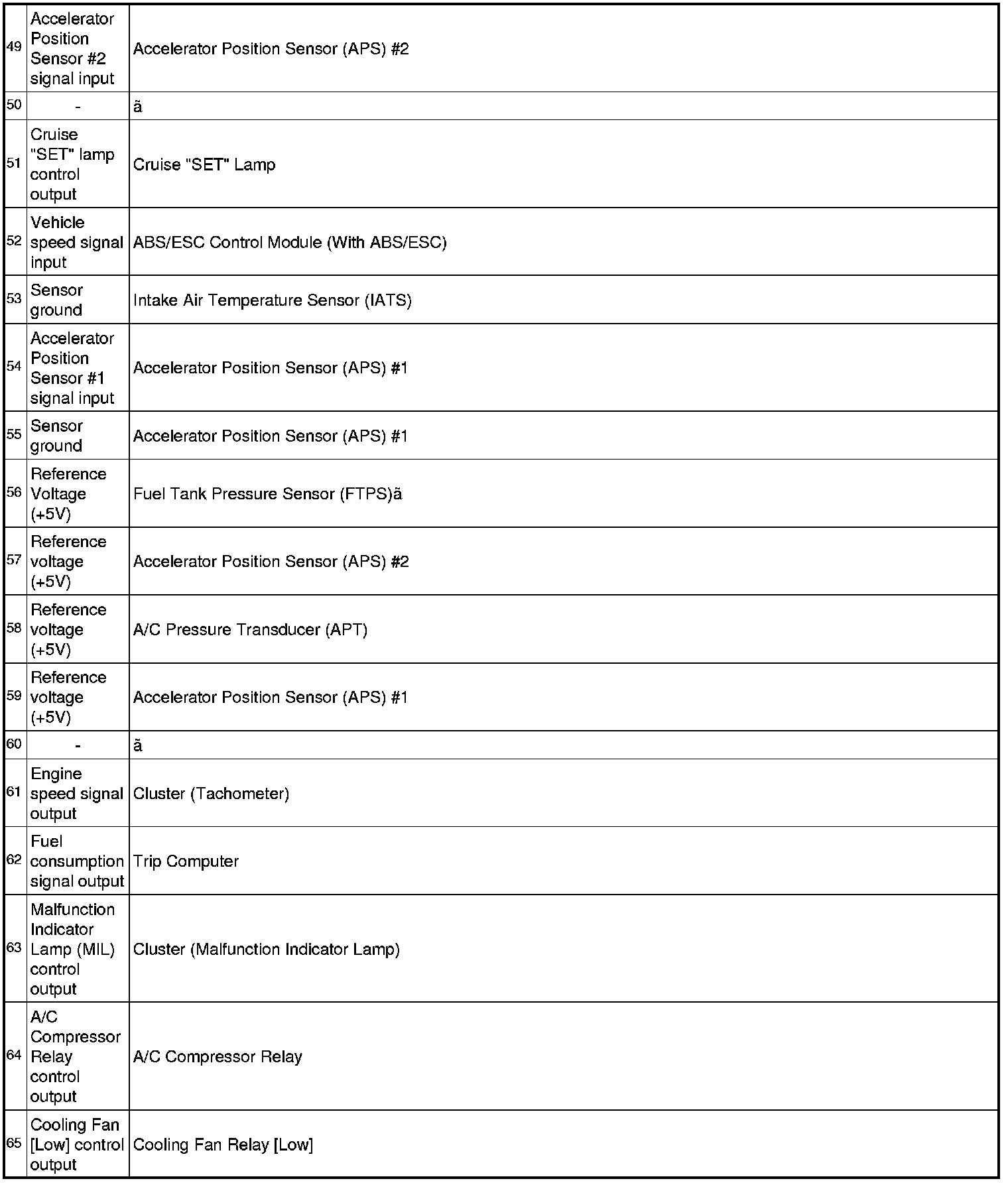

CONNECTOR [C201-2]

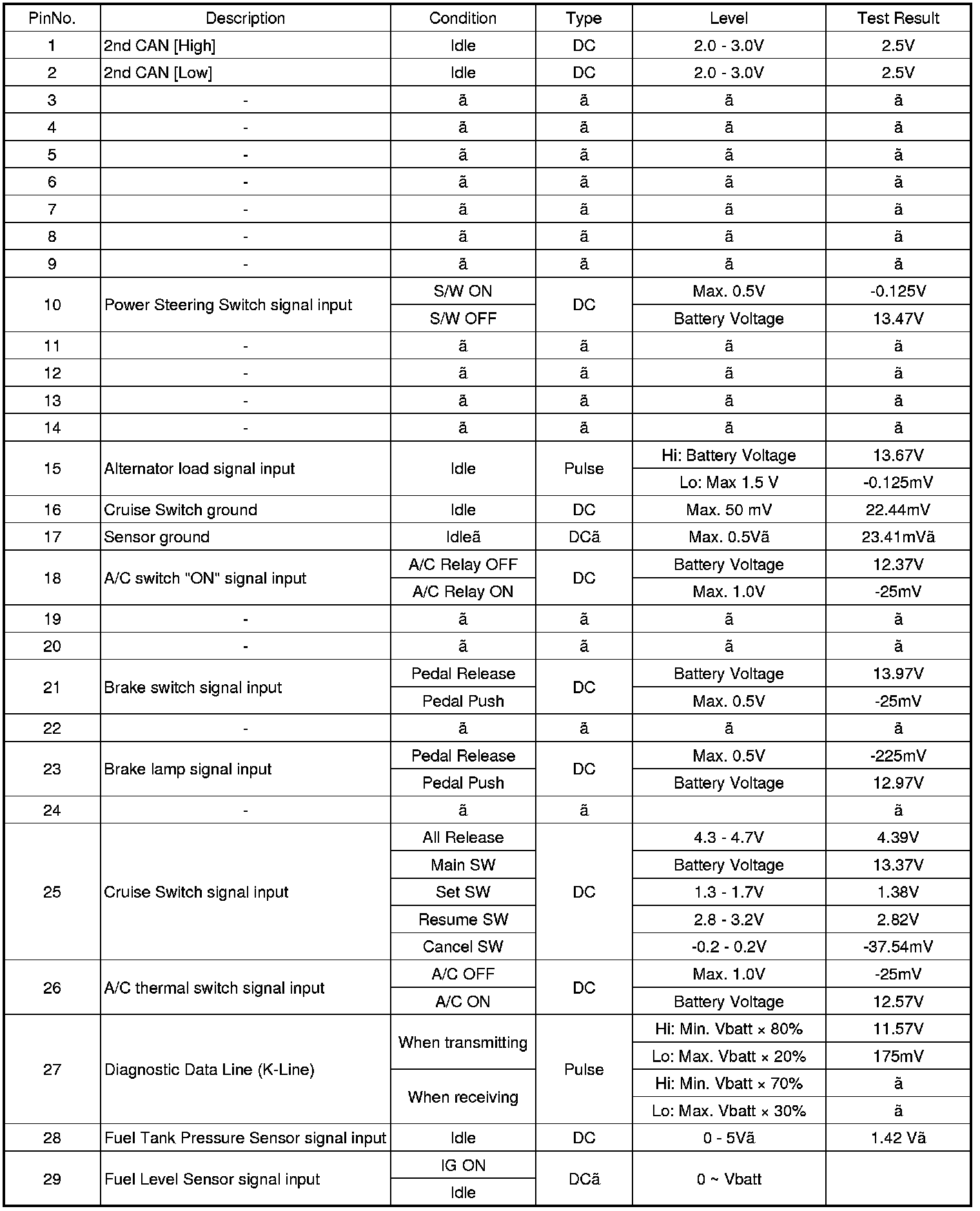

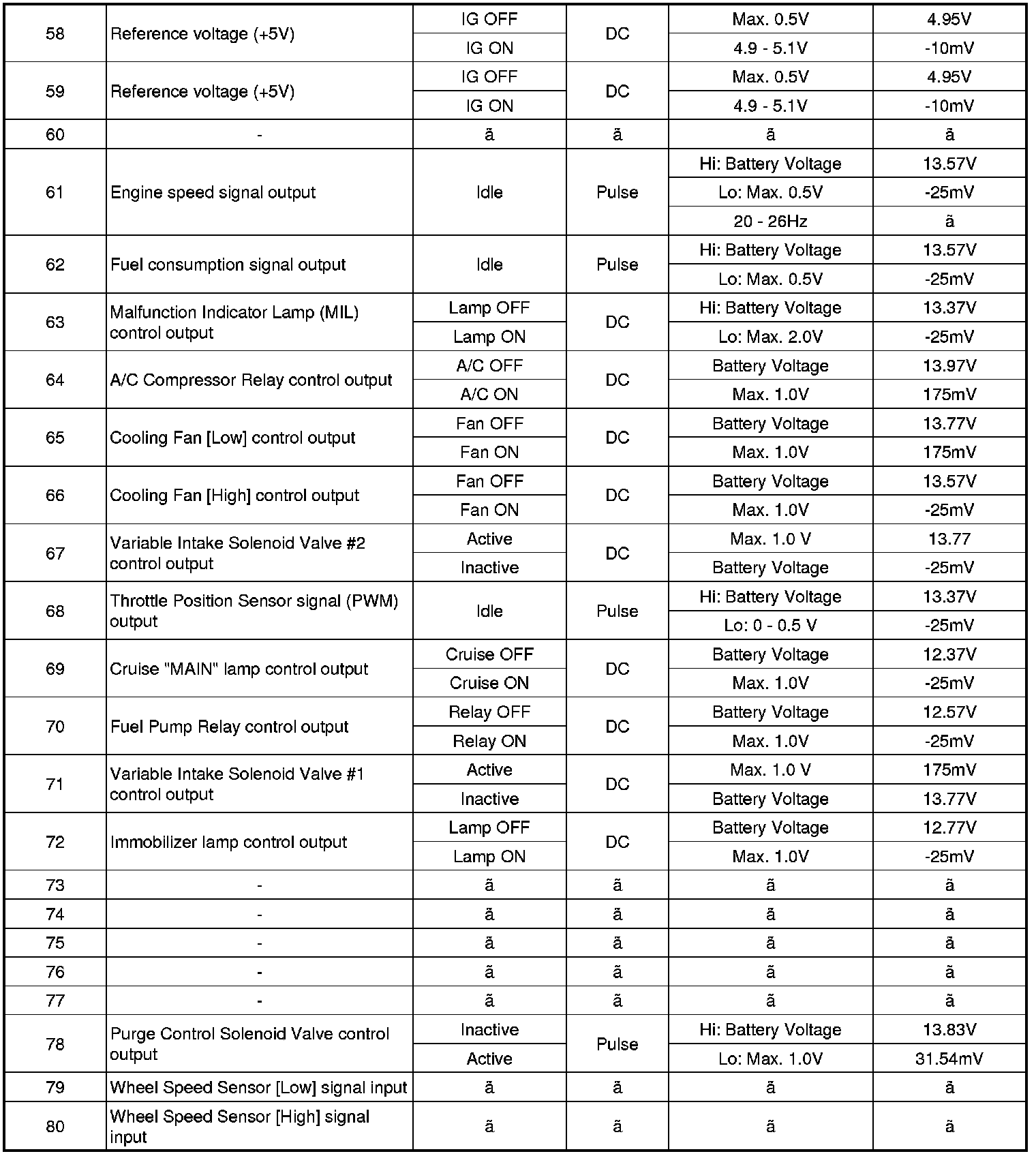

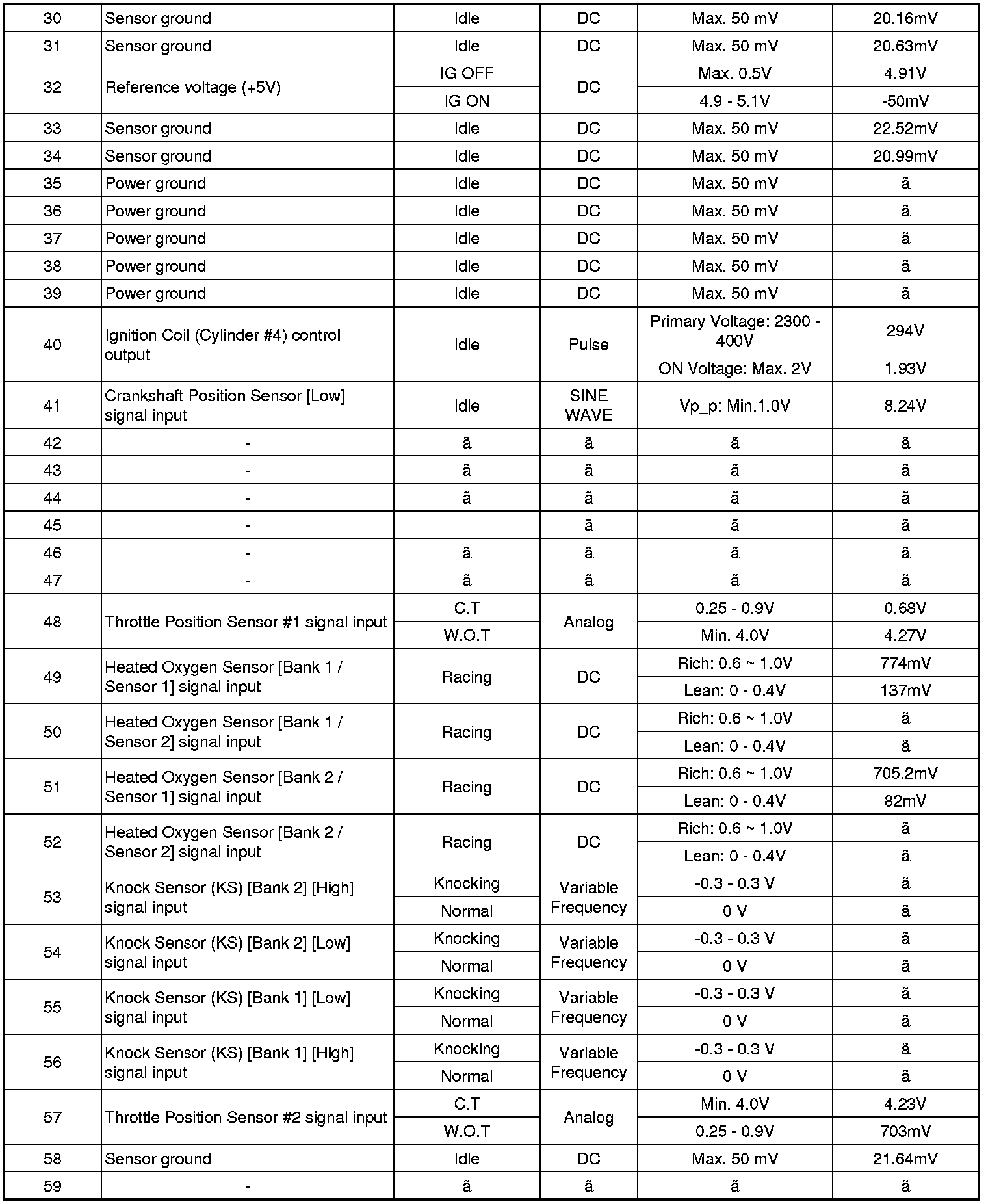

3. TERMINAL INPUT/OUTPUT SIGNAL

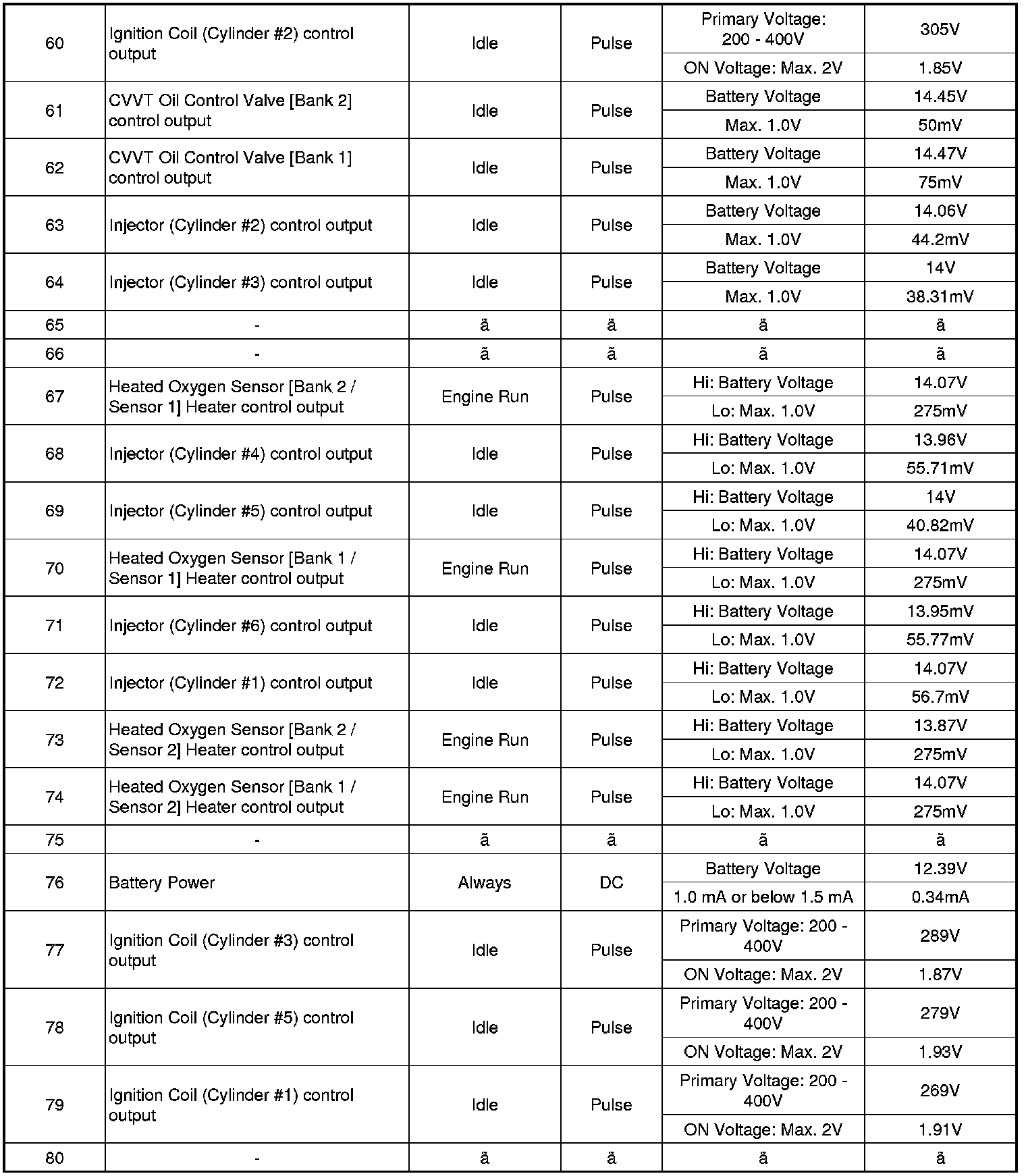

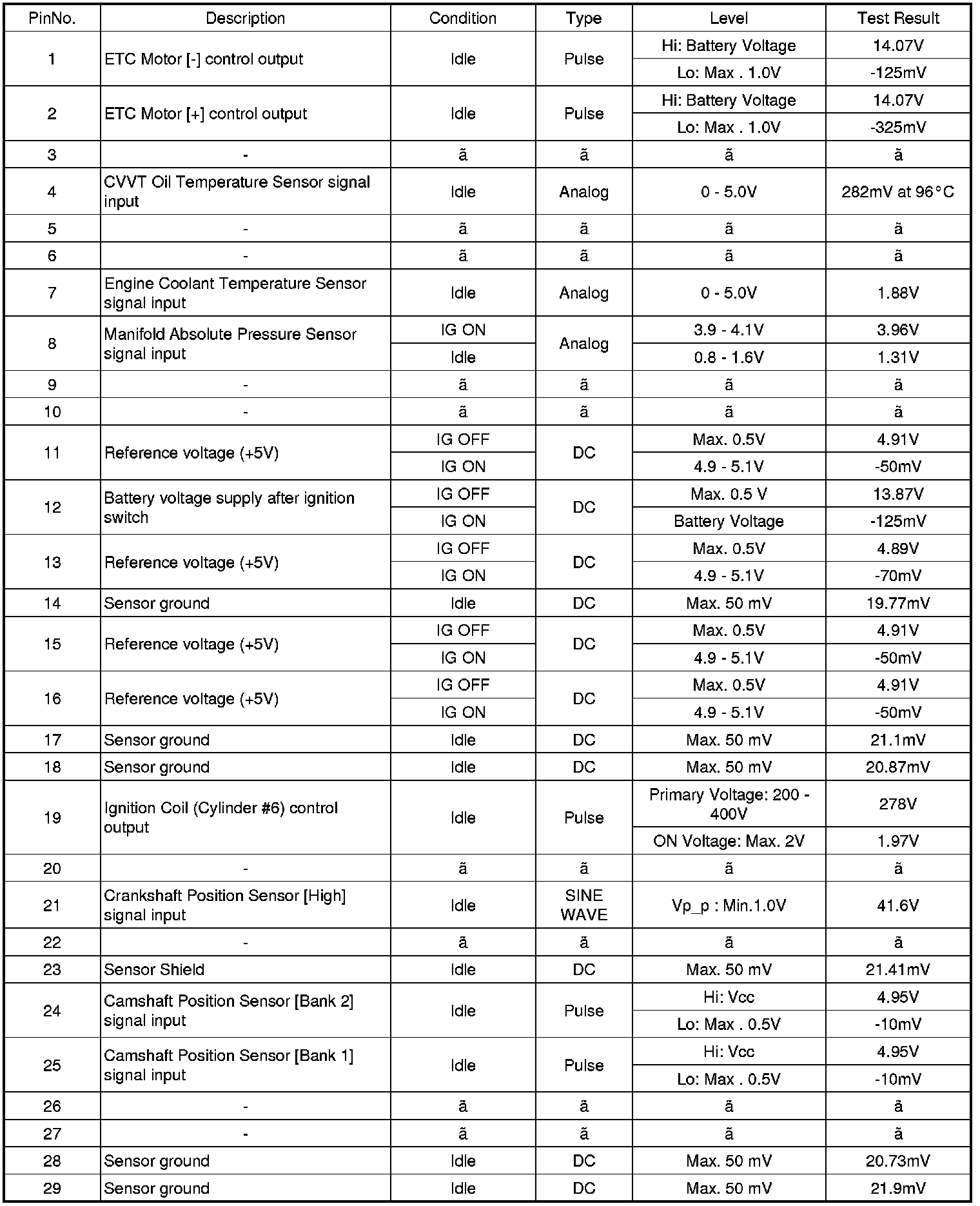

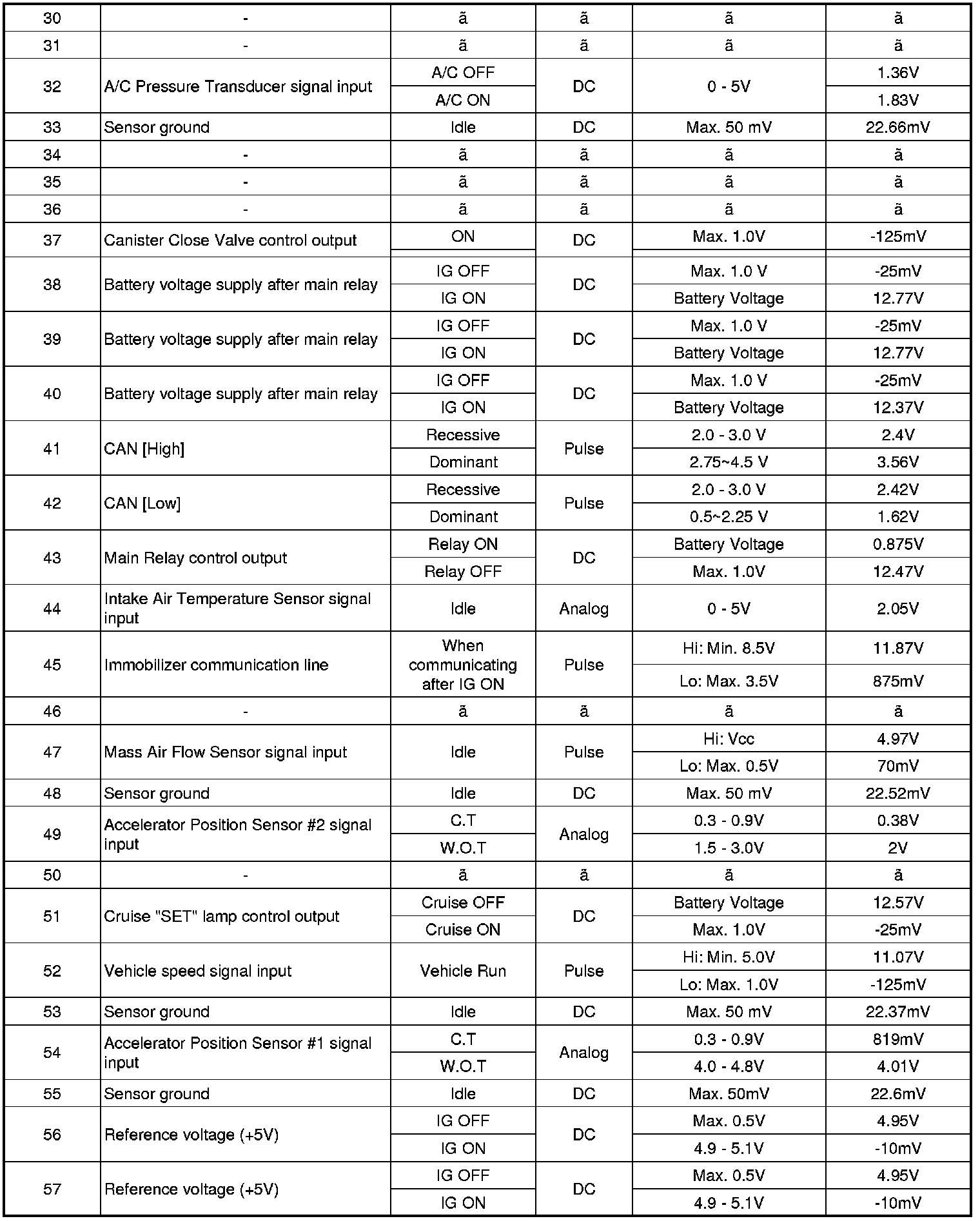

CONNECTOR [C201-1]













CONNECTOR [C201-2]
