Home >> Kia >> 2008 >> Optima L4-2.4L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Axle Shaft Assembly

Axle Shaft Assembly

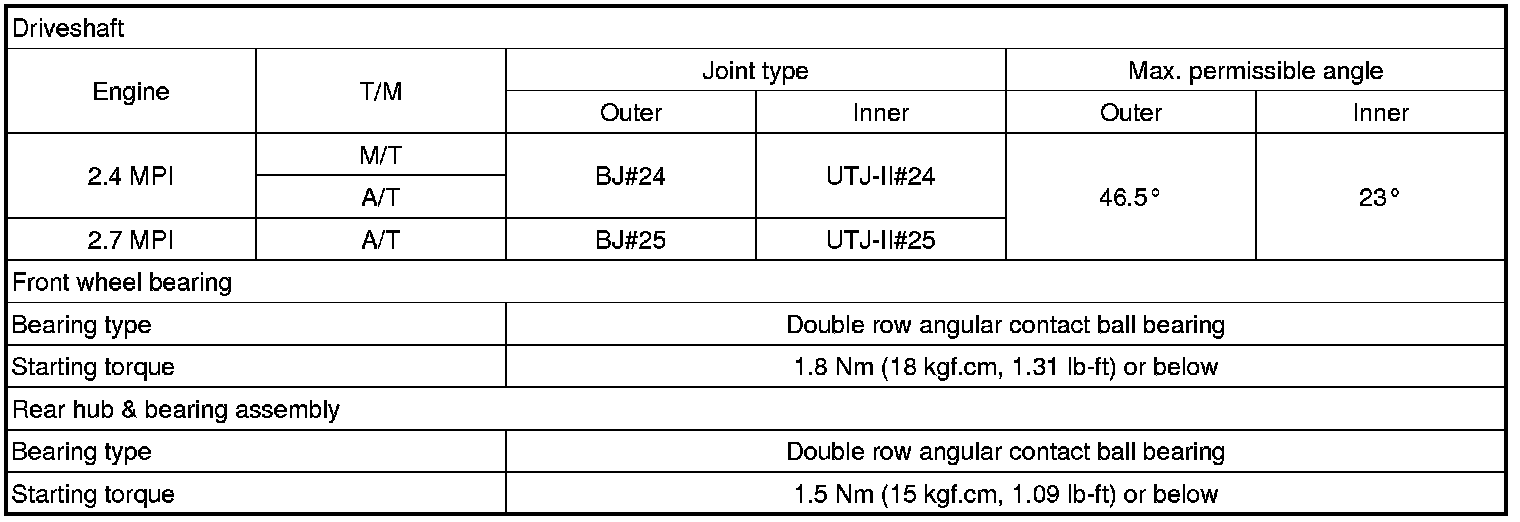

SPECIFICATIONS





NOTE:
Inner: On transaxle side
Outer: On tire side

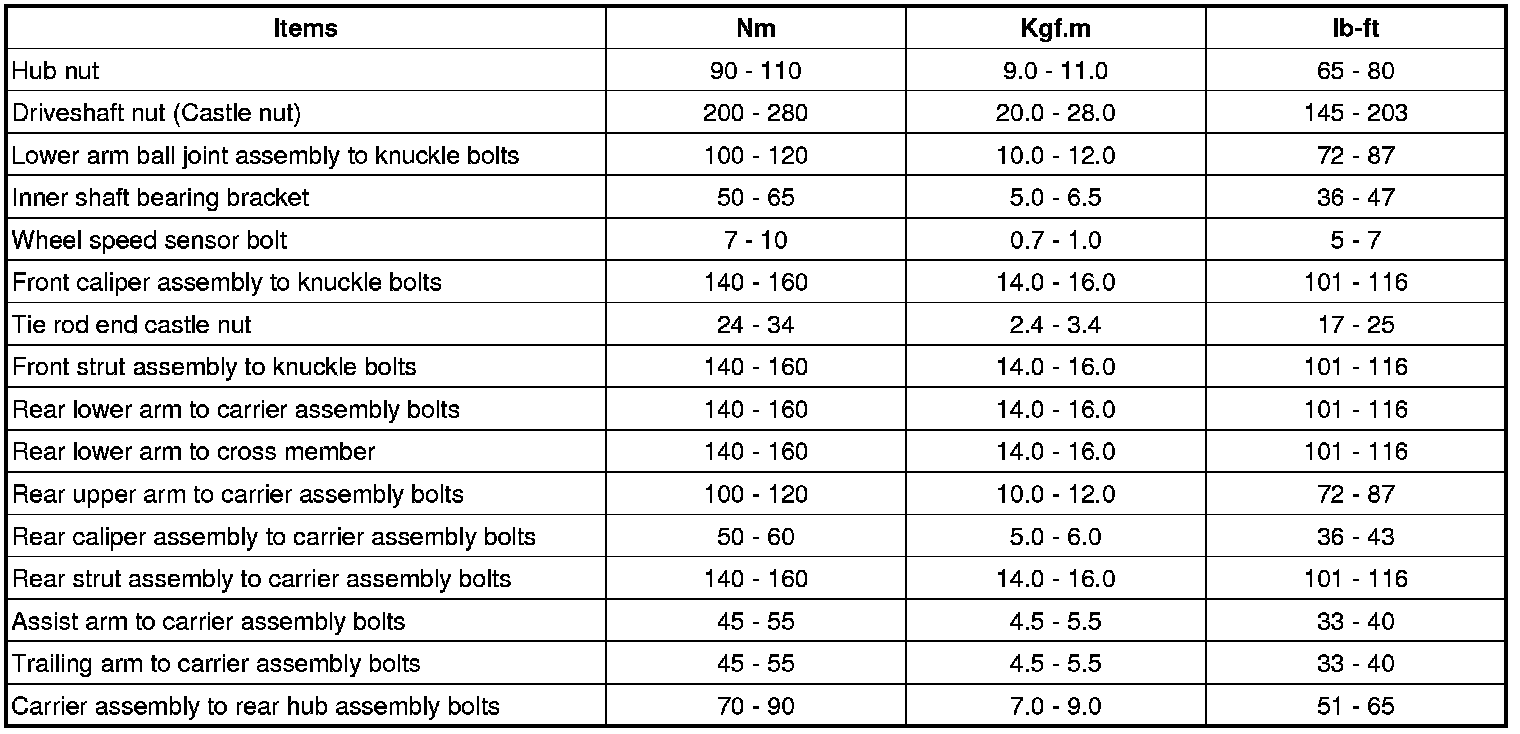

TIGHTENING TORQUE

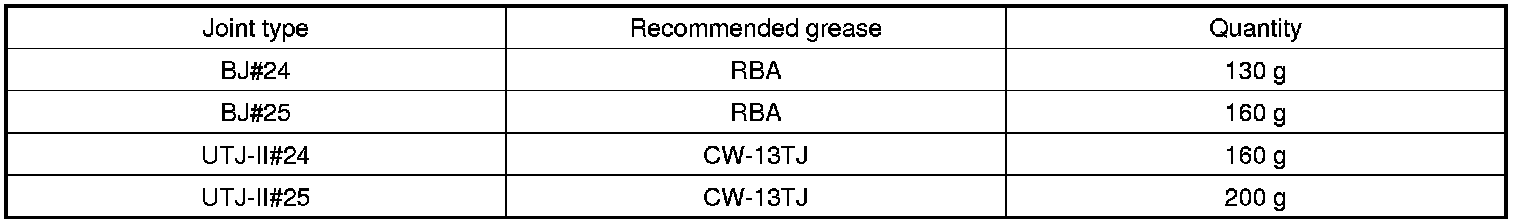

LUBRICANT
