Home
>>
Kia
>>
2005
>>
Amanti V6-3.5L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Locations
>>
Connector Locations
Connector Locations

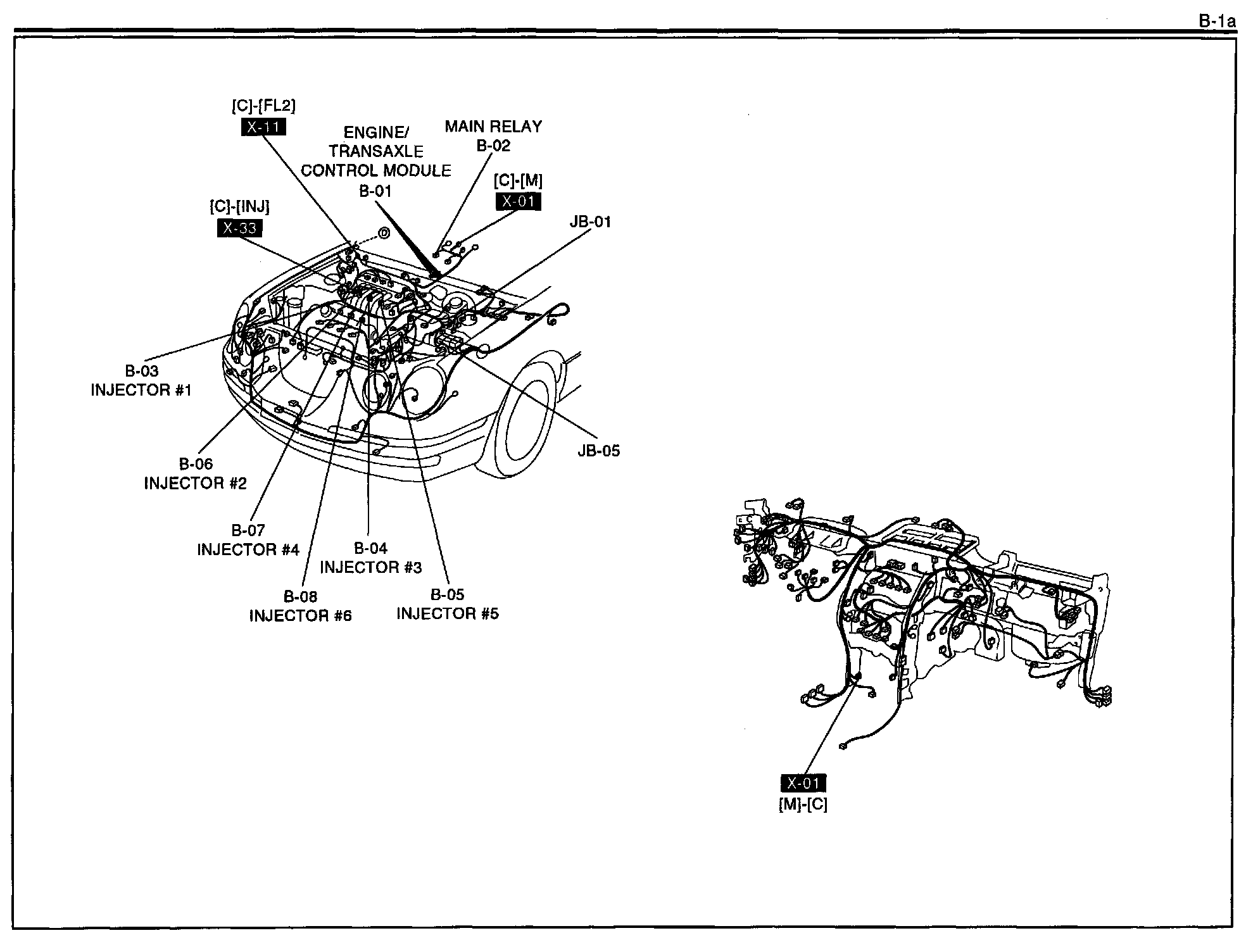

Routing View B-1a:
