Terminal Function

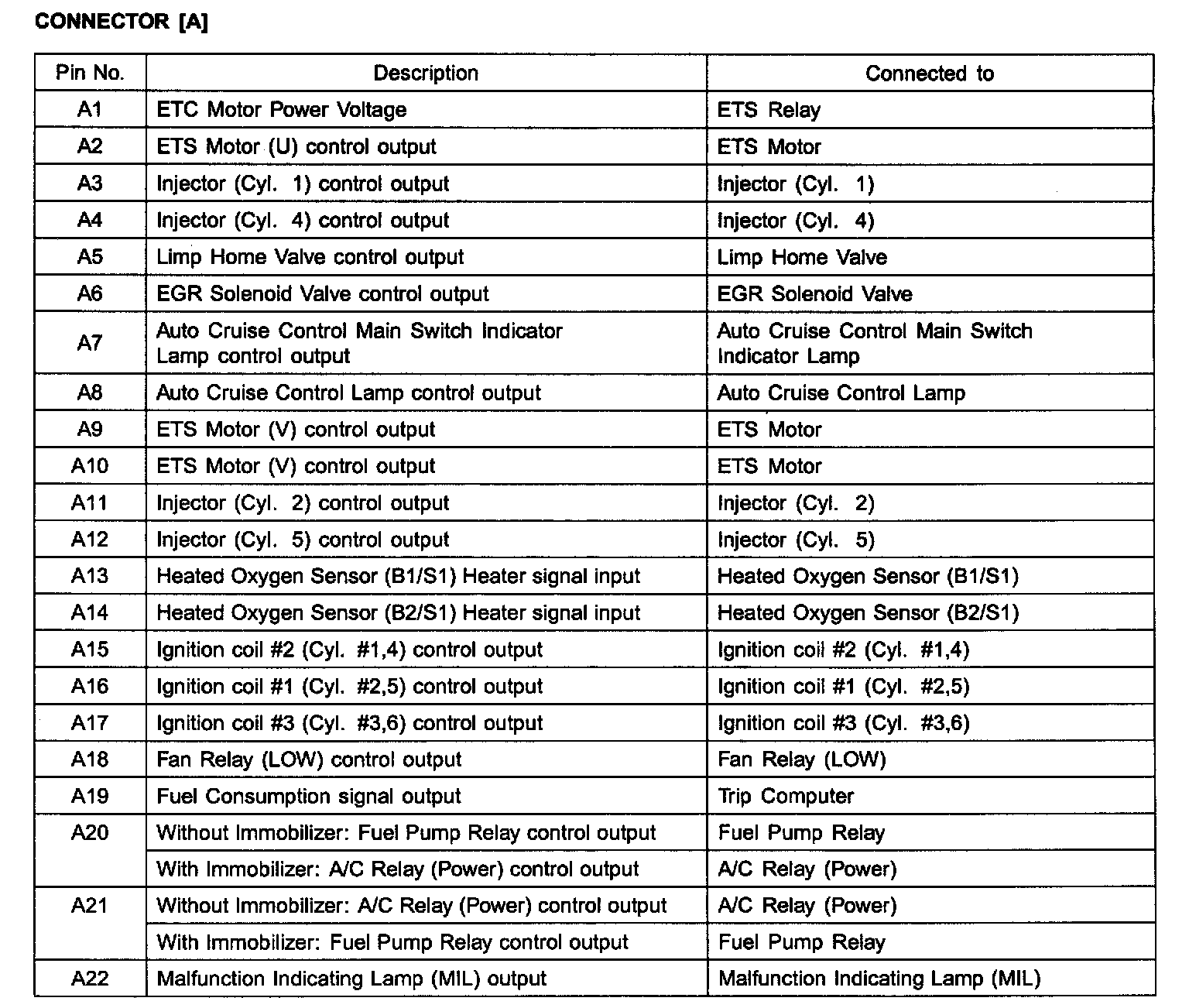

ECM Terminal Function - Connector[A] - Part 1:

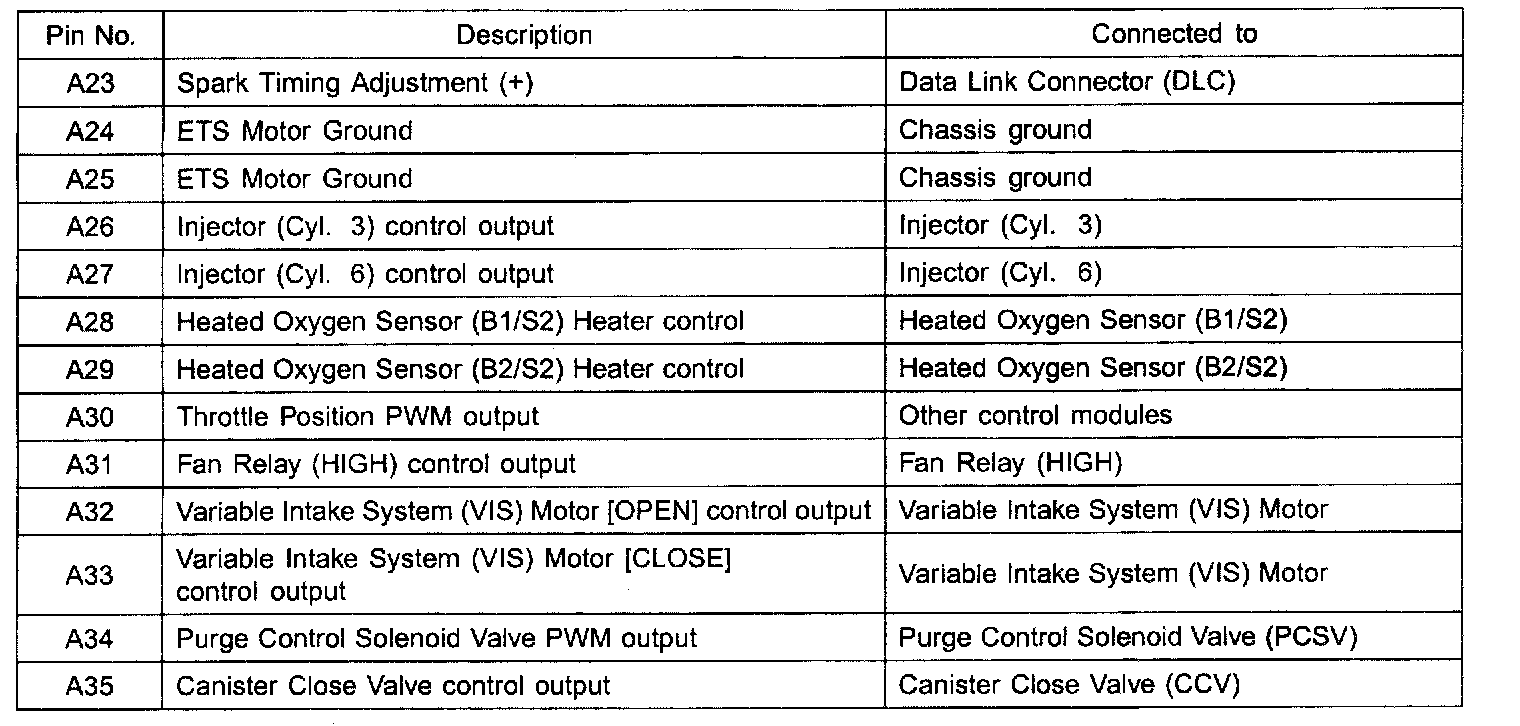

ECM Terminal Function - Connector[A] - Part 2:

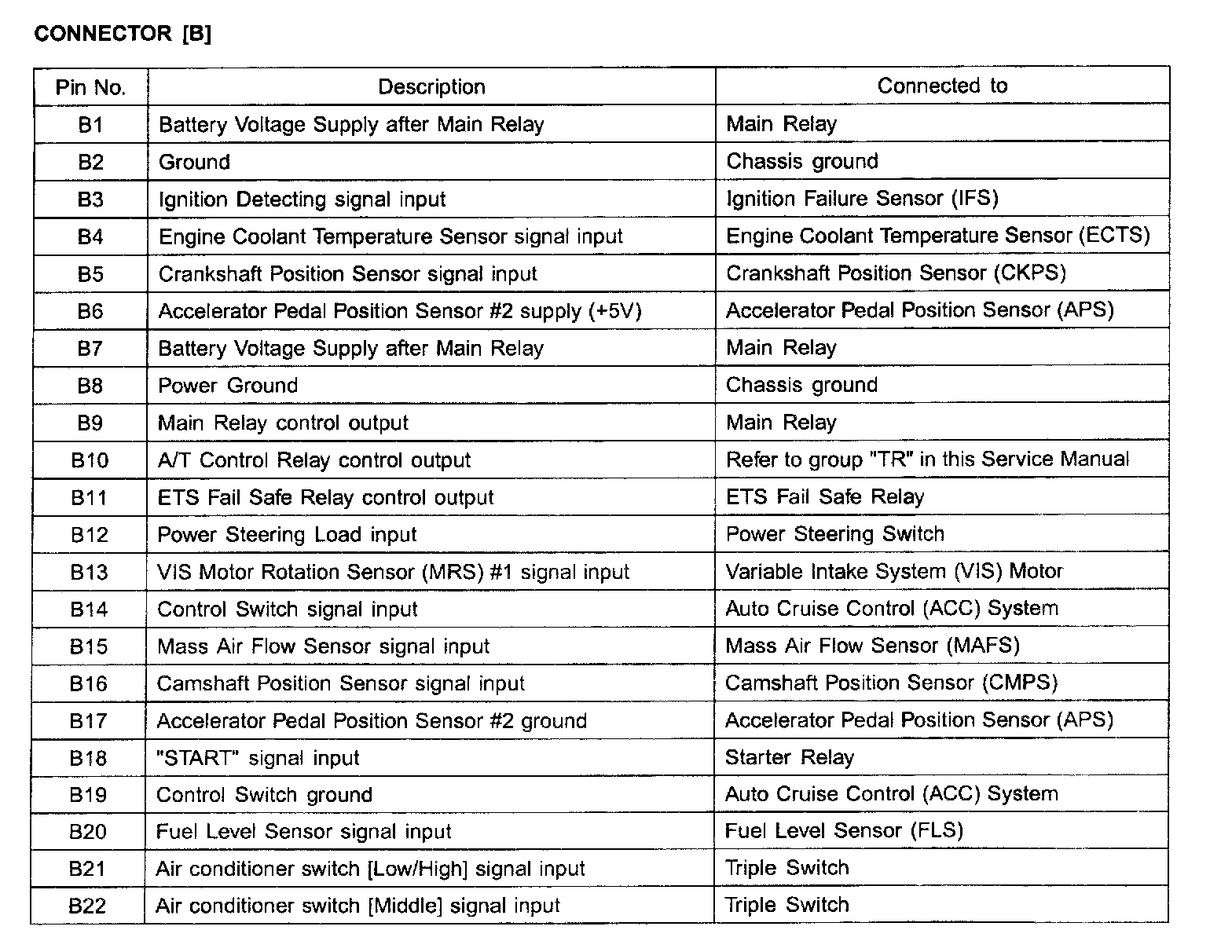

ECM Terminal Function - Connector[B] - Part 1:

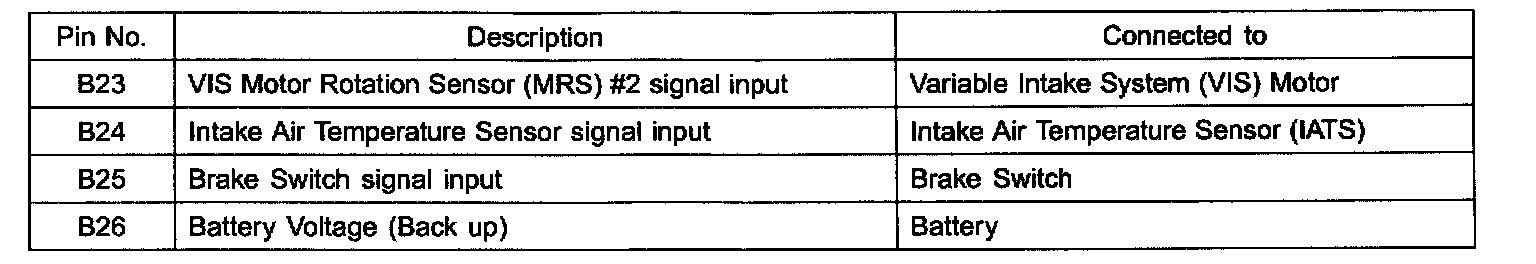

ECM Terminal Function - Connector[B] - Part 2:

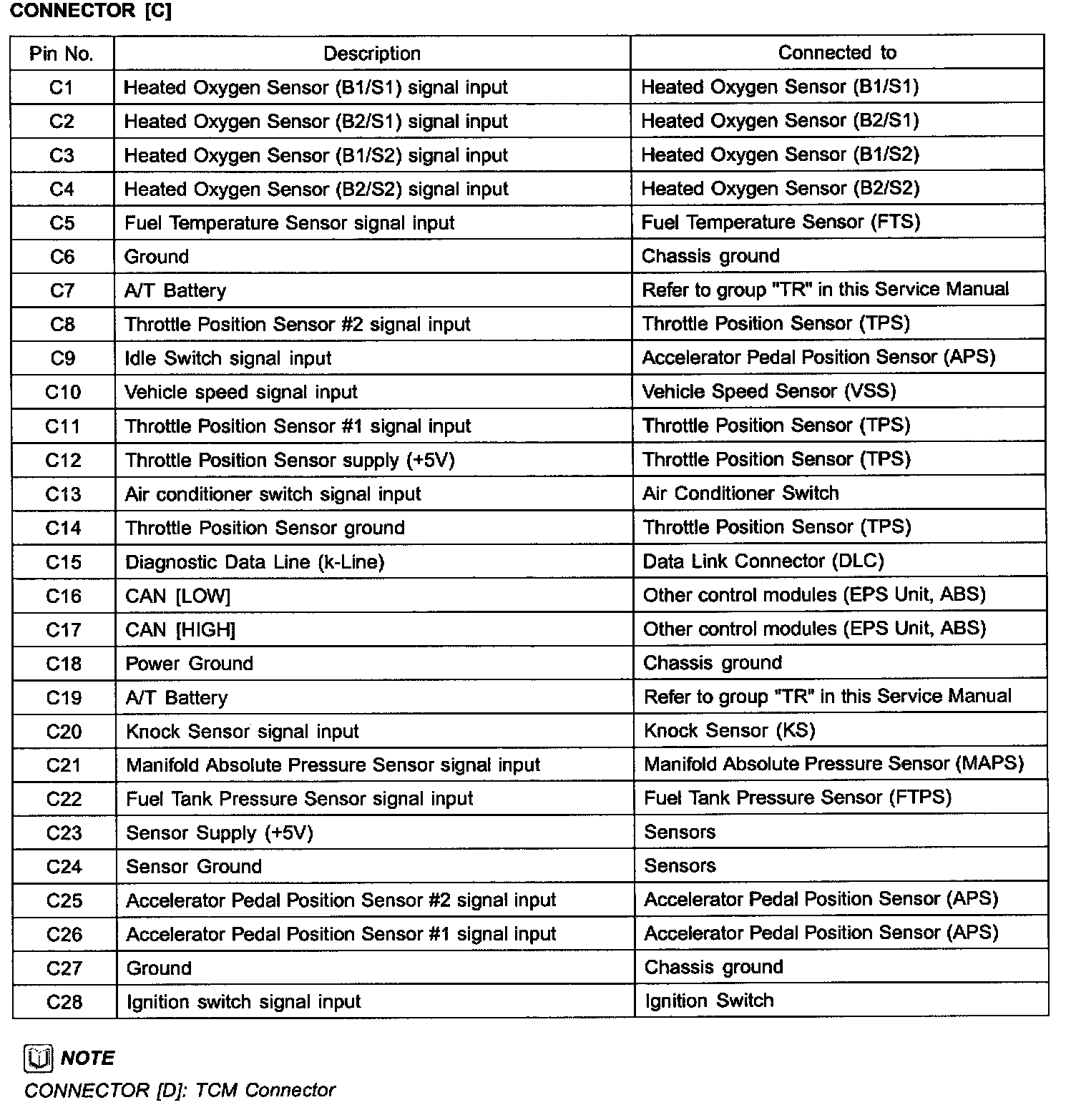

ECM Terminal Function - Connector[C]:
