Electronic Brake Control Module
>>
Electronic Stability Program (ESP) System
Electronic Stability Program (ESP) System
ESP CONTROL UNIT (HECU)

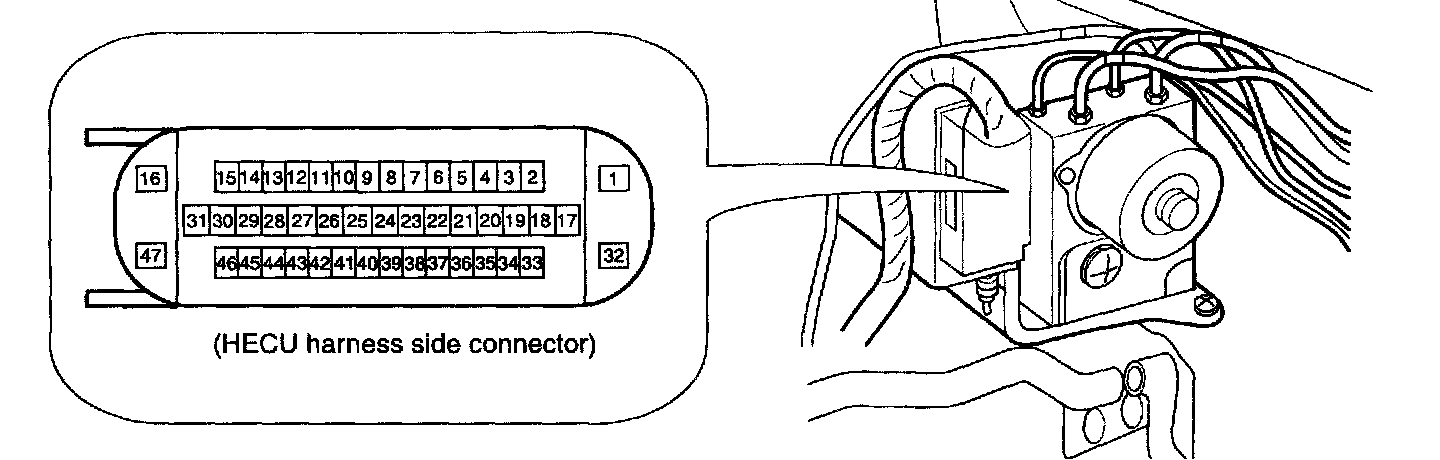

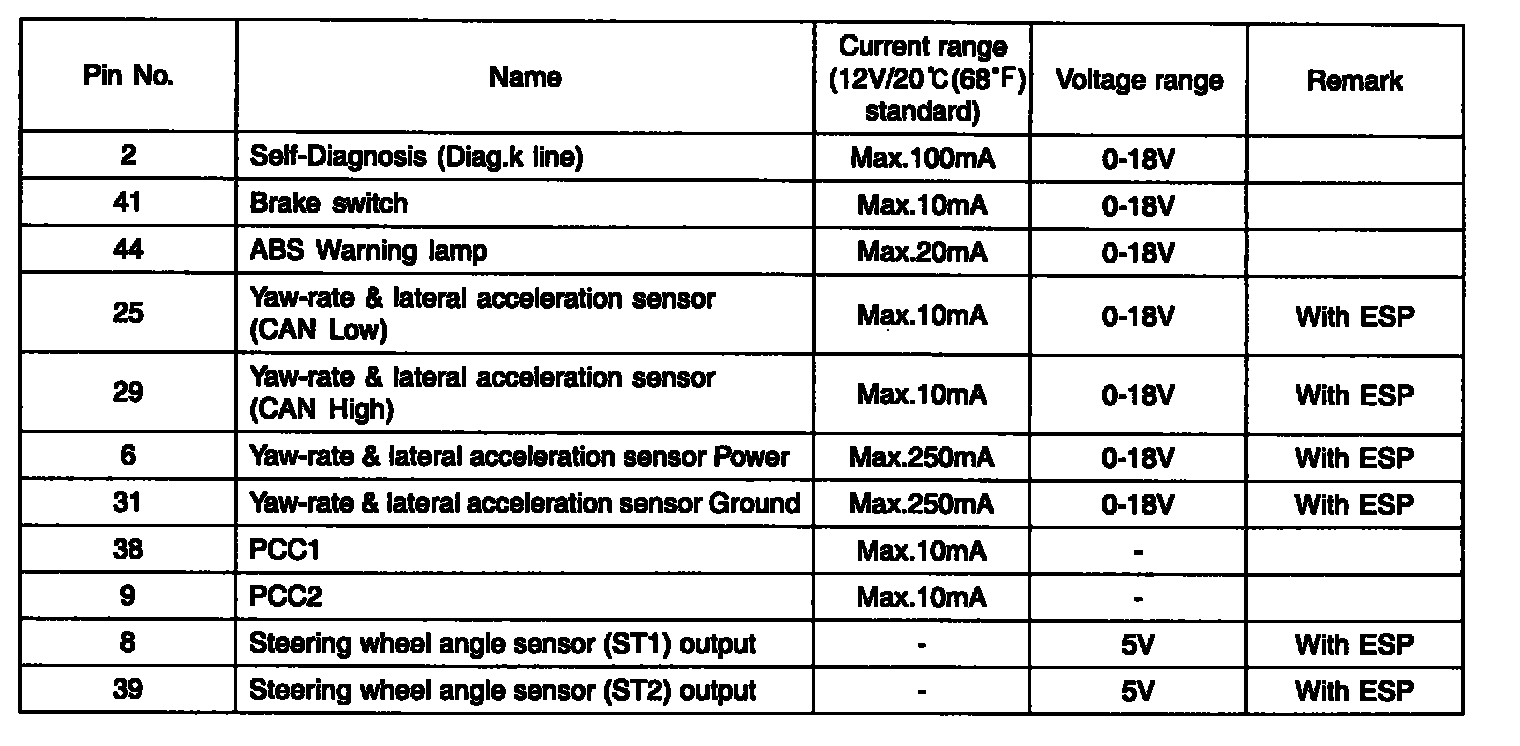

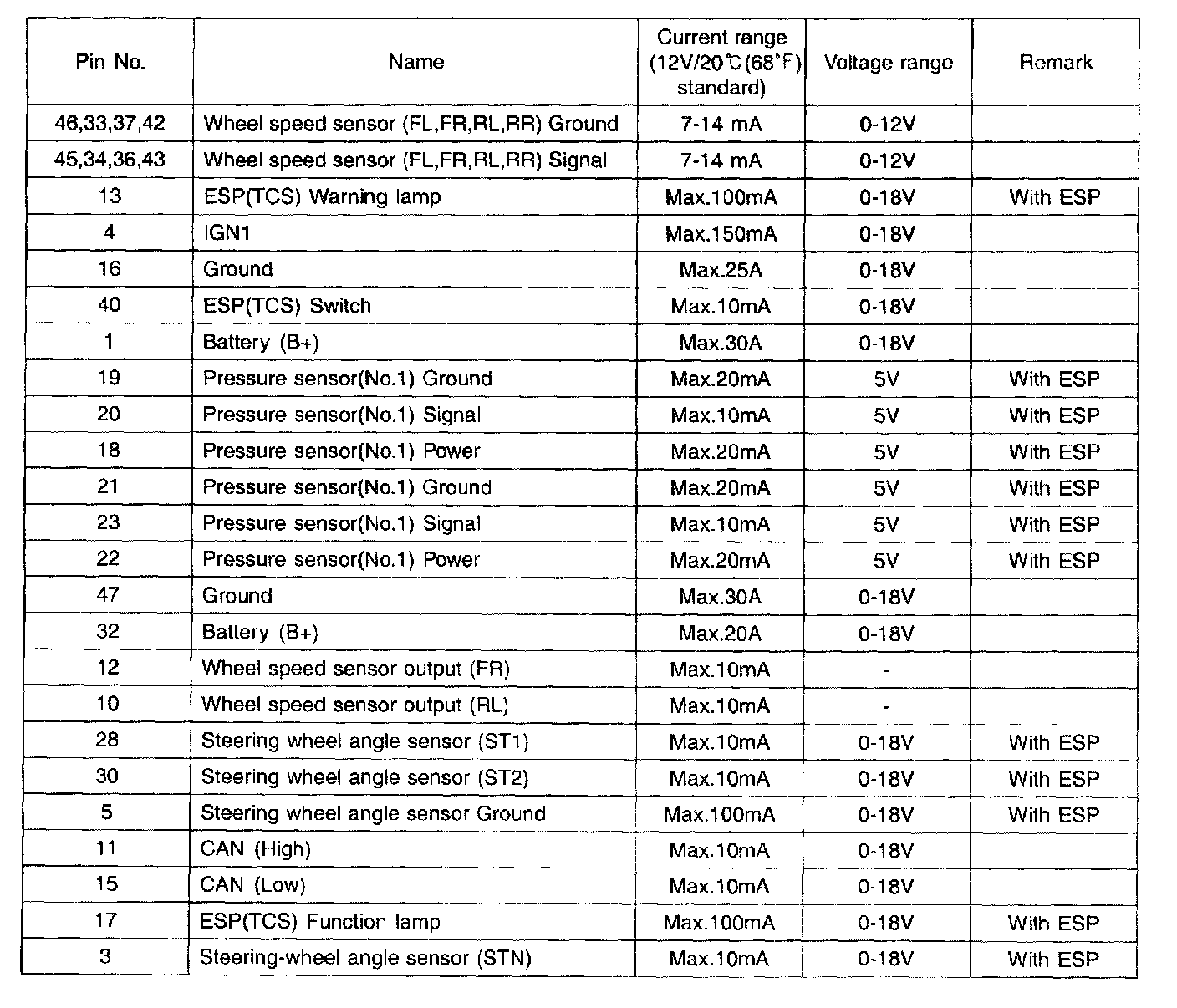

HECU CONNECTOR INSPECTION
