Oil Pump, Engine

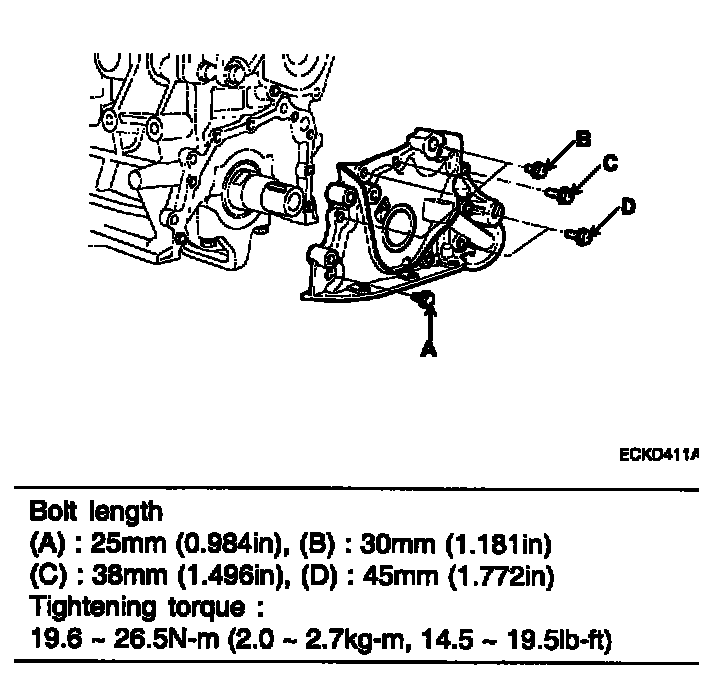

Oil pump bolts
(A): 25 mm (0.984 inch), (B): 30 mm (1.181 inch)
(c): 38 mm (1.496 inch), (D): 45 mm (1.772 inch)
Tightening torque: 19.6 - 26.5 Nm (2.0 - 2.7 kg-m, 14.5 - 19.5 ft. lbs.)
Oil pump bolts
(A): 25 mm (0.984 inch), (B): 30 mm (1.181 inch)
(c): 38 mm (1.496 inch), (D): 45 mm (1.772 inch)
Tightening torque: 19.6 - 26.5 Nm (2.0 - 2.7 kg-m, 14.5 - 19.5 ft. lbs.)
