Pinout Values and Diagnostic Parameters

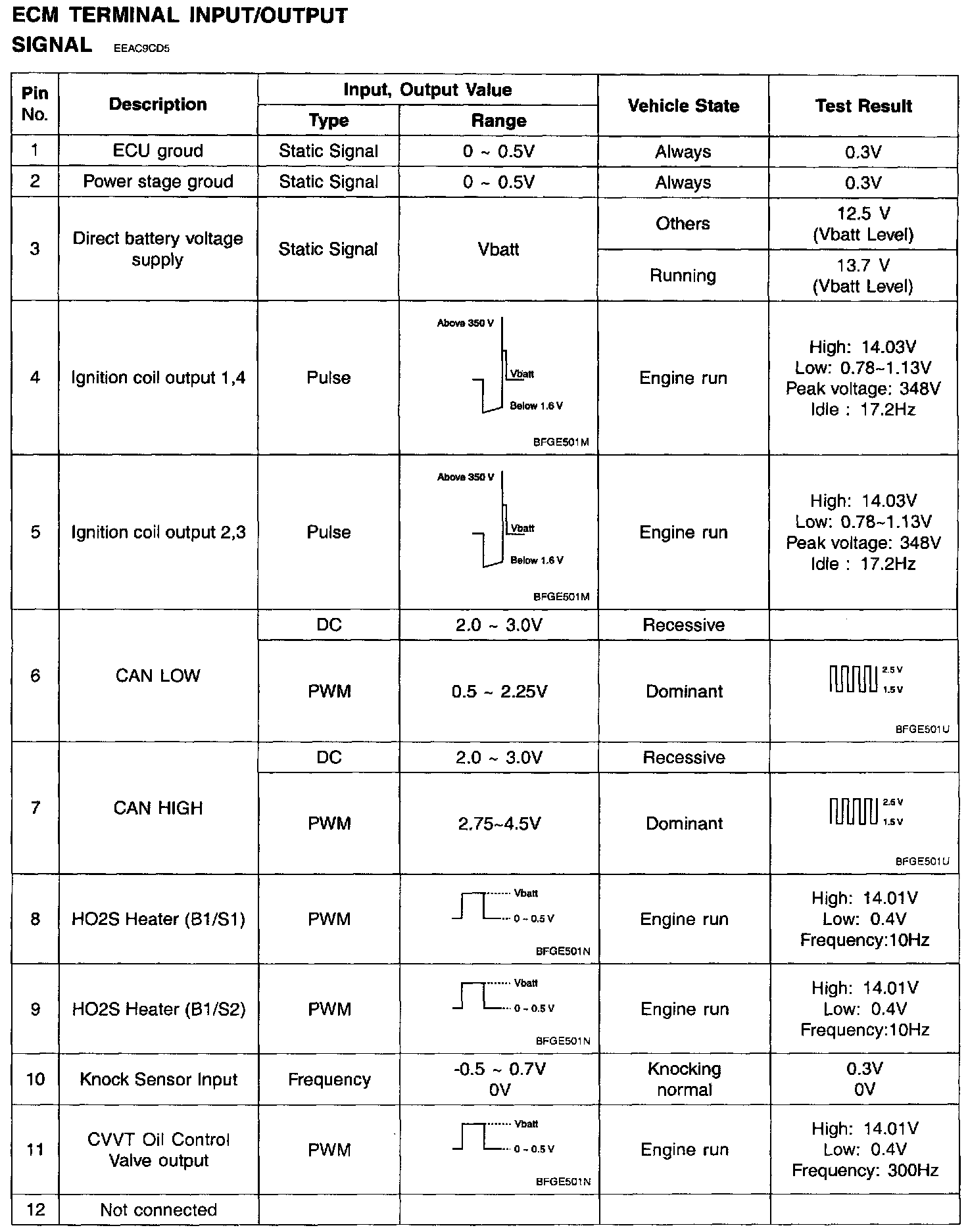

Pin No. 1 - 12:

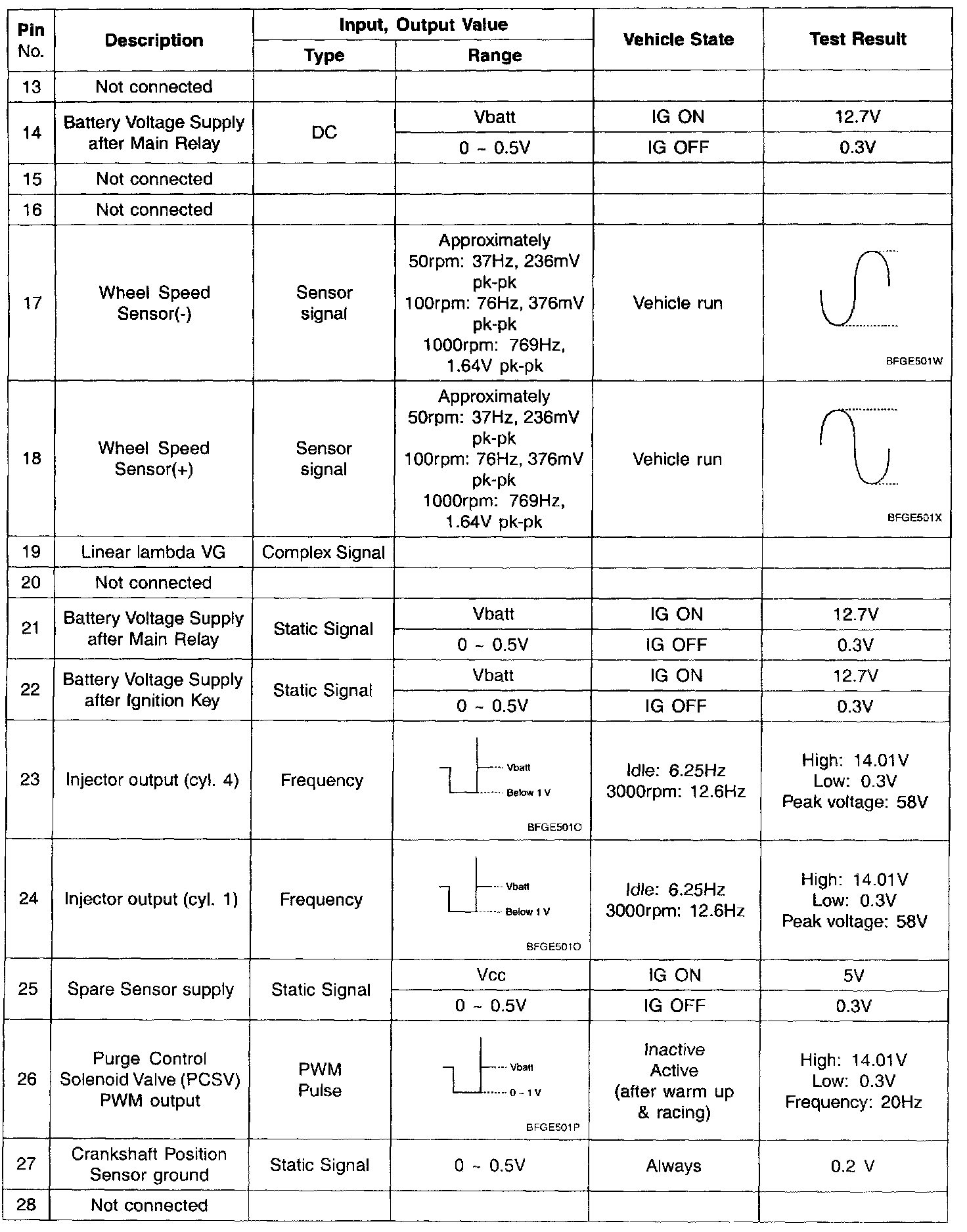

Pin No. 13 - 28:

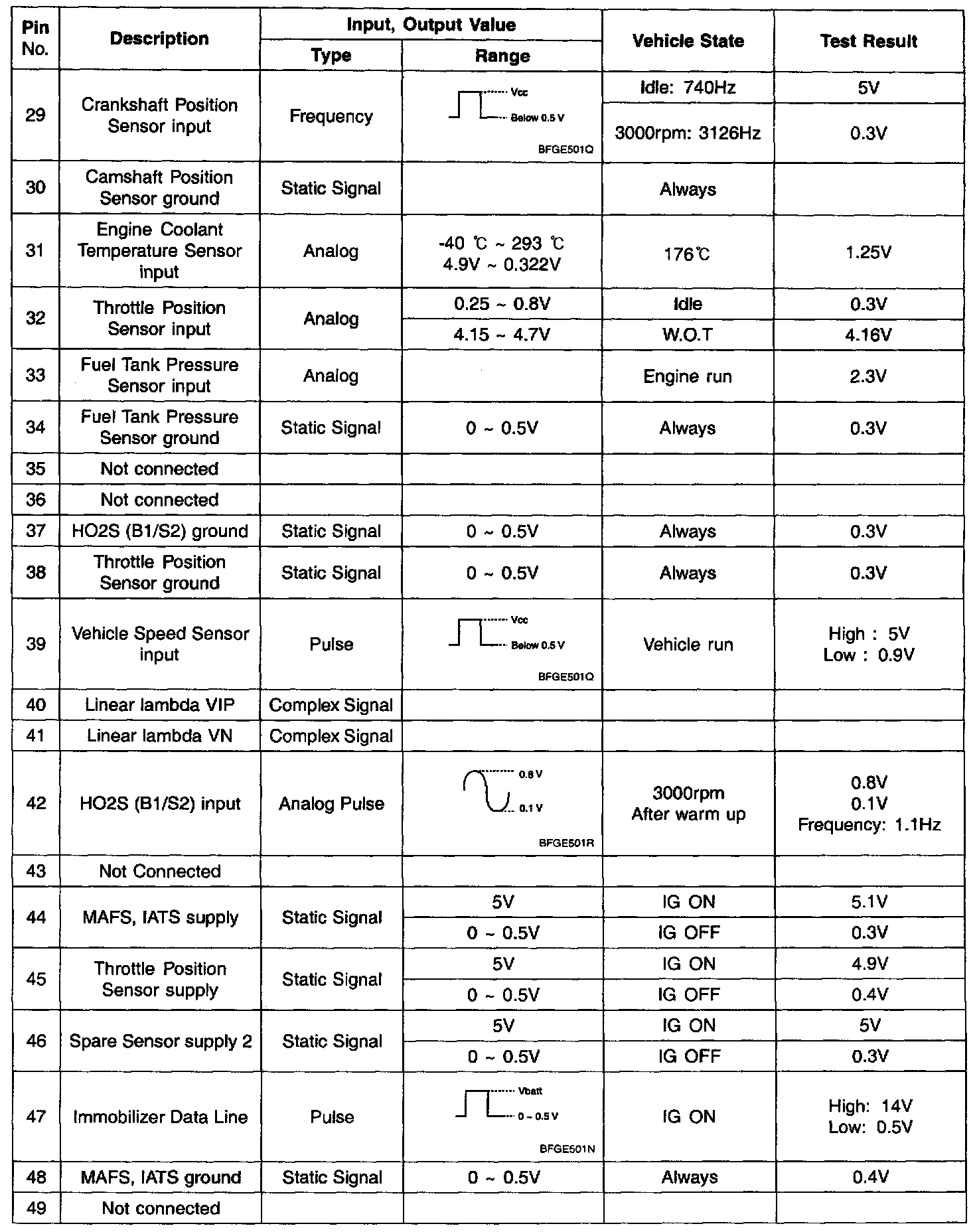

Pin No. 29 - 49:

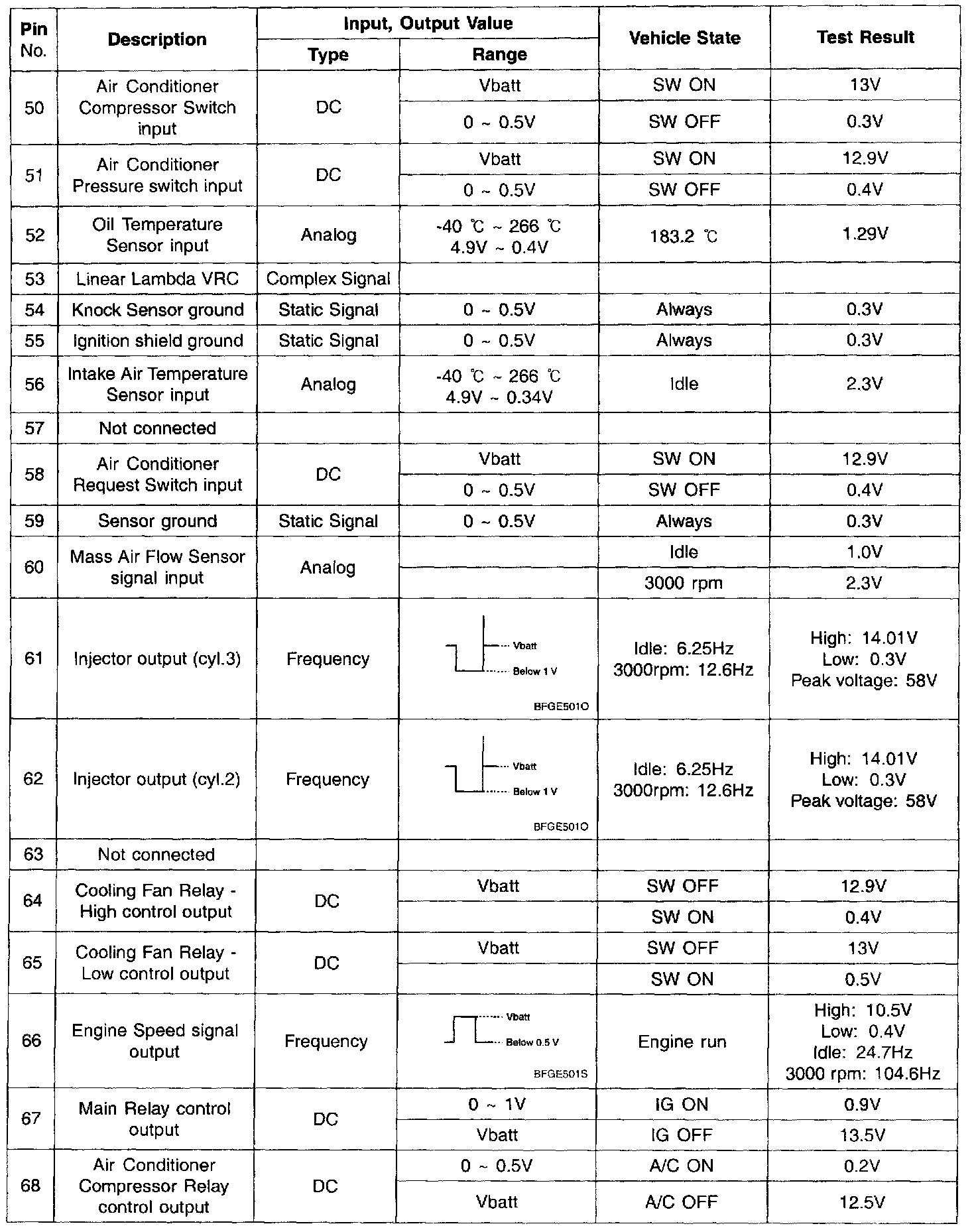

Pin No. 50 - 68:

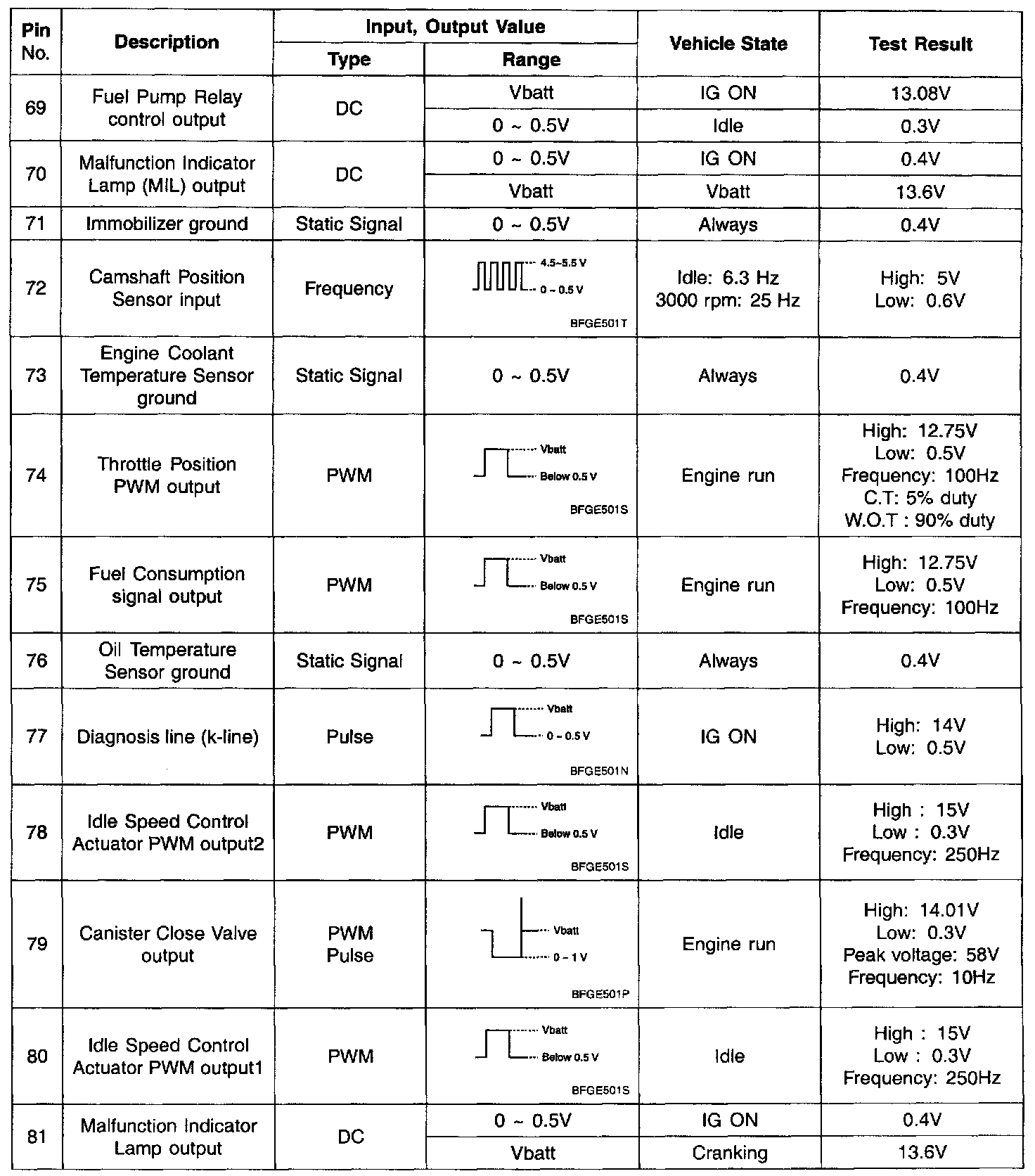

Pin No . 69 - 81:
