Body Control Module: Description and Operation

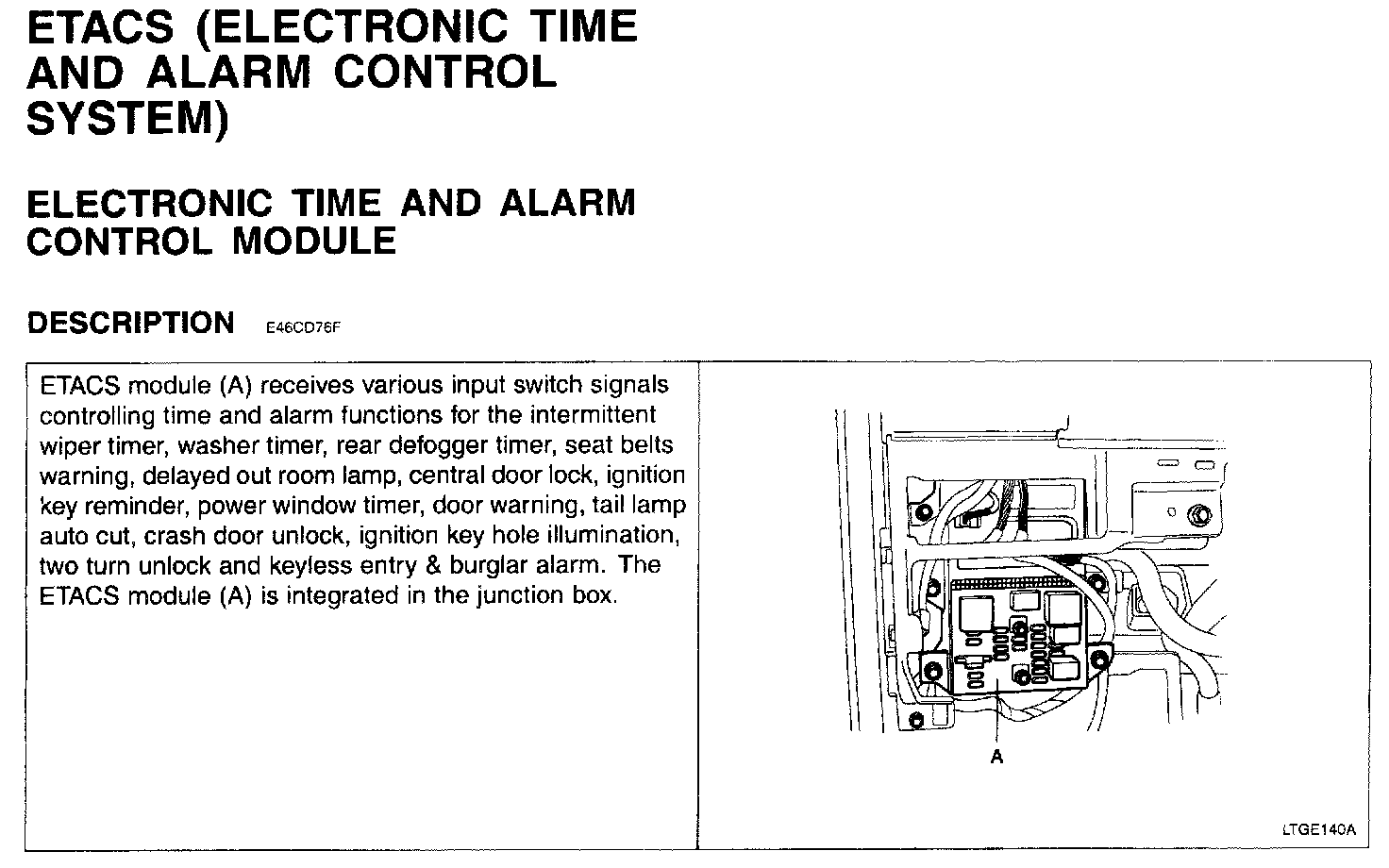

Electronic Time And Alarm Control Module - Description:

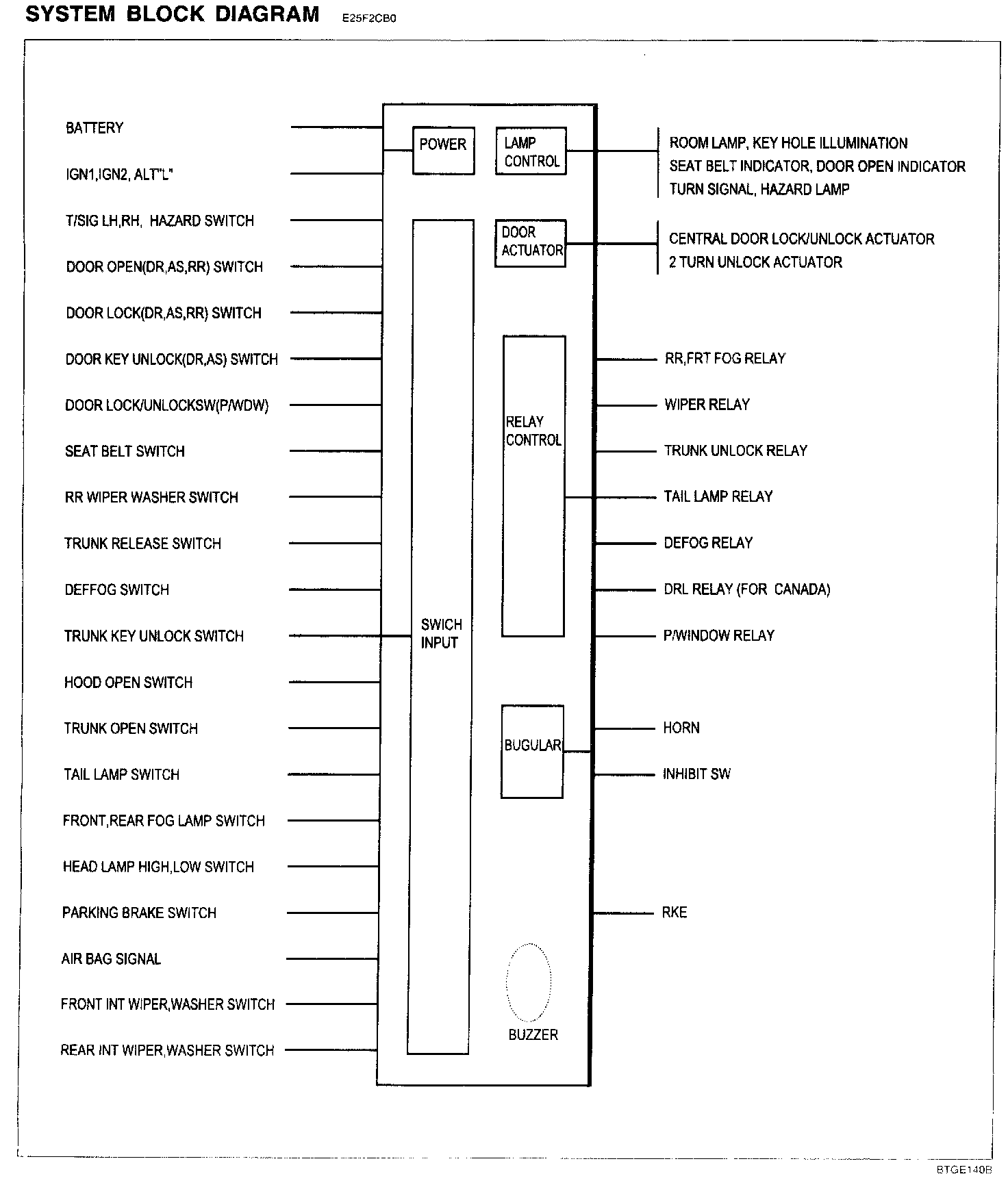

System Block Diagram:
