Body Control Systems
Body Control Systems
Body Control (
BCM
) System
Diagram I-2a:

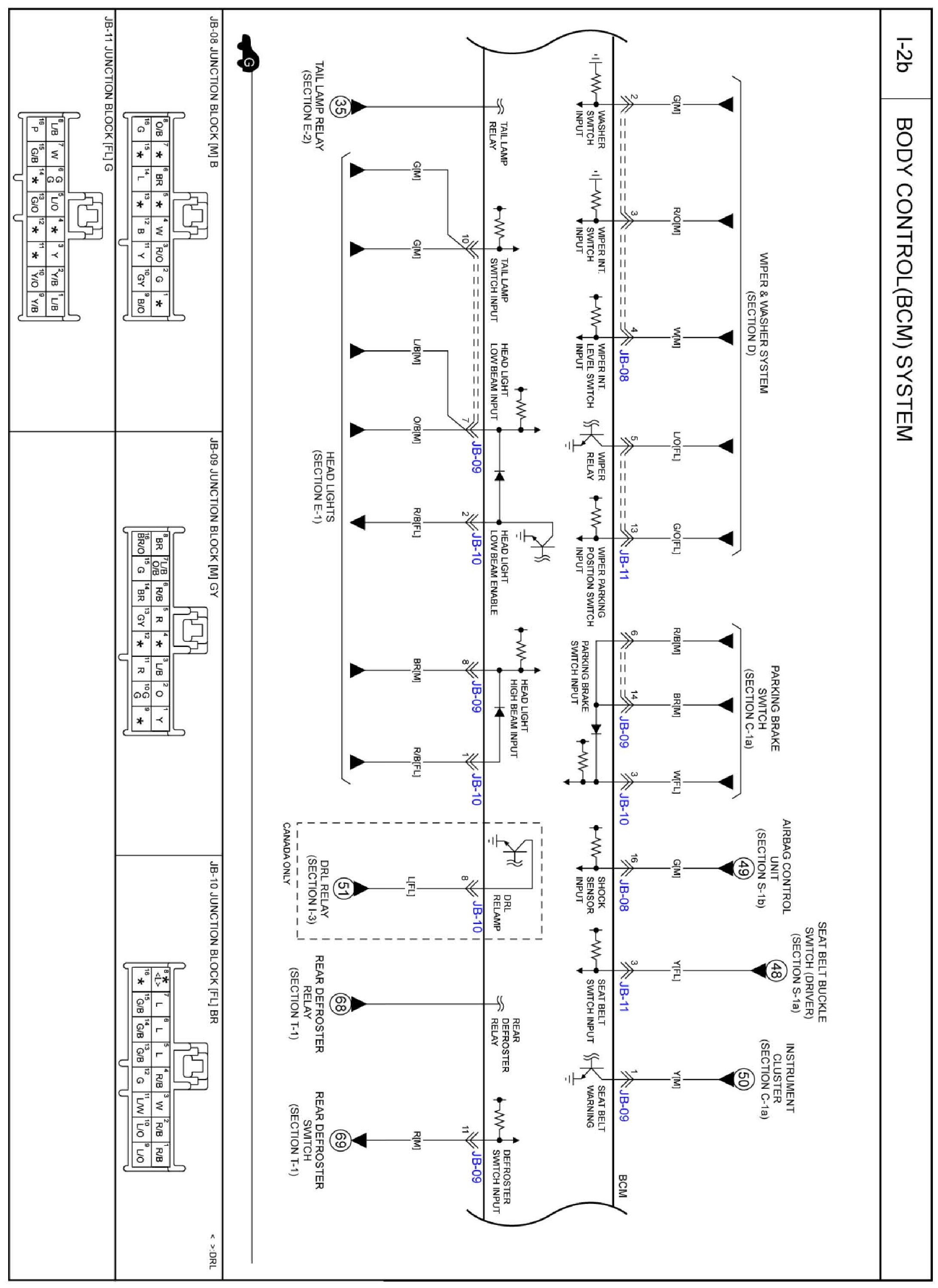

Diagram I-2b:

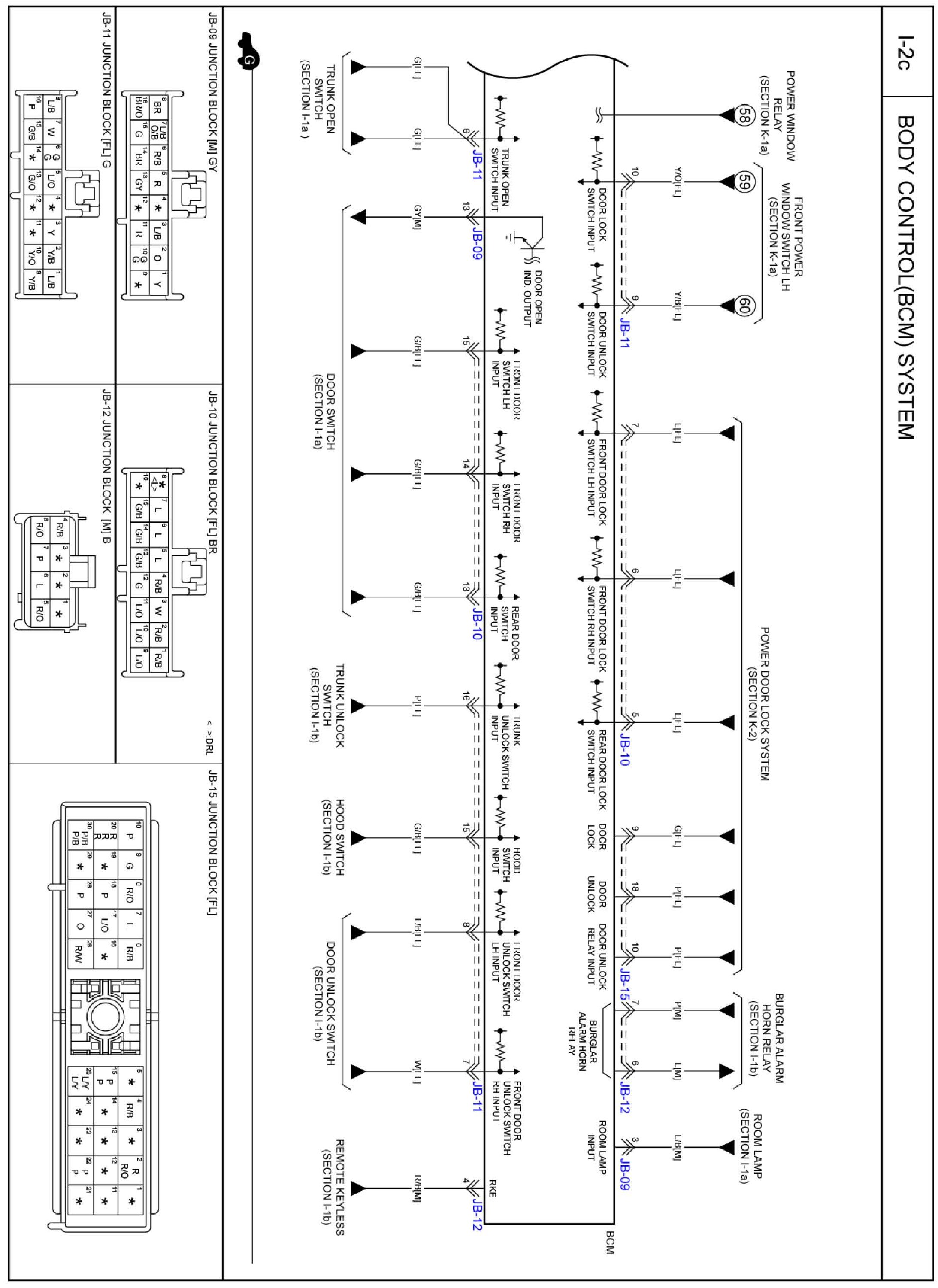

Diagram I-2c:
