Home >> Kia >> 2004 >> Optima V6-2.7L >> Repair and Diagnosis >> Powertrain Management >> Locations

Powertrain Management: Locations

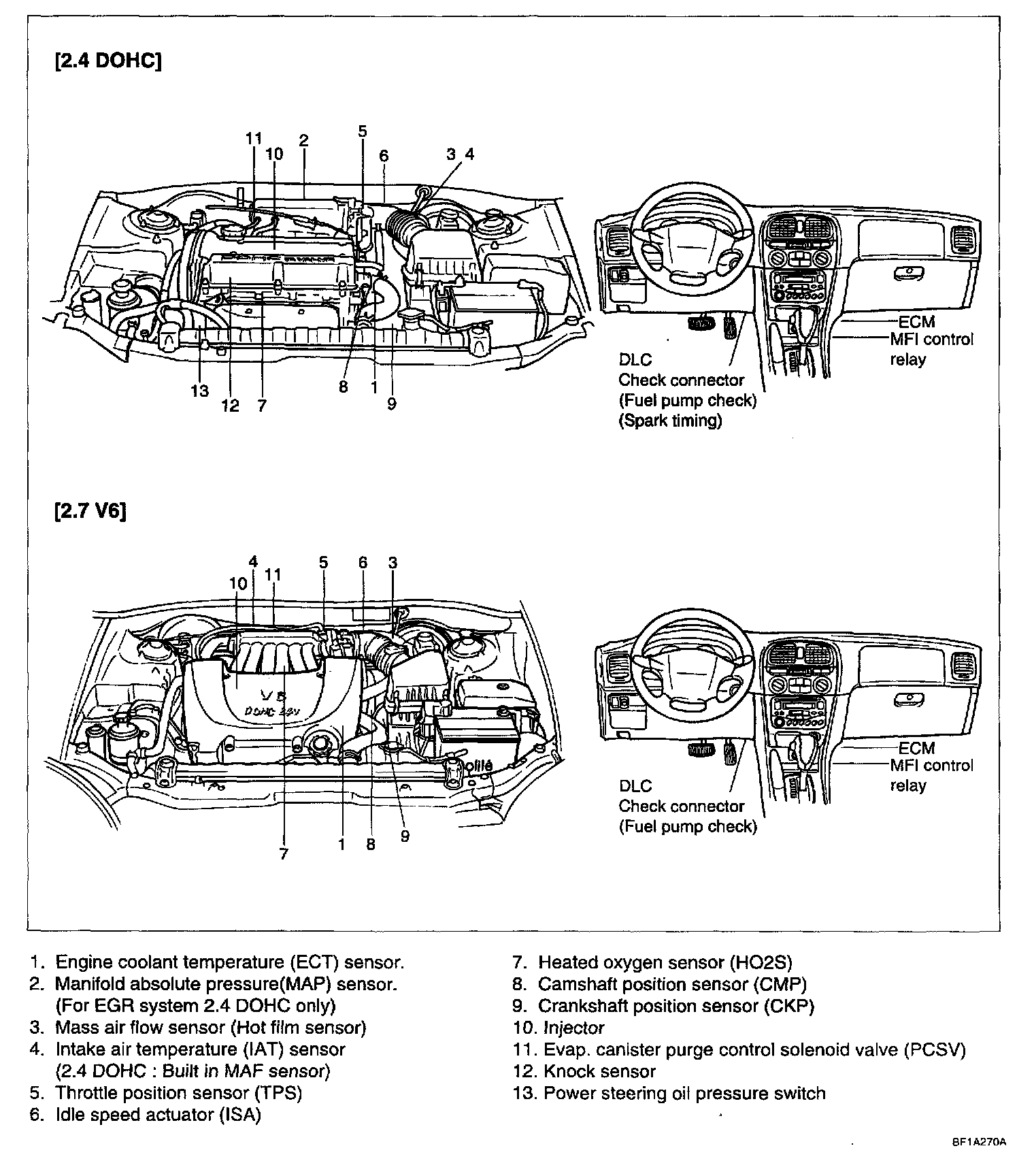

MFI Component Location:

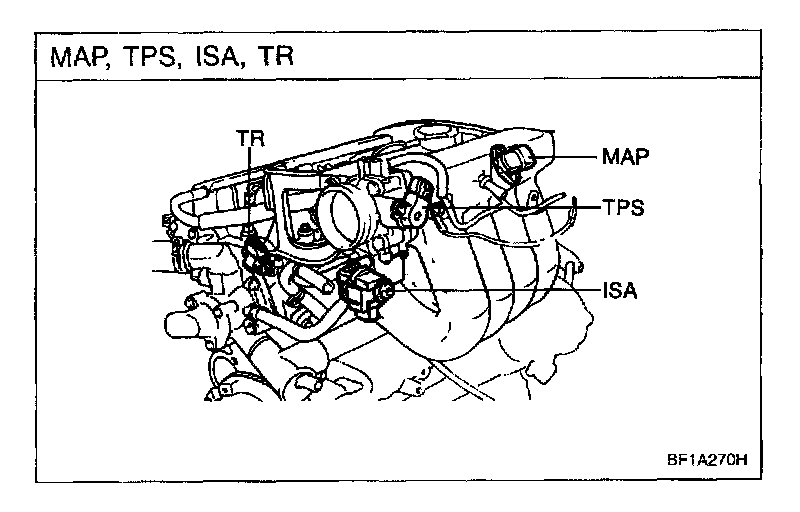

MAP, TPS, ISA, TR:

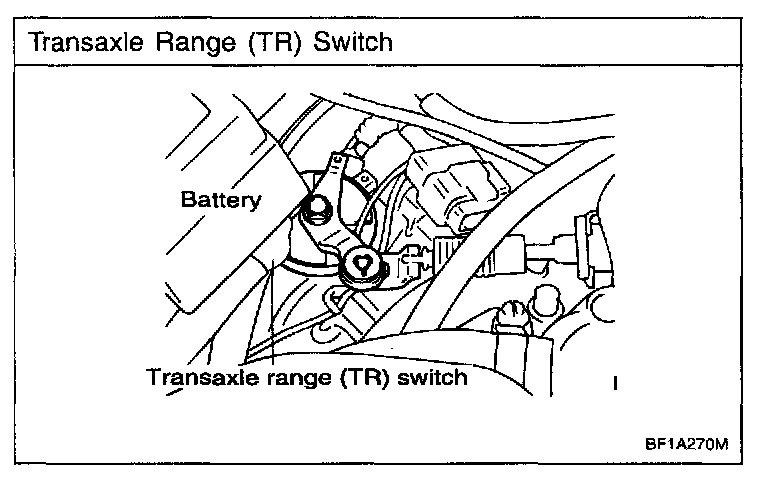

Transaxle Range (TR) Switch:
