I-1a

Room Lamp, Door Courtesy Lamp, Trunk Room Lamp, ETACS (Electronic Time and Alarm Control System)

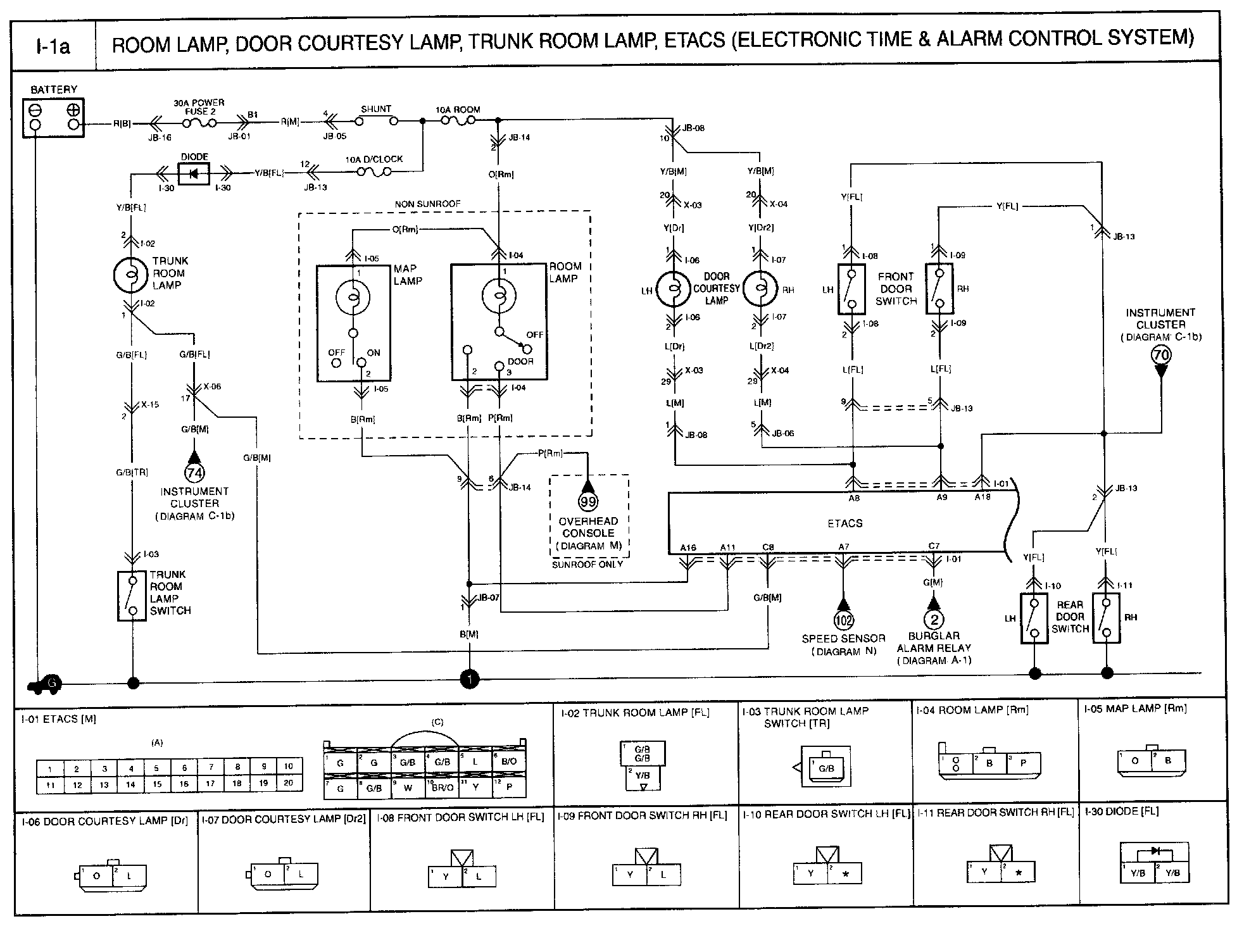

Diagram I-1a:

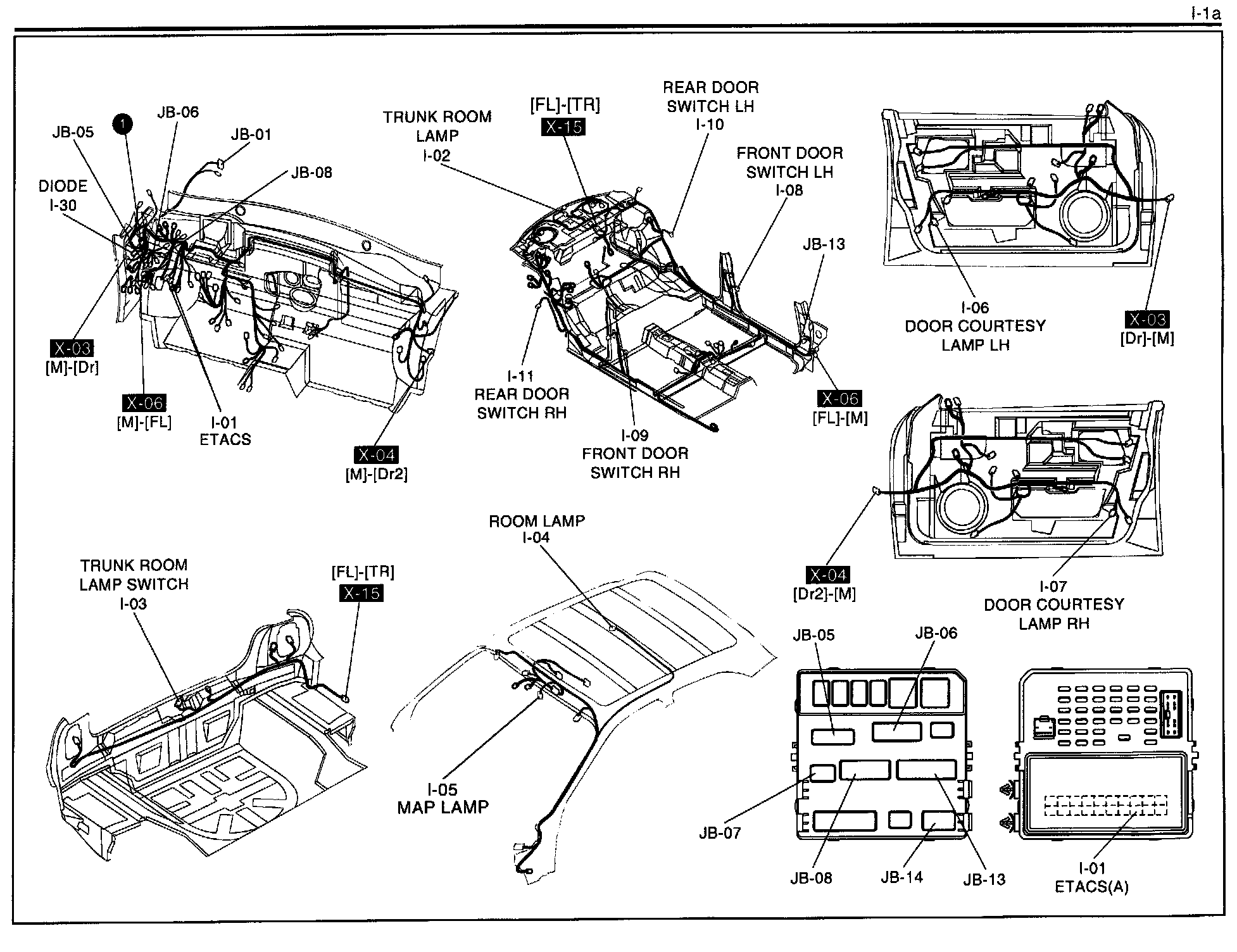

Routing View I-1a:






Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
