Home >> Kia >> 2003 >> Optima L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> Automatic A/C

Automatic A/C

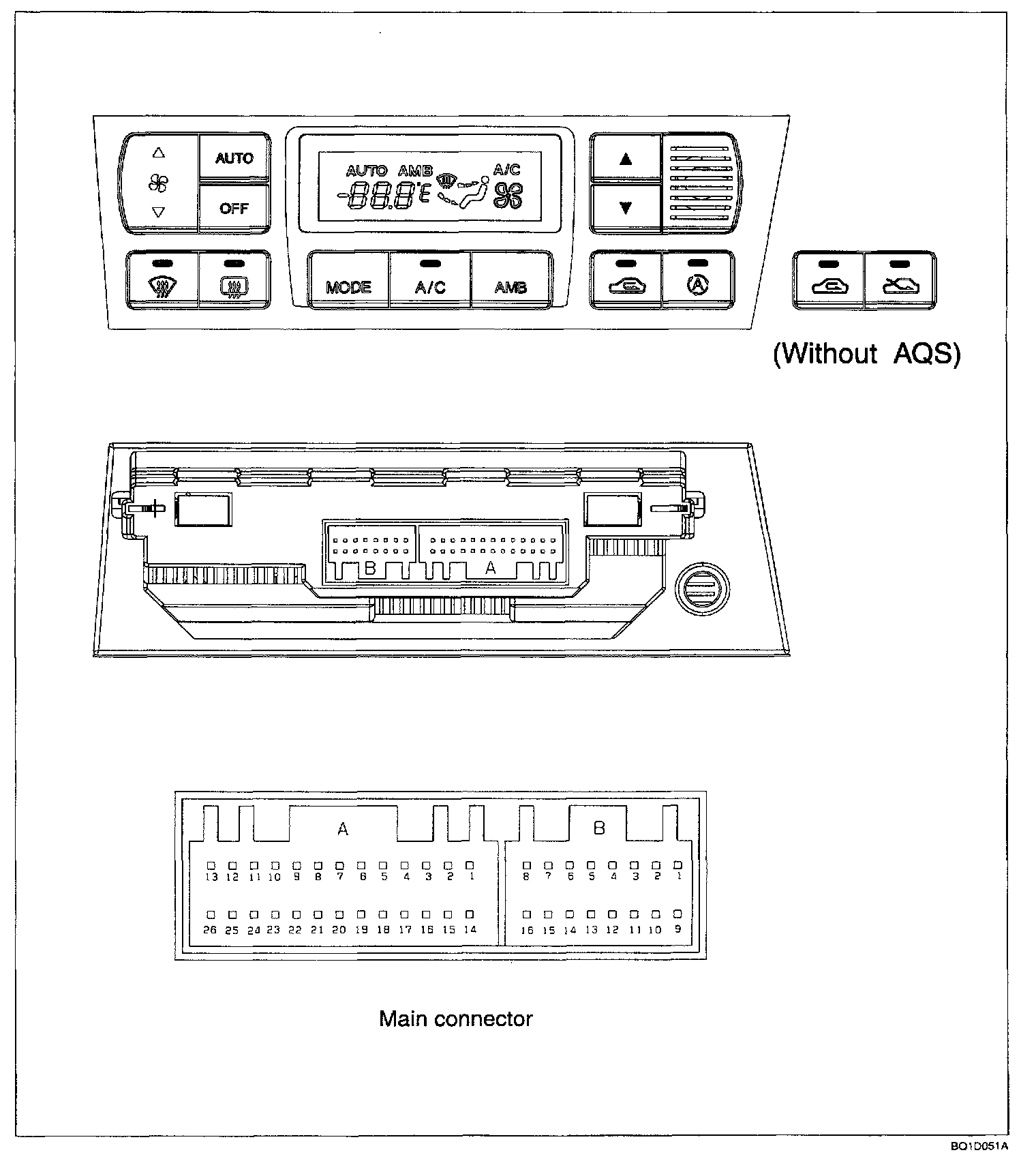

Control Ranel:

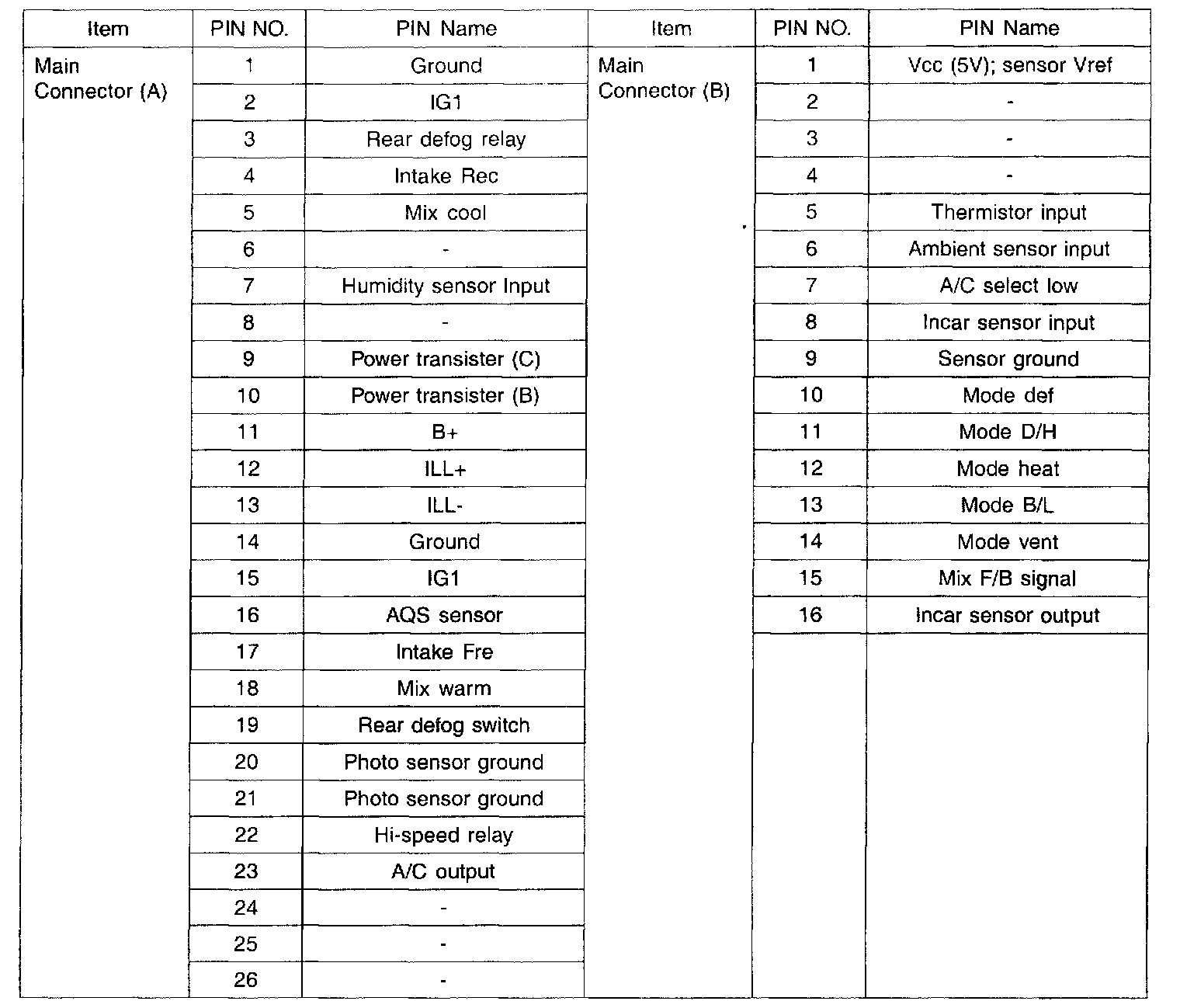

Connector Pin Description:

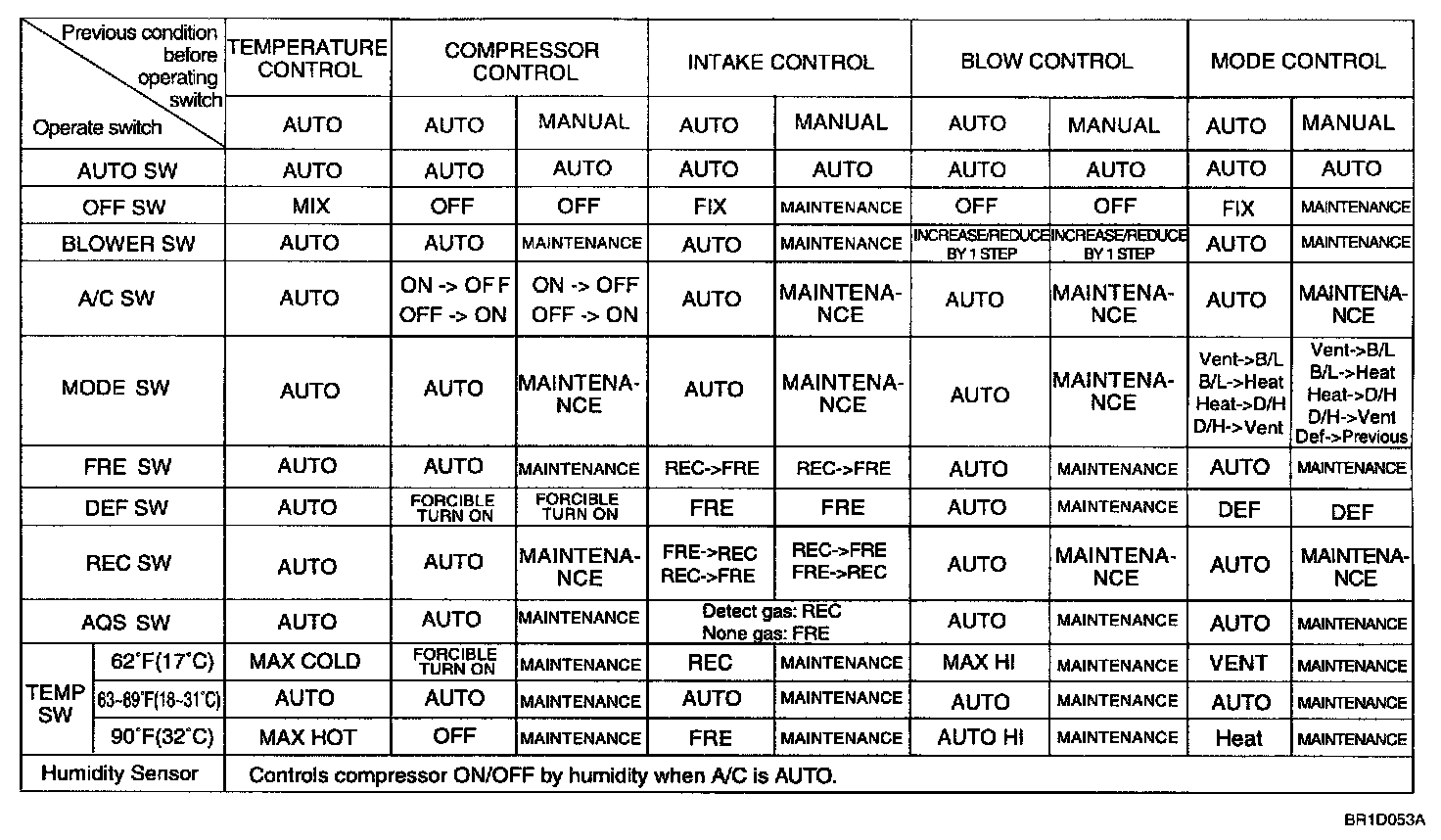

Auto A/C On Operation Table:
