Kia
>>
2002
>>
Optima L4-2.4L
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Locations
>>
Connector Locations
Connector Locations

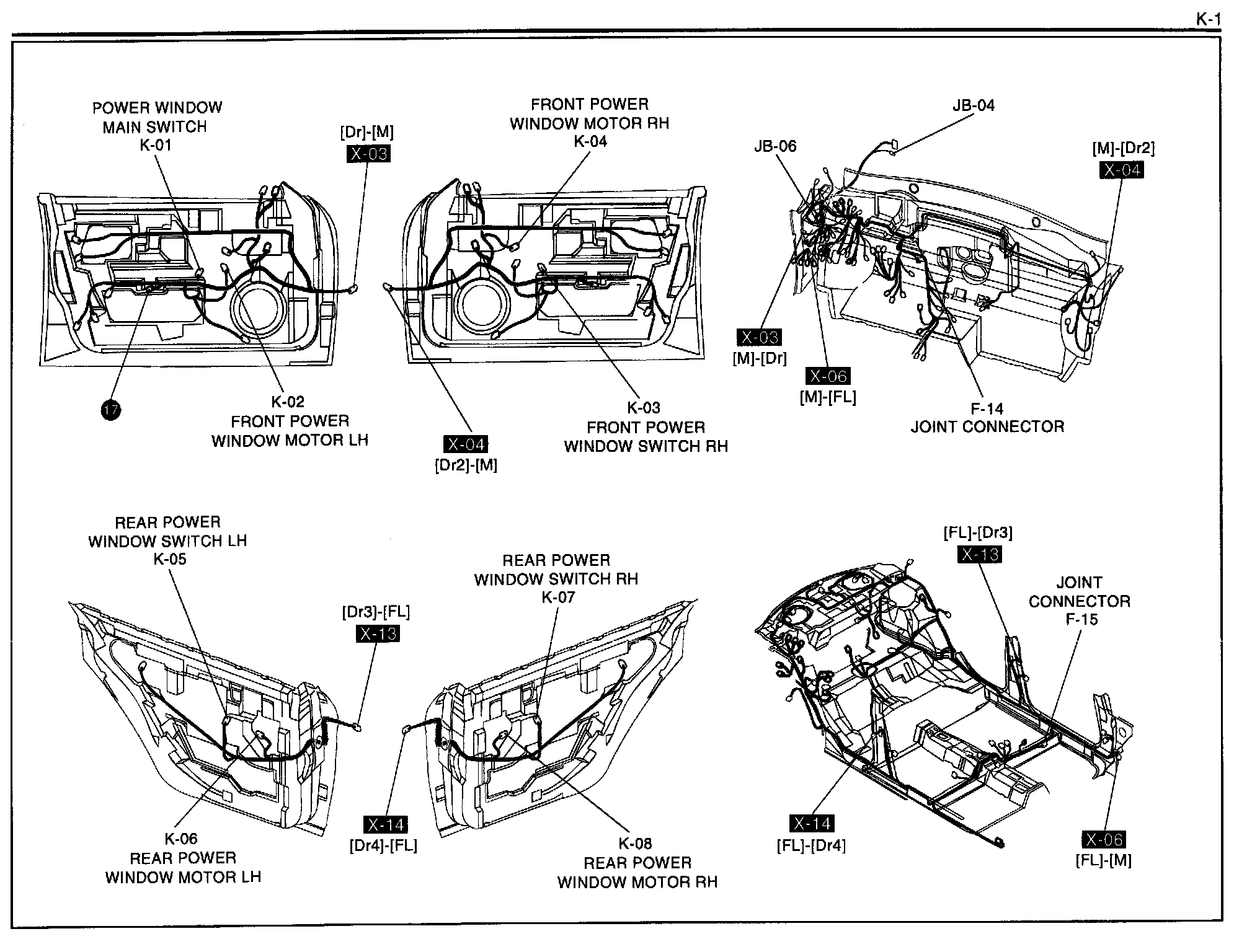

K-1 - Power Windows System Harness/Connector Symbols:
