Home >> Kia >> 2002 >> Optima L4-2.4L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Fuel Return Line

Fuel Return Line

Fuel Line [2.4 DOHC]:

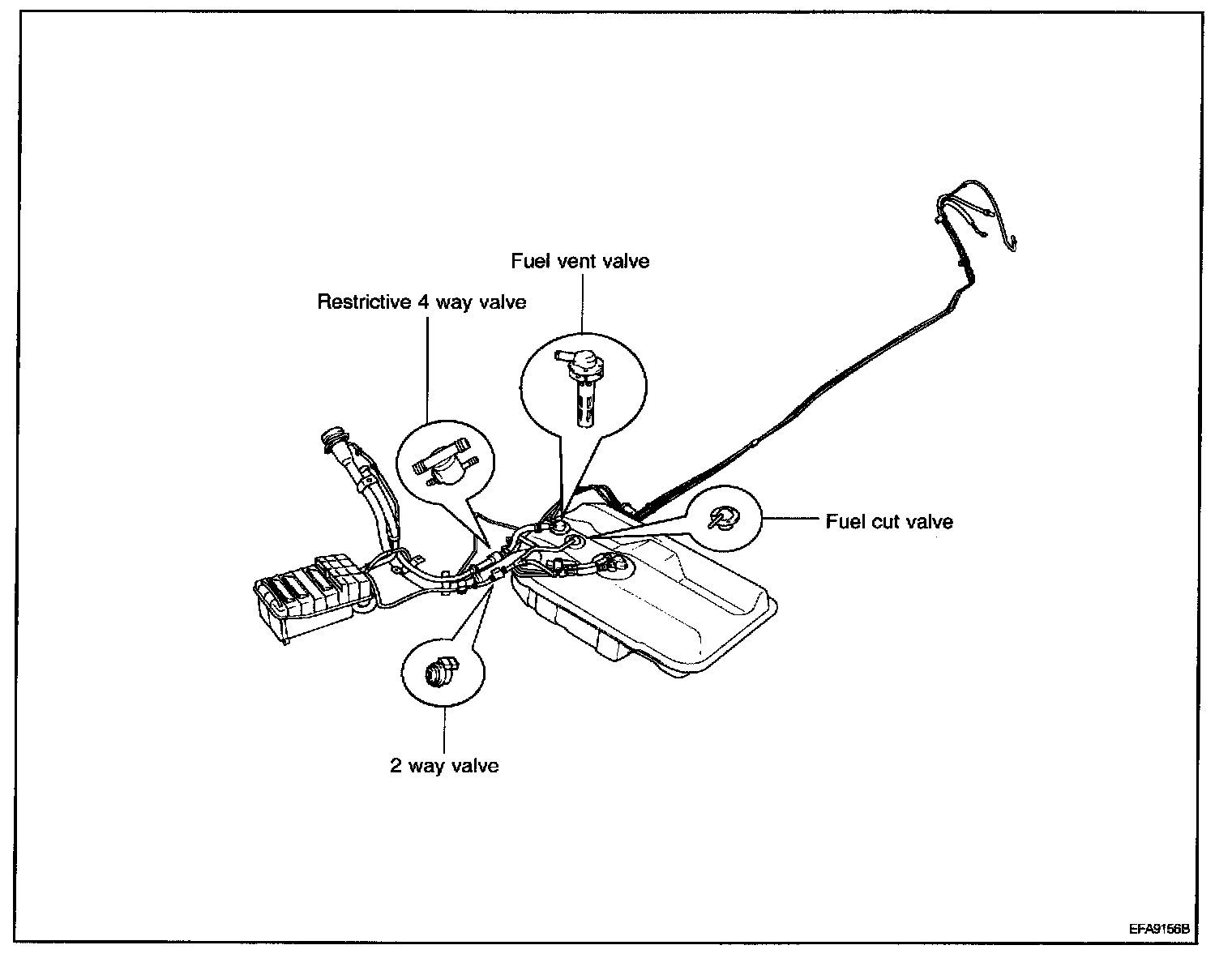

Fuel line And Vapor Line Components:
