Home >> Kia >> 2002 >> Optima L4-2.4L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> Control Module HVAC

Control Module HVAC

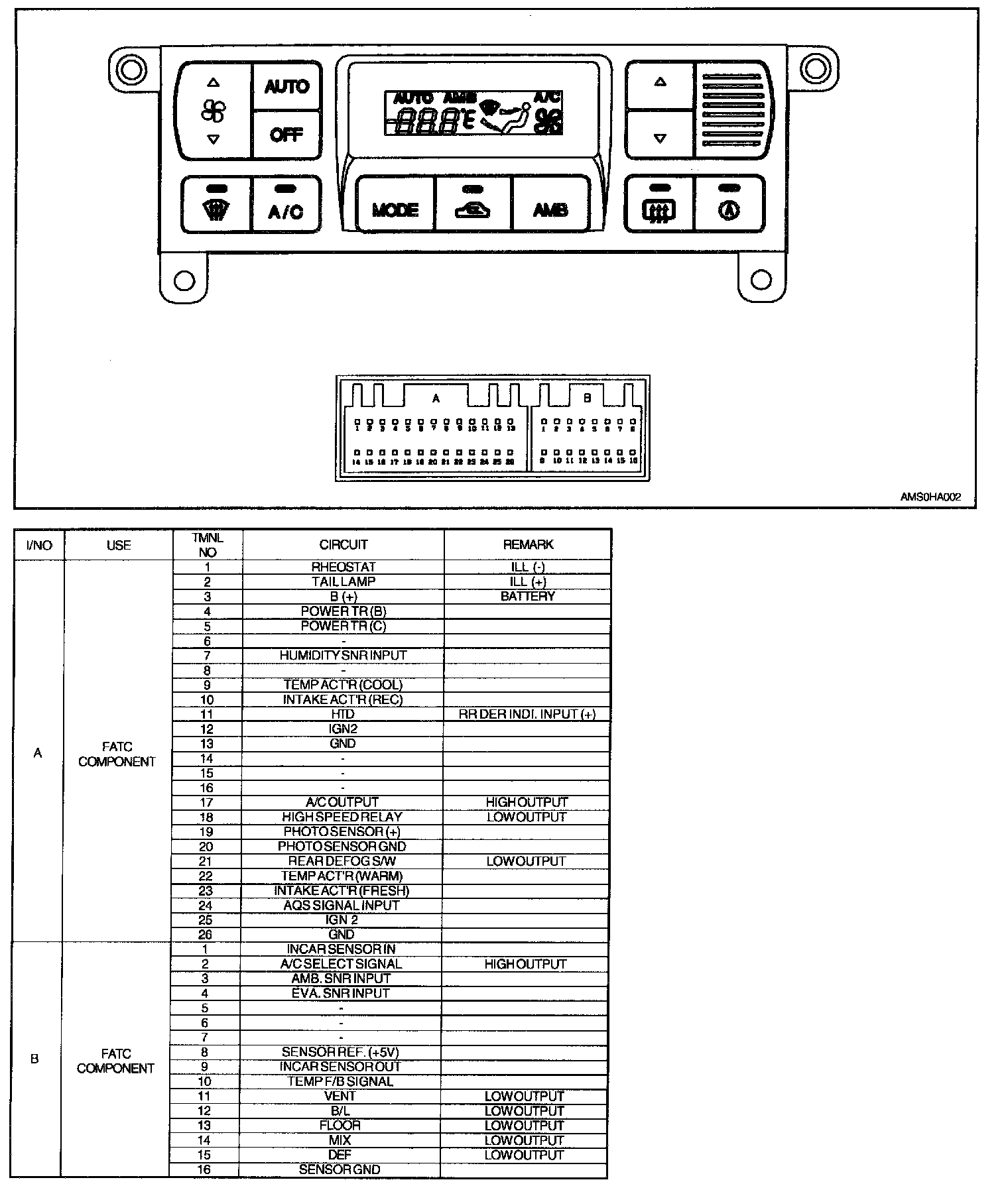

Control Module:

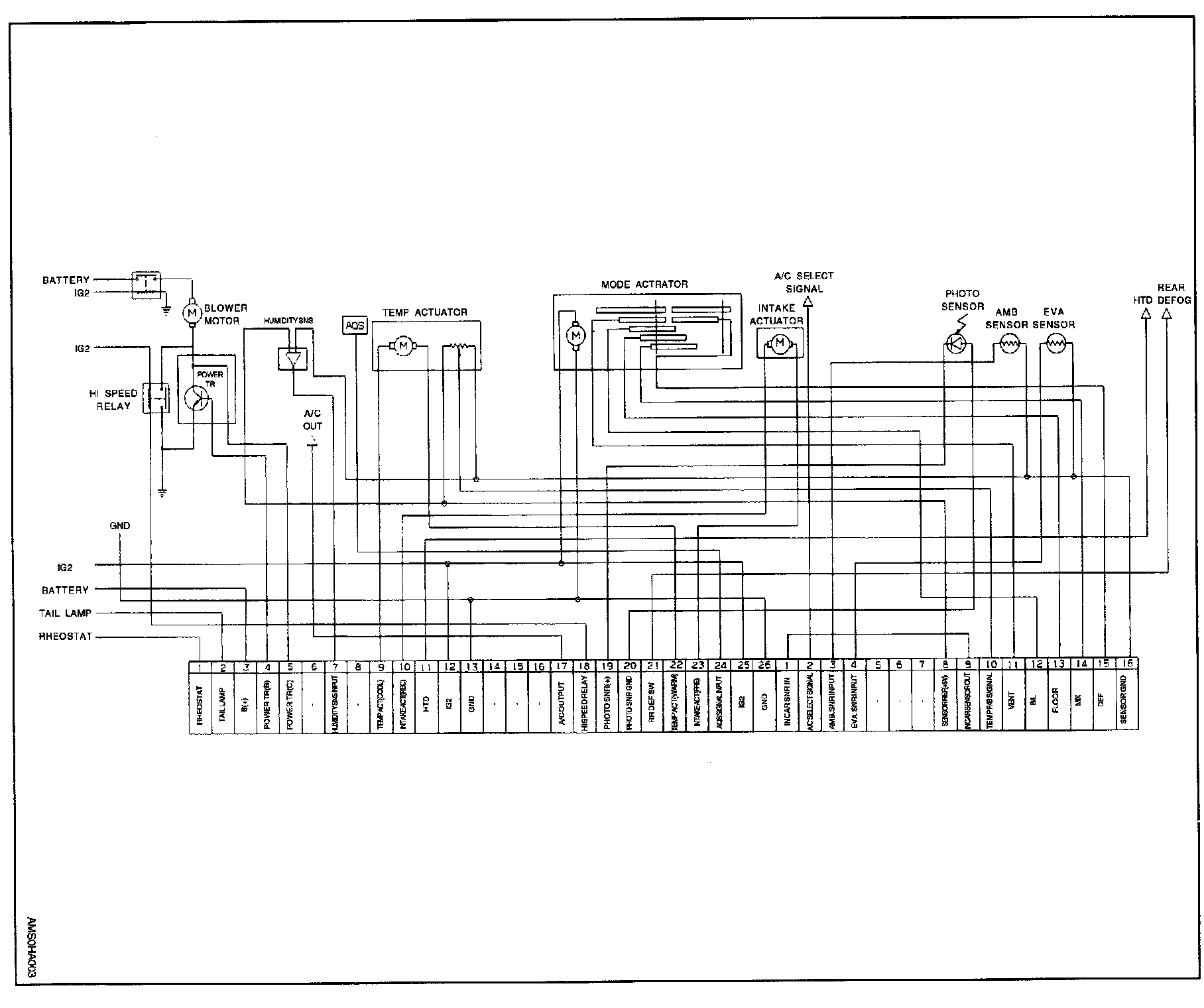

Wiring Diagram:
