Pinout Values and Diagnostic Parameters

ECM Terminal Pinouts:

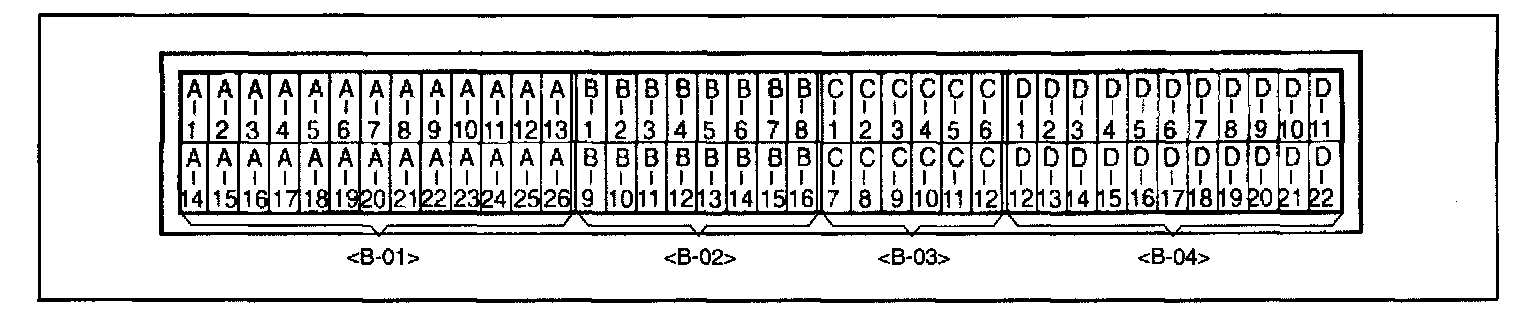

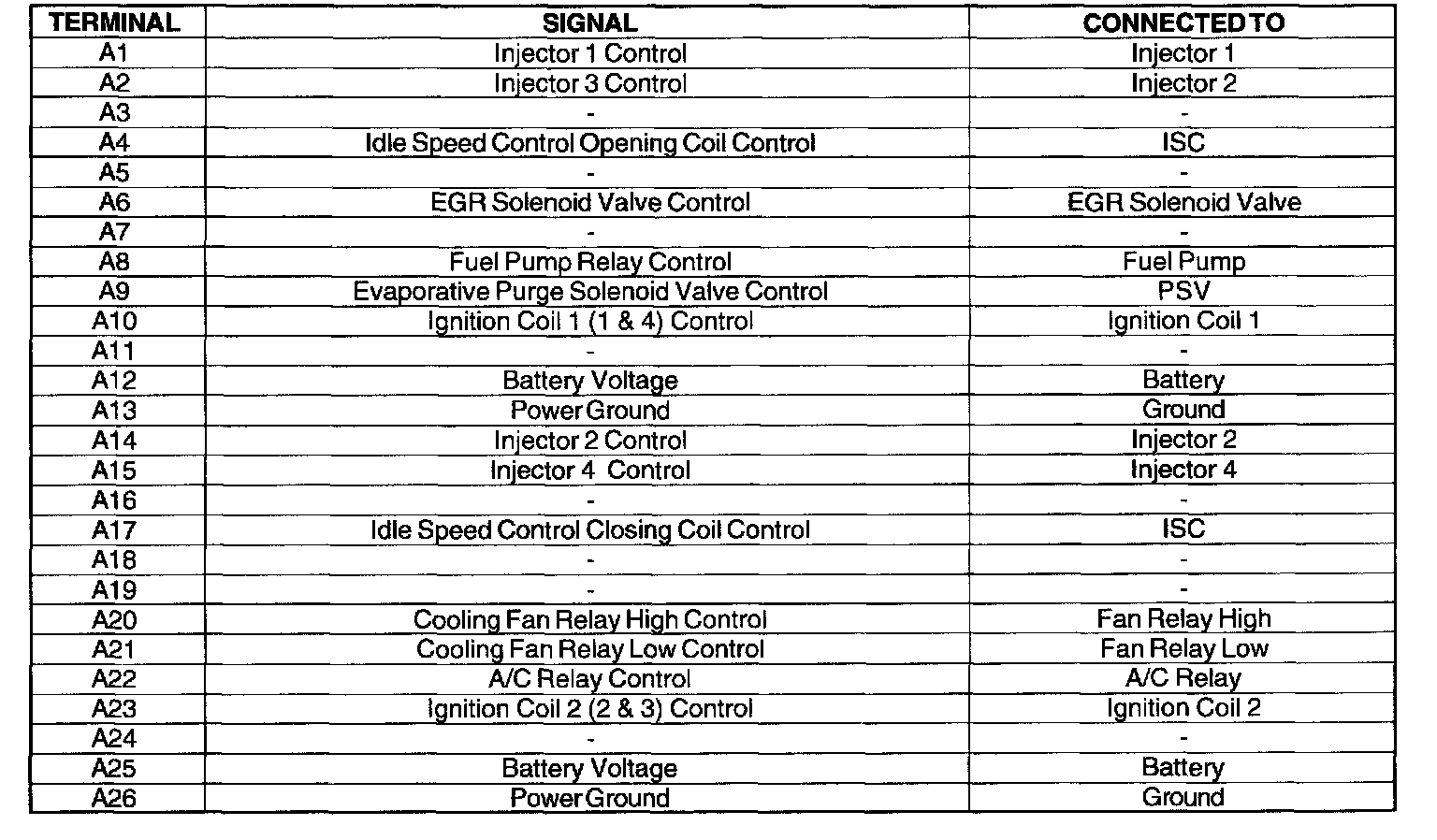

Connector <B-01> (A1 - A26):

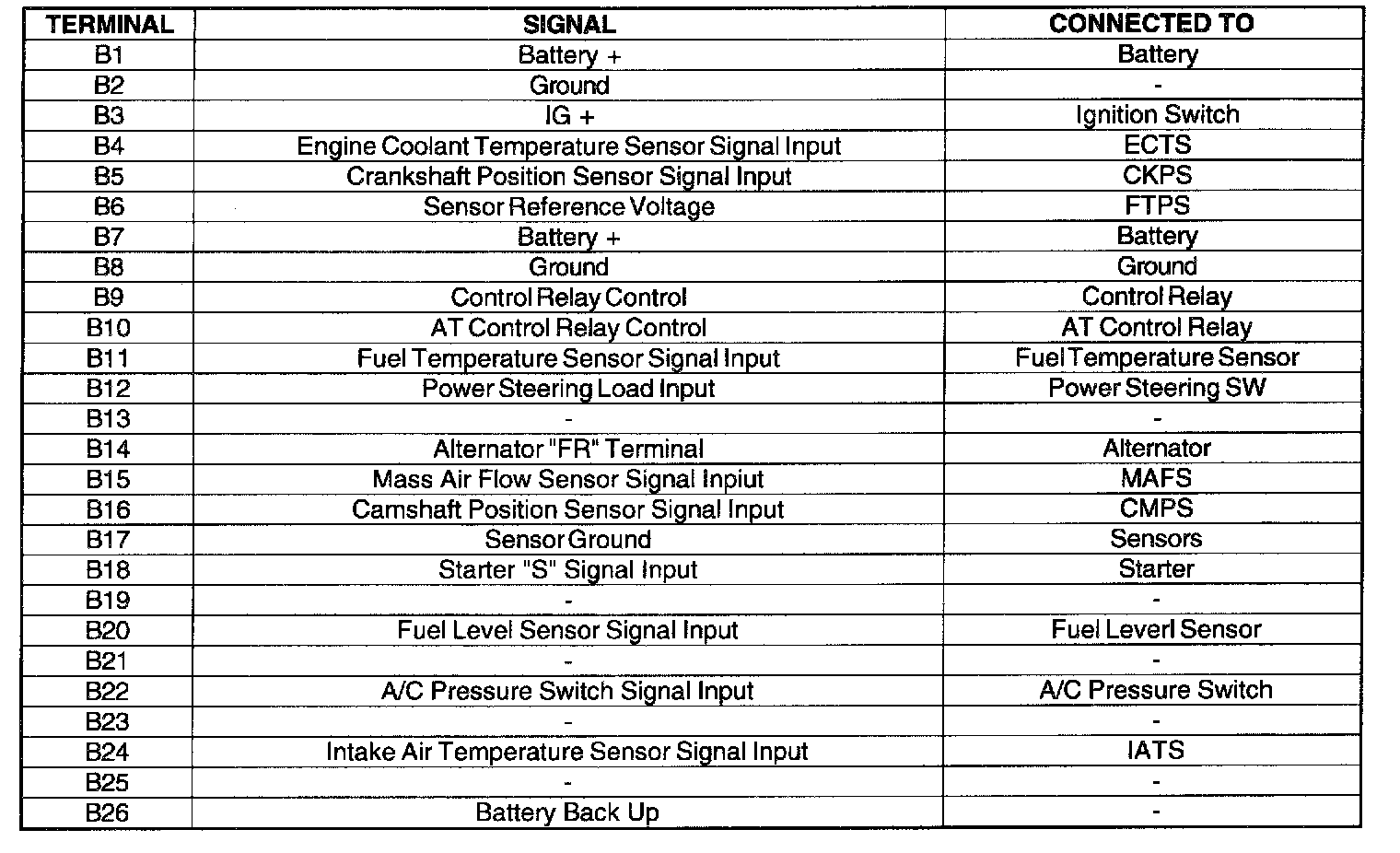

Connector <B-02> (B1 - B16):

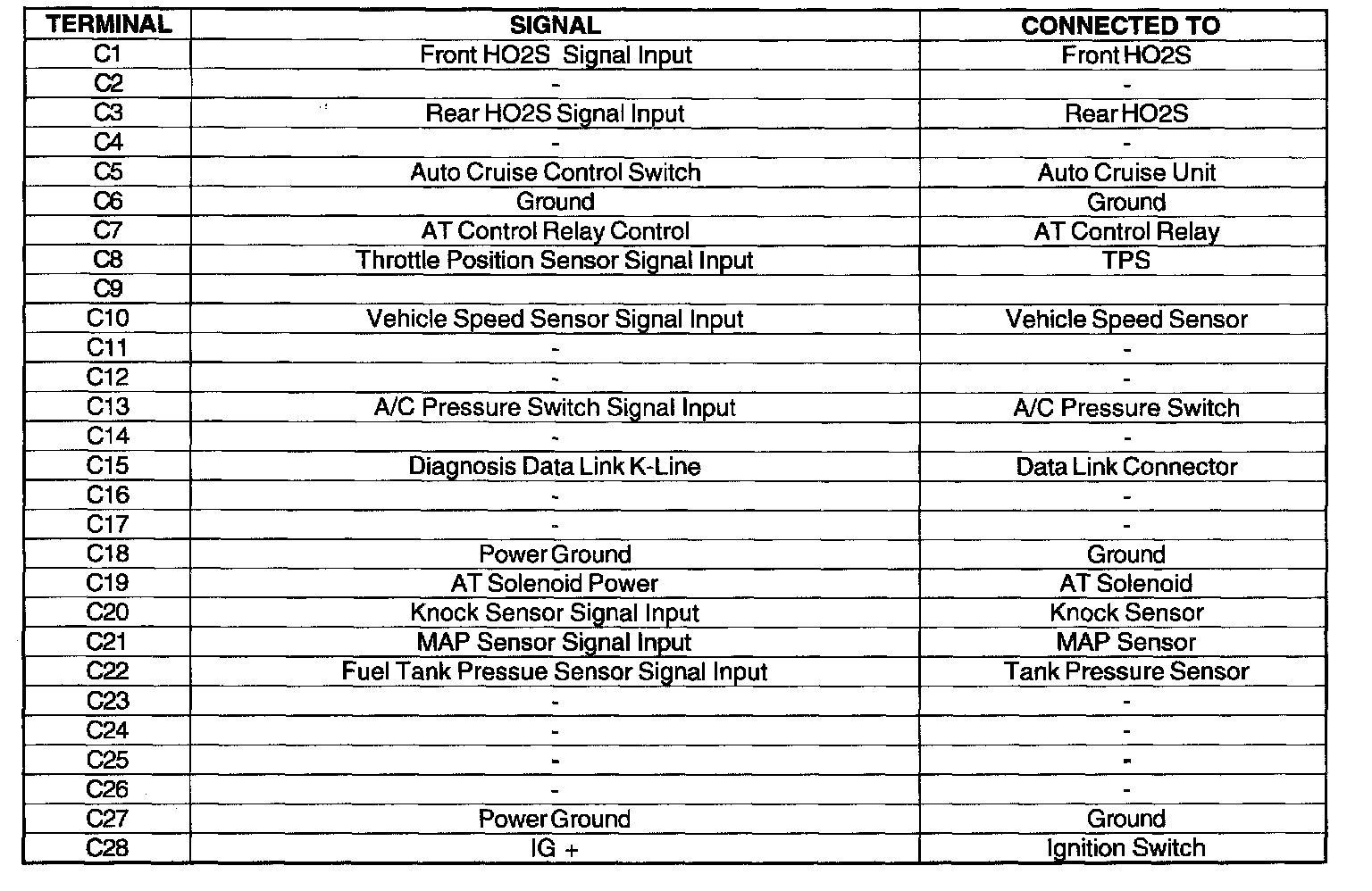

Connector <B-03> (C1 - C12):

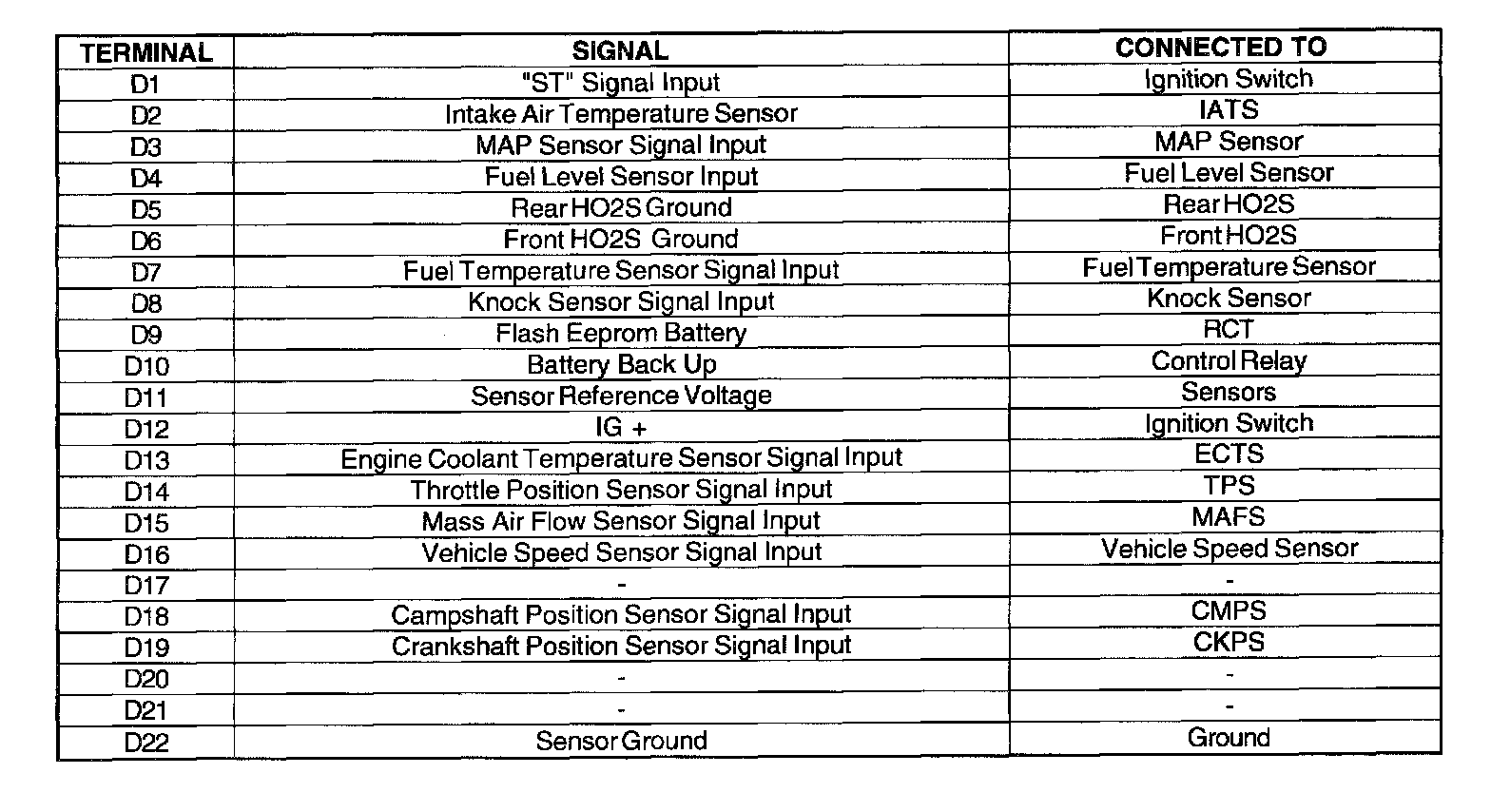

Connector <B-04> (D1 - D22):

Terminal Pinouts (With TCM):

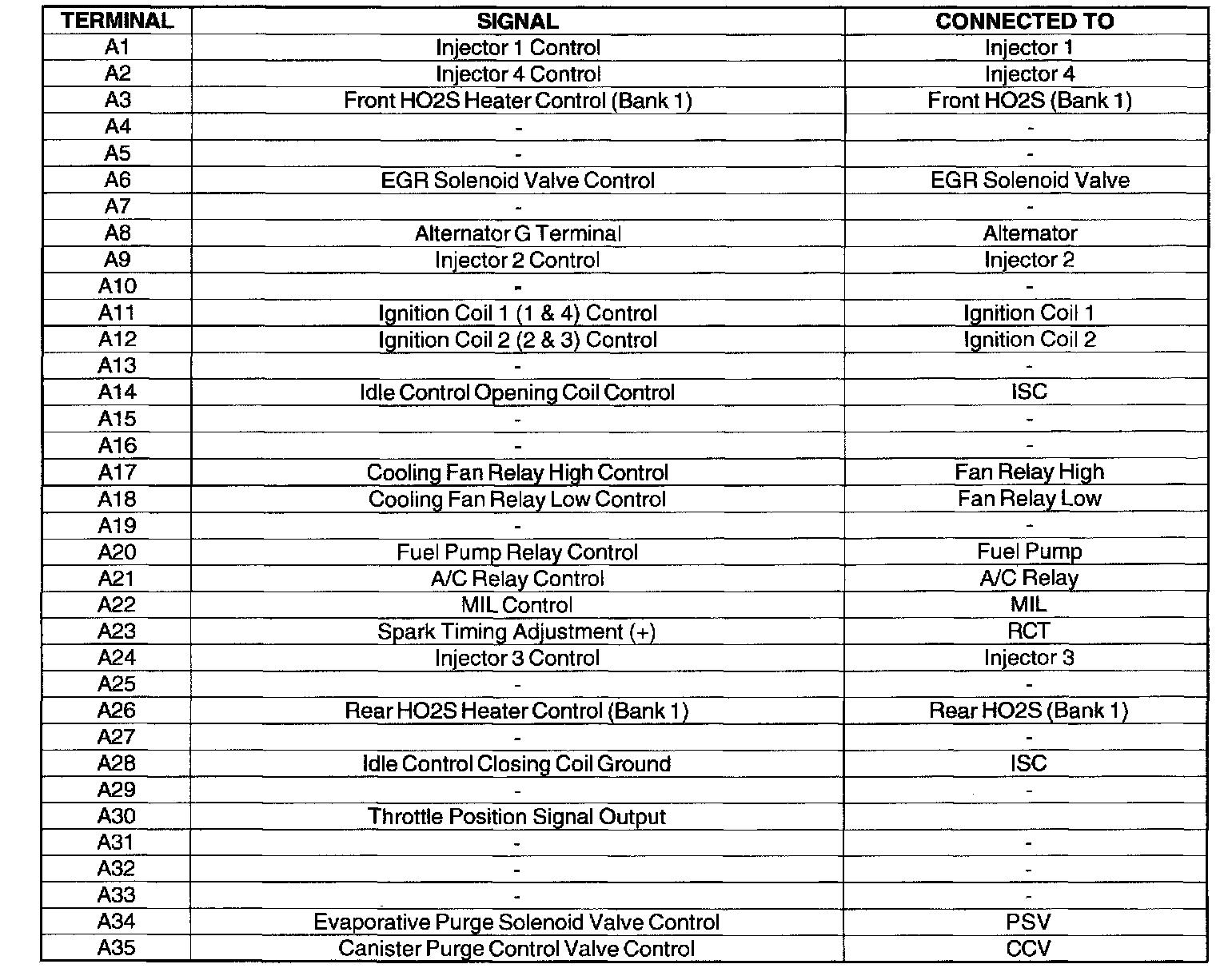

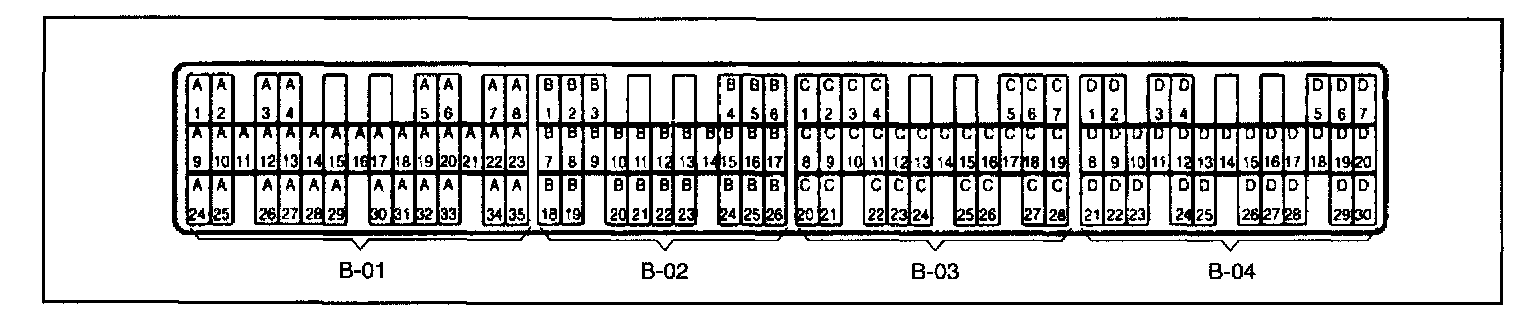

Connector <B-01> (A1 - A35):

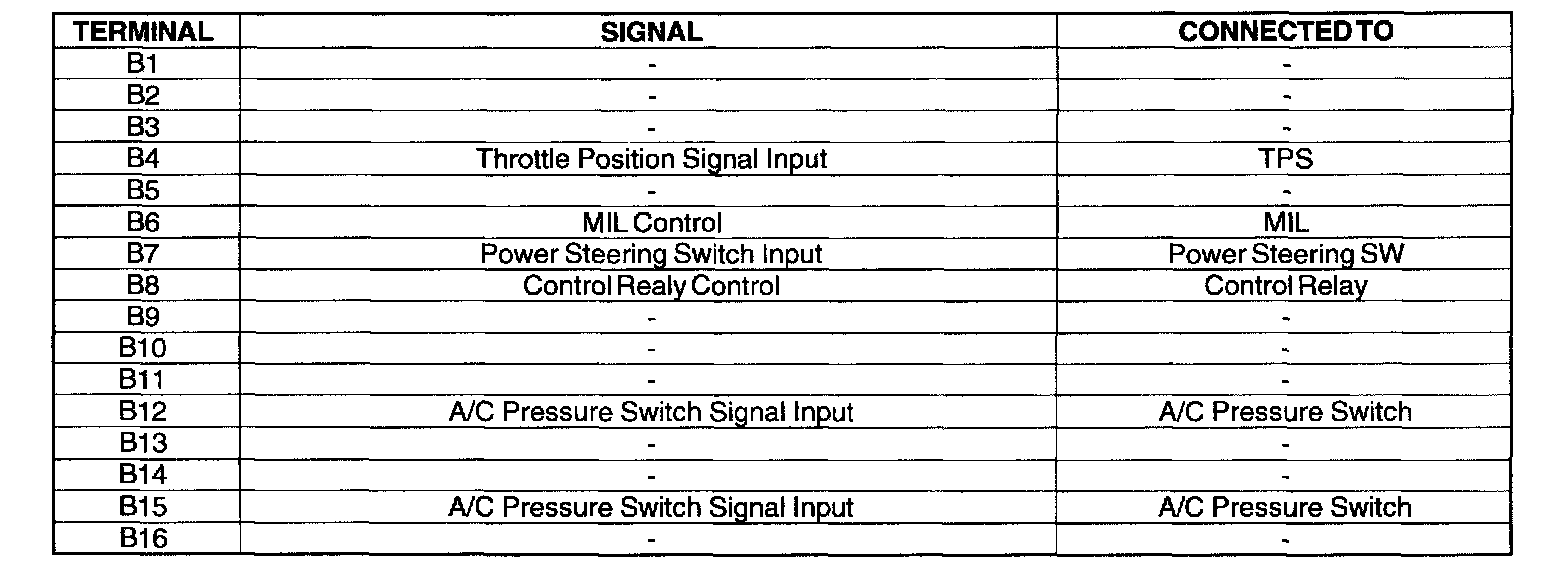

Connector <B-02> (B1 - B26):

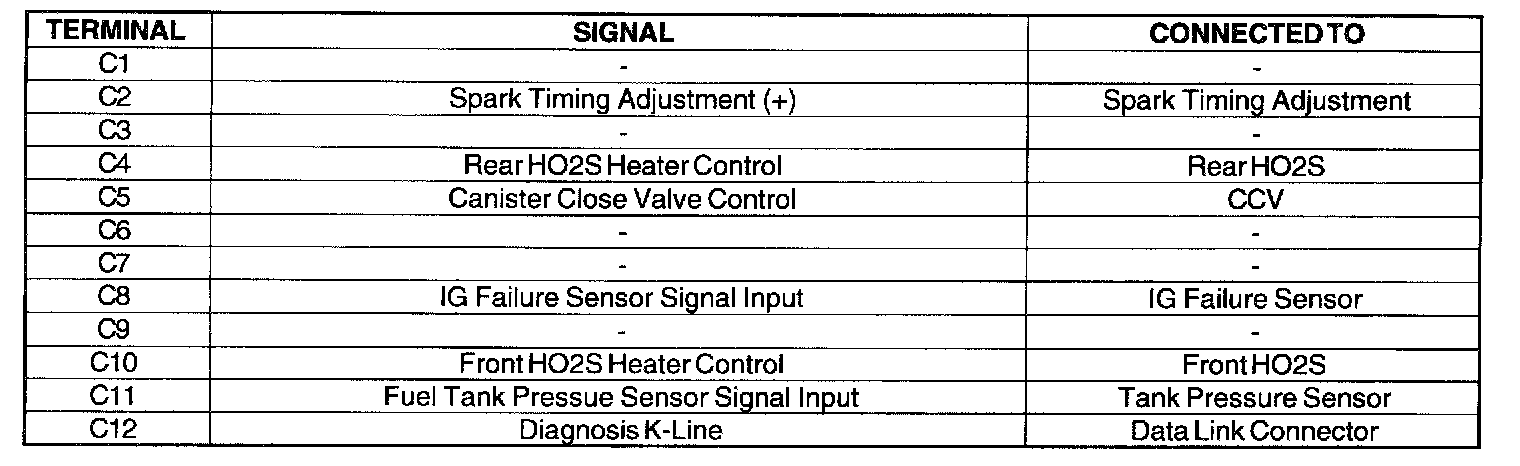

Connector <B-03> (C1 - C28):

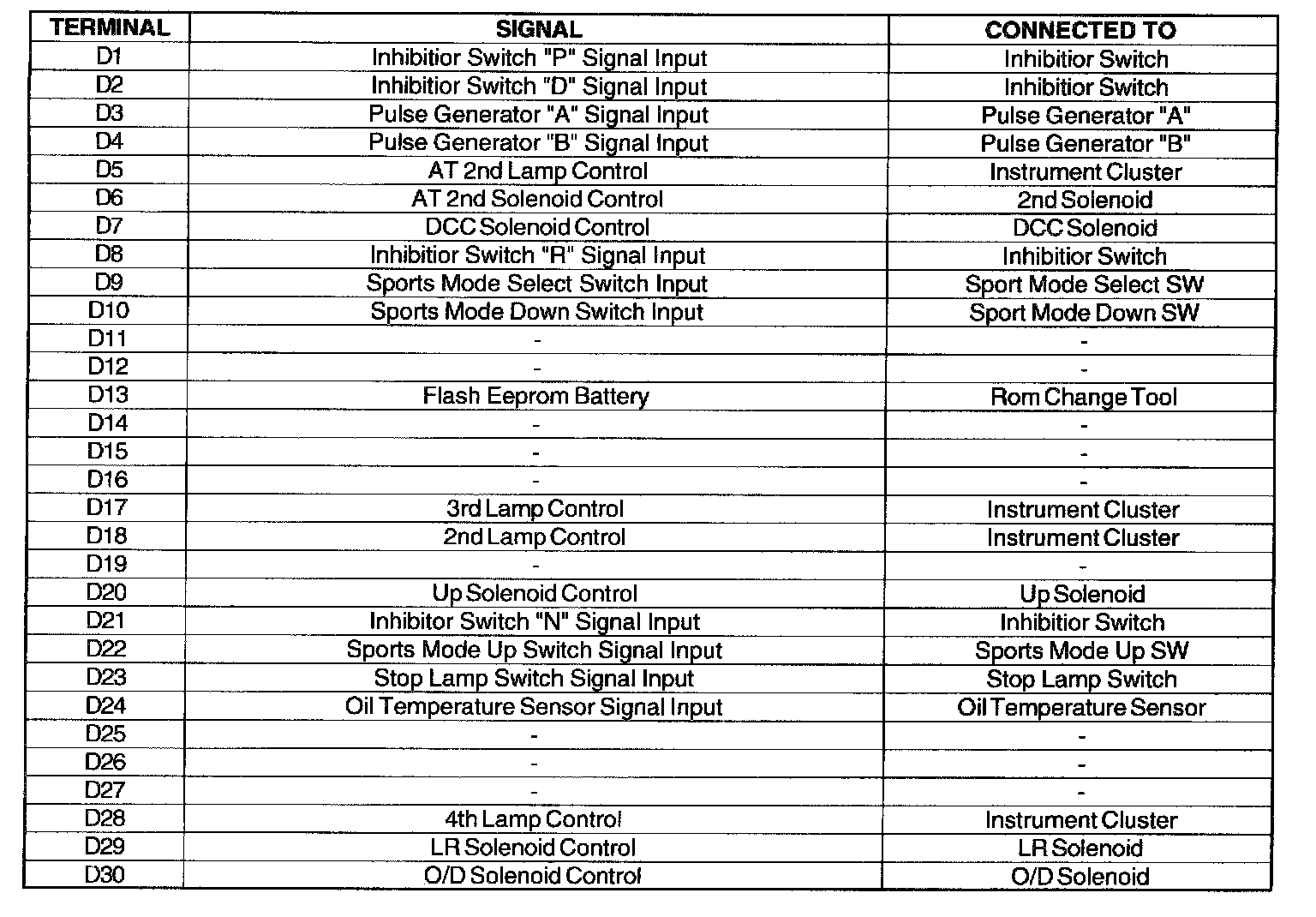

Connector <B-04> (D1 - D30):
