Brakes and Traction Control: Testing and Inspection
DIAGNOSIS AND TESTING - BASE BRAKE SYSTEM DIAGNOSIS CHARTS
NOTE: There are three diagnosis charts following that cover the RED BRAKE WARNING INDICATOR, BRAKE NOISE and OTHER BRAKE CONDITIONS.

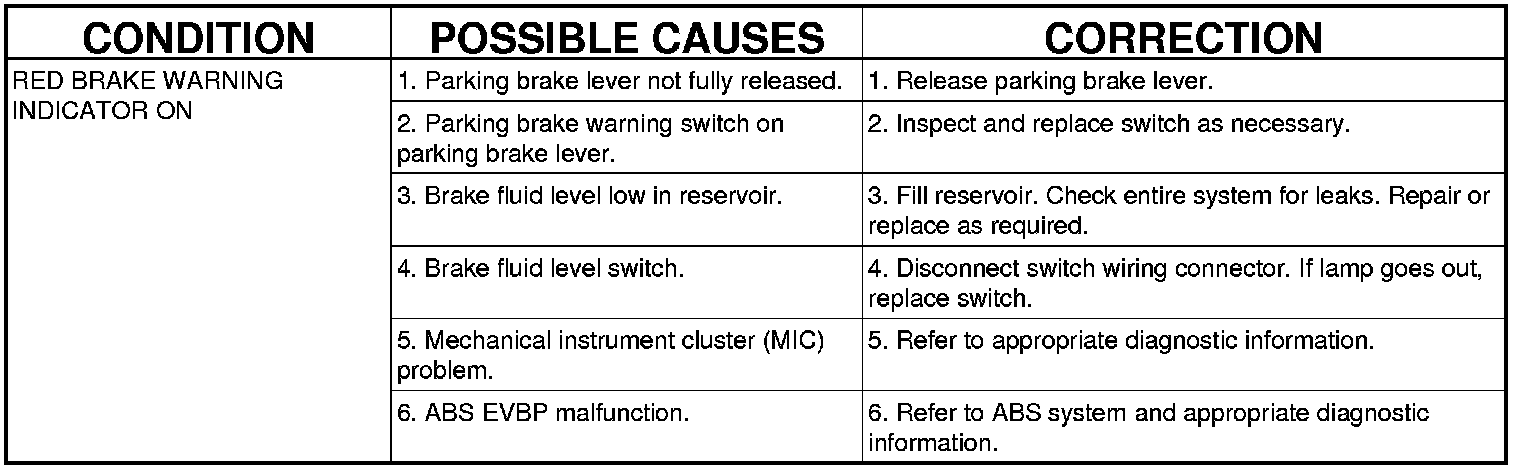

RED BRAKE WARNING INDICATOR

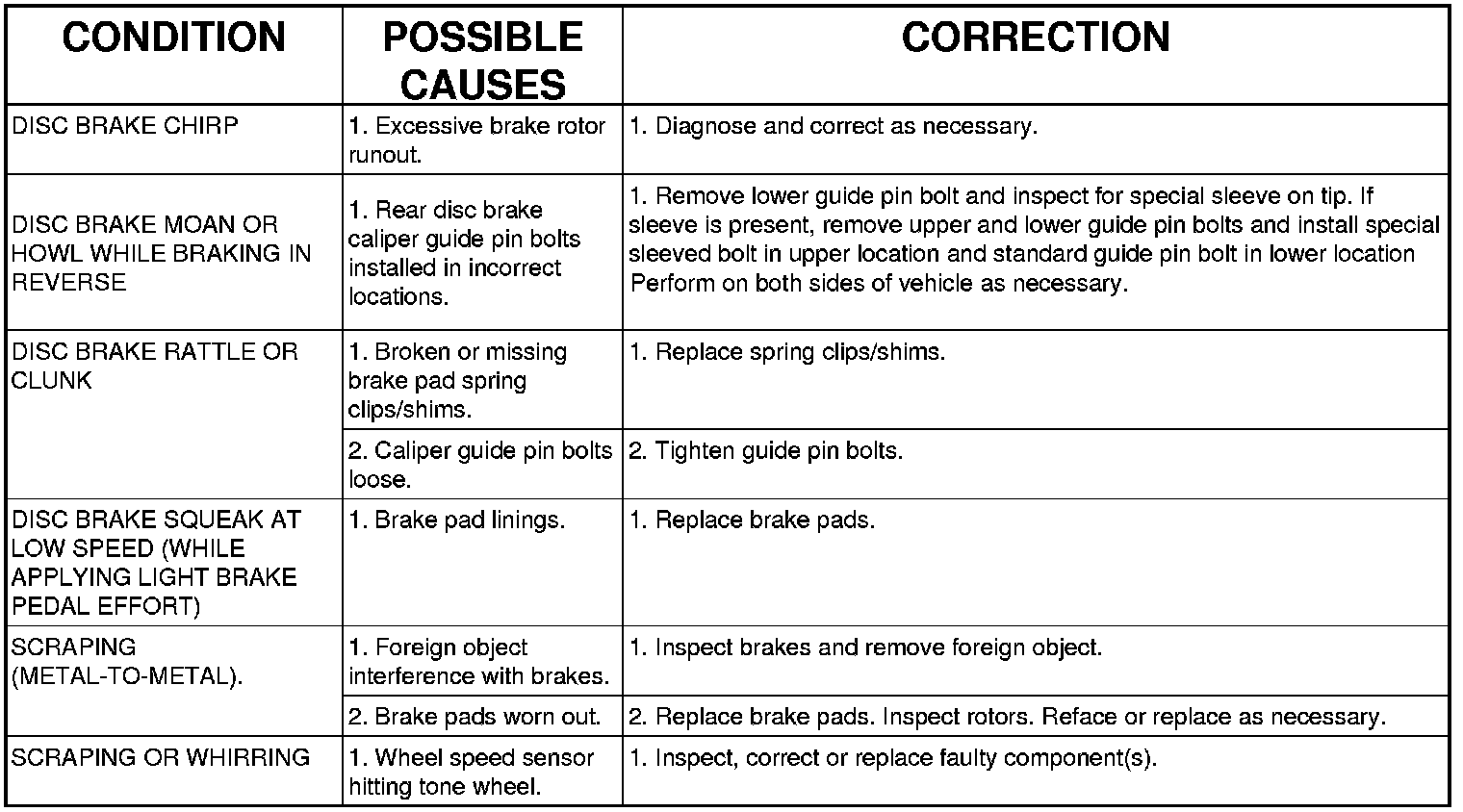

BRAKE NOISE

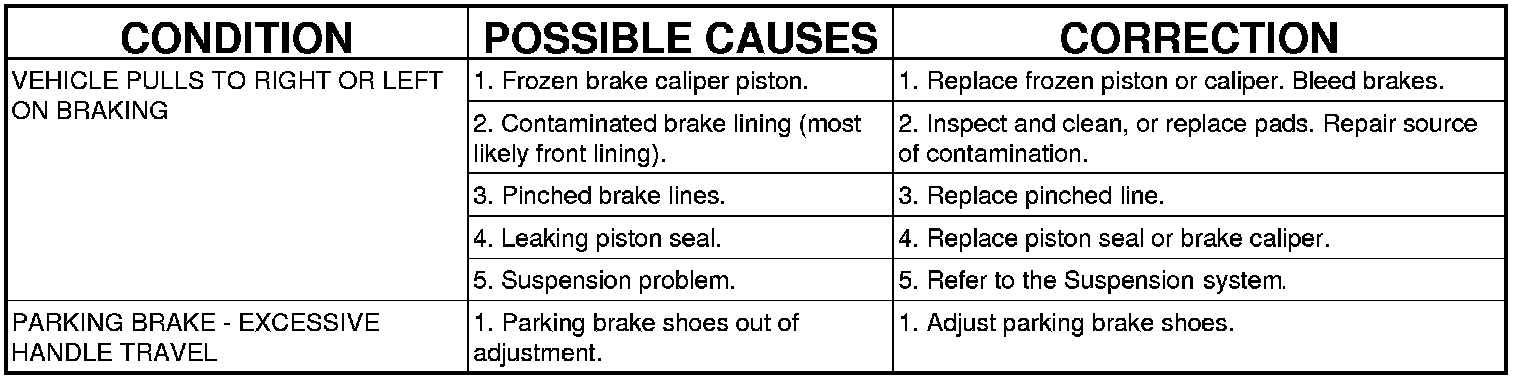

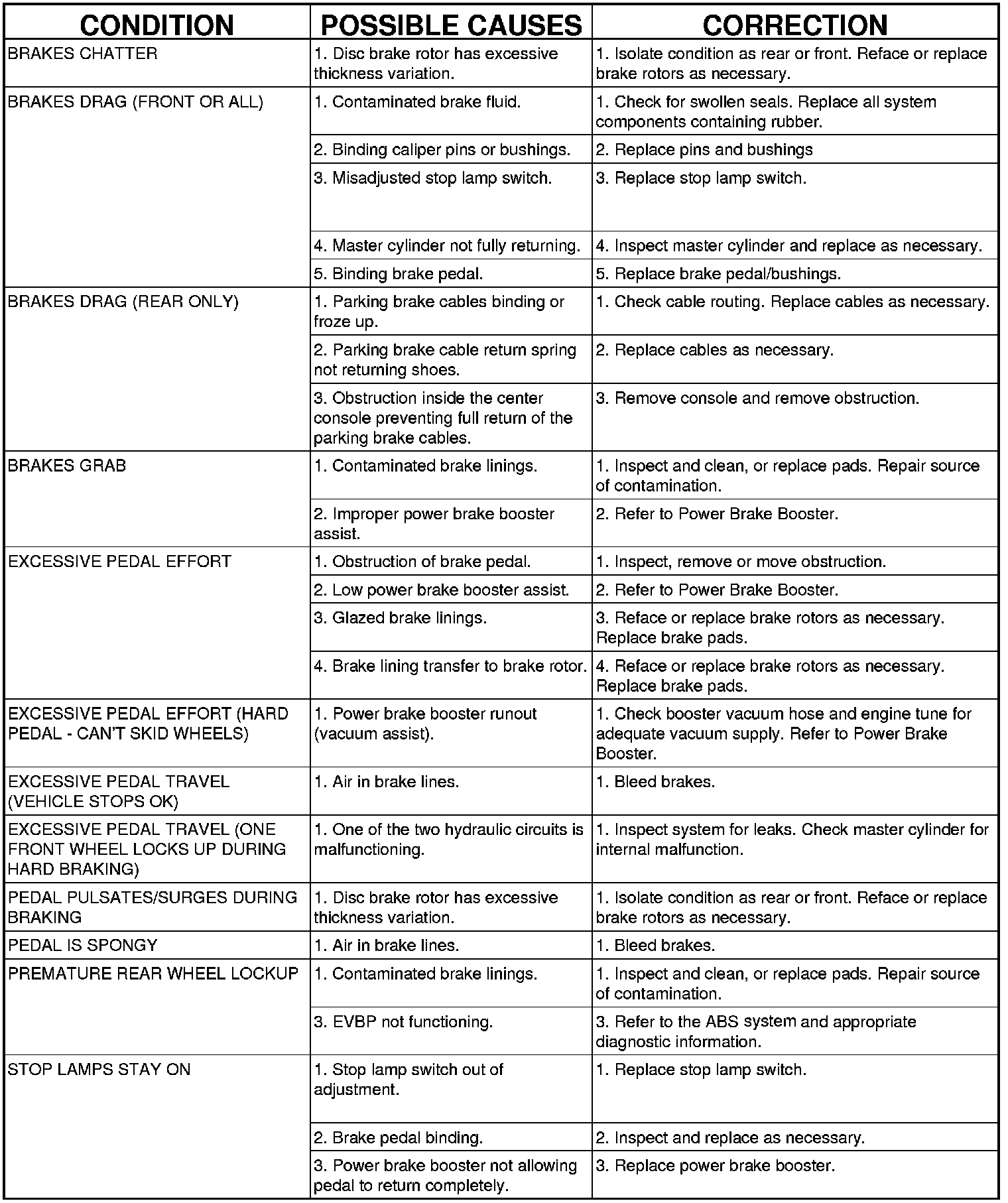

OTHER BRAKE CONDITIONS
