Powertrain Control Module C2 (Injector) 38 Way
Powertrain Control Module C2 (Injector) 38 Way

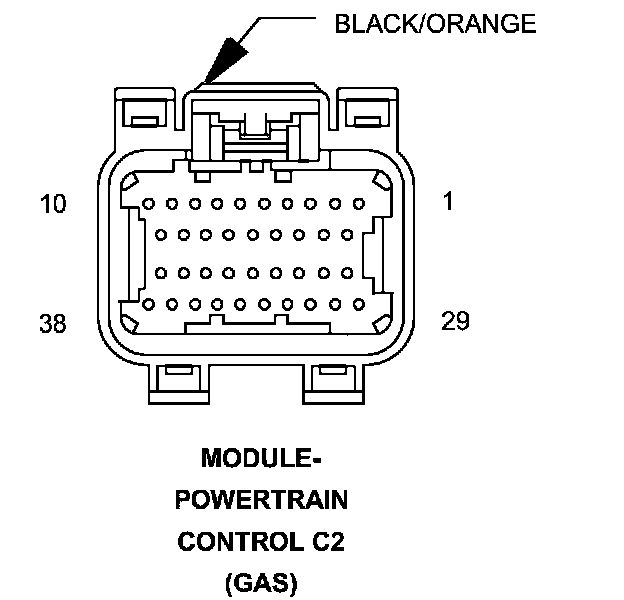

Connector C2 (GAS) - (INJECTOR) 38 WAY

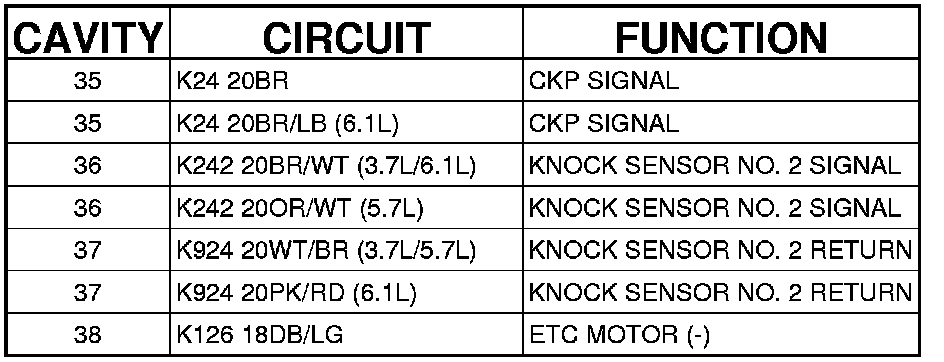

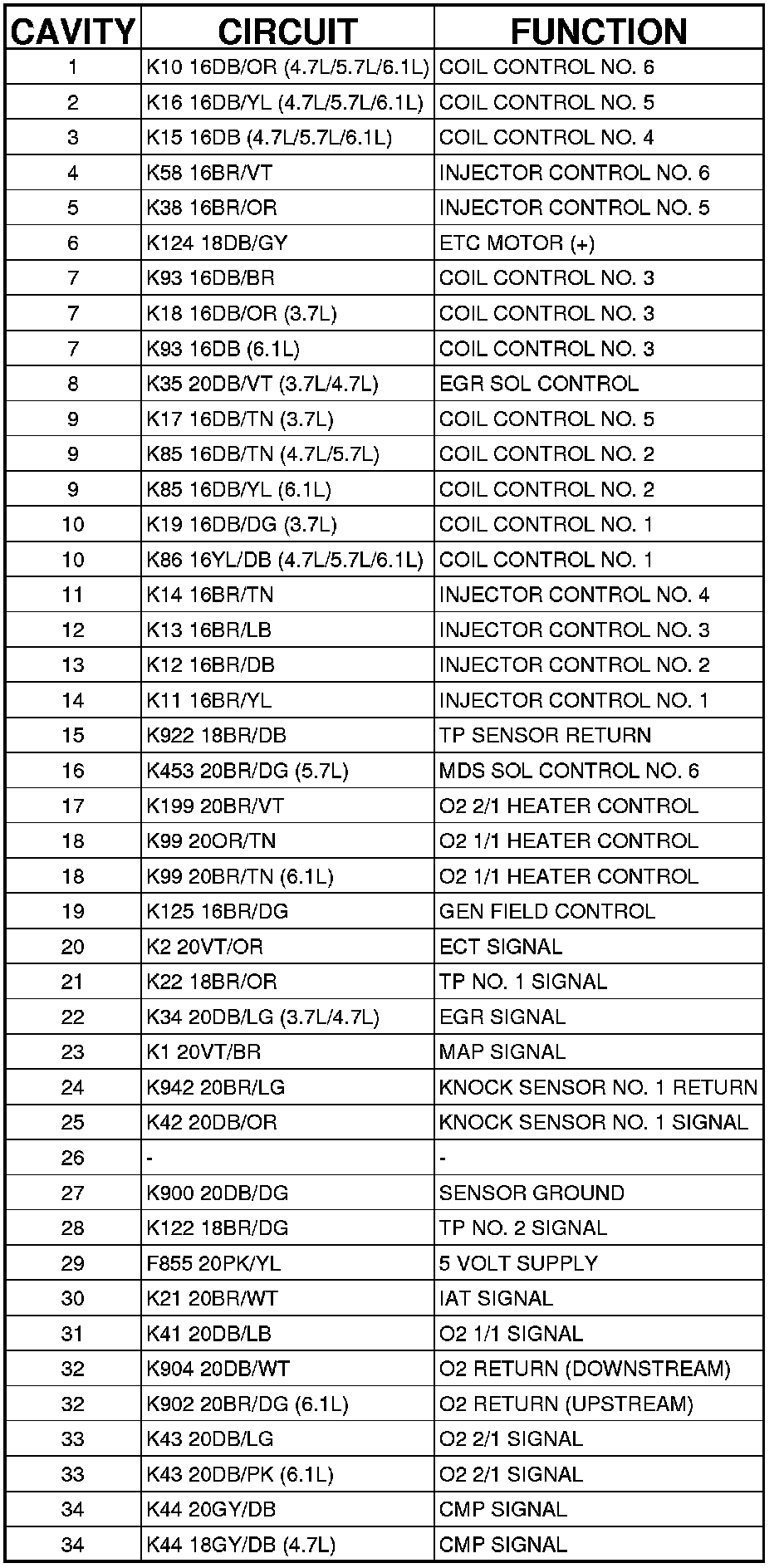

MODULE-POWERTRAIN CONTROL (GAS) - (INJECTOR) 38 WAY
