Keyless Entry Module: Diagrams

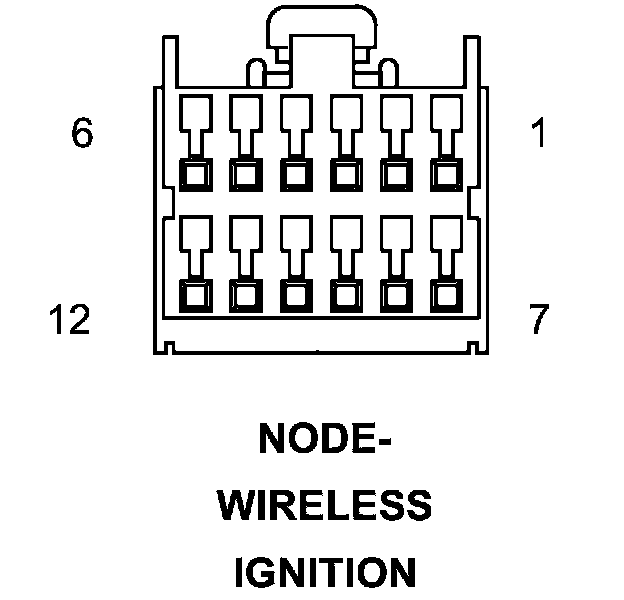

Connector - (INSTRUMENT PANEL) 12 WAY

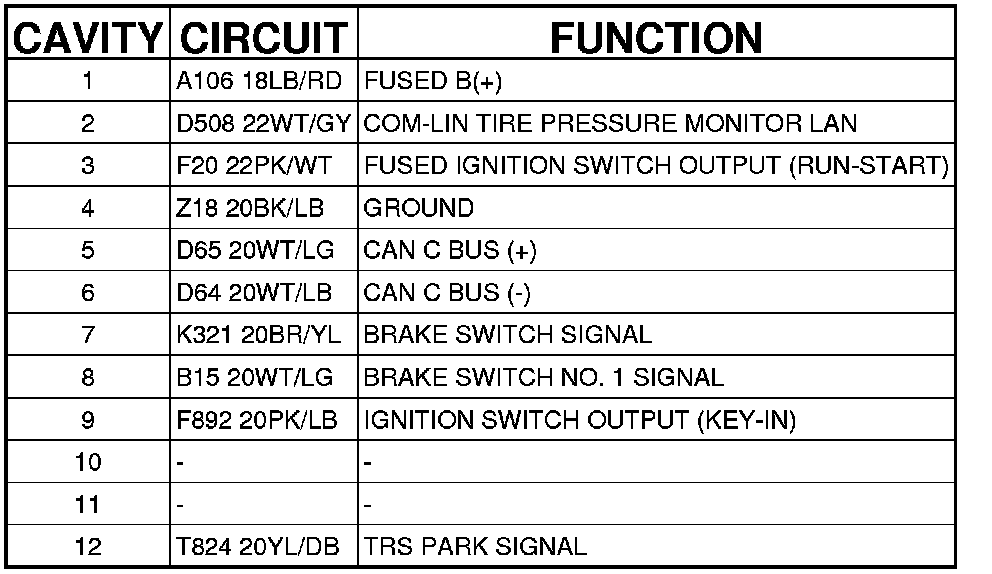

NODE-WIRELESS IGNITION - (INSTRUMENT PANEL) 12 WAY
