Control Module, Transfer Case

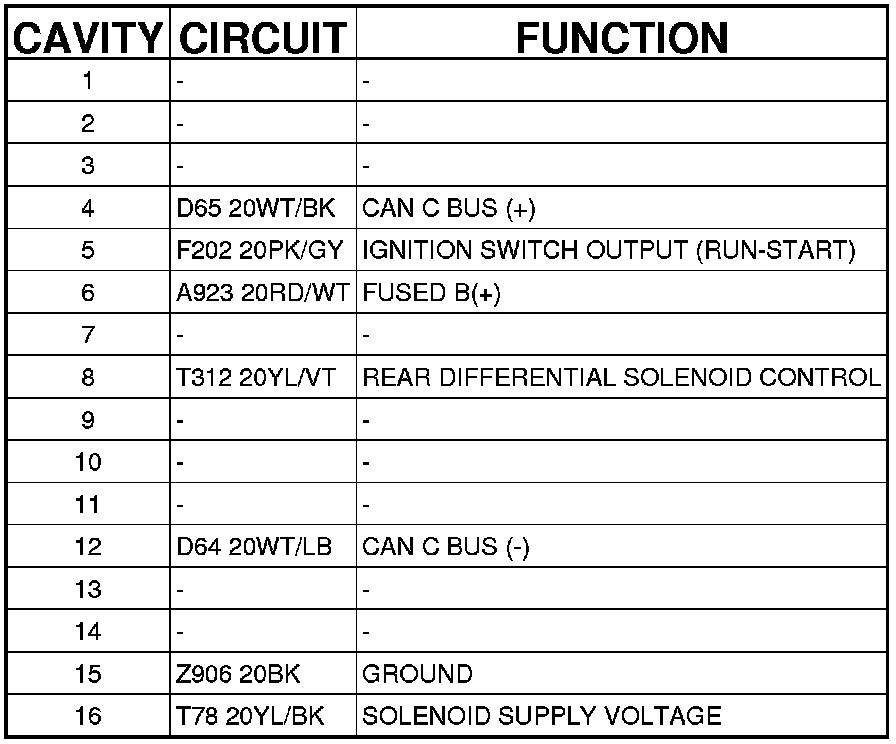

Connector (AWD) - (BODY) 16 WAY

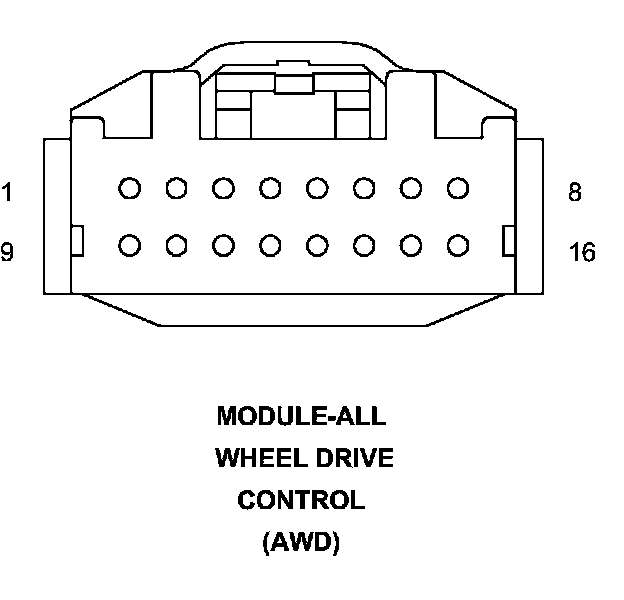

MODULE-ALL WHEEL DRIVE CONTROL (AWD) - (BODY) 16 WAY
