Windshield Washer Pump
Windshield Washer Pump

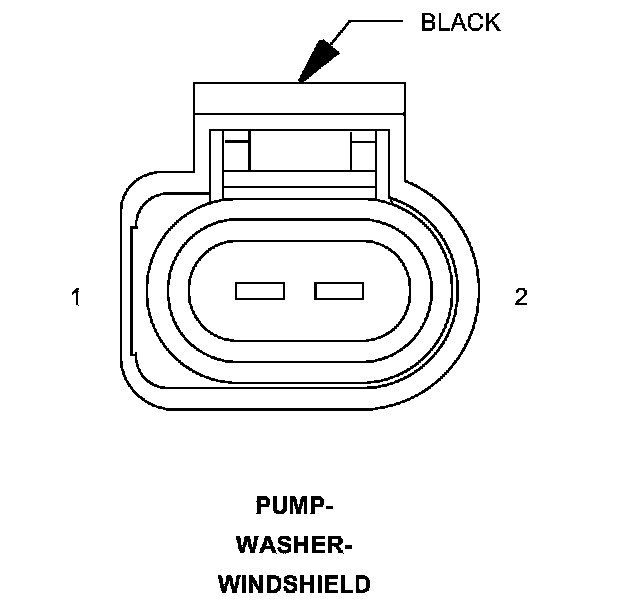

Connector - (ENGINE COMPARTMENT) 2 WAY

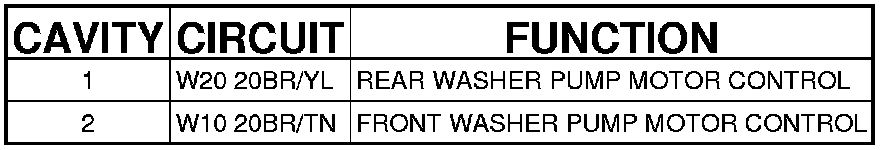

PUMP-WASHER-WINDSHIELD - (ENGINE COMPARTMENT) 2 WAY
