Variable Induction Control Valve

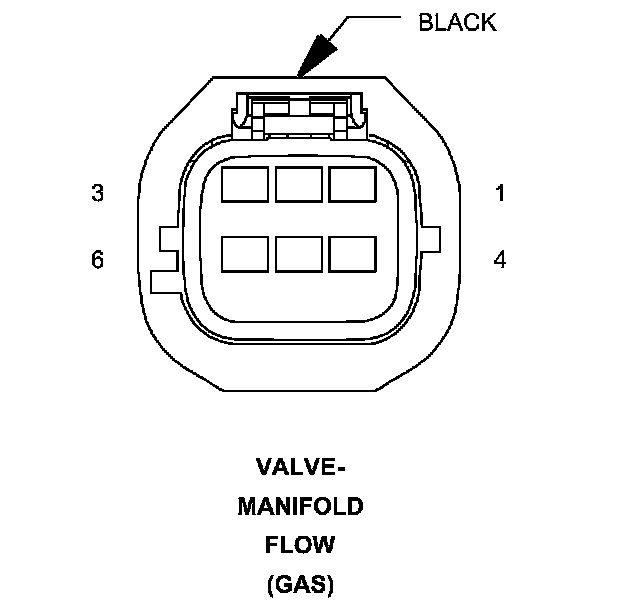

Connector (GAS) - (POWERTRAIN) 6 WAY

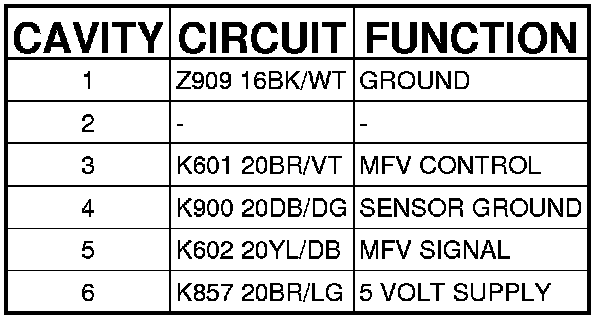

VALVE-MANIFOLD FLOW (GAS) - (POWERTRAIN) 6 WAY
