Steering Control Module C2 (Instrument Panel) 6 Way
Steering Control Module C2 (Instrument Panel) 6 Way

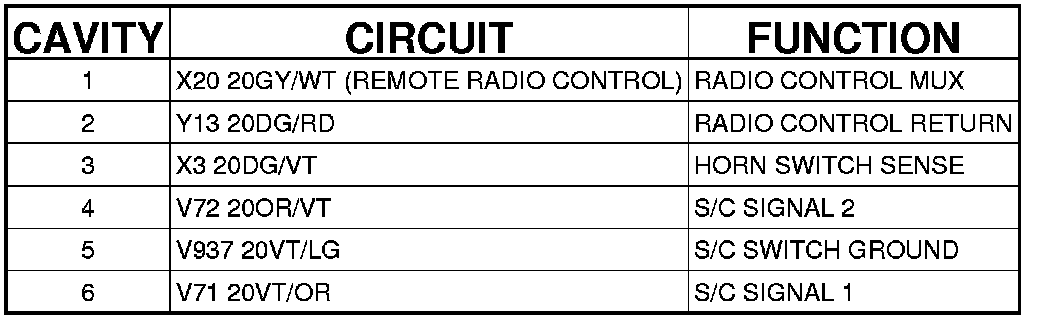

Connector C2 - (INSTRUMENT PANEL) 6 WAY

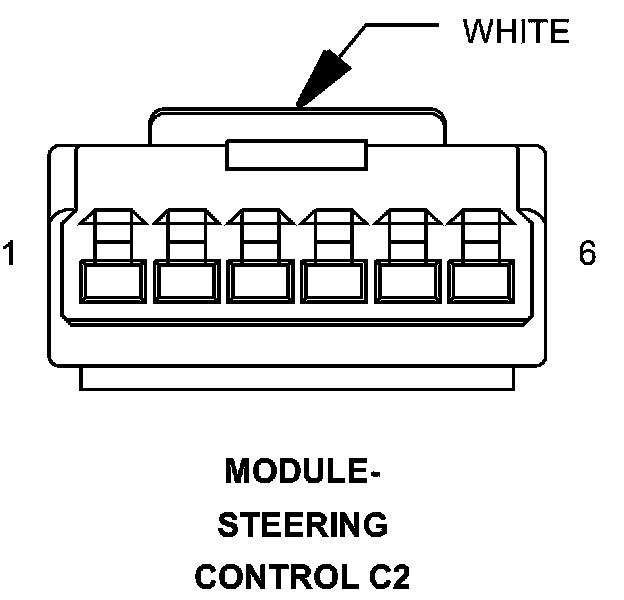

MODULE-STEERING CONTROL - (INSTRUMENT PANEL) 6 WAY
