Totally Integrated Power Module C9 (Battery Feed To TIPM) 1 Way

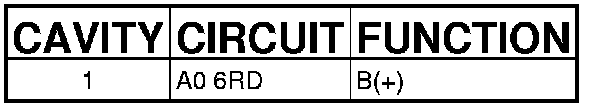

Connector C9 - (BATTERY FEED TO TIPM) 1 WAY

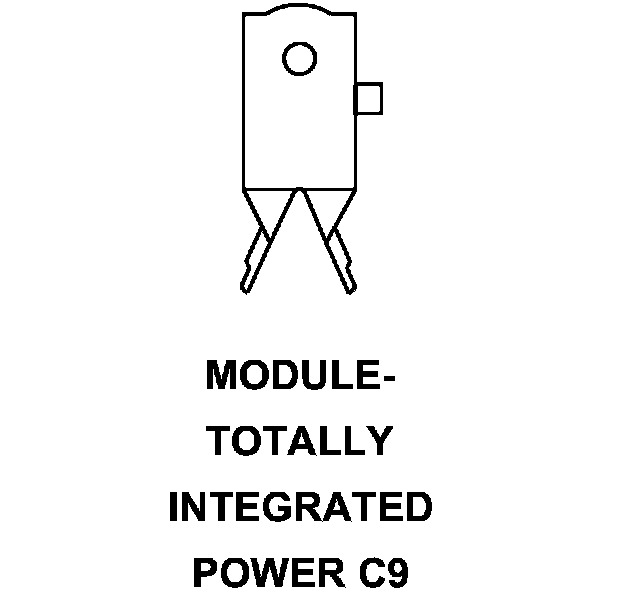

MODULE-TOTALLY INTEGRATED POWER - (BATTERY FEED TO TIPM) 1 WAY
