Totally Integrated Power Module C8 (Engine Compartment) 22 Way

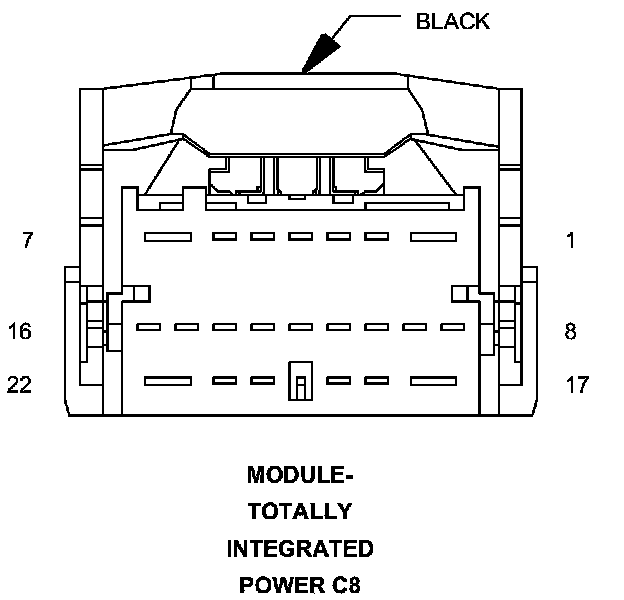

Connector C8 - (ENGINE COMPARTMENT) 22 WAY

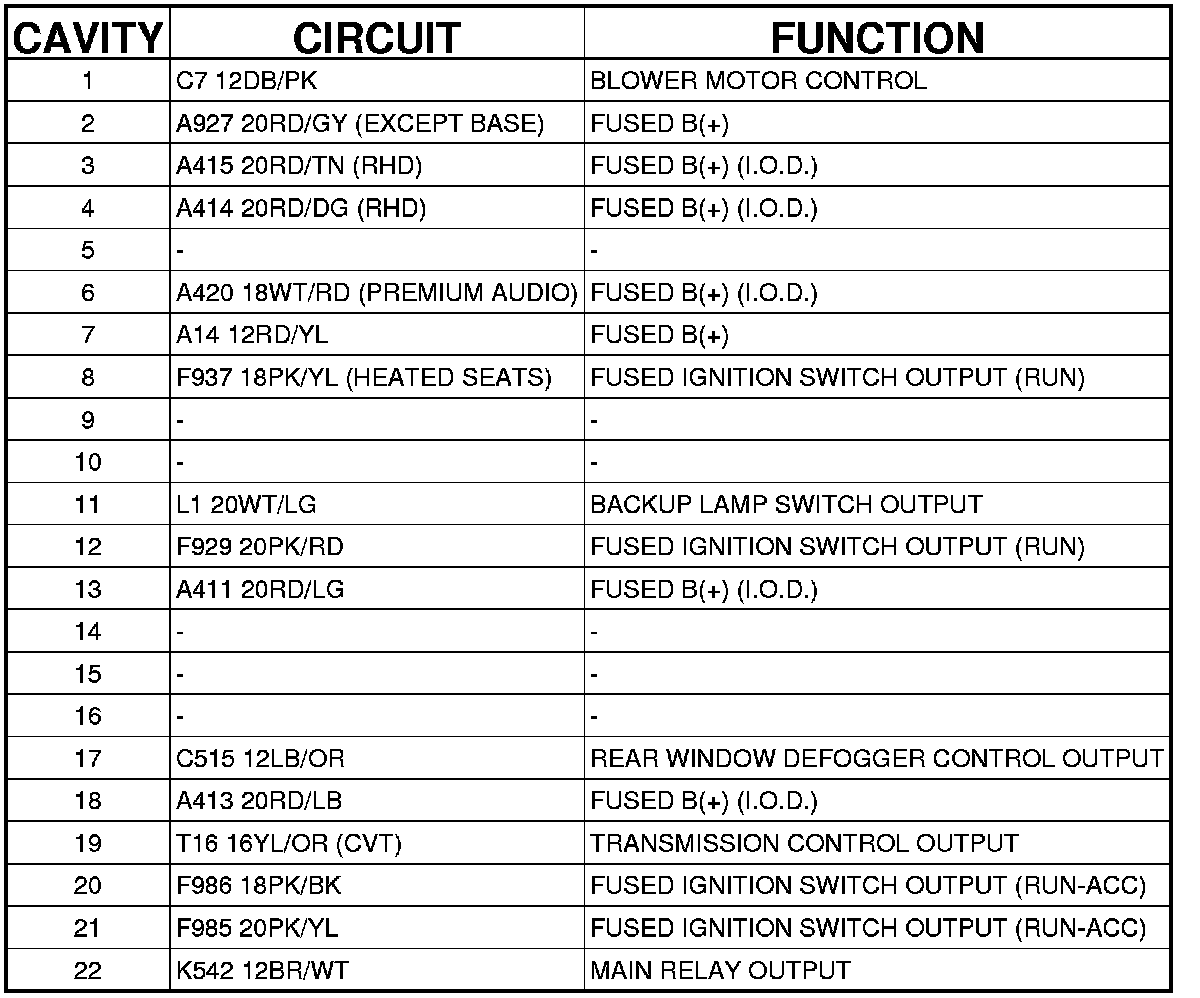

MODULE-TOTALLY INTEGRATED POWER - (ENGINE COMPARTMENT) 22 WAY
