Totally Integrated Power Module C10 (Engine Compartment) 8 Way

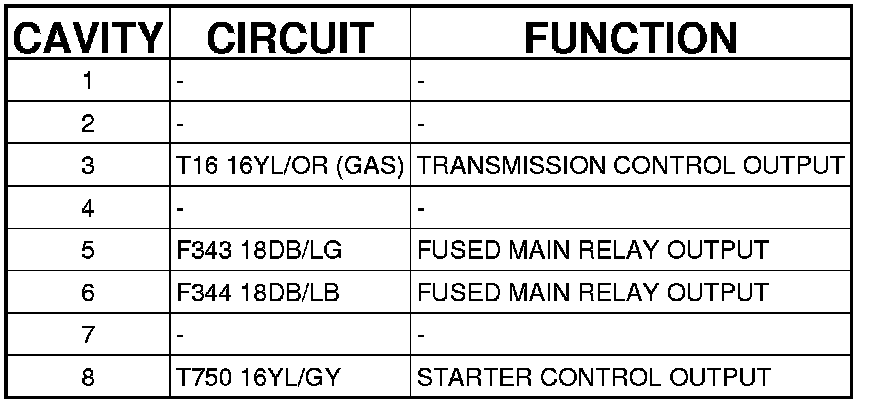

Connector C10 - (ENGINE COMPARTMENT) 8 WAY




MODULE-TOTALLY INTEGRATED POWER - (ENGINE COMPARTMENT) 8 WAY
