Electronic Brake Control Module

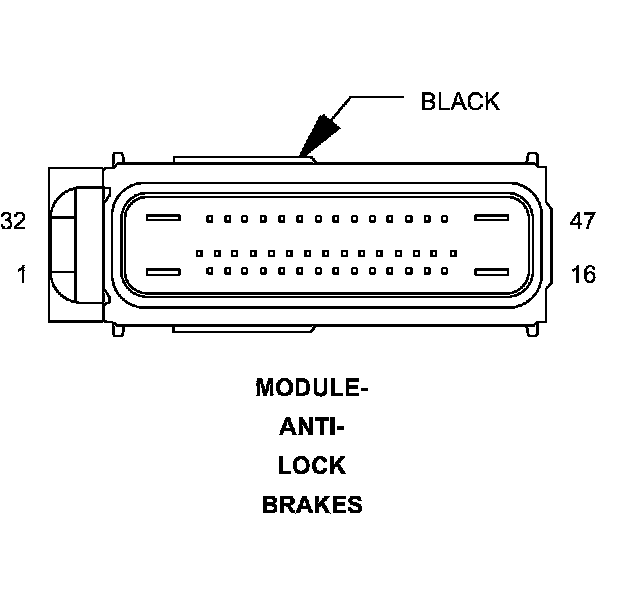

Connector - (ENGINE COMPARTMENT) 47 WAY

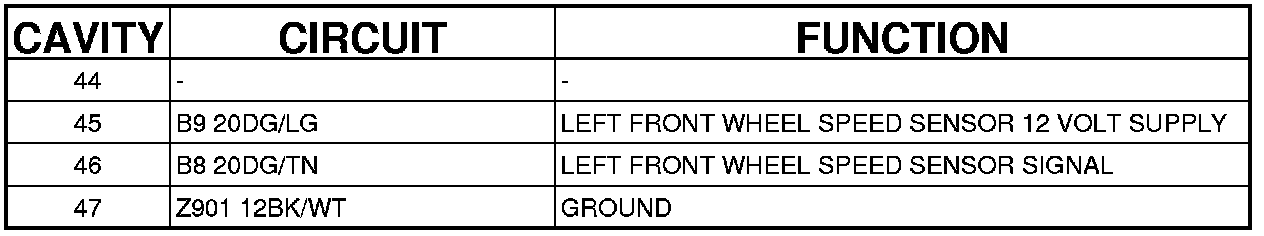

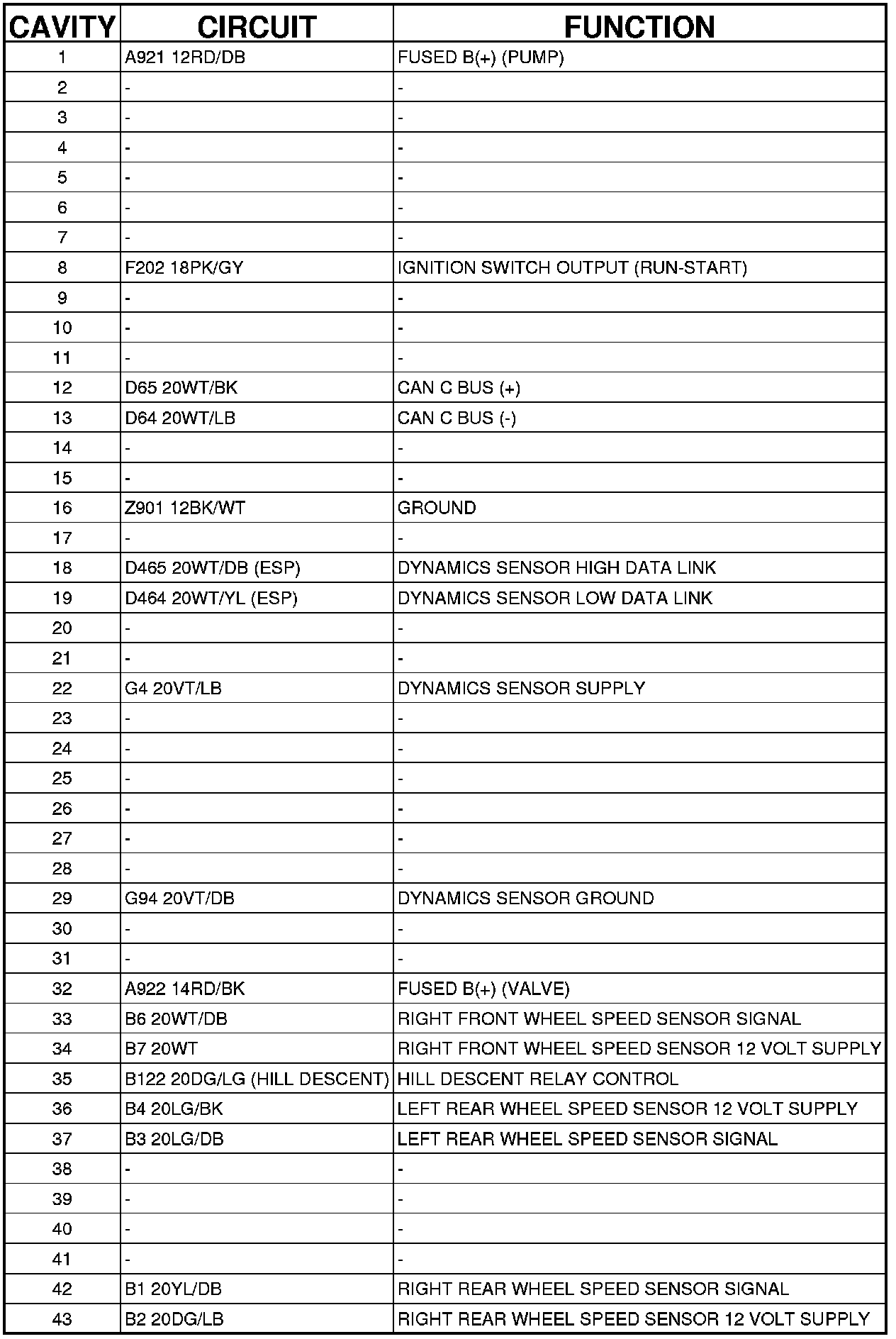

MODULE-ANTI-LOCK BRAKES - (ENGINE COMPARTMENT) 47 WAY
