Transmission Control Module C2 (CVT) (Body) 24 Way
Transmission Control Module C2 (CVT) (Body) 24 Way

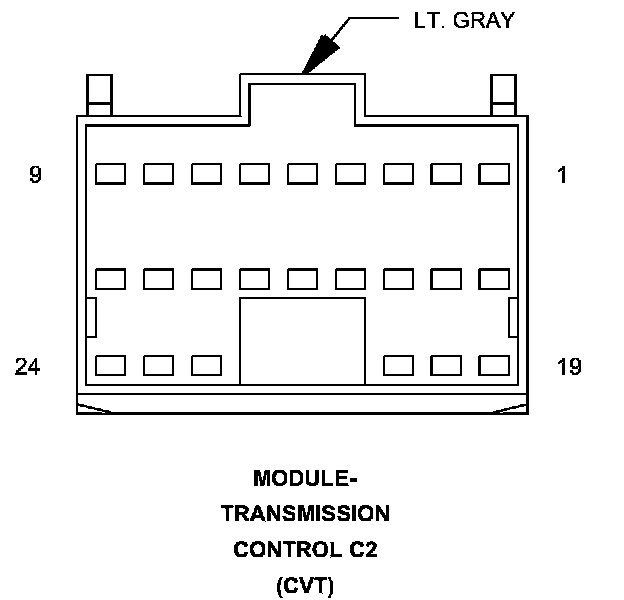

Connector C2 (CVT) - (BODY) 24 WAY

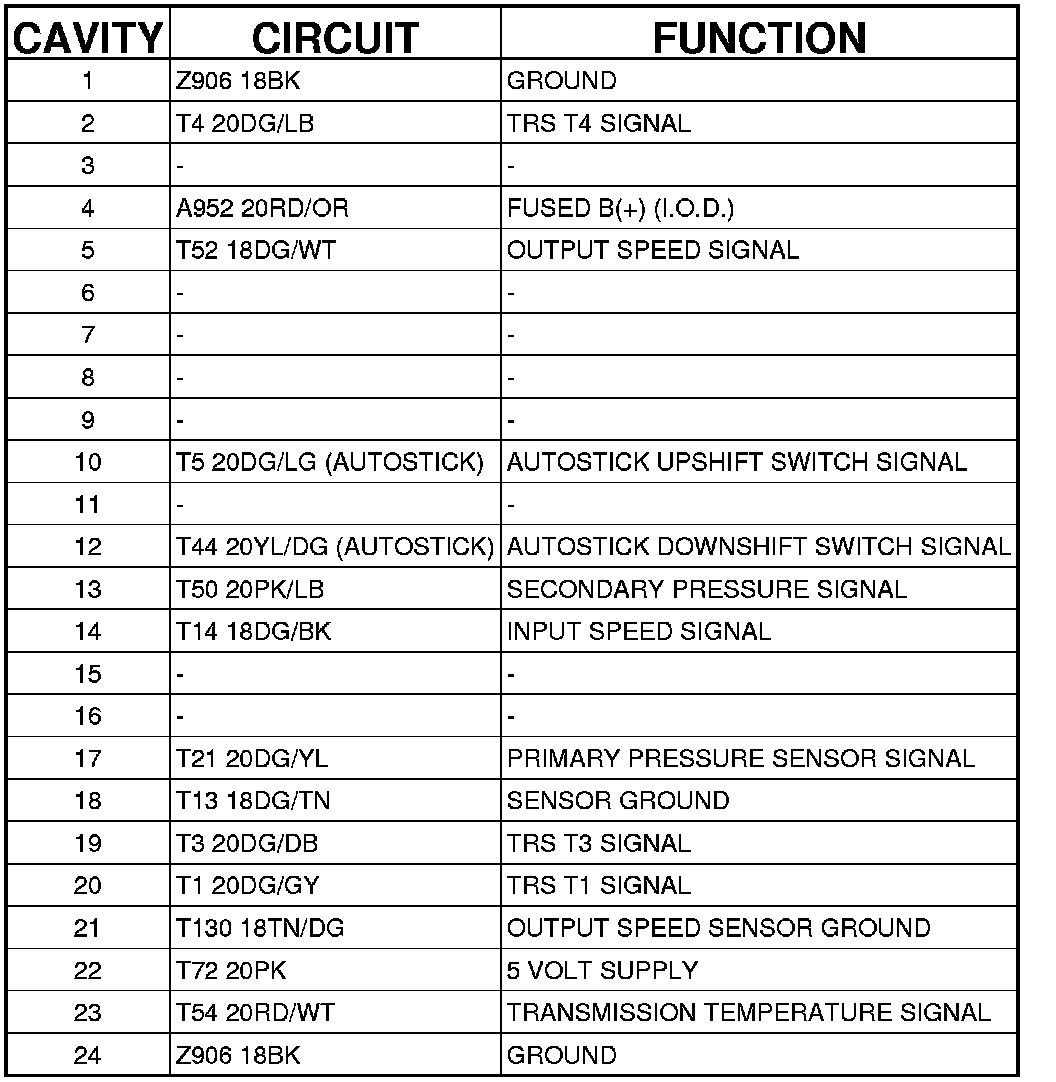

MODULE-TRANSMISSION CONTROL (CVT) - (BODY) 24 WAY
