Home >> Jeep >> 2009 >> Compass 2WD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Brake Light Switch

Brake Light Switch

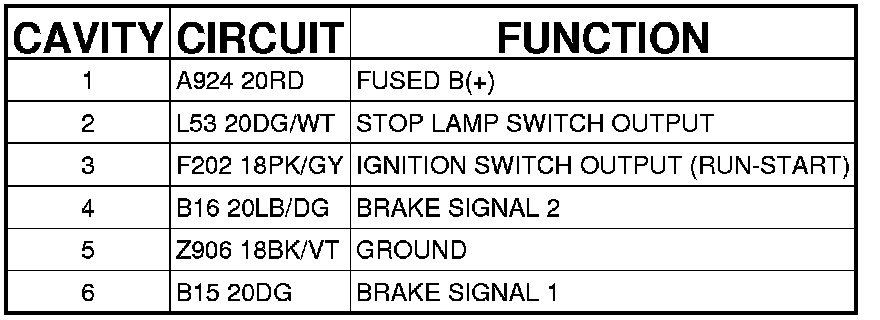

Connector - (BODY) 6 WAY

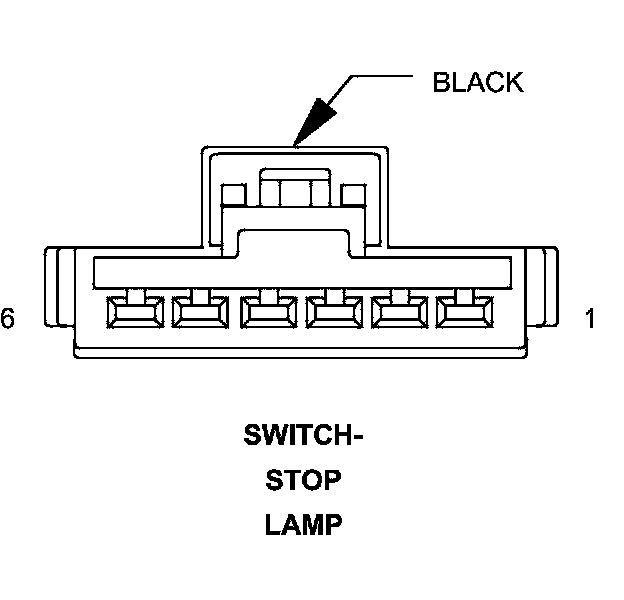

SWITCH-STOP LAMP - (BODY) 6 WAY
